aston martin v8 volante (2000) secondary air injection system parts diagram

2.3 - Secondary Air Injection System

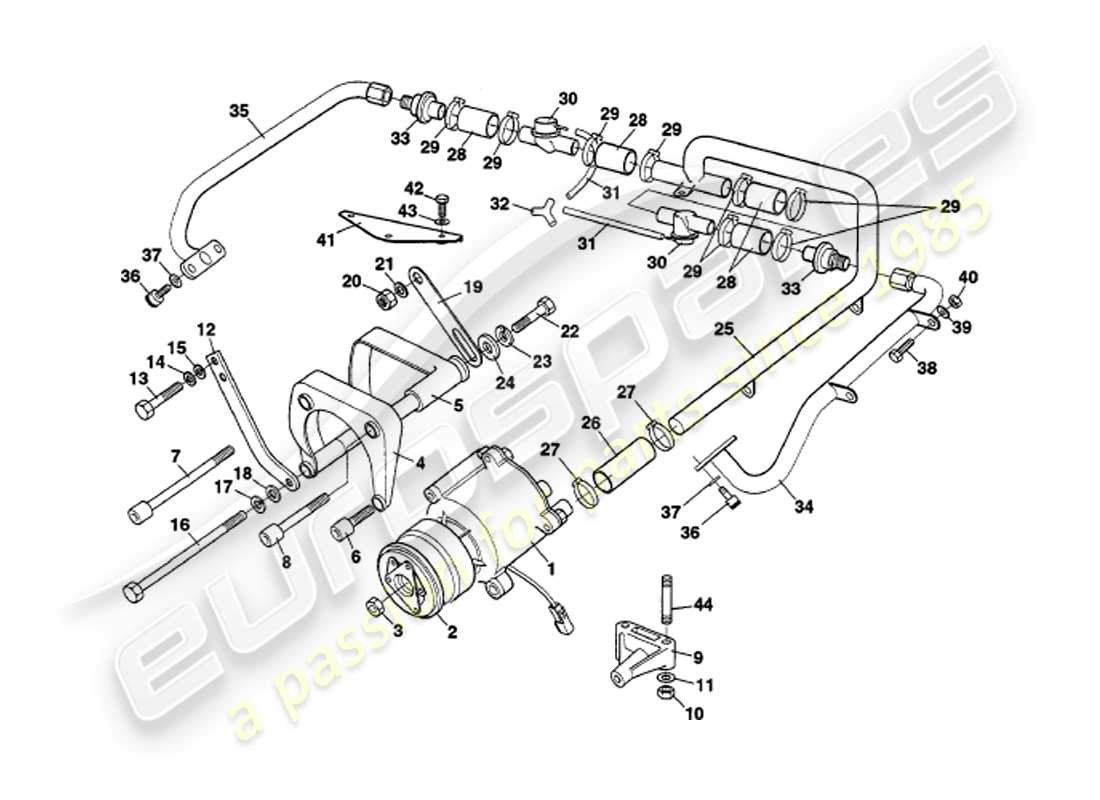

Aston Martin V8 Volante (2000) Secondary Air Injection System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# -
MPN: 07-26473
AIR pump and clutch assembly
AIR pump and clutch assembly Genuine Aston Martin - New (to order)
# 1
MPN: 07-26472
AIR PUMP
from £689.06
from £689.06
AIR PUMP-NIPPONDENSO Genuine Aston Martin - New (to order)
# 2
MPN: 07-26471
CLUTCH, AIR PUMP
from £460.28
from £460.28
clutch Genuine Aston Martin - New (to order)
# 3
MPN: 692232
LOCKNUT, M14, THIN
from £2.15
from £2.15
NUT M14 PLN THIN HEX Genuine Aston Martin - New (to order)
# -
MPN: 692184
LOCTITE, NUTLOCK 242E, BLUE
from £163.21
from £163.21
LOCTITE 242E-SEALANT Genuine Aston Martin - New (to order)
# 4
MPN: 07-26460
HOUSING OUTER, AIR PUMP
from £215.31
from £215.31
HSG OUTER-AIR PUMP Genuine Aston Martin - New (to order)
# 5
MPN: 07-26462
HOUSING ASSEMBLY INNER, AIR PUMP
from £113.72
from £113.72
ASY HSG INNR-AIR PMP Genuine Aston Martin - New (to order)
# 6
MPN: 693782
CAPSCREW, M8X20
from £0.54
from £0.54
SCREW M8 X20 SKT CAP Genuine Aston Martin - New (to order)
# 7
MPN: 694261
CAPSCREW, M8X100
from £2.51
from £2.51
SCREW M8 X100 SKT CP Genuine Aston Martin - New (to order)
# 8
MPN: 694480
CAPSCREW, M8X70
from £0.87
from £0.87
SCREW M8 X70 SKT CAP Genuine Aston Martin - New (to order)
# 9
MPN: 07-26223
MOUNTING BRACKET ASSY, AIR PUMP
from £89.77
from £89.77
ASY BRACKET MOUNTING Genuine Aston Martin - New (to order)
# 10
MPN: 123115
NUT, NYLOC, 5/16 UNF
Mounting bracket to cylinder head
from £3.58
from £3.58
Nut, Nyloc,5/16UNF Timing case to block Genuine Aston Martin - New (to order)
SPACER (123115) Genuine Ferrari Part - New (to order)
# 11
MPN: 119471
WASHER, PLAIN, 5/16
Mounting bracket to cylinder head
WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
# 12
MPN: 07-25872
PLATE, PIVOT, AIR PUMP
from £31.79
from £31.79
PLATE - PIVOT Genuine Aston Martin - New (to order)
# 13
MPN: 692087
SCREW, M8X20
Pivot plate to front cover
Screw, M8 x 20, plate to front cover Genuine Aston Martin - New (to order)
# 14
MPN: 692047
WASHER, SPRING, M8
Pivot plate to front cover
from £0.47
from £0.47
WASHER M8 SPRING Genuine Aston Martin - New (to order)
# 15
MPN: 692057
WASHER, PLAIN, M8
Pivot plate to front cover
from £0.47
from £0.47
WASHER M8 PLAIN Genuine Aston Martin - New (to order)
# 16
MPN: 693217
BOLT, M10X160
AIR pump to bracket
from £10.92
from £10.92
BOLT M10 X 160 HEX Genuine Aston Martin - New (to order)
# 17
MPN: 692068
WASHER, SHAKEPROOF, M10
AIR pump to bracket
from £0.47
from £0.47
WASHER M10 S/PROOF Genuine Aston Martin - New (to order)
# 18
MPN: 692058
WASHER, PLAIN, M10
AIR pump to bracket
from £0.47
from £0.47
WASHER M10 PLAIN Genuine Aston Martin - New (to order)
# 19
MPN: 07-25871
ADJUSTMENT LINK, AIR PUMP
from £30.89
from £30.89
LINK ADJUSTMENT Genuine Aston Martin - New (to order)
# 20
MPN: 692034
NUT, NYLOC, M10
Adjustment link to stud
from £0.47
from £0.47
NUT M10 HEX SLK Genuine Aston Martin - New (to order)
# 21
MPN: 692058
WASHER, PLAIN, M10
Adjustment link to stud
from £0.47
from £0.47
WASHER M10 PLAIN Genuine Aston Martin - New (to order)
# 22
MPN: 692185
SETSCREW, M10X25
Adjustment link to AIR pump
from £0.98
from £0.98
SCREW M10 X25 HEX HD Genuine Aston Martin - New (to order)
# 23
MPN: 692048
WASHER, SPRING, M10
Adjustment link to AIR pump
from £0.47
from £0.47
WASHER M10 SPRING Genuine Aston Martin - New (to order)
# 24
MPN: 692058
WASHER, PLAIN, M10
Adjustment link to AIR pump
from £0.47
from £0.47
WASHER M10 PLAIN Genuine Aston Martin - New (to order)
# 25
MPN: 07-72927
AIR INJECTION PIPE ASSY
from £447.86
from £447.86
AIR INJ PIPE ASSY Genuine Aston Martin - New (to order)
# -
MPN: 069-032-0138
PIPE CLIP
Primary pipe to intake pipe
from £40.80
from £40.80
CLIP - PIPE Genuine Aston Martin - New (to order)
# -
MPN: 692005
SCREW, M5X16
Primary pipe to intake pipe
from £0.47
from £0.47
SCREW M5 X 16 HEX HD Genuine Aston Martin - New (to order)
# -
MPN: 690257
WASHER, PLAIN, 3/16 ID
Primary pipe to intake pipe
from £1.38
from £1.38
WASHER-3/16 X 3/4 Genuine Aston Martin - New (to order)
# -
MPN: 692800
NUT, M5
Primary pipe to intake pipe
from £0.47
from £0.47
NUT M5 HEX SLK Genuine Aston Martin - New (to order)
# 26
MPN: 07-26652
HOSE, AIR PUMP TO INJECTION PIPE ASSY
Made from 694790
HOSE Genuine Aston Martin - New (to order)
# 27
MPN: 694620
CLIP, OETIKER 326
Hose attachment
from £1.20
from £1.20
CLIP OETIKER 316 Genuine Aston Martin - New (to order)
# 28
MPN: 07-26651
HOSE, AIR INJECTION
Made from 696337
HOSE Genuine Aston Martin - New (to order)
# 29
MPN: 692723
EAR CLAMP
Hose attachment
from £2.03
from £2.03
CLAMP - EAR NO286 Genuine Aston Martin - New (to order)
# 30
MPN: 07-26602
AIR switching valve
from £80.22
from £80.22
AIR switching valve Genuine Aston Martin - New (to order)
# 31
MPN: 692546
TUBE, POLYVON, 1/8 DIA
AIR switching valve
from £7.91
from £7.91
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 32
MPN: 08-21068
Y CONNECTION
AIR switching valve
Y' connection Genuine Aston Martin - New (to order)
# 33
MPN: 07-26655
CHECK VALVE
from £65.10
from £65.10
CHECK VALVE Genuine Aston Martin - New (to order)
# 34
MPN: 07-73668
SECONDARY AIR INJECTION PIPE ASSY, LH
from £603.57
from £603.57
ASSEMBLY AIR INJ PIPE Genuine Aston Martin - New (to order)
# 35
MPN: 07-73666
SECONDARY AIR INJECTION PIPE ASSY, RH
from £603.57
from £603.57
ASSY-AIR INJ PIPE Genuine Aston Martin - New (to order)
# -
MPN: 119480
WASHER, SPRING, 1/4
AIR pipe RH, to cylinder head stud
Washer, spring, 1/4, plate to stud Genuine Aston Martin - New (to order)
# -
MPN: 119470
WASHER, PLAIN, 1/4
AIR pipe RH, to cylinder head stud
Washer, plain, 1/4 Oil seal housing to block Genuine Aston Martin - New (to order)
# -
MPN: 542004
LOCKNUT, 1/4
AIR pipe RH, to cylinder head stud
from £2.64
from £2.64
NUT 1/4 UNF HEX THIN Genuine Aston Martin - New (to order)
# 36
MPN: 694211
CAPSCREW, M6X16
Secondary AIR pipes attach
from £0.88
from £0.88
SCREW M6 X16 SKT CAP Genuine Aston Martin - New (to order)
# 37
MPN: 692046
WASHER, SPRING, M6
Secondary AIR pipes attach
from £0.47
from £0.47
WASHER M6 SPRING Genuine Aston Martin - New (to order)
# 38
MPN: 692262
SCREW, M6X12
Primary pipe to secondary pipe, LH
from £0.47
from £0.47
SCREW M6 X 12 HEX HD Genuine Aston Martin - New (to order)
# 39
MPN: 692056
WASHER, PLAIN, M6
Primary pipe to secondary pipe, LH
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# 40
MPN: 692151
NUT, NYLOC, M6
Primary pipe to secondary pipe, LH
from £0.54
from £0.54
NUT M6 HEX SLK Genuine Aston Martin - New (to order)
# 41
MPN: 07-72852
SUPPORT BRACKET ASSY, AIR INJECTION PIPES
from £22.56
from £22.56
ASSEMBLY SUPPORT BRKT Genuine Aston Martin - New (to order)
# 42
MPN: 692090
SCREW, M5X12
from £0.47
from £0.47
SCREW M5 X 12 HEX HD Genuine Aston Martin - New (to order)
# 43
MPN: 692045
WASHER, SPRING, M5
from £0.47
from £0.47
WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
# 44
MPN: 694222
STUD, 5/16 UNC/UNF
AIR PUMP BRACKET
from £8.76
from £8.76
STUD 5/16 UNC/UNF Genuine Aston Martin - New (to order)
