aston martin v8 volante (2000) interior lamps parts diagram

6.2C - Interior Lamps

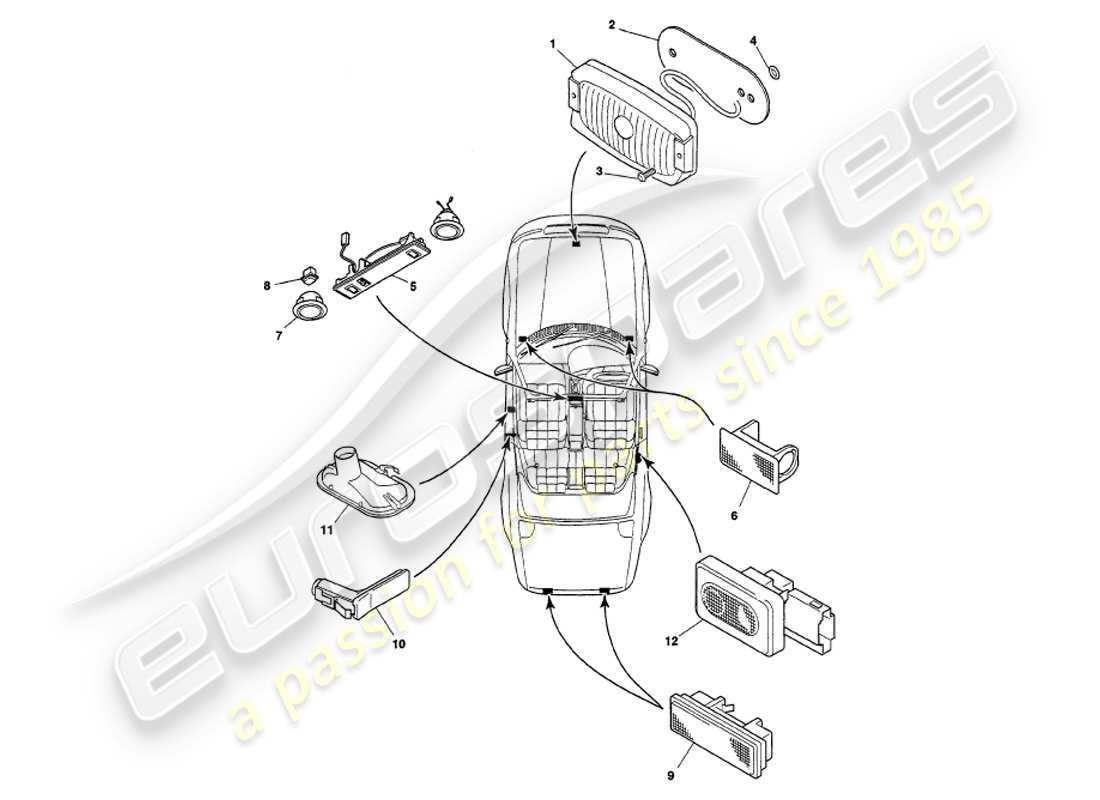

Aston Martin V8 Volante (2000) Interior Lamps Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 069-037-0151
                      BONNET LAMP
                      from £145.77
                      from £145.77
                      LAMP-BONNET &REVERSE Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 37-72495
                      GASKET, BONNET LAMP
                      from £6.20
                      from £6.20
                      GASKET-BONNET LAMP Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 696470
                      SCREW, M4X12 PAN, PLASTIC, NYLON
                      Bonnet lamp attach
                      from £0.47
                      from £0.47
                      SCREW M4 X 12 PAN Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 691917
                      GROMMET, 3/8 PVC
                      Bonnet lamp harness
                      from £0.47
                      from £0.47
                      GROMMET 3/8 PVC Genuine Aston Martin - New (to order)
                      # -
                      MPN: 693633
                      CABLE, BLACK, 7/030MM
                      from £0.55
                      from £0.55
                      CBL BLACK 7/030MM Genuine Aston Martin - New (to order)
                      # -
                      MPN: 696429
                      2 WAY PIN MOULDING
                      from £3.87
                      from £3.87
                      2 WAY PIN MOULDING Genuine Aston Martin - New (to order)
                      # -
                      MPN: 696441
                      2 WAY PIN LOCKING WEDGE
                      from £0.47
                      from £0.47
                      2 WAY LOCKING WEDGE Genuine Aston Martin - New (to order)
                      # -
                      MPN: 696455
                      PIN TERMINAL, 0.5 - 1.5
                      from £0.47
                      from £0.47
                      PIN TERMINAL 0.5-1.5 Genuine Aston Martin - New (to order)
                      # -
                      MPN: 693946
                      TERMINAL, EARTHING
                      from £0.57
                      from £0.57
                      TERMINAL-EARTHING Genuine Aston Martin - New (to order)
                      # -
                      MPN: 692121
                      SLEEVING, BLACK PVC
                      from £0.60
                      from £0.60
                      SLVNG BLACK PVC Genuine Aston Martin - New (to order)
                      # -
                      MPN: 691917
                      GROMMET, 3/8 PVC
                      from £0.47
                      from £0.47
                      GROMMET 3/8 PVC Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 37-50377
                      INTERIOR LAMP, FRONT
                      from £24.41
                      from £24.41
                      INTERIOR FRONT LAMP Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 37-62218
                      LENS, FOOTWELL LAMP
                      from £17.34
                      from £17.34
                      LENS Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 37-50378
                      EYEBALL LAMP
                      from £71.87
                      from £71.87
                      EYEBALL LAMP Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 37-52860
                      BULB HOLDER
                      from £6.08
                      from £6.08
                      BULB HOLDER Genuine Aston Martin - New (to order)
                      # -
                      MPN: 069-037-0216
                      TERMINAL, EARTHING
                      from £0.68
                      from £0.68
                      TERMINAL Genuine Aston Martin - New (to order)
                      # -
                      MPN: 628-000-0603
                      SCREW, NO.6 X 3/8
                      Earth terminal to header rail
                      from £0.47
                      from £0.47
                      SCREW NO6 X3/8 PANHD Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 37-10809
                      BOOT LAMP
                      from £29.49
                      from £29.49
                      INTERIOR LAMP Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 37-72064
                      DOOR EDGE LAMP
                      from £29.05
                      from £29.05
                      DOOR EDGE LAMP Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 37-72065
                      DOOR PUDDLE LAMP
                      from £4.89
                      from £4.89
                      DOOR PUDDLE LAMP Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 37-65346
                      INTERIOR LAMP, REAR
                      from £25.95
                      from £25.95
                      INTERIOR LAMP REAR Genuine Aston Martin - New (to order)
