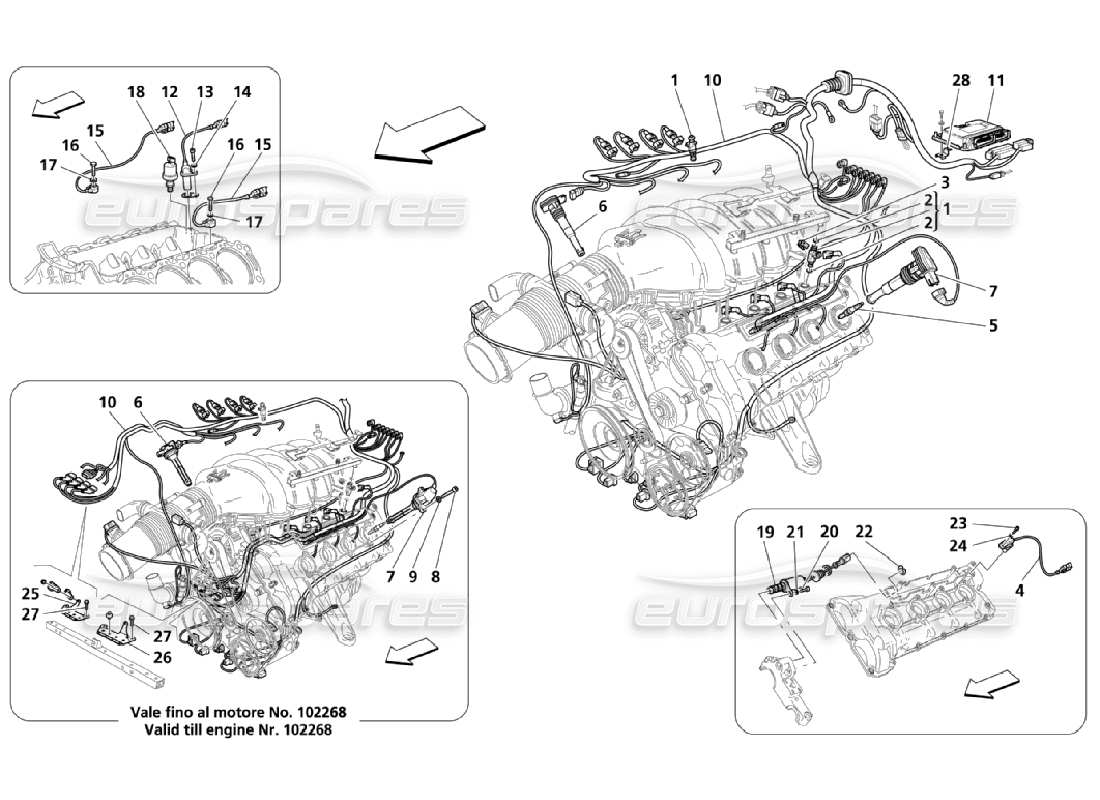

190 - Electronic Control: Injection And Phase Check
Maserati QTP. (2006) 4.2 Electronic Control: Injection And Phase Check Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
197808
ELECTROINJECTOR
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274 - Included in the Complete injectors pipes (Draw 1.43 Pos. 15 and 16)
from
£152.68
from
£152.68
#
001
MPN:
213635
ELECTROINJECTOR
Not for AUS and J - Not for cars GD opt. japan version - Included in the Complete injectors pipes (Draw 1.43 Pos. 15 and 16)
from
£125.30
from
£125.30
#
001
MPN:
213635
ELECTROINJECTOR
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275 - Included in the Complete injectors pipes (Draw 1.43 Pos. 15 and 16)
from
£125.30
from
£125.30
#
002
MPN:
133902
GASKET
Included in the Complete injectors pipes (Draw 1.43 Pos. 15 and 16)
from
£3.29
from
£3.29
#
003
MPN:
144730
CLIP
Included in the Complete injectors pipes (Draw 1.43 Pos. 15 and 16)
from
£2.09
from
£2.09
#
004
MPN:
201990
PHASE SENSOR
from
£72.66
from
£72.66
#
005
MPN:
192637
SPARK PLUG
from
£14.10
from
£14.10
This part replaces part number 168325 which we have in stock
- and 1 more. Click to view details
#
005
MPN:
192637
SPARK PLUG
Replaces 168325
from
£14.10
from
£14.10
This part replaces part number 168325 which we have in stock
- and 1 more. Click to view details
#
006
MPN:
203771
FRONT IGNITION COIL
Complete of cable - Valid till engine Nr. 102268
from
£89.95
from
£89.95
#
006
MPN:
281449
IGNITION COIL
from
£38.05
from
£38.05
This part replaces part number 248404
- and 1 more. Click to view details
#
007
MPN:
203770
REAR IGNITION COIL
Complete of cable - Valid till engine Nr. 102268
from
£89.95
from
£89.95
#
007
MPN:
281449
IGNITION COIL
from
£38.05
from
£38.05
This part replaces part number 248404
- and 1 more. Click to view details
#
008
MPN:
201599
SCREW
Valid till engine Nr. 102268
from
£0.47
from
£0.47
#
009
MPN:
11197774
WASHER
Valid till engine Nr. 102268
from
£0.52
from
£0.52
#
010
MPN:
203302
ENGINE INJECTION CABLE
Valid for GD - Valid till engine Nr. 102268 - Valid till stock exhaustion
Supersession
Supersession
#
010
MPN:
209594
ENGINE INJECTION CABLE
Valid for USA and CDN - Valid till engine Nr. 102268 - Valid till stock exhaustion
Supersession
Supersession
#
010
MPN:
212171
ENGINE INJECTION CABLE
Not for USA, CDN and GD - Valid till engine Nr. 102268 - Valid till stock exhaustion
from
£1,871.01
from
£1,871.01
This part replaces part number 205081
#
010
MPN:
212171
ENGINE INJECTION CABLE
Not for USA, CDN and GD - Valid till engine Nr. 102268 - Valid after stock exhaustion of 205081
from
£1,871.01
from
£1,871.01
This part replaces part number 205081
#
010
MPN:
212172
ENGINE INJECTION CABLE
Valid for USA and CDN - Valid till engine Nr. 102268 - Valid after stock exhaustion of 209594
from
£1,011.90
from
£1,011.90
This part replaces part number 209594
#
010
MPN:
212173
ENGINE INJECTION CABLE
Valid for GD - Valid till engine Nr. 102268 - Valid after stock exhaustion of 203302
from
£608.66
from
£608.66
This part replaces part number 203302
- and 1 more. Click to view details
#
010
MPN:
220185
ENGINE INJECTION CABLE
Not for USA, CDN and GD - Valid from engine Nr. 102269
from
£917.22
from
£917.22
#
010
MPN:
220205
ENGINE INJECTION CABLE
Valid for GD - Valid from engine Nr. 102269
from
£885.87
from
£885.87
#
010
MPN:
220206
ENGINE INJECTION CABLE
Valid for USA and CDN - Valid from engine Nr. 102269
from
£1,977.90
from
£1,977.90
#
011
MPN:
980139471
CONTROL UNIT IGNITION
Programmable
from
£734.51
from
£734.51
This part replaces part number 985000029
- and 1 more. Click to view details
#
012
MPN:
201987
ANGOLAR SPEED SENSOR
use : 230760
Supersession
Supersession
#
013
MPN:
14305724
SCREW
from
£0.54
from
£0.54
#
014
MPN:
11197774
WASHER
from
£0.54
from
£0.54
#
015
MPN:
187739
SENSOR FOR FIRING
Flywheel side
from
£57.40
from
£57.40
This part replaces part number 182266
- and 1 more. Click to view details
#
015
MPN:
187740
SENSOR FOR FIRING
Timing side
from
£33.74
from
£33.74
This part replaces part number 181809
#
016
MPN:
16043834
SCREW
from
£0.47
from
£0.47
This part replaces part number 16043824 which we have in stock
#
017
MPN:
11198074
WASHER
from
£0.47
from
£0.47
#
018
MPN:
201672
OIL PRESSURE TRANSMITTER
from
£7.18
from
£7.18
#
019
MPN:
212423
VARIATOR CONTROL SOLENOID VALVE
Valid till stock exhaustion
from
£431.17
from
£431.17
This part replaces part number 186563
- and 2 more. Click to view details
#
019
MPN:
212423
VARIATOR CONTROL SOLENOID VALVE
Valid after stock exhaustion of 198494
from
£431.17
from
£431.17
This part replaces part number 186563
- and 2 more. Click to view details
#
020
MPN:
14433124
SCREW
from
£0.47
from
£0.47
#
021
MPN:
11197774
WASHER
from
£0.54
from
£0.54
#
022
MPN:
11087374
FLEXIBLE RING
from
£1.60
from
£1.60
#
023
MPN:
14305224
SCREW
from
£0.47
from
£0.47
#
024
MPN:
11197774
WASHER
from
£0.54
from
£0.54
#
025
MPN:
203583
RH BRACKET
Valid till engine Nr. 102268
from
£14.81
from
£14.81
#
026
MPN:
197718
LH BRACKET
Valid till engine Nr. 102268
from
£11.79
from
£11.79
#
027
MPN:
11612624
SCREW
Valid till engine Nr. 102268
from
£0.47
from
£0.47
#
028
MPN:
188239
BRACKET
from
£1.98
from
£1.98
-4.2-part-diagram-191.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROL: ENGINE STARTING PARTS DIAGRAM")
-4.2-part-diagram-201.webp "MASERATI QTP. (2006) 4.2 HYDRAULIC CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-211.webp "MASERATI QTP. (2006) 4.2 CLUTCH DISC & HOUSING FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-290.webp "MASERATI QTP. (2006) 4.2 CLUTCH ELECTRONIC CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-301.webp "MASERATI QTP. (2006) 4.2 DRIVER CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-310.webp "MASERATI QTP. (2006) 4.2 GEARS HOUSING PARTS DIAGRAM")
-4.2-part-diagram-311.webp "MASERATI QTP. (2006) 4.2 MAIN SHAFT GEARS PARTS DIAGRAM")
-4.2-part-diagram-312.webp "MASERATI QTP. (2006) 4.2 LAY SHAFT GEARS PARTS DIAGRAM")
-4.2-part-diagram-313.webp "MASERATI QTP. (2006) 4.2 INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-4.2-part-diagram-321.webp "MASERATI QTP. (2006) 4.2 REAR DIFFERENTIAL AND AXLE SHAFTS PARTS DIAGRAM")
-4.2-part-diagram-330.webp "MASERATI QTP. (2006) 4.2 TRANSMISSION TUBE PARTS DIAGRAM")
-4.2-part-diagram-340.webp "MASERATI QTP. (2006) 4.2 GEARBOX CONTROL HYDRAULICS: POWER UNIT PARTS DIAGRAM")
-4.2-part-diagram-341.webp "MASERATI QTP. (2006) 4.2 GEARBOX CONTROL HYDRAULICS: TANK AND PUMP PARTS DIAGRAM")
-4.2-part-diagram-350.webp "MASERATI QTP. (2006) 4.2 LUBRICATION AND COOLING FOR GEARBOX OIL PARTS DIAGRAM")
-4.2-part-diagram-390.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROLS (GEARBOX) PARTS DIAGRAM")
-4.2-part-diagram-400.webp "MASERATI QTP. (2006) 4.2 BRAKE BOOSTER SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-410.webp "MASERATI QTP. (2006) 4.2 FRONT WHEELS BRAKING PARTS PARTS DIAGRAM")
-4.2-part-diagram-411.webp "MASERATI QTP. (2006) 4.2 REAR WHEELS BRAKING PARTS PARTS DIAGRAM")
-4.2-part-diagram-420a.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 1-4) PARTS DIAGRAM")
-4.2-part-diagram-420b.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 2-4) PARTS DIAGRAM")
-4.2-part-diagram-420c.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 3-4) PARTS DIAGRAM")
-4.2-part-diagram-420d.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 4-4) PARTS DIAGRAM")
-4.2-part-diagram-430.webp "MASERATI QTP. (2006) 4.2 HAND-BRAKE CONTROL PARTS DIAGRAM")
-4.2-part-diagram-490.webp "MASERATI QTP. (2006) 4.2 BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-4.2-part-diagram-500.webp "MASERATI QTP. (2006) 4.2 SHAFT AND STEERING WHEEL GROUP PARTS DIAGRAM")
-4.2-part-diagram-510.webp "MASERATI QTP. (2006) 4.2 STEERING BOX & SERVO-CONTROL PUMP PARTS DIAGRAM")
-4.2-part-diagram-520.webp "MASERATI QTP. (2006) 4.2 COMPLETE PEDAL SUPPORT PARTS DIAGRAM")
-4.2-part-diagram-600.webp "MASERATI QTP. (2006) 4.2 WHEEL RIM AND TYRE PARTS DIAGRAM")
-4.2-part-diagram-610.webp "MASERATI QTP. (2006) 4.2 FRONT SUSPENSION PARTS DIAGRAM")
-4.2-part-diagram-611.webp "MASERATI QTP. (2006) 4.2 FRONT SUSPENSION PARTS PARTS DIAGRAM")
-4.2-part-diagram-612.webp "MASERATI QTP. (2006) 4.2 FRONT UNDERFRAME PARTS DIAGRAM")
-4.2-part-diagram-620.webp "MASERATI QTP. (2006) 4.2 REAR SUSPENSIONS PARTS DIAGRAM")
-4.2-part-diagram-621.webp "MASERATI QTP. (2006) 4.2 REAR SUSPENSION PARTS PARTS DIAGRAM")
-4.2-part-diagram-622.webp "MASERATI QTP. (2006) 4.2 REAR UNDERFRAME PARTS DIAGRAM")
-4.2-part-diagram-690.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROLS (SUSPENSIONS) PARTS DIAGRAM")
-4.2-part-diagram-700.webp "MASERATI QTP. (2006) 4.2 FRONT AIR-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-701.webp "MASERATI QTP. (2006) 4.2 PASSENGER AIR-BAG BLOCKING SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-702.webp "MASERATI QTP. (2006) 4.2 FRONT SIDE-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-704.webp "MASERATI QTP. (2006) 4.2 WINDOW-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-705.webp "MASERATI QTP. (2006) 4.2 CRASH SENSORS PARTS DIAGRAM")
-4.2-part-diagram-710.webp "MASERATI QTP. (2006) 4.2 FRONT SAFETY BELTS PARTS DIAGRAM")
-4.2-part-diagram-711.webp "MASERATI QTP. (2006) 4.2 REAR SAFETY BELTS PARTS DIAGRAM")
-4.2-part-diagram-720.webp "MASERATI QTP. (2006) 4.2 TYRES PRESSURE CONTROL SYSTEM -OPTIONAL- PARTS DIAGRAM")
-4.2-part-diagram-731.webp "MASERATI QTP. (2006) 4.2 TOOLS AND ACCESSORIES PARTS DIAGRAM")
-4.2-part-diagram-732.webp "MASERATI QTP. (2006) 4.2 TOOLS AND ACCESSORIES PARTS DIAGRAM")
-4.2-part-diagram-800.webp "MASERATI QTP. (2006) 4.2 CAR OUTER SERVICES PARTS DIAGRAM")
-4.2-part-diagram-810.webp "MASERATI QTP. (2006) 4.2 CAR INNER SERVICES PARTS DIAGRAM")
-4.2-part-diagram-820.webp "MASERATI QTP. (2006) 4.2 POWER PRODUCTION AND BATTERY PARTS DIAGRAM")
-4.2-part-diagram-830.webp "MASERATI QTP. (2006) 4.2 FRONT HEADLIGHTS PARTS DIAGRAM")
-4.2-part-diagram-831.webp "MASERATI QTP. (2006) 4.2 REAR LIGHTS PARTS DIAGRAM")
-4.2-part-diagram-832.webp "MASERATI QTP. (2006) 4.2 SIDE LIGHTS PARTS DIAGRAM")
-4.2-part-diagram-839.webp "MASERATI QTP. (2006) 4.2 HEADLIGHT SYSTEM CONTROL PARTS DIAGRAM")
-4.2-part-diagram-840a.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ENGINE COMPARTMENT PARTS (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-840b.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ENGINE COMPARTMENT PARTS (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-841.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: DASHBOARD PARTS PARTS DIAGRAM")
-4.2-part-diagram-842.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: DIFFUSION PARTS DIAGRAM")
-4.2-part-diagram-849.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ELECTRONIC CONTROL PARTS DIAGRAM")
-4.2-part-diagram-850.webp "MASERATI QTP. (2006) 4.2 DASHBOARD SERVICES PARTS DIAGRAM")
-4.2-part-diagram-851.webp "MASERATI QTP. (2006) 4.2 TUNNEL SERVICES PARTS DIAGRAM")
-4.2-part-diagram-852.webp "MASERATI QTP. (2006) 4.2 DOORS SERVICES PARTS DIAGRAM")
-4.2-part-diagram-853a.webp "MASERATI QTP. (2006) 4.2 ALARM SYSTEM AND IMMOBILIZER (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-853b.webp "MASERATI QTP. (2006) 4.2 ALARM SYSTEM AND IMMOBILIZER (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-860a.webp "MASERATI QTP. (2006) 4.2 MAIN CABLES (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-860b.webp "MASERATI QTP. (2006) 4.2 MAIN CABLES (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-861.webp "MASERATI QTP. (2006) 4.2 RELAYS, FUSES AND CASES PARTS DIAGRAM")
-4.2-part-diagram-870.webp "MASERATI QTP. (2006) 4.2 SOUND PROOF SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-871a.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 1-3) PARTS DIAGRAM")
-4.2-part-diagram-871b.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 2-3) PARTS DIAGRAM")
-4.2-part-diagram-871c.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 3-3) PARTS DIAGRAM")
-4.2-part-diagram-872.webp "MASERATI QTP. (2006) 4.2 SYSTEM FOR RECEPTION AND CONNECTION PARTS DIAGRAM")
-4.2-part-diagram-900.webp "MASERATI QTP. (2006) 4.2 FRONT OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-901.webp "MASERATI QTP. (2006) 4.2 CENTRAL OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-902.webp "MASERATI QTP. (2006) 4.2 REAR OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-903.webp "MASERATI QTP. (2006) 4.2 FRONT STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-904.webp "MASERATI QTP. (2006) 4.2 CENTRAL STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-905.webp "MASERATI QTP. (2006) 4.2 REAR STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-910.webp "MASERATI QTP. (2006) 4.2 FRONT BUMPER PARTS DIAGRAM")
-4.2-part-diagram-911.webp "MASERATI QTP. (2006) 4.2 REAR BUMPER PARTS DIAGRAM")
-4.2-part-diagram-912.webp "MASERATI QTP. (2006) 4.2 PARKING SENSORS -OPTIONAL- PARTS DIAGRAM")
-4.2-part-diagram-913.webp "MASERATI QTP. (2006) 4.2 WHEELHOUSE AND DOORS PARTS DIAGRAM")
-4.2-part-diagram-914.webp "MASERATI QTP. (2006) 4.2 FLAT FLOOR AND UNDERBODY SHIELDS PARTS DIAGRAM")
-4.2-part-diagram-915.webp "MASERATI QTP. (2006) 4.2 SHIELDS, MOULDINGS AND COVERS PARTS DIAGRAM")
-4.2-part-diagram-916.webp "MASERATI QTP. (2006) 4.2 MARKS AND SYMBOLS PARTS DIAGRAM")
-4.2-part-diagram-917.webp "MASERATI QTP. (2006) 4.2 ADHESIVES AND PLATES PARTS DIAGRAM")
-4.2-part-diagram-920.webp "MASERATI QTP. (2006) 4.2 FRONT HOOD PARTS DIAGRAM")
-4.2-part-diagram-921.webp "MASERATI QTP. (2006) 4.2 REAR HOOD PARTS DIAGRAM")
-4.2-part-diagram-922.webp "MASERATI QTP. (2006) 4.2 FUEL DOOR AND CONTROLS PARTS DIAGRAM")
-4.2-part-diagram-923.webp "MASERATI QTP. (2006) 4.2 FRONT HOOD OPENING DEVICE PARTS DIAGRAM")
-4.2-part-diagram-924.webp "MASERATI QTP. (2006) 4.2 REAR HOOD OPENING DEVICE PARTS DIAGRAM")
-4.2-part-diagram-930.webp "MASERATI QTP. (2006) 4.2 FRONT DOORS: UPHOLSTERY PARTS DIAGRAM")
-4.2-part-diagram-931.webp "MASERATI QTP. (2006) 4.2 FRONT DOORS: MOVEMENT DEVICES PARTS DIAGRAM")
-4.2-part-diagram-932.webp "MASERATI QTP. (2006) 4.2 REAR DOORS: PANELS PARTS DIAGRAM")
-4.2-part-diagram-933.webp "MASERATI QTP. (2006) 4.2 REAR DOORS: MOVEMENT DEVICES PARTS DIAGRAM")
-4.2-part-diagram-934.webp "MASERATI QTP. (2006) 4.2 GLASSES AND GASKETS PARTS DIAGRAM")
-4.2-part-diagram-935.webp "MASERATI QTP. (2006) 4.2 INNER AND OUTER REARVIEW MIRROR PARTS DIAGRAM")
-4.2-part-diagram-940.webp "MASERATI QTP. (2006) 4.2 FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-4.2-part-diagram-941.webp "MASERATI QTP. (2006) 4.2 FRONT SEATS: MECHANICS & ELECTRONICS PARTS DIAGRAM")
-4.2-part-diagram-942.webp "MASERATI QTP. (2006) 4.2 REAR SEATS: LININGS PARTS DIAGRAM")
-4.2-part-diagram-943.webp "MASERATI QTP. (2006) 4.2 REAR SEATS: MECHANICAL AND ELECTRONIC UNITS PARTS DIAGRAM")
-4.2-part-diagram-944.webp "MASERATI QTP. (2006) 4.2 SIDE FLANK AND PASSENGERS COMPARTMENT PILLAR UPHOLSTERY PARTS DIAGRAM")
-4.2-part-diagram-945.webp "MASERATI QTP. (2006) 4.2 ROOF AND SUN VISORS PARTS DIAGRAM")
-4.2-part-diagram-946.webp "MASERATI QTP. (2006) 4.2 UNDER REAR WINDOW MOULDING PARTS DIAGRAM")
-4.2-part-diagram-950.webp "MASERATI QTP. (2006) 4.2 DASHBOARD ASSEMBLY PARTS DIAGRAM")
-4.2-part-diagram-951.webp "MASERATI QTP. (2006) 4.2 TUNNEL AND ACCESSORIES COMPARTMENT PARTS DIAGRAM")
-4.2-part-diagram-952.webp "MASERATI QTP. (2006) 4.2 DASHBOARD DRAWERS PARTS DIAGRAM")
-4.2-part-diagram-960.webp "MASERATI QTP. (2006) 4.2 PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-4.2-part-diagram-961.webp "MASERATI QTP. (2006) 4.2 TRUNK HOOD CARPETS PARTS DIAGRAM")
-4.2-part-diagram-962.webp "MASERATI QTP. (2006) 4.2 SOUND INSULATION IN CAR PARTS DIAGRAM")
-4.2-part-diagram-963.webp "MASERATI QTP. (2006) 4.2 THERMAL INSULATIONS IN CAR PARTS DIAGRAM")
-4.2-part-diagram-971.webp "MASERATI QTP. (2006) 4.2 REMOVABLE ROOF PARTS DIAGRAM")
-4.2-part-diagram-000.webp "MASERATI QTP. (2006) 4.2 SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-4.2-part-diagram-100.webp "MASERATI QTP. (2006) 4.2 CRANKCASE PARTS DIAGRAM")
-4.2-part-diagram-110.webp "MASERATI QTP. (2006) 4.2 CRANK MECHANISM PARTS DIAGRAM")
-4.2-part-diagram-111.webp "MASERATI QTP. (2006) 4.2 BELTS AUXILIARY PARTS PARTS DIAGRAM")
-4.2-part-diagram-120.webp "MASERATI QTP. (2006) 4.2 RH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-121.webp "MASERATI QTP. (2006) 4.2 LH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-122.webp "MASERATI QTP. (2006) 4.2 CAMSHAFTS FOR RH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-123.webp "MASERATI QTP. (2006) 4.2 CAMSHAFTS FOR LH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-124.webp "MASERATI QTP. (2006) 4.2 TIMING PARTS DIAGRAM")
-4.2-part-diagram-125.webp "MASERATI QTP. (2006) 4.2 VALVES PARTS DIAGRAM")
-4.2-part-diagram-126.webp "MASERATI QTP. (2006) 4.2 HYDRAULICS FOR TIMING PARTS DIAGRAM")
-4.2-part-diagram-140.webp "MASERATI QTP. (2006) 4.2 AIR INTAKE MANIFOLD AND THROTTLE HOLDER PARTS DIAGRAM")
-4.2-part-diagram-141.webp "MASERATI QTP. (2006) 4.2 AIR FILTER, INTAKE AND CONVEYOR PARTS DIAGRAM")
-4.2-part-diagram-142.webp "MASERATI QTP. (2006) 4.2 FUEL TANKS PARTS DIAGRAM")
-4.2-part-diagram-143a.webp "MASERATI QTP. (2006) 4.2 FUEL PUMPS AND PIPING - VALID TILL CAR 24274 PARTS DIAGRAM")
-4.2-part-diagram-143b.webp "MASERATI QTP. (2006) 4.2 FUEL PUMPS AND PIPING - VALID FROM CAR 24275 PARTS DIAGRAM")
-4.2-part-diagram-144.webp "MASERATI QTP. (2006) 4.2 FUEL VAPORS RECYCLE SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-150.webp "MASERATI QTP. (2006) 4.2 ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-160.webp "MASERATI QTP. (2006) 4.2 LUBRICATION: PIPING AND RECOVER PARTS DIAGRAM")
-4.2-part-diagram-161.webp "MASERATI QTP. (2006) 4.2 LUBRICATION: PUMP AND FILTER PARTS DIAGRAM")
-4.2-part-diagram-162.webp "MASERATI QTP. (2006) 4.2 HEAT EXCHANGER PARTS DIAGRAM")
-4.2-part-diagram-163.webp "MASERATI QTP. (2006) 4.2 BLOW - BY SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-170.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: RADIATORS AND AIR CONVEYORS PARTS DIAGRAM")
-4.2-part-diagram-171.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: NOURICE AND PIPING PARTS DIAGRAM")
-4.2-part-diagram-172.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-4.2-part-diagram-180.webp "MASERATI QTP. (2006) 4.2 PRECATALYST AND CATALYST PARTS DIAGRAM")
-4.2-part-diagram-181.webp "MASERATI QTP. (2006) 4.2 SILENCERS PARTS DIAGRAM")
