maserati levante (2017) standard provided parts diagram

07.30.3 - standard provided

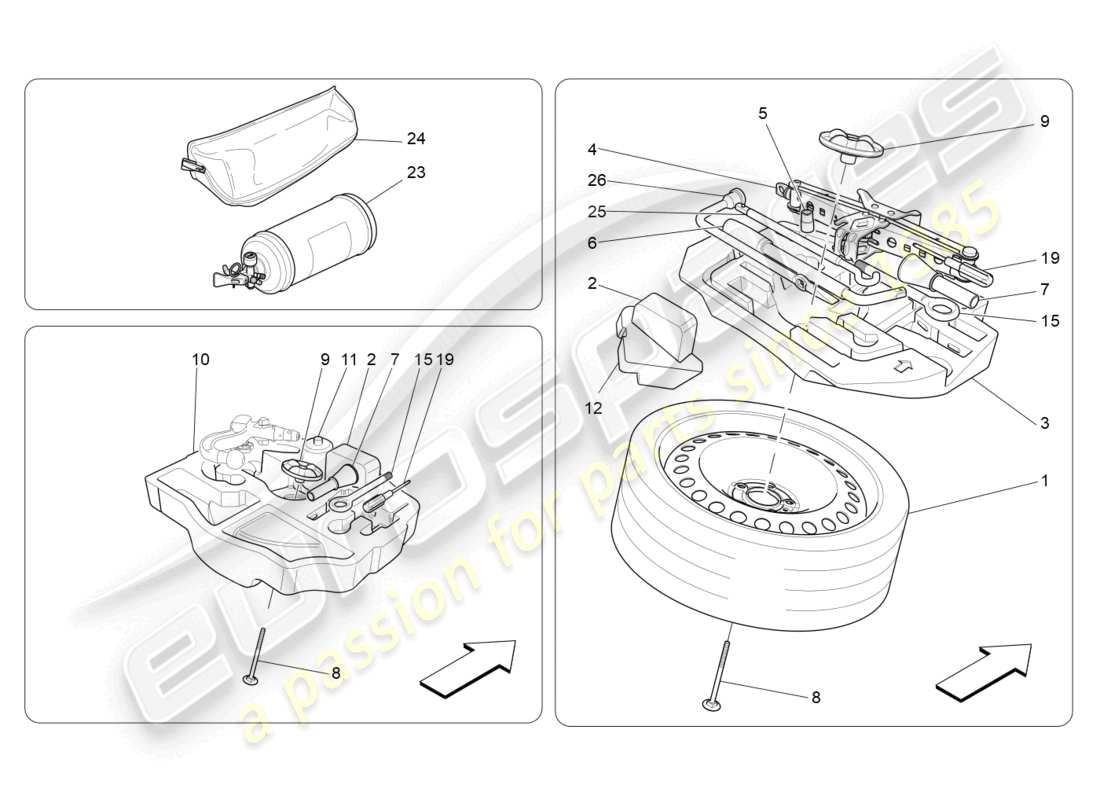

Maserati Levante (2017) STANDARD PROVIDED Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670039419
SPARE WHEEL ASSEMBLY
Valid from assembly: 0 - 6022437. Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £795.64
from £795.64
SPARE WHEEL 18 Genuine Maserati Part - New (to order)
# 001
MPN: 670039419
SPARE WHEEL ASSEMBLY
Valid from assembly: 0 - 6026580. Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £795.64
from £795.64
SPARE WHEEL 18 Genuine Maserati Part - New (to order)
# 001
MPN: 670039419
SPARE WHEEL ASSEMBLY
Valid from assembly: 0 - 6026583. Suitable for cars with: MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £795.64
from £795.64
SPARE WHEEL 18 Genuine Maserati Part - New (to order)
# 001
MPN: 670102637
SPARE WHEEL ASSEMBLY
Valid from assembly: 6030366. Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: 3.0 BT V6 4WD 350 HP | USA
from £744.67
from £744.67
RUOTA 18X4.5 ACCIAIO RUOTINO Genuine Maserati Part - New (to order)
# 001
MPN: 670118499
SPARE WHEEL ASSEMBLY
Valid from assembly: 6022438. Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Colour: NERO LUCIDO (Cod. 308/022222/00).Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £795.64
from £795.64
RUOTINO DI SCORTA 18X4.5 LEG Genuine Maserati Part - New (to order)
# 001
MPN: 670118499
SPARE WHEEL ASSEMBLY
Valid from assembly: 6026581 - 6030365. Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Colour: NERO LUCIDO (Cod. 308/022222/00).Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £795.64
from £795.64
RUOTINO DI SCORTA 18X4.5 LEG Genuine Maserati Part - New (to order)
# 001
MPN: 670118499
SPARE WHEEL ASSEMBLY
Valid from assembly: 6026584. Suitable for cars with: MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Colour: NERO LUCIDO (Cod. 308/022222/00).Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £795.64
from £795.64
RUOTINO DI SCORTA 18X4.5 LEG Genuine Maserati Part - New (to order)
# 002
MPN: 670032461
COMPRESSOR TIRE INFLATION
Valid from assembly: 0 - 6079466. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 002
MPN: 673007158
COMPRESSOR TIRE INFLATION #SEALANT 400#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £66.11
from £66.11
This part replaces part number 670032461
TYRE REPAIR KIT Genuine Maserati Part - New (to order)
# 003
MPN: 670100602
TOOL KIT
Valid from assembly: 0 - 6030365. Suitable for cars with: 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £32.68
from £32.68
TOOL KIT FOAM Genuine Maserati Part - New (to order)
# 003
MPN: 670100602
TOOL KIT
Valid from assembly: 6030366 - 6077576. Suitable for cars with: MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Not for cars with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm], STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm]. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £32.68
from £32.68
TOOL KIT FOAM Genuine Maserati Part - New (to order)
# 003
MPN: 670100602
TOOL KIT
Valid from assembly: 6030366 - 6077576. Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Not for cars with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm], MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm]. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £32.68
from £32.68
TOOL KIT FOAM Genuine Maserati Part - New (to order)
# 003
MPN: 670102639
TOOL KIT
Valid from assembly: 6030366 - 6077575. Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], 18'' COLLAPSIBLE SPARE WHEEL. Not for cars with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm], MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm]. Suitable for: 3.0 BT V6 4WD 350 HP | USA
from £43.28
from £43.28
BORSA ATTREZZI OPT RUOTINO A Genuine Maserati Part - New (to order)
# 004
MPN: 675000598
CAR LIFTING JACK
Suitable for cars with: 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £49.25
from £49.25
JACK Genuine Maserati Part - New (to order)
# 005
MPN: 670005176
EXTENSION
Valid from assembly: 0 - 6077575. Suitable for cars with: 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £3.43
from £3.43
EXTENSION Genuine Maserati Part - New (to order)
# 006
MPN: 670005175
WHEEL STUD WRENCH
Valid from assembly: 0 - 6077575. Suitable for cars with: 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £13.72
from £13.72
WHEEL STUD WRENCH Genuine Maserati Part - New (to order)
# 007
MPN: 675000495
EMERGENCY REFUELLING FUNNEL
Suitable for: 3.0 TDS V6 4WD 250 HP, 3.0 TDS V6 4WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UNITED KINGDOM
from £1.88
from £1.88
IMBUTO PER RIFORNIMENTO EMER Genuine Maserati Part - New (to order)
IMBUTO PER RIFORNIMENTO EMER Genuine Maserati Part - Used In stock
# 008
MPN: 670006751
SCREW
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £7.17
from £7.17
SCREW Genuine Maserati Part - New (to order)
# 009
MPN: 670004536
FASTENING RING NUT
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.75
from £1.75
RING NUT Genuine Maserati Part - New (to order)
RING NUT Genuine Maserati Part - Used In stock
# 010
MPN: 670100603
TOOL KIT
Not for cars with: 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £22.13
from £22.13
TOOL KIT CONTAINER Genuine Maserati Part - New (to order)
TOOL KIT CONTAINER Genuine Maserati Part - Used In stock
# 011
MPN: 673007061
SEALANT 400 #(I TR PL UK)#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £66.82
from £66.82
SEALANT 400 (I TR PL UK) Genuine Maserati Part - New (to order)
# 011
MPN: 673007062
SEALANT 400 #(MT IRL CY GR)#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £65.15
from £65.15
SEALANT 400 (MT IRL CY GR) Genuine Maserati Part - New (to order)
# 011
MPN: 673007063
SEALANT 400 #(BE NL DE AT LU FR CH LI)#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £66.82
from £66.82
SEALANT400 (BE NL DE AT LU F Genuine Maserati Part - New (to order)
# 011
MPN: 673007064
SEALANT 400 #(LT IS EST LV NOR)#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £64.62
from £64.62
SEALANT 400 (LT IS EST LV NO Genuine Maserati Part - New (to order)
# 011
MPN: 673007065
SEALANT 400 #(HR SK SI HU)#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £35.54
from £35.54
SEALANT 400 (CZ, HR SK SI HU Genuine Maserati Part - New (to order)
SEALANT 400 (CZ, HR SK SI HU Genuine Maserati Part - Used In stock
# 011
MPN: 673007066
SEALANT 400 #(DK FI SE CZ)#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £65.15
from £65.15
SEALANT 400 (DK FI SE HR) Genuine Maserati Part - New (to order)
# 011
MPN: 673007067
SEALANT 400 #(BG RO ES PT)#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £65.15
from £65.15
SEALANT 400 (BG RO ES PT) Genuine Maserati Part - New (to order)
# 011
MPN: 673007068
SEALANT 400 #(ROW)#
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £66.82
from £66.82
SEALANT 400 (ROW) Genuine Maserati Part - New (to order)
# 012
MPN: 670032296
COMPRESSOR SHAPED HOLDER
Suitable for cars with: 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £11.41
from £11.41
COMPRESSOR BAG Genuine Maserati Part - New (to order)
# 015
MPN: 670039343
EMERGENCY TOW HOOK
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £7.18
from £7.18
GANCIO TRAINO AVVITATO Genuine Maserati Part - New (to order)
GANCIO TRAINO AVVITATO Genuine Maserati Part - Used In stock
# 019
MPN: 675000537
SCREWDRIVER
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £2.76
from £2.76
CACCIAVITE DOPP.LAMA TORX E Genuine Maserati Part - New (to order)
# 025
MPN: 675000607
JACK HANDLE
Suitable for cars with: 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £9.48
from £9.48
JACK HANDLE Genuine Maserati Part - New (to order)
# 026
MPN: 675000596
ALLEN WRENCH
Suitable for cars with: 18'' COLLAPSIBLE SPARE WHEEL. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £17.84
from £17.84
WRENCH Genuine Maserati Part - New (to order)
