Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Applicable for markets: US CD KO.(valid for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA)
maserati levante (2017) fuel vapour recirculation system parts diagram

01.44.4 - fuel vapour recirculation system

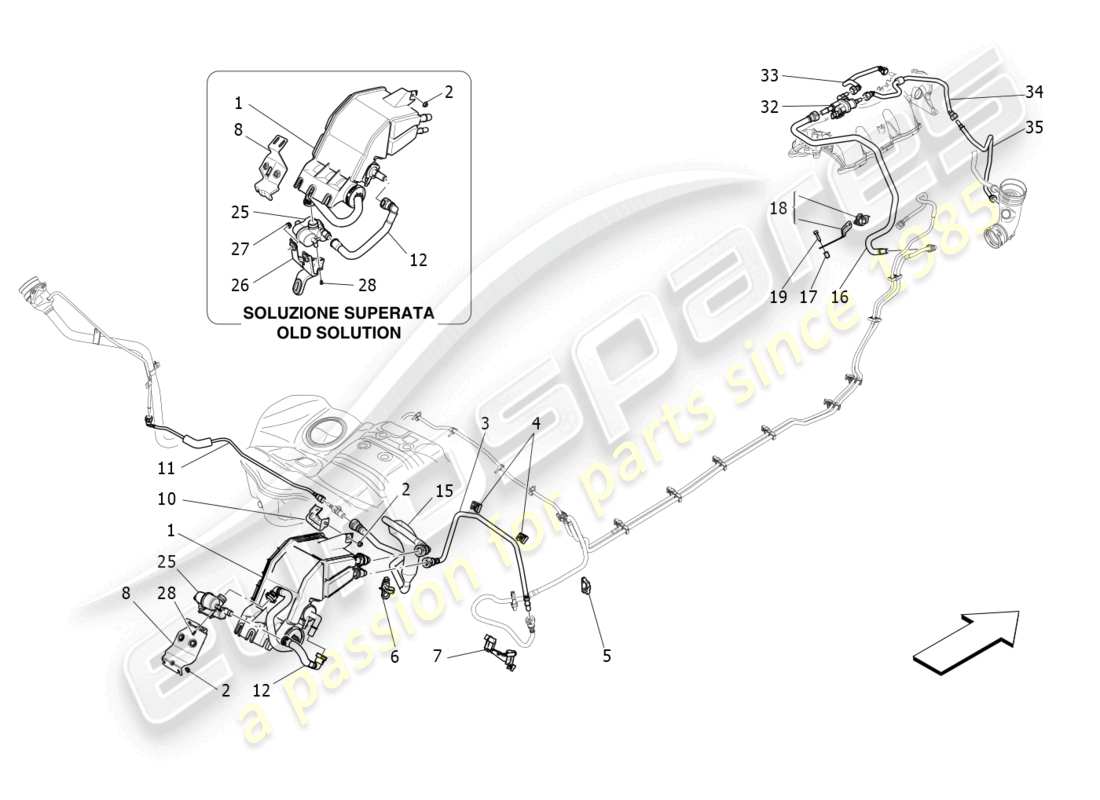

Maserati Levante (2017) FUEL VAPOUR RECIRCULATION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670033286
FUEL VAPOUR FILTER
Valid from assembly: 0 - 6097168. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £114.94
from £114.94
FUEL VAPOUR FILTER Genuine Maserati Part - New (to order)
# 002
MPN: 675000114
NUT
Valid from assembly: 0 - 6097168. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £0.79
from £0.79
DADO E AUTOBLOCC.C. BORD.LAR Genuine Maserati Part - New (to order)
# 003
MPN: 670033294
PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £21.07
from £21.07
TUBAZIONE CANISTER-SOTTOPIAN Genuine Maserati Part - New (to order)
# 004
MPN: 670033289
CLIP
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £1.98
from £1.98
MOLLETTA RITEGNO TUBAZIONE Genuine Maserati Part - New (to order)
# 005
MPN: 675000055
CLIP
Valid from assembly: 0 - 6053786. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £0.64
from £0.64
MOLLETTA RITEGNO Genuine Maserati Part - New (to order)
# 006
MPN: 670100038
BRACKET
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £1.98
from £1.98
STAFFA SERB.COMBUSTIBILE Genuine Maserati Part - New (to order)
# 007
MPN: 670031947
CLIP
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £6.61
from £6.61
MOLLETTA IMPIANTO VAPORI COM Genuine Maserati Part - New (to order)
# 008
MPN: 670034699
REAR BRACKET
Valid from assembly: 0 - 6097168. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £11.95
from £11.95
STAFFA COMPLETE CANISTER VAPOR Genuine Maserati Part - New (to order)
# 011
MPN: 670033572
VAPOUR PIPE
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £24.19
from £24.19
TUBO FLESSIBILE VAPORI Genuine Maserati Part - New (to order)
# 012
MPN: 670033292
PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP
Valid from assembly: 0 - 6097168. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £32.24
from £32.24
TUBO SFIATO RICIRCOLO VAPORI Genuine Maserati Part - New (to order)
# 015
MPN: 670033274
VENT PIPE
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £63.03
from £63.03
TUBO SFIATO SERB.COMBUSTIBIL Genuine Maserati Part - New (to order)
# 016
MPN: 670033126
PIPE BETWEEN UNION AND INTAKE MANIFOLD
Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £28.25
from £28.25
TUBAZIONE VAPORI COLLETTORE Genuine Maserati Part - New (to order)
# 017
MPN: 675000576
RIVET
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £0.64
from £0.64
RIVET Genuine Maserati Part - New (to order)
# 018
MPN: 670035380
BRACKET
Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £5.25
from £5.25
STAFFA SUPPORTO TUBO CANISTE Genuine Maserati Part - New (to order)
# 019
MPN: 675000242
SCREW [M6X25]
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £3.34
from £3.34
This part replaces part number 11568424
SCREW Genuine Maserati Part - New In stock
# 025
MPN: 670002246
DIAGNOSTICS PUMP
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £137.30
from £137.30
DISPOSIT. REGOLAZ. D IAGNOSI Genuine Maserati Part - New (to order)
# 026
MPN: 670001415
REAR CONSOLE REAR BRACKET
Valid from assembly: 0 - 6097168. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £15.22
from £15.22
STAFFA FISS.DISPOS.TENUTA IM Genuine Maserati Part - New (to order)
# 027
MPN: 675000108
NUT
Valid from assembly: 0 - 6097168. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £0.79
from £0.79
DADO EAUF C.INSERTO METALL. Genuine Maserati Part - New (to order)
# 028
MPN: 675000195
SCREW [M5X12]
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £1.36
from £1.36
VITE A/MT/TBIC 5X12 Genuine Maserati Part - New (to order)
# 032
MPN: 670106836
SOLENOID VALVE
Valid from assembly: 0 - 6083654. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 033
MPN: 670033129
PIPE FROM SOLENOID VALVE TO ENGINE
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £20.98
from £20.98
TUBAZIONE VAPORI ELETTROVALV Genuine Maserati Part - New (to order)
# 034
MPN: 670033130
PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £33.34
from £33.34
TUBAZIONE VAPORI EV.-MANICOT Genuine Maserati Part - New (to order)
# 035
MPN: 670033133
VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE
Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £23.01
from £23.01
TUBAZIONE VAPORI A MANICOTTO Genuine Maserati Part - New (to order)
