Maserati Grecale Modena (2023) COOLING SYSTEM: NOURICE AND LINES Parts Diagram

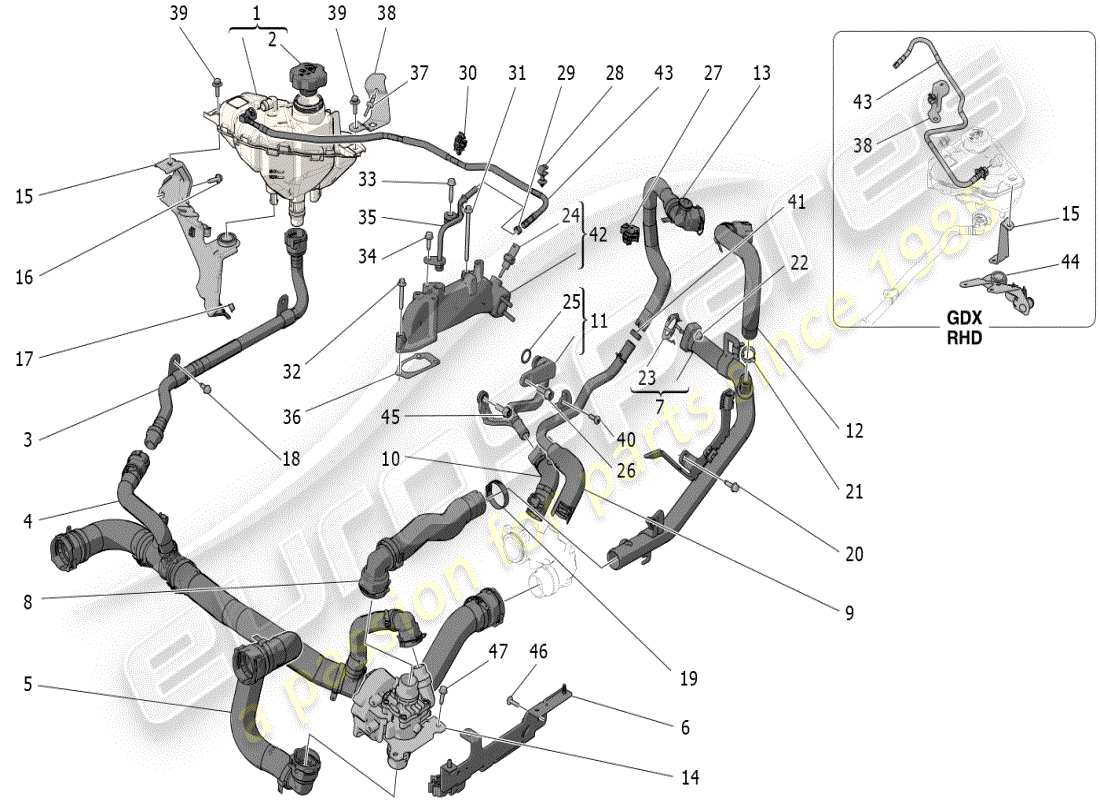

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Key
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 675001614
                                                                                        COOLANT RESERVOIR
                                                                                        from £38.62
                                                                                        from £38.62
                                                                                        SERBATOIO COMPLETE LIQUIDO REF Genuine Maserati Part - New (to order)
                                                                                        # 002
                                                                                        MPN: 675001143
                                                                                        TANK PLUG
                                                                                        from £11.53
                                                                                        from £11.53
                                                                                        TAPPO SERBATOIO LIQUIDO REFR Genuine Maserati Part - New (to order)
                                                                                        # 003
                                                                                        MPN: 670156384
                                                                                        PIPE
                                                                                        from £21.74
                                                                                        from £21.74
                                                                                        TUBO SFIATO DA MOT. A SERB Genuine Maserati Part - New (to order)
                                                                                        # 004
                                                                                        MPN: 670161487
                                                                                        RADIATOR WATER OUTPUT SLEEVE
                                                                                        from £97.68
                                                                                        from £97.68
                                                                                        MANICOTTO USCITA ACQUA RADIA Genuine Maserati Part - New (to order)
                                                                                        # 005
                                                                                        MPN: 675001749
                                                                                        RADIATOR WATER INLET PIPE
                                                                                        from £22.89
                                                                                        from £22.89
                                                                                        MANICOTTO INGRESSO ACQUA RAD Genuine Maserati Part - New (to order)
                                                                                        # 006
                                                                                        MPN: 670179810
                                                                                        BRACKET
                                                                                        from £22.11
                                                                                        from £22.11
                                                                                        STAFFA Genuine Maserati Part - New (to order)

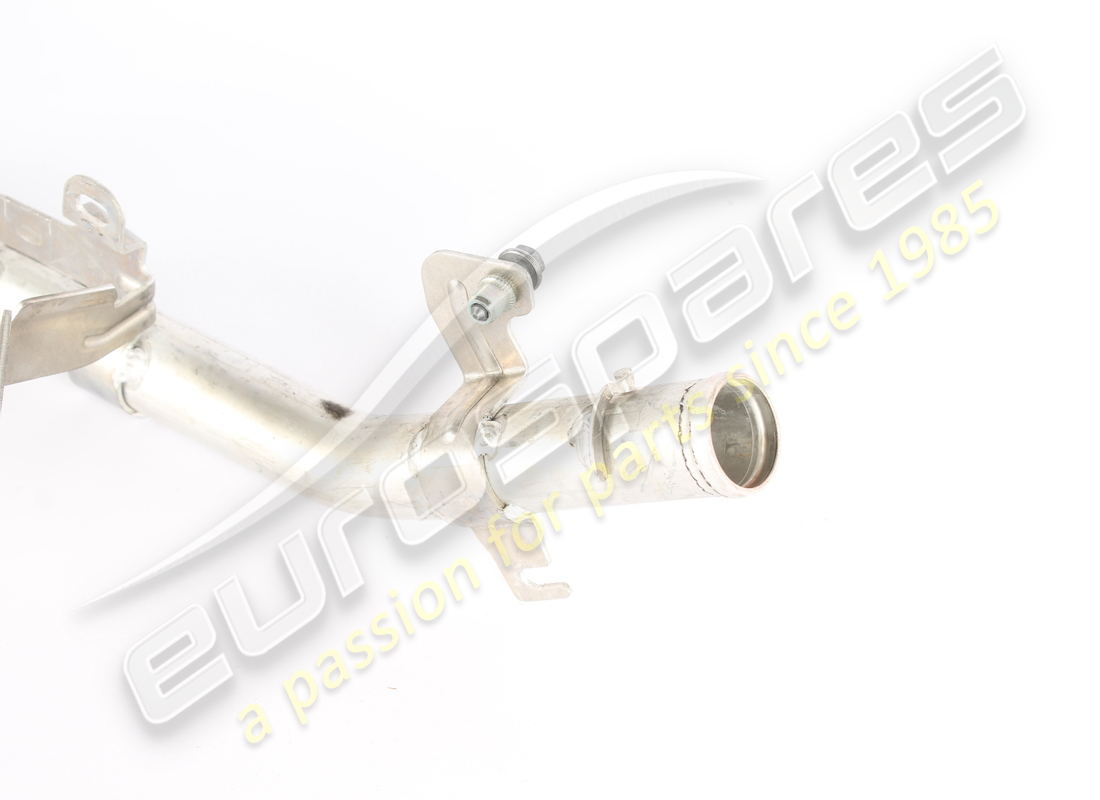

                                                                                        # 007
                                                                                        MPN: 670219267
                                                                                        ENGINE HEAD OUTLET WATER PIPE
                                                                                        from £112.38
                                                                                        from £112.38
                                                                                        PIPE Genuine Maserati Part - New (to order)
                                                                                        # 008
                                                                                        MPN: 670175677
                                                                                        PIPE FROM ENGINE TO THERMOSTATIC VALVE
                                                                                        from £11.30
                                                                                        from £11.30
                                                                                        TUBO DA MOTORE A INVERTER Genuine Maserati Part - New (to order)

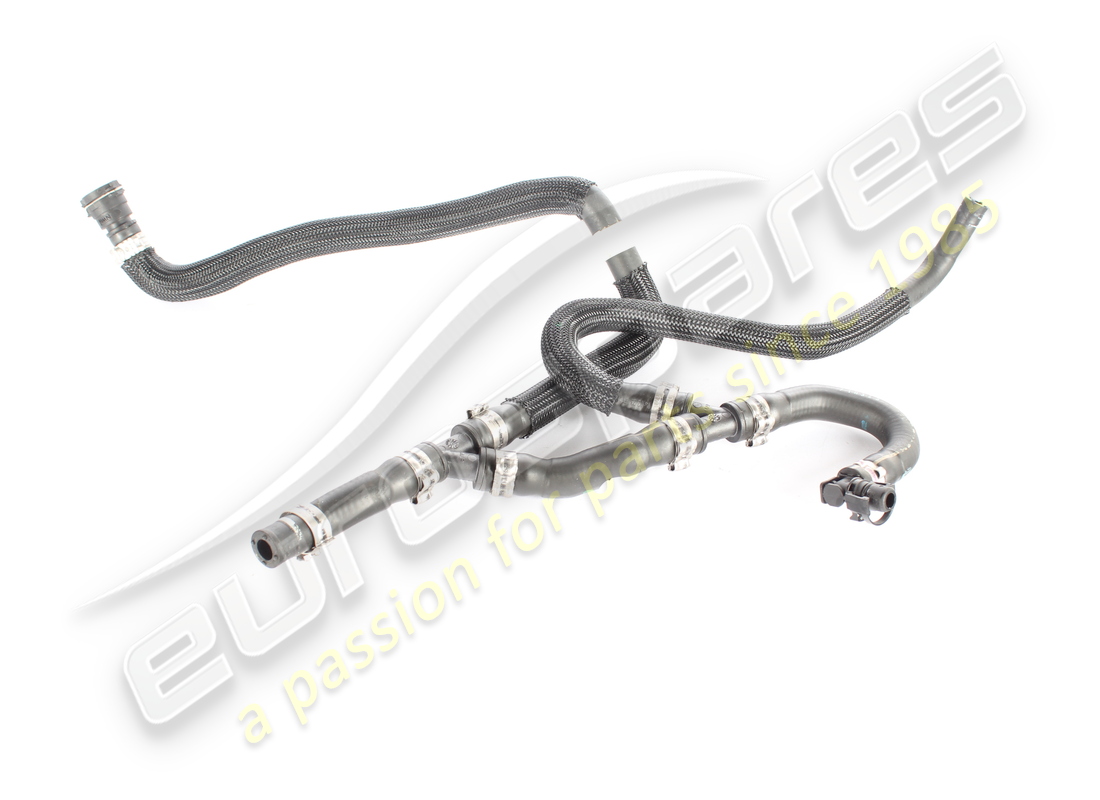

                                                                                        # 009
                                                                                        MPN: 670053671
                                                                                        PIPE BETWEEN SECONDARY RADIATOR AND PUMP
                                                                                        from £208.56
                                                                                        from £208.56
                                                                                        Tubo Genuine Maserati Part - New (to order)
                                                                                        # 010
                                                                                        MPN: 675001472
                                                                                        WATER PUMP OUTLET HOSE
                                                                                        from £19.37
                                                                                        from £19.37
                                                                                        RADIATED FLEXIBLE HOSE Genuine Maserati Part - New (to order)
                                                                                        # 011
                                                                                        MPN: 675000958
                                                                                        TUBE ENGINE COOLANT
                                                                                        from £48.45
                                                                                        from £48.45
                                                                                        TUBO LIQUIDO REFRIGERANTE Genuine Maserati Part - New (to order)
                                                                                        # 012
                                                                                        MPN: 675001754
                                                                                        WATER DELIVERY SLEEVE TO HEATER
                                                                                        from £14.62
                                                                                        from £14.62
                                                                                        MANICOTTO MANDATA ACQUA RISC Genuine Maserati Part - New (to order)
                                                                                        # 013
                                                                                        MPN: 675001808
                                                                                        WATER RETURN SLEEVE FROM HEATER
                                                                                        from £23.47
                                                                                        from £23.47
                                                                                        MANICOTTO RITORNO ACQUA RISC Genuine Maserati Part - New (to order)

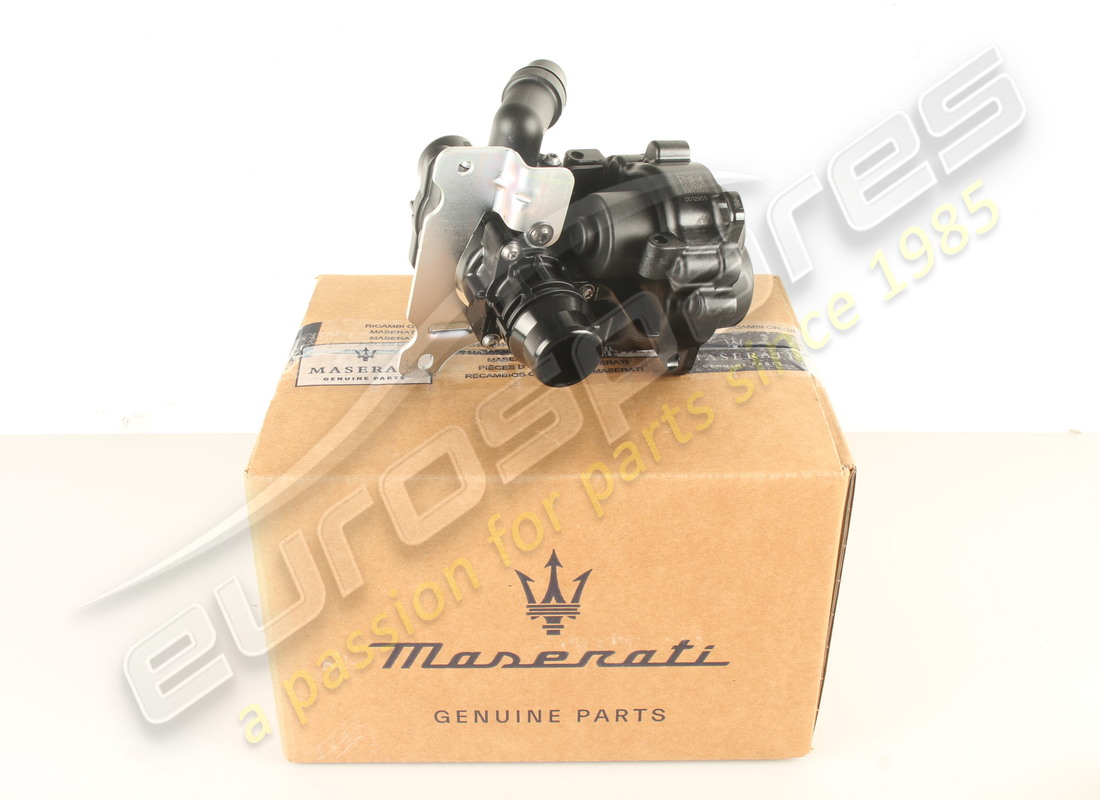

                                                                                        # 014
                                                                                        MPN: 675001144
                                                                                        THERMOSTATIC VALVE
                                                                                        from £144.92
                                                                                        from £144.92
                                                                                        TERMOSTATIC VALVE Genuine Maserati Part - New (to order)
                                                                                        # 015
                                                                                        MPN: 675001762
                                                                                        BRACKET
                                                                                        from £11.53
                                                                                        from £11.53
                                                                                        STAFFA SERB.LIQUIDO REFRIGER Genuine Maserati Part - New (to order)
                                                                                        # 016
                                                                                        MPN: 675001048
                                                                                        SCREW
                                                                                        from £0.63
                                                                                        from £0.63
                                                                                        VITE TE M6X25 Genuine Maserati Part - New (to order)
                                                                                        # 017
                                                                                        MPN: 675000794
                                                                                        NUT
                                                                                        from £0.95
                                                                                        from £0.95
                                                                                        NUT #(IMAGE NOT AVAILABLE)# Genuine Maserati Part - New (to order)
                                                                                        # 018
                                                                                        MPN: 675001117
                                                                                        SCREW
                                                                                        from £1.10
                                                                                        from £1.10
                                                                                        VITE Genuine Maserati Part - New (to order)
                                                                                        # 019
                                                                                        MPN: 675001129
                                                                                        COLLAR
                                                                                        from £1.73
                                                                                        from £1.73
                                                                                        ELASTIC COLLAR D38 Genuine Maserati Part - New (to order)
                                                                                        # 020
                                                                                        MPN: 675001119
                                                                                        SCREW
                                                                                        from £0.63
                                                                                        from £0.63
                                                                                        VITE TE FL.M.AUTO. M6X22 Genuine Maserati Part - New (to order)
                                                                                        # 021
                                                                                        MPN: 675001923
                                                                                        COLLAR
                                                                                        from £0.87
                                                                                        from £0.87
                                                                                        COLLARE A NASTRO Genuine Maserati Part - New (to order)
                                                                                        # 022
                                                                                        MPN: 675001004
                                                                                        NUT
                                                                                        from £1.18
                                                                                        from £1.18
                                                                                        DADO M6 Genuine Maserati Part - New (to order)
                                                                                        # 023
                                                                                        MPN: 675001003
                                                                                        WATER PIPE SEAL
                                                                                        from £18.00
                                                                                        from £18.00
                                                                                        HEAD WATER PIPE GASKET Genuine Maserati Part - New (to order)
                                                                                        # 024
                                                                                        MPN: 675000947
                                                                                        TEMPERATURE SENSOR
                                                                                        from £76.17
                                                                                        from £76.17
                                                                                        FLUID TEMPERATURE SENSOR Genuine Maserati Part - New (to order)
                                                                                        # 025
                                                                                        MPN: 675000959
                                                                                        SEAL RING
                                                                                        from £2.84
                                                                                        from £2.84
                                                                                        ANELLO TENUTA INGR ACQUA Genuine Maserati Part - New (to order)
                                                                                        # 026
                                                                                        MPN: 675000960
                                                                                        SCREW
                                                                                        from £1.73
                                                                                        from £1.73
                                                                                        VITE Genuine Maserati Part - New (to order)
                                                                                        # 027
                                                                                        MPN: 675001838
                                                                                        CLIP
                                                                                        from £2.99
                                                                                        from £2.99
                                                                                        MOLLETTA RITEGNO Genuine Maserati Part - New (to order)
                                                                                        # 028
                                                                                        MPN: 675001809
                                                                                        CLIP
                                                                                        from £2.53
                                                                                        from £2.53
                                                                                        VENT PIPE RETAINER CLAMP Genuine Maserati Part - New (to order)
                                                                                        # 029
                                                                                        MPN: 675001916
                                                                                        COLLAR
                                                                                        from £1.10
                                                                                        from £1.10
                                                                                        COLLARE A NASTRO Genuine Maserati Part - New (to order)
                                                                                        # 030
                                                                                        MPN: 675000076
                                                                                        CLIP
                                                                                        from £0.56
                                                                                        from £0.56
                                                                                        MOLLETTA RITEGNO FLESS. FREN Genuine Maserati Part - New (to order)
                                                                                        # 031
                                                                                        MPN: 675000949
                                                                                        SCREW
                                                                                        from £1.73
                                                                                        from £1.73
                                                                                        VITE Genuine Maserati Part - New (to order)
                                                                                        # 032
                                                                                        MPN: 675000950
                                                                                        SCREW
                                                                                        from £1.58
                                                                                        from £1.58
                                                                                        VITE Genuine Maserati Part - New (to order)
                                                                                        # 033
                                                                                        MPN: 675001127
                                                                                        SCREW
                                                                                        from £1.10
                                                                                        from £1.10
                                                                                        VITE TE Genuine Maserati Part - New (to order)
                                                                                        # 034
                                                                                        MPN: 675001119
                                                                                        SCREW
                                                                                        from £0.63
                                                                                        from £0.63
                                                                                        VITE TE FL.M.AUTO. M6X22 Genuine Maserati Part - New (to order)
                                                                                        # 035
                                                                                        MPN: 670178299
                                                                                        VENT PIPE
                                                                                        from £17.78
                                                                                        from £17.78
                                                                                        TUBO RIGIDO ACQUA DEGASAGGIO Genuine Maserati Part - New (to order)
                                                                                        # 036
                                                                                        MPN: 675000945
                                                                                        GASKET
                                                                                        from £2.45
                                                                                        from £2.45
                                                                                        OUTLET CONNECTION SEAL Genuine Maserati Part - New (to order)
                                                                                        # 037
                                                                                        MPN: 675001793
                                                                                        RIVET
                                                                                        from £1.26
                                                                                        from £1.26
                                                                                        RIBATTINO Genuine Maserati Part - New (to order)
                                                                                        # 038
                                                                                        MPN: 670181371
                                                                                        BRACKET
                                                                                        from £3.24
                                                                                        from £3.24
                                                                                        STAFFA Genuine Maserati Part - New (to order)
                                                                                        # 039
                                                                                        MPN: 675001629
                                                                                        SCREW
                                                                                        from £1.58
                                                                                        from £1.58
                                                                                        VITE E ROND.IMPERD. Genuine Maserati Part - New (to order)
                                                                                        # 040
                                                                                        MPN: 675001014
                                                                                        SCREW
                                                                                        from £1.26
                                                                                        from £1.26
                                                                                        VITE M6 Genuine Maserati Part - New (to order)
                                                                                        # 041
                                                                                        MPN: 675000372
                                                                                        COLLAR [D.20,5]
                                                                                        from £1.10
                                                                                        from £1.10
                                                                                        This part replaces part number 675000388
                                                                                        COLLARE A NASTRO PER MANIC. Genuine Maserati Part - New (to order)
                                                                                        # 042
                                                                                        MPN: 675000946
                                                                                        COOLING MANIFOLD
                                                                                        from £85.53
                                                                                        from £85.53
                                                                                        COLLETTORE USCITA RAFFREDDAM Genuine Maserati Part - New (to order)
                                                                                        # 043
                                                                                        MPN: 675001609
                                                                                        VENT PIPE
                                                                                        from £11.88
                                                                                        from £11.88
                                                                                        TUBO SFIATO MOTORE Genuine Maserati Part - New (to order)
