maserati grecale modena (2023) lubrication system: circuit and collection parts diagram

01.60.1 - lubrication system: circuit and collection

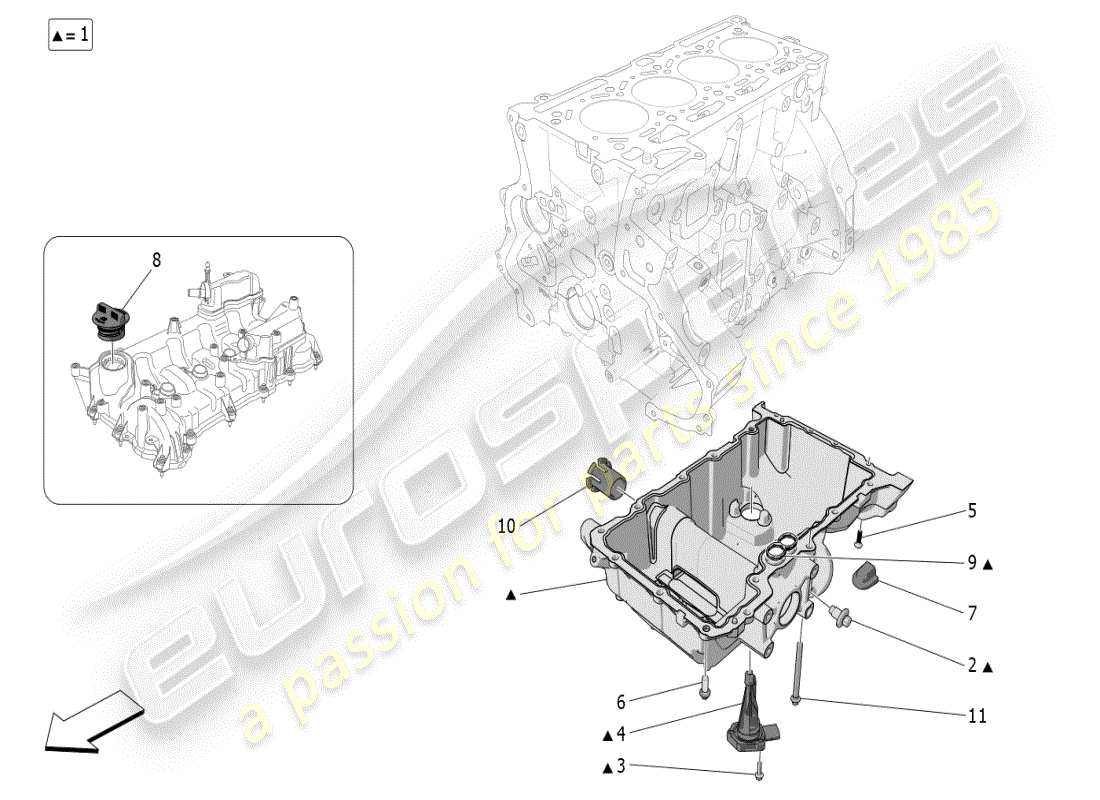

Maserati Grecale Modena (2023) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        -
                        OIL SUMP ASSEMBLY
                        # 001
                        MPN: 675002058
                        OIL SUMP ASSEMBLY
                        from £212.33
                        from £212.33
                        OIL SUMP ASSEMBLY Genuine Maserati Part - New (to order)
                        # 002
                        MPN: 675000925
                        THREADED PLUG
                        from £11.05
                        from £11.05
                        TAPPO FILETTATO Genuine Maserati Part - New (to order)
                        # 003
                        MPN: 675000926
                        SCREW
                        from £1.58
                        from £1.58
                        VITE Genuine Maserati Part - New (to order)
                        # 004
                        MPN: 675000927
                        OIL LEVEL DETECTOR
                        from £45.22
                        from £45.22
                        OIL LEVEL SENSOR Genuine Maserati Part - New (to order)
                        # 005
                        MPN: 675000929
                        SCREW
                        from £1.10
                        from £1.10
                        VITE Genuine Maserati Part - New (to order)
                        # 006
                        MPN: 675000930
                        SCREW
                        from £1.10
                        from £1.10
                        VITE Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 675001124
                        DUST SEAL
                        from £1.10
                        from £1.10
                        PARAPOLVERE Genuine Maserati Part - New (to order)
                        # 008
                        MPN: 675000987
                        PLUG
                        from £20.91
                        from £20.91
                        MOTORCYCLE OIL FILLER CAP Genuine Maserati Part - New (to order)
                        # 009
                        MPN: 675001001
                        GASKET
                        from £6.31
                        from £6.31
                        GUARNIZIONE COPPA OLIO MOTOR Genuine Maserati Part - New (to order)
                        # 010
                        MPN: 675001977
                        BUSHING
                        from £30.64
                        from £30.64
                        CENTERING BUSH Genuine Maserati Part - New (to order)
                        # 011
                        -
                        SCREW
                        # 011
                        MPN: 675002194
                        SCREW
                        from £1.18
                        from £1.18
                        SCREW Genuine Maserati Part - New (to order)
