Not for cars with: Centennial Edition.
maserati granturismo mc stradale (2012) rear parcel shelf parts diagram

09.46.1 - rear parcel shelf

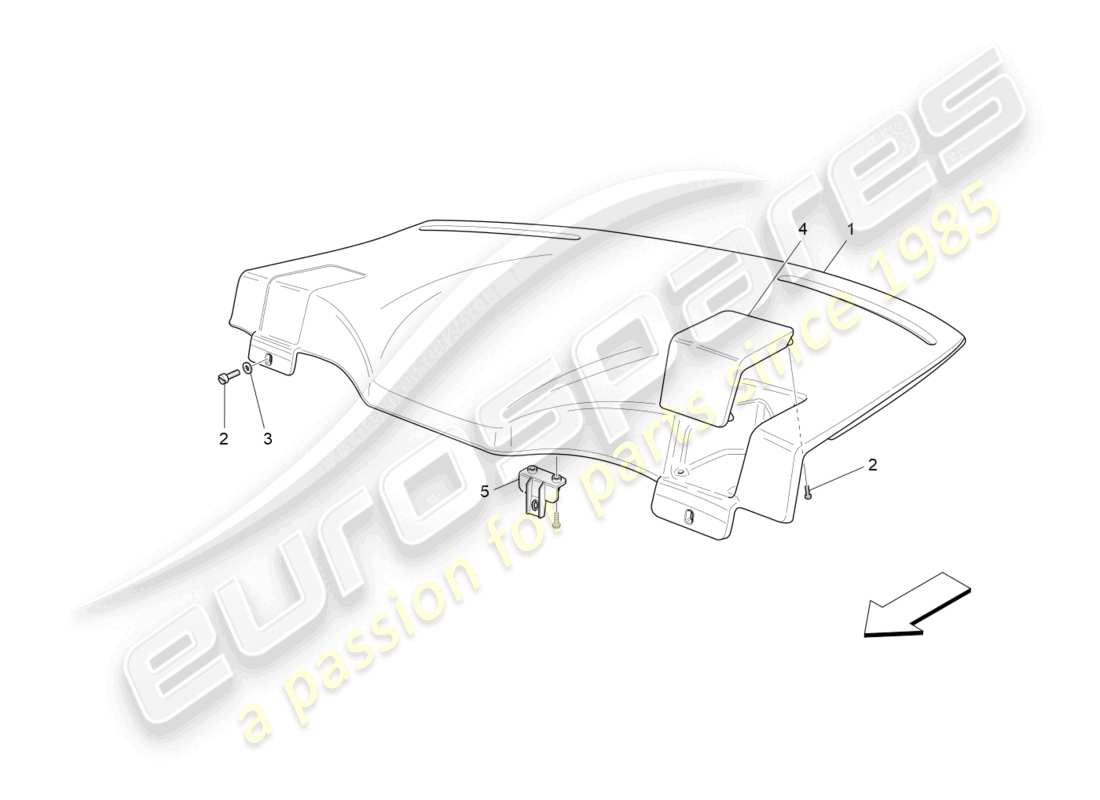

Maserati Granturismo MC Stradale (2012) REAR PARCEL SHELF Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 83500900
        PARCEL SHELF ASSEMBLY
        Suitable for cars with: Bose Premium System. Colour: BLACK.
        from £713.38
        from £713.38
        CAPPELLIERA M139OL BOSE CPL Genuine Maserati Part - New (to order)
        # 001
        MPN: 83500924
        PARCEL SHELF ASSEMBLY
        Suitable for cars with: Bose Premium System. Colour: CORALLO RED.
        from £713.38
        from £713.38
        CAPPELLIERA CPL.RO.CO. Genuine Maserati Part - New (to order)
        # 001
        MPN: 83500933
        PARCEL SHELF ASSEMBLY
        Suitable for cars with: Bose Premium System. Colour: PROFONDITA BLUE.
        from £713.38
        from £713.38
        CAPPELLIERA CPL.BL.PR. Genuine Maserati Part - New (to order)
        # 001
        MPN: 83501100
        PARCEL SHELF ASSEMBLY
        Not for cars with: Bose Premium System. Colour: BLACK.
        from £713.38
        from £713.38
        CAPPELLIERA M139OL BASE S/FO Genuine Maserati Part - New (to order)
        # 001
        MPN: 83501124
        PARCEL SHELF ASSEMBLY
        Not for cars with: Bose Premium System. Colour: CORALLO RED.
        from £713.38
        from £713.38
        CAPPELLIERA CPL.RO.CO. Genuine Maserati Part - New (to order)
        # 001
        MPN: 83501133
        PARCEL SHELF ASSEMBLY
        Not for cars with: Bose Premium System. Colour: PROFONDITA BLUE.
        from £713.38
        from £713.38
        CAPPELLIERA CPL.BL.PR. Genuine Maserati Part - New (to order)
        # 002
        MPN: 11568427
        SCREW [TC M6X25]
        from £1.89
        from £1.89
        SCREW TC M6X25 Genuine Maserati Part - New (to order)
        # 003
        MPN: 14498824
        WASHER [D.6.4-16.3X1]
        from £0.47
        from £0.47
        WASHER (14498824) Genuine Ferrari Part - New In stock
        WASHER. Genuine Maserati Part - New (to order)
        # 004
        MPN: 83501000
        ISOFIX PLUG
        Valid from assembly: 0 - 72835. Colour: BLACK.
        from £213.88
        from £213.88
        This part replaces part number 835010..
        TAPPO PER ISOFIXNERO Genuine Maserati Part - New (to order)
        # 004
        MPN: 83501024
        ISOFIX PLUG
        Valid from assembly: 0 - 72835. Colour: CORALLO RED.
        from £213.88
        from £213.88
        This part replaces part number 835010..
        TAPPO PER ISOFIXRO.CO. Genuine Maserati Part - New (to order)
        # 004
        MPN: 83501033
        ISOFIX PLUG
        Valid from assembly: 0 - 72835. Colour: PROFONDITA BLUE.
        from £213.88
        from £213.88
        This part replaces part number 835010..
        TAPPO PER ISOFIXBL.PR. Genuine Maserati Part - New (to order)
        # 005
        MPN: 80002500
        BRACKET
        from £6.08
        from £6.08
        STAFFA FIX ANTERIORE CAPPELI Genuine Maserati Part - New (to order)
