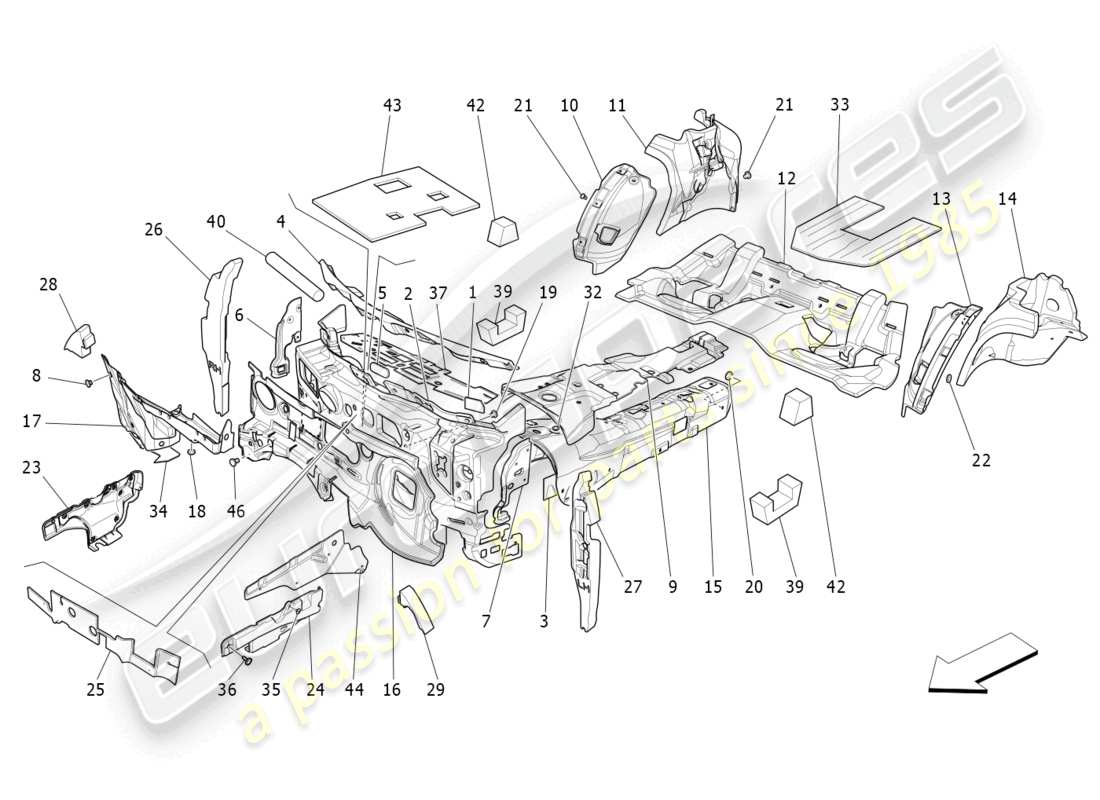

09.62.2 - sound-proofing panels inside the vehicle
Maserati Ghibli (2016) SOUND-PROOFING PANELS INSIDE THE VEHICLE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 675000151
PLUG
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £1.10
from £1.10
# 002
MPN: 670006200
DASHBOARD FRONT SOUNDPROOFING PANEL
Valid from assembly: 0 - 5055263. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £167.85
from £167.85
# 002
MPN: 670009269
DASHBOARD FRONT SOUNDPROOFING PANEL
Valid from assembly: 0 - 5057963. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
Supersession
Supersession
# 002
MPN: 670037078
DASHBOARD FRONT SOUNDPROOFING PANEL
Valid from assembly: 5057964 - 5080355. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
Supersession
Supersession
This part replaces part number 670009269 - and 1 more. Click to view details
# 002
MPN: 670037079
DASHBOARD FRONT SOUNDPROOFING PANEL
Valid from assembly: 5055264 - 5079186. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
Supersession
Supersession
This part replaces part number 670037080
# 003
MPN: 670001856
SOUNDPROOFING ELEMENT
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £2.34
from £2.34
# 004
MPN: 670004552
LOWER WINDSCREEN SOUNDPROOFING UNIT
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £173.78
from £173.78
# 004
MPN: 670030938
LOWER WINDSCREEN SOUNDPROOFING UNIT
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from £175.50
from £175.50
This part replaces part number 670004553
# 005
MPN: 675000417
PLUG
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £5.21
from £5.21
# 006
MPN: 670006202
RH PILLAR INSULATION
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £3.12
from £3.12
# 006
MPN: 670006203
RH PILLAR INSULATION
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from £3.12
from £3.12
# 007
MPN: 670006204
LH PILLAR INSULATION
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £3.12
from £3.12
# 007
MPN: 670006205
LH PILLAR INSULATION
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from £3.12
from £3.12
# 008
MPN: 670017293
FASTENER BUTTON [6,5X18]
Colour: BLACK.Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £4.90
from £4.90
# 009
MPN: 670006206
TUNNEL INSULATION
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £33.56
from £33.56
# 009
MPN: 670006207
TUNNEL INSULATION
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, UK
from £34.35
from £34.35
# 010
MPN: 670003167
FRONT PART OF REAR RH WHEELHOUSE INSULATION
Valid from assembly: 0 - 5055264. (valid for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP,3.0 TDS V6 2WD 275 HP | AUSTRALIA,CHILE,EUROPE,ITALY,JAPAN (RH DRIVE),UK,USA)
Supersession
Supersession
# 010
MPN: 670003167
FRONT PART OF REAR RH WHEELHOUSE INSULATION
Valid from assembly: 0 - 5055264. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
Supersession
Supersession
# 010
MPN: 670037434
FRONT PART OF REAR RH WHEELHOUSE INSULATION
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £14.58
from £14.58
This part replaces part number 670003167
# 011
MPN: 670032971
REAR PART OF REAR RH WHEELHOUSE INSULATION
Valid from assembly: 5007870 - 5055264. (valid for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP,3.0 TDS V6 2WD 275 HP | AUSTRALIA,CHILE,EUROPE,ITALY,JAPAN (RH DRIVE),UK,USA)
Supersession
Supersession
This part replaces part number 670003169
# 011
MPN: 670032971
REAR PART OF REAR RH WHEELHOUSE INSULATION
Valid from assembly: 5007870 - 5055264. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
Supersession
Supersession
This part replaces part number 670003169
# 011
MPN: 670038084
REAR PART OF REAR RH WHEELHOUSE INSULATION
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £16.29
from £16.29
This part replaces part number 670032971
# 012
MPN: 670036805
REAR SEAT CUSHION SOUDPROOFING PANEL
Valid from assembly: 0 - 5092310. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
Supersession
Supersession
This part replaces part number 670001773
# 013
MPN: 670003168
FRONT PART OF REAR LH WHEELHOUSE INSULATION
Valid from assembly: 0 - 5055264. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £14.19
from £14.19
# 013
MPN: 670037435
FRONT PART OF REAR LH WHEELHOUSE INSULATION
Valid from assembly: 5055265. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £14.19
from £14.19
# 014
MPN: 670032881
REAR PART OF REAR LH WHEELHOUSE INSULATION
Valid from assembly: 5007870 - 5055264. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £15.13
from £15.13
# 014
MPN: 670038083
REAR PART OF REAR LH WHEELHOUSE INSULATION
Valid from assembly: 5055265. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £15.13
from £15.13
# 015
MPN: 670004493
TUNNEL EXTERNAL SOUNDPROOFING GUARD
Valid from assembly: 0 - 5088468. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £16.59
from £16.59
# 016
MPN: 670004556
ENGINE COMPARTMENT INSULATION
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £60.81
from £60.81
# 016
MPN: 670004557
ENGINE COMPARTMENT INSULATION
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from £59.57
from £59.57
# 017
MPN: 670037623
UPPER RH ENGINE COMPARTMENT INSULATION
Valid from assembly: 0 - 5062590. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £50.22
from £50.22
This part replaces part number 670009517
# 017
MPN: 670037625
UPPER RH ENGINE COMPARTMENT INSULATION
Valid from assembly: 5022490 - 5076305. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from £58.55
from £58.55
This part replaces part number 670031587
# 018
MPN: 675000453
PLATE
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £1.51
from £1.51
# 019
MPN: 670017293
FASTENER BUTTON [6,5X18]
Colour: BLACK.Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £4.90
from £4.90
# 019
MPN: 670017302
FASTENER BUTTON
Valid from assembly: 0 - 5103644. Colour: BLACK.Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £1.43
from £1.43
# 020
MPN: 675000411
WASHER
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £2.37
from £2.37
# 021
MPN: 670017293
FASTENER BUTTON [6,5X18]
Colour: BLACK.Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £4.90
from £4.90
# 021
MPN: 670017302
FASTENER BUTTON
Valid from assembly: 0 - 5103644. Colour: BLACK.Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £1.43
from £1.43
# 022
MPN: 675000424
PLUG
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £5.06
from £5.06
# 023
MPN: 670009233
RH FRONT WHEELHOUSE GUARD
Valid from assembly: 0 - 5076305. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £16.48
from £16.48
# 024
MPN: 670009232
LH FRONT WHEELHOUSE GUARD
Valid from assembly: 0 - 5076305. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £16.48
from £16.48
# 025
MPN: 670009235
DASHBOARD INTERNAL SOUNDPROOFING PANEL
Valid from assembly: 0 - 5103644. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £38.59
from £38.59
# 025
MPN: 670030894
DASHBOARD INTERNAL SOUNDPROOFING PANEL
Valid from assembly: 5017917 - 5058885. Suitable for cars with: RIGHT HAND DRIVE. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from £34.70
from £34.70
# 026
MPN: 670009236
RH INSULATION
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £23.17
from £23.17
# 027
MPN: 670009237
LH INSULATION
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £23.17
from £23.17
# 028
MPN: 670009241
RH RUBBER BUSHING
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £12.01
from £12.01
# 029
MPN: 670009242
LH RUBBER BUSHING
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £12.01
from £12.01
# 032
MPN: 675000679
PLUG
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £10.66
from £10.66
# 033
MPN: 670030941
SOUNDPROOFING ELEMENT FOR SPARE WHEEL CASING
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £5.85
from £5.85
# 034
MPN: 670031594
PAD
Valid from assembly: 5022490. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from £4.36
from £4.36
# 035
MPN: 670003320
FASTENER BUTTON
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £1.10
from £1.10
# 036
MPN: 670009112
FASTENER BUTTON
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £2.37
from £2.37
# 037
MPN: 670009264
SOUNDPROOFING ELEMENT
Valid from assembly: 0 - 5103644. Suitable for cars with: STOP & START ENGINE FUNCTION. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, USA
from £47.00
from £47.00
# 039
MPN: 670037611
SOUND-PROOF MATERIAL
Valid from assembly: 5056969. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £6.55
from £6.55
# 040
MPN: 670037612
FELT
Valid from assembly: 5056969. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £6.08
from £6.08
# 040
MPN: 670037612
FELT
Valid from assembly: 5056969 - 5116221. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £6.08
from £6.08
# 041
MPN: 670037613
SOUND-PROOF MATERIAL #(IMAGE NOT AVAILABLE)#
Valid from assembly: 5056969. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £7.56
from £7.56
# 042
MPN: 670037614
SOUND-PROOF MATERIAL
Valid from assembly: 5056969. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £5.53
from £5.53
# 043
MPN: 670038105
RH FRONT FOOTBOARD INSULATION
Valid from assembly: 5058885 - 5089131. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £8.90
from £8.90
# 044
MPN: 670030624
LH INSULATION
Valid from assembly: 5056969. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £7.56
from £7.56
# 046
MPN: 670017302
FASTENER BUTTON
Valid from assembly: 0 - 5103644. Colour: BLACK.Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK, USA
from £1.43
from £1.43
-part-diagram-09.62.3.webp "MASERATI GHIBLI (2016) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.2.webp "MASERATI GHIBLI (2016) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.71.1.webp "MASERATI GHIBLI (2016) SUNROOF PARTS DIAGRAM")
-part-diagram-01.00.2.webp "MASERATI GHIBLI (2016) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.00.3.webp "MASERATI GHIBLI (2016) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.00.4.webp "MASERATI GHIBLI (2016) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.2.webp "MASERATI GHIBLI (2016) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.10.3.webp "MASERATI GHIBLI (2016) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI GHIBLI (2016) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.11.4.webp "MASERATI GHIBLI (2016) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.2.webp "MASERATI GHIBLI (2016) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.20.3.webp "MASERATI GHIBLI (2016) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.2.webp "MASERATI GHIBLI (2016) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.3.webp "MASERATI GHIBLI (2016) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.2.webp "MASERATI GHIBLI (2016) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.22.3.webp "MASERATI GHIBLI (2016) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.2.webp "MASERATI GHIBLI (2016) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.3.webp "MASERATI GHIBLI (2016) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.2.webp "MASERATI GHIBLI (2016) TIMING PARTS DIAGRAM")
-part-diagram-01.24.3.webp "MASERATI GHIBLI (2016) TIMING PARTS DIAGRAM")
-part-diagram-01.25.2.webp "MASERATI GHIBLI (2016) VALVES PARTS DIAGRAM")
-part-diagram-01.25.3.webp "MASERATI GHIBLI (2016) VALVES PARTS DIAGRAM")
-part-diagram-01.30.2.webp "MASERATI GHIBLI (2016) TURBOCHARGING SYSTEM: EQUIPMENTS PARTS DIAGRAM")
-part-diagram-01.30.3.webp "MASERATI GHIBLI (2016) TURBOCHARGING SYSTEM: EQUIPMENTS PARTS DIAGRAM")
-part-diagram-01.31.2.webp "MASERATI GHIBLI (2016) TURBOCHARGING SYSTEM: LUBRICATION AND COOLING PARTS DIAGRAM")
-part-diagram-01.31.3.webp "MASERATI GHIBLI (2016) TURBOCHARGING SYSTEM: LUBRICATION AND COOLING PARTS DIAGRAM")
-part-diagram-01.32.2.webp "MASERATI GHIBLI (2016) INTERCOOLER SYSTEM PARTS DIAGRAM")
-part-diagram-01.32.3.webp "MASERATI GHIBLI (2016) INTERCOOLER SYSTEM PARTS DIAGRAM")
-part-diagram-01.40.2.webp "MASERATI GHIBLI (2016) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.40.3.webp "MASERATI GHIBLI (2016) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI GHIBLI (2016) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.41.3.webp "MASERATI GHIBLI (2016) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI GHIBLI (2016) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.3.webp "MASERATI GHIBLI (2016) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.4.webp "MASERATI GHIBLI (2016) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.6.webp "MASERATI GHIBLI (2016) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.7.webp "MASERATI GHIBLI (2016) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.3.webp "MASERATI GHIBLI (2016) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.44.4.webp "MASERATI GHIBLI (2016) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.3.webp "MASERATI GHIBLI (2016) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.4.webp "MASERATI GHIBLI (2016) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.5.webp "MASERATI GHIBLI (2016) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.6.webp "MASERATI GHIBLI (2016) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.2.webp "MASERATI GHIBLI (2016) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.60.3.webp "MASERATI GHIBLI (2016) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.60.4.webp "MASERATI GHIBLI (2016) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.2.webp "MASERATI GHIBLI (2016) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.61.3.webp "MASERATI GHIBLI (2016) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.61.4.webp "MASERATI GHIBLI (2016) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.2.webp "MASERATI GHIBLI (2016) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.2.webp "MASERATI GHIBLI (2016) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.63.4.webp "MASERATI GHIBLI (2016) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI GHIBLI (2016) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.70.3.webp "MASERATI GHIBLI (2016) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.4.webp "MASERATI GHIBLI (2016) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.6.webp "MASERATI GHIBLI (2016) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.8.webp "MASERATI GHIBLI (2016) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.2.webp "MASERATI GHIBLI (2016) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.72.3.webp "MASERATI GHIBLI (2016) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.2.webp "MASERATI GHIBLI (2016) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.80.5.webp "MASERATI GHIBLI (2016) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI GHIBLI (2016) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.2.webp "MASERATI GHIBLI (2016) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.4.webp "MASERATI GHIBLI (2016) SILENCERS PARTS DIAGRAM")
-part-diagram-01.82.1.webp "MASERATI GHIBLI (2016) ADBLUE SYSTEM PARTS DIAGRAM")
-part-diagram-01.90.2.webp "MASERATI GHIBLI (2016) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.3.webp "MASERATI GHIBLI (2016) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.2.webp "MASERATI GHIBLI (2016) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-01.91.3.webp "MASERATI GHIBLI (2016) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-03.02.1.webp "MASERATI GHIBLI (2016) DRIVER CONTROLS FOR AUTOMATIC GEARBOX PARTS DIAGRAM")
-part-diagram-03.10.2.webp "MASERATI GHIBLI (2016) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.3.webp "MASERATI GHIBLI (2016) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.4.webp "MASERATI GHIBLI (2016) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.6.webp "MASERATI GHIBLI (2016) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.21.1.webp "MASERATI GHIBLI (2016) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.22.1.webp "MASERATI GHIBLI (2016) FRONT WHEELS TRANSMISSION PARTS DIAGRAM")
-part-diagram-03.30.1.webp "MASERATI GHIBLI (2016) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.2.webp "MASERATI GHIBLI (2016) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.3.webp "MASERATI GHIBLI (2016) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.50.2.webp "MASERATI GHIBLI (2016) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.50.3.webp "MASERATI GHIBLI (2016) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-04.00.3.webp "MASERATI GHIBLI (2016) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.00.4.webp "MASERATI GHIBLI (2016) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.00.5.webp "MASERATI GHIBLI (2016) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.2.webp "MASERATI GHIBLI (2016) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.10.3.webp "MASERATI GHIBLI (2016) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.10.4.webp "MASERATI GHIBLI (2016) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.1.webp "MASERATI GHIBLI (2016) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.11.2.webp "MASERATI GHIBLI (2016) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.11.3.webp "MASERATI GHIBLI (2016) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.1.webp "MASERATI GHIBLI (2016) LINES PARTS DIAGRAM")
-part-diagram-04.20.2.webp "MASERATI GHIBLI (2016) LINES PARTS DIAGRAM")
-part-diagram-04.30.1.webp "MASERATI GHIBLI (2016) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.1.webp "MASERATI GHIBLI (2016) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI GHIBLI (2016) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.2.webp "MASERATI GHIBLI (2016) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.10.4.webp "MASERATI GHIBLI (2016) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.10.6.webp "MASERATI GHIBLI (2016) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI GHIBLI (2016) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI GHIBLI (2016) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI GHIBLI (2016) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI GHIBLI (2016) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.5.webp "MASERATI GHIBLI (2016) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.12.1.webp "MASERATI GHIBLI (2016) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.12.2.webp "MASERATI GHIBLI (2016) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.20.1.webp "MASERATI GHIBLI (2016) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.20.2.webp "MASERATI GHIBLI (2016) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.21.1.webp "MASERATI GHIBLI (2016) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.22.1.webp "MASERATI GHIBLI (2016) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI GHIBLI (2016) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI GHIBLI (2016) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.00.1.webp "MASERATI GHIBLI (2016) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.02.1.webp "MASERATI GHIBLI (2016) FRONT SIDE BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.04.1.webp "MASERATI GHIBLI (2016) WINDOW BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI GHIBLI (2016) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.10.1.webp "MASERATI GHIBLI (2016) FRONT SEATBELTS PARTS DIAGRAM")
-part-diagram-07.11.1.webp "MASERATI GHIBLI (2016) REAR SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.20.1.webp "MASERATI GHIBLI (2016) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-07.30.3.webp "MASERATI GHIBLI (2016) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.4.webp "MASERATI GHIBLI (2016) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.32.1.webp "MASERATI GHIBLI (2016) ON BOARD DOCUMENTATION PARTS DIAGRAM")
-part-diagram-08.00.1.webp "MASERATI GHIBLI (2016) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.00.2.webp "MASERATI GHIBLI (2016) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI GHIBLI (2016) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.2.webp "MASERATI GHIBLI (2016) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.20.3.webp "MASERATI GHIBLI (2016) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.30.1.webp "MASERATI GHIBLI (2016) HEADLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.31.1.webp "MASERATI GHIBLI (2016) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.1.webp "MASERATI GHIBLI (2016) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.3.webp "MASERATI GHIBLI (2016) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.5.webp "MASERATI GHIBLI (2016) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI GHIBLI (2016) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.41.2.webp "MASERATI GHIBLI (2016) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI GHIBLI (2016) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.42.2.webp "MASERATI GHIBLI (2016) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.1.webp "MASERATI GHIBLI (2016) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.1.webp "MASERATI GHIBLI (2016) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.1.webp "MASERATI GHIBLI (2016) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.52.1.webp "MASERATI GHIBLI (2016) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.52.3.webp "MASERATI GHIBLI (2016) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.53.2.webp "MASERATI GHIBLI (2016) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.5.webp "MASERATI GHIBLI (2016) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.7.webp "MASERATI GHIBLI (2016) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.10.webp "MASERATI GHIBLI (2016) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.11.webp "MASERATI GHIBLI (2016) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.2.webp "MASERATI GHIBLI (2016) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.6.webp "MASERATI GHIBLI (2016) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.9.webp "MASERATI GHIBLI (2016) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.2.webp "MASERATI GHIBLI (2016) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.61.3.webp "MASERATI GHIBLI (2016) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.62.1.webp "MASERATI GHIBLI (2016) CONNECTORS PARTS DIAGRAM")
-part-diagram-08.63.1.webp "MASERATI GHIBLI (2016) EXTRACTORS PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI GHIBLI (2016) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.70.2.webp "MASERATI GHIBLI (2016) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.1.webp "MASERATI GHIBLI (2016) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.3.webp "MASERATI GHIBLI (2016) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.6.webp "MASERATI GHIBLI (2016) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI GHIBLI (2016) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-09.00.1.webp "MASERATI GHIBLI (2016) BODYWORK AND FRONT OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.1.webp "MASERATI GHIBLI (2016) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.02.1.webp "MASERATI GHIBLI (2016) BODYWORK AND REAR OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.03.1.webp "MASERATI GHIBLI (2016) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.03.2.webp "MASERATI GHIBLI (2016) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.03.3.webp "MASERATI GHIBLI (2016) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.1.webp "MASERATI GHIBLI (2016) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.2.webp "MASERATI GHIBLI (2016) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.1.webp "MASERATI GHIBLI (2016) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.2.webp "MASERATI GHIBLI (2016) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.4.webp "MASERATI GHIBLI (2016) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.10.1.webp "MASERATI GHIBLI (2016) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.11.1.webp "MASERATI GHIBLI (2016) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI GHIBLI (2016) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI GHIBLI (2016) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.3.webp "MASERATI GHIBLI (2016) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.14.4.webp "MASERATI GHIBLI (2016) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI GHIBLI (2016) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.15.2.webp "MASERATI GHIBLI (2016) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.1.webp "MASERATI GHIBLI (2016) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI GHIBLI (2016) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.17.2.webp "MASERATI GHIBLI (2016) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI GHIBLI (2016) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI GHIBLI (2016) REAR LID PARTS DIAGRAM")
-part-diagram-09.21.2.webp "MASERATI GHIBLI (2016) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI GHIBLI (2016) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI GHIBLI (2016) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI GHIBLI (2016) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.24.2.webp "MASERATI GHIBLI (2016) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.30.1.webp "MASERATI GHIBLI (2016) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.30.5.webp "MASERATI GHIBLI (2016) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.31.2.webp "MASERATI GHIBLI (2016) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.32.1.webp "MASERATI GHIBLI (2016) REAR DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.33.1.webp "MASERATI GHIBLI (2016) REAR DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.34.1.webp "MASERATI GHIBLI (2016) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.1.webp "MASERATI GHIBLI (2016) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.40.1.webp "MASERATI GHIBLI (2016) FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.41.1.webp "MASERATI GHIBLI (2016) FRONT SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.42.1.webp "MASERATI GHIBLI (2016) REAR SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.43.1.webp "MASERATI GHIBLI (2016) REAR SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI GHIBLI (2016) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI GHIBLI (2016) ROOF AND SUN VISORS PARTS DIAGRAM")
-part-diagram-09.46.1.webp "MASERATI GHIBLI (2016) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.46.2.webp "MASERATI GHIBLI (2016) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.50.2.webp "MASERATI GHIBLI (2016) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.3.webp "MASERATI GHIBLI (2016) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.5.webp "MASERATI GHIBLI (2016) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.6.webp "MASERATI GHIBLI (2016) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.51.1.webp "MASERATI GHIBLI (2016) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.1.webp "MASERATI GHIBLI (2016) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI GHIBLI (2016) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.1.webp "MASERATI GHIBLI (2016) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI GHIBLI (2016) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
