Maserati Bora CARBURATORE Parts Diagram (009)

Part number

Description

Key

Price

# 001

MPN: 115.03.49 MC 70374

CARBURATORE WEBER 42 DCNF 14

Carburatore 42 DCNF 14, ad esaurim. montare it 115.03.49 MC 76780 42 DCNF 14/1 Genuine Maserati Part - New (to order)

# 001

MPN: CRK42DCNF

CARBURETTOR REBUILD KIT

42 DCNF

from £309.75

Carburettor Rebuild Kit 3,0 non SS (SS model see EAP1373949) Genuine Maserati Part - New In stock

# 002

MPN: 107/3 MC 69736

PRESA ARIA A TROMBETTA

PRESA ARIA A TROMBETTA Genuine Maserati Part - New (to order)

# 003

MPN: 115 MC 67284

HORN EXTENSION SPACER

HORN EXTENSION SPACER Genuine Maserati Part - New (to order)

# 004

MPN: 107 07 47 MC 73914

COVER

COVER Genuine Maserati Part - New (to order)

# 005

MPN: 107/3 MC 69674

GASKET OR SEAL

GASKET OR SEAL Genuine Maserati Part - New (to order)

# 006

MPN: DNT 47046

NUT

This part replaces part number 47046

Screw nut Genuine Maserati Part - New (to order)

# 007

MPN: RAT/45678

WASHER

This part replaces part number 45678

WASHER Genuine Maserati Part - New (to order)

# 008

MPN: PN 67449

PRLGFONIERO Ø 5 X 0,8 X 37 PER DETTO

STUD Genuine Maserati Part - New (to order)

# 009

MPN: C114/1 MC 67314

SEALING RING

SEAL RING Genuine Maserati Part - New (to order)

# 010

MPN: 115 MC 67285

PIPE BETWEEN HOSE AND CARBURETTOR

PIPE BETWEEN HOSE AND CARBURETTOR Genuine Maserati Part - New (to order)

# 011

MPN: 107/3 MC 69719*

CENTRATORE

CENTRATORE Genuine Maserati Part - New (to order)

# 012

MPN: 107/3 MC 69718

DIFFUSER

DIFFUSER Genuine Maserati Part - New (to order)

# 013

MPN: 107/3 MC 69720*

GETTO AVVIAMENTO

Gentto avviamento Genuine Maserati Part - New (to order)

# 014

MPN: 107/3 MC 69687*

PUMP DELIVERY VALVE

VALVOLA MANDATA POMPA Genuine Maserati Part - New (to order)

# 015

MPN: 107/3 MC 69688*

GETTO POMPA

GETTO POMPA Genuine Maserati Part - New (to order)

# 016

MPN: GN58330

GASKET OR SEAL

Guarnizione 6x9 per getto pompa Genuine Maserati Part - New (to order)

# 017

MPN: 107/3 MC 69721

SEEGER RING

SEEGER RING Genuine Maserati Part - New (to order)

# 018

MPN: 107/3 MC 69722

BUSH

Spring guide bush Genuine Maserati Part - New (to order)

# 019

MPN: 107/3 MC 69723

MOLLS PER VALVOLA AVVIAMENTO

Starter valve spring Genuine Maserati Part - New (to order)

# 020

MPN: 107/3 MC 69724

VALVOLA AVVIAMENTO

VALVOLA AVVIAMENTO Genuine Maserati Part - New (to order)

# 021

MPN: 107/3 MC 69630*

BRAKE AIR JET

GETTO ARIA DI FRENO Genuine Maserati Part - New (to order)

# 022

MPN: 107/3 MC 69686

TUBETTO EMULSIONATORE

TUBETTO EMULSIONATORE Genuine Maserati Part - New (to order)

# 023

MPN: 107/3 MC 69689

GETTO PRINCIPALS

Main jet N.B. When Ordering Indicate Calibration Genuine Maserati Part - New (to order)

# 024

MPN: VNT 69735

SCREW

Vita fissaggio coperchio carburatore Genuine Maserati Part - New (to order)

# 025

MPN: RNT 69734

WASHER

WASHER Genuine Maserati Part - New (to order)

# 026

MPN: 107/3 MC 69731

ELEMENTO FILTRANTE

FILTER Genuine Maserati Part - New (to order)

# 027

MPN: 107/3 M,C 69730

TAPPO PER ELEMENTO FILTRANTE

TAPPO PER ELEMENTO FILTRANTE Genuine Maserati Part - New (to order)

# 028

MPN: GN 36072

GASKET OR SEAL

Plug gasket Genuine Maserati Part - New (to order)

# 029

MPN: 107/3 MC 69727

TAPPO PER ISPEAIONE FILTRO

Tappo per ispezione filtro Genuine Maserati Part - New (to order)

# 030

MPN: 107/3 MC 69679*

VALVOLA A SPFLLO

VALVOLA A SPILLO Genuine Maserati Part - New (to order)

# 031

MPN: 107/3 MC 69684

GALLEGGIANTE

GALLEGGIANTE Genuine Maserati Part - New (to order)

# 032

MPN: SN 69677

Porno fulcro galleggiante Genuine Maserati Part - New (to order)

# 033

MPN: 107/3 MC 69683

COPERCHLO POMPA COMPLETO

COVER Genuine Maserati Part - New (to order)

# 034

MPN: VNT 61861

VITA FISSAGGLO COPERCHIO POMPA

Vito fialasagglo fllo solenoid Genuine Maserati Part - New (to order)

# 035

MPN: 107/3 MC 69700

MOLLS CARICAMENTO POMPA

SPRING Genuine Maserati Part - New (to order)

# 036

MPN: 107/3 MC 69701

MEMBRANE POMPA

Pump diaphragm Genuine Maserati Part - New (to order)

# 037

MPN: 107/3 MC 69690*

GETTO MINIMO

GETTO MINIMO Genuine Maserati Part - New (to order)

# 038

MPN: GN 69691

Guamizione per portagetto minimo

Guamizione per portagetto minimo Genuine Maserati Part - New (to order)

# 039

MPN: 107/3 MC 69675

PORTAGETTO MINIMO

PORTAGETTO MINIMO Genuine Maserati Part - New (to order)

# 040

MPN: 107/3 MC 69717

COVER

Starter cover Genuine Maserati Part - New (to order)

# 041

MPN: 107/3 MC 58363

REDCELLA FILTRANTE

RETICELLA FILTRANTE Genuine Maserati Part - New (to order)

# 042

MPN: VNT 60788

Vita Ø 5 X 0,8 X 10 fissaggio fulcra leva squadro

Vita Ø 5 X 0,8 X 10 fissaggio fulcra leva squadro Genuine Maserati Part - New (to order)

# 043

MPN: 107/3 MC 69676

BUSH

Lever bush Genuine Maserati Part - New (to order)

# 044

MPN: VNT 57199

SCREW

SCREW Genuine Maserati Part - New (to order)

# 045

MPN: 107/3 MC 69681

LAVA SQUADRO

Lever complete Genuine Maserati Part - New (to order)

# 046

MPN: VNT 47445

SCREW

Vile Ø 4 x 0,7 x 15 per detto Genuine Maserati Part - New (to order)

# 047

MPN: RSN33189

WASHER

Rosetta spaccata 0 4,5x1x9,5 per fissaggio boccola at supporto piantone guida Genuine Maserati Part - New (to order)

# 048

MPN: 107/3 MC 71181

Vita per registro aria

Vita per registro aria Genuine Maserati Part - New (to order)

# 049

MPN: DNT 47046

NUT

This part replaces part number 47046

Screw nut Genuine Maserati Part - New (to order)

# 050

MPN: 101 MC 50352

SPRING

SPRING Genuine Maserati Part - New (to order)

# 051

MPN: 107/3 MC 69715

BUSH

Bush for throttle screw Genuine Maserati Part - New (to order)

# 052

MPN: 107/3 MC 69716

Vile registro farfalle

Vile registro farfalle Genuine Maserati Part - New (to order)

# 053

MPN: 107/3 MC 69714

SCREW

SCREW Genuine Maserati Part - New (to order)

# 054

MPN: DNT 32484

NUT

NUT Genuine Maserati Part - New (to order)

# 055

MPN: 101 MC 52224

WASHER

WASHER Genuine Maserati Part - New (to order)

# 056

MPN: RN 69704

WASHER

WASHER Genuine Maserati Part - New (to order)

# 057

MPN: 107/3 MC 69705

CAMMA COMANDO POMPA

CAMMA COMANDO POMPA Genuine Maserati Part - New (to order)

# 058

MPN: RN 69738

WASHER

WASHER Genuine Maserati Part - New (to order)

# 059

MPN: 107/3 69709

SCODELLIRRO PREMICUSCINETTO

SCODELLIRRO PREMICUSCINETTO Genuine Maserati Part - New (to order)

# 060

MPN: CSC50855

CUSCINETTO Ø 7 X 19 X 6 SUU'ALBERINO CAM FARFALLE

Cuscinetto a sfere 7x19x6 per detto Genuine Maserati Part - New (to order)

# 061

MPN: 107/3 69710

BUSH

BUSH Genuine Maserati Part - New (to order)

# 062

MPN: RAT 69711

WASHER

WASHER Genuine Maserati Part - New (to order)

# 063

MPN: 107/3 MC 69712

SPRING

Throttle valve return spring Genuine Maserati Part - New (to order)

# 064

MPN: 107/3 MC 69713

LEVER

Throttle control lever Genuine Maserati Part - New (to order)

# 065

MPN: 107/3 MC 69706

ALBERFNO PRINCIPALE

SHAFT Genuine Maserati Part - New (to order)

# 066

MPN: 107/3 MC 69707

VALVOLA A FARFALLA

VALVOLA A FARFALLE Genuine Maserati Part - New (to order)

# 067

MPN: VNT-48796

SCREW

SCREW Genuine Maserati Part - New (to order)

# 068

MPN: GN 33783

Guamizione Ø 12 X 18 X 1 per raccordo

Guamizione Ø 12 X 18 X 1 per raccordo Genuine Maserati Part - New (to order)

# 069

MPN: VRN 65819

Vita raccordo Ø 12 X 1.5

Vita raccordo Ø 12 X 1.5 Genuine Maserati Part - New (to order)

# 070

MPN: C 114/1 MC 67287

LEAK BETWEEN INTAKE MANIFOLD AND CARBURETTOR

LEAK BETWEEN INTAKE MANIFOLD AND CARBURETTOR Genuine Maserati Part - New (to order)

# 071

MPN: C 114/1 MC 67286

GUAMIZIONE INTERMEDLA FRA COLLETTORE ASPLRAZ. E CARBURATORE

GUAMIZIONE INTERMEDLA FRA COLLETTORE ASPLRAZ. E CARBURATORE Genuine Maserati Part - New (to order)

# 072

MPN: 117 MC 77323

SCREW

SCREW Genuine Maserati Part - New (to order)

# 073

MPN: DNT 47046

NUT

This part replaces part number 47046

Screw nut Genuine Maserati Part - New (to order)

# 074

MPN: C114/1 MC 66800

GASKET OR SEAL

GASKET Genuine Maserati Part - New (to order)

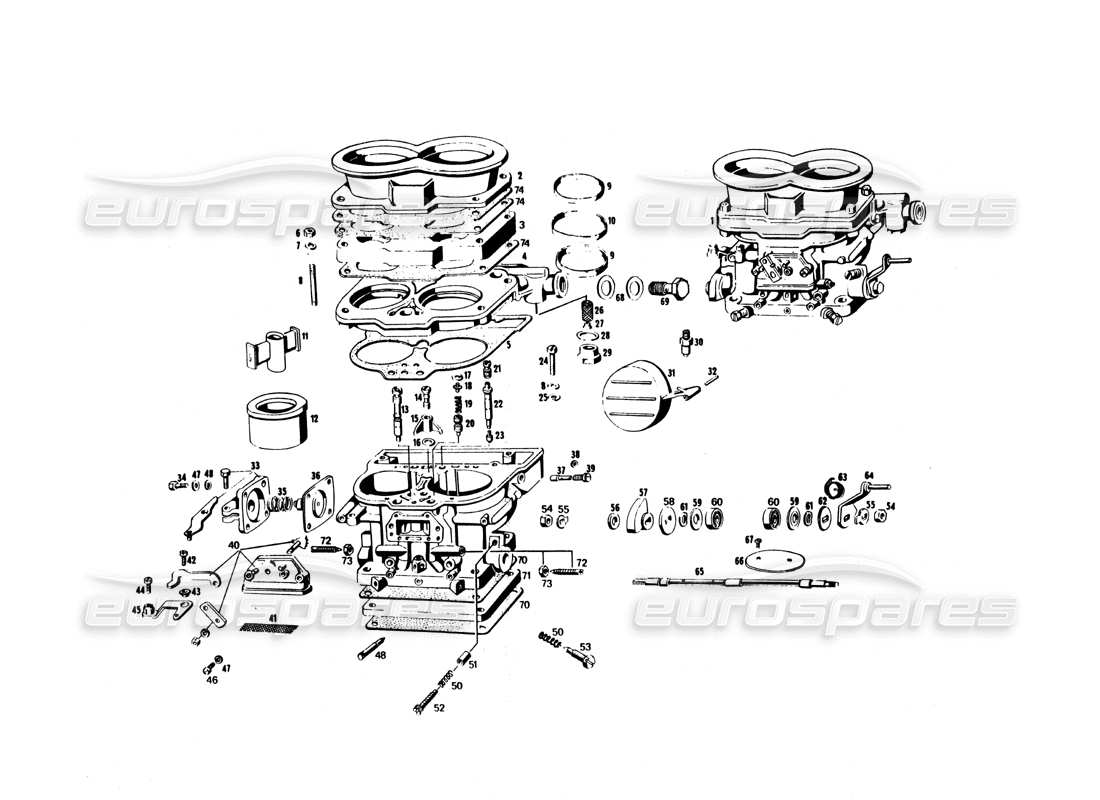

009 - CARBURATORE

Maserati Bora Carburatore Parts Diagram
