maserati 3200 gt/gta/assetto corsa external seals parts diagram

115 - External Seals

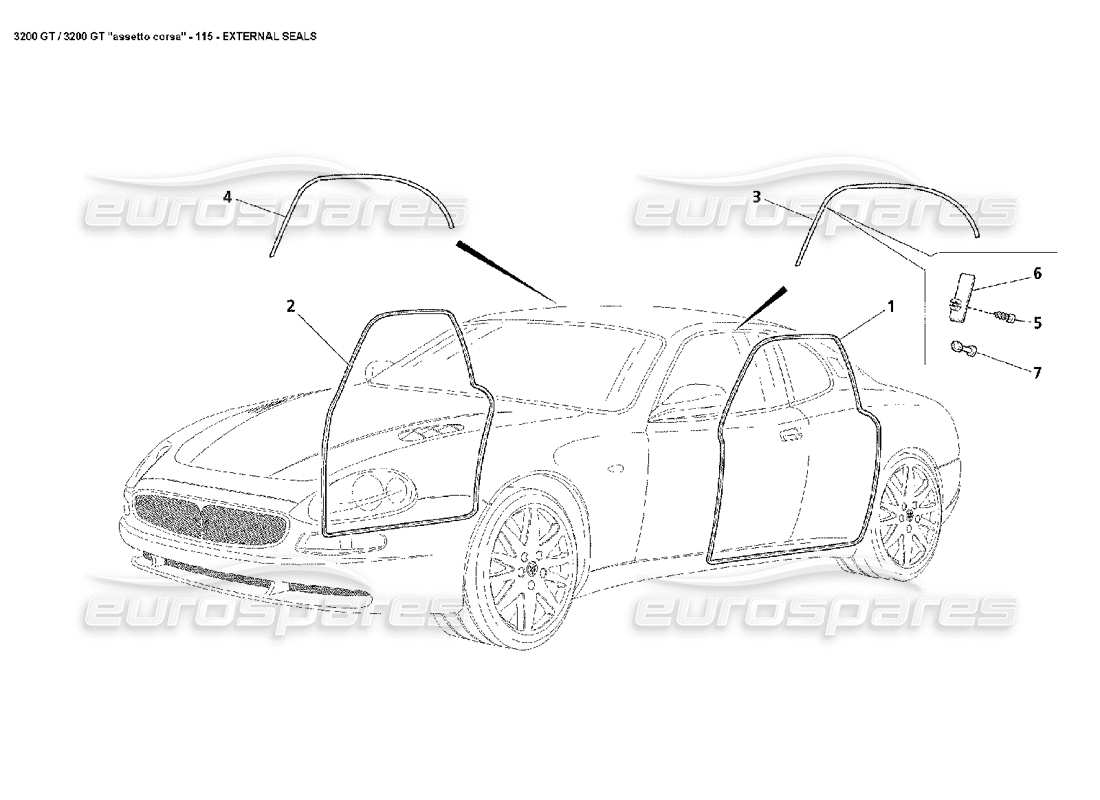

Maserati 3200 GT/GTA/Assetto Corsa External Seals Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 384500159
                LH DOOR FRAME SEAL
                from £498.75
                from £498.75
                GUARNIZIONE VANO PORTA SX Genuine Maserati Part - New (to order)
                GUARNIZIONE VANO PORTA SX Genuine Maserati Part - Used In stock
                # 002
                MPN: 384500158
                RH DOOR FRAME SEAL
                from £668.48
                from £668.48
                GUARNIZIONE VANO PORTA DX FO Genuine Maserati Part - New (to order)
                GUARNIZIONE VANO PORTA DX FO Genuine Maserati Part - Used In stock
                # 003
                MPN: 386100109
                LH CHANNEL WITH SEAL
                from £329.41
                from £329.41
                COMPLETE LH CABLE GUIDE WITH W.GA Genuine Maserati Part - New (to order)
                # 004
                MPN: 386100110
                RH CHANNEL WITH SEAL
                from £329.41
                from £329.41
                COMPLETE RH CABLE GUIDE WITH W.GA Genuine Maserati Part - New (to order)
                # 005
                MPN: 119142160
                SCREW
                from £0.87
                from £0.87
                SCREW Genuine Maserati Part - New (to order)
                # 006
                MPN: 64569500
                SMALL PLATE
                from £2.07
                from £2.07
                This part replaces part number 386100308
                SMALL SPRING (64569500) Genuine Ferrari Part - New In stock
                MOLLETTA RITEGNO MODANATURA Genuine Maserati Part - New (to order)
                # 007
                MPN: 386100307
                button
                from £24.87
                from £24.87
                BOTTONE DI FISSAGGIO Genuine Maserati Part - New In stock
