864.01.00 - Insulations And Soundproofing

Lamborghini Murcielago LP670 Insulations And Soundproofing Parts Diagram

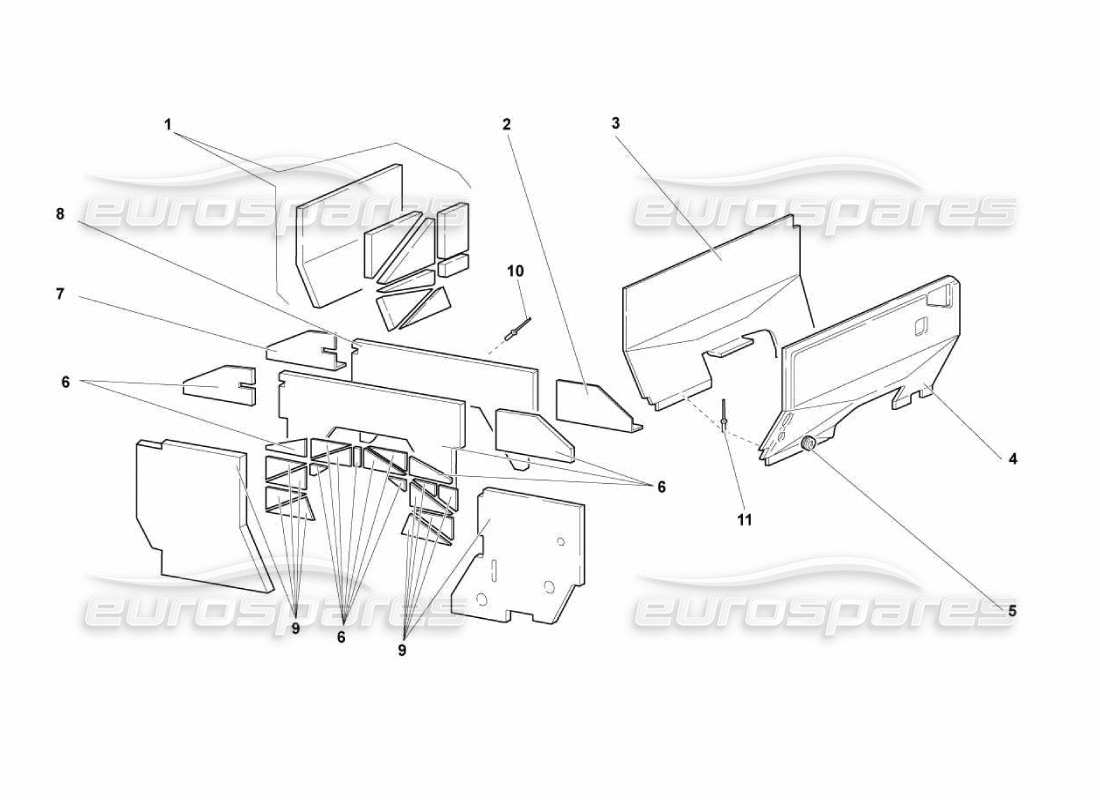

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 310147021
                        FUEL TANK ISOLATION SET
                        from £234.33
                        from £234.33
                        # 002
                        MPN: 418103763
                        ENGINE COMPARTMENT LEFT FIREPROOF SHIELD
                        from £78.08
                        from £78.08
                        # 003
                        MPN: 418863932B
                        RIGHT HEAT SHIELD
                        from £787.04
                        from £787.04
                        # 004
                        MPN: 418863931B
                        LEFT HEAT SHIELD
                        from £787.04
                        from £787.04
                        # 005
                        MPN: 400825837
                        RUBBER RING
                        from £4.55
                        from £4.55
                        # 006
                        MPN: 310147022
                        ENGINE SIDE FIREPROOF SET
                        from £496.31
                        from £496.31
                        # 007
                        MPN: 418103764A
                        ENGINE COMPARTMENT RIGHT FIREPROOF SHIELD
                        from £78.86
                        from £78.86
                        # 008
                        MPN: 418864926A
                        ENGINE COMPARTMENT CENTER FIREPROOF SHIELD
                        from £168.18
                        from £168.18
                        # 009
                        MPN: 310147049
                        FLAME SHIELD INSULATION ENGINE SIDE, BOTTOM
                        from £1,050.55
                        from £1,050.55
                        # 010
                        MPN: 410863059
                        RIVET 3,2X16
                        from £0.50
                        from £0.50
                        # 011
                        MPN: 410867883
                        RIVET 3,2X16
                        from £0.81
                        from £0.81
                        # 011
                        MPN: 410867883
                        RIVET 3,2X8
                        from £0.81
                        from £0.81
