141.01.00 - Clutch (manual)

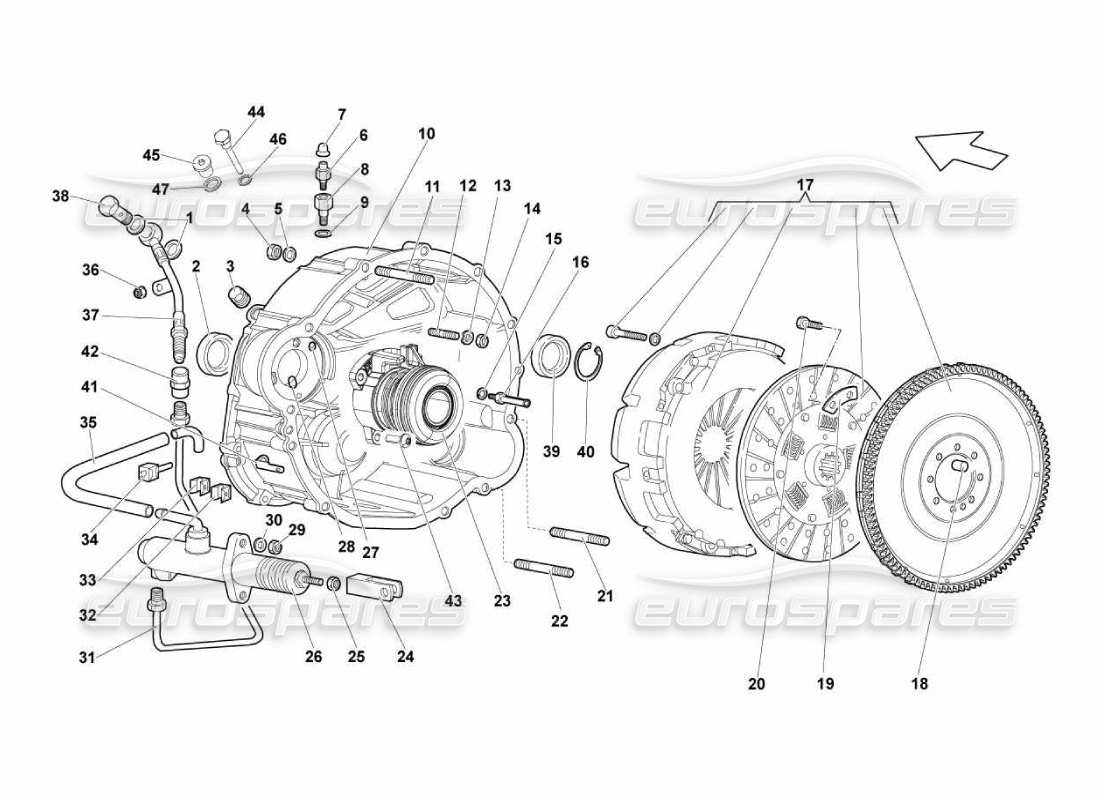

Lamborghini Murcielago LP670 Clutch (manual) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: N138131
WASHER
# 002
-
SEAL RING (VALID TO MODEL YEAR 09)
# 003
-
HELI-COIL (VALID UP MODEL YEAR 09)
# 004
MPN: N1100845
NUT
# 005
MPN: WHT000771
WASHER
from £0.76
from £0.76
This part replaces part number 008410810
# 006
MPN: 086301138
BLEEDER SCREW
from £15.52
from £15.52
This part replaces part number 086301127
# 007
MPN: 086301147
BOOT
from £0.65
from £0.65
# 008
MPN: 086323173B
CONNECTOR
from £79.55
from £79.55
# 009
MPN: N91014802
SEAL RING
from £2.90
from £2.90
# 010
MPN: 086323209K
CLUTCH HOUSING
from £1,962.74
from £1,962.74
# 011
MPN: WHT003027
STUD BOLT M8X35
from £5.58
from £5.58
This part replaces part number 008300808
# 012
MPN: WHT002942
STUD BOLT M6X18
from £6.62
from £6.62
This part replaces part number 008300614
# 013
MPN: WHT003213
WASHER
from £0.88
from £0.88
This part replaces part number 008410612
# 014
MPN: N1100637
NUT
# 015
-
WASHER (VALID UP MODEL YEAR 09)
# 016
-
ANTIROTATION BAR HOLD UP TO MODEL YEAR 09)
# 017
MPN: 07M105269
BALANCED MECHANISM CLUTCH
from £4,591.26
from £4,591.26
# 018
MPN: WHT003078
DOWEL
from £10.34
from £10.34
This part replaces part number 008850806
# 019
MPN: 410141179
PLATE
from £38.40
from £38.40
This part replaces part number 008410811 - and 1 more. Click to view details
# 020
MPN: WHT002951
SCREW M8X1,25X23
from £11.41
from £11.41
This part replaces part number 008100802
# 021
MPN: WHT002944
STUD BOLT M8X50
from £10.08
from £10.08
# 022
MPN: WHT003166
STUD BOLT M8X40
from £30.48
from £30.48
This part replaces part number 008300826
# 023
MPN: 086141671M
THRUST BEARING
from £644.16
from £644.16
This part replaces part number 086141671K
# 024
MPN: 410721213A
FORK
from £89.06
from £89.06
This part replaces part number 004219591 - and 1 more. Click to view details
# 025
MPN: N1100845
NUT M8X1,25X6,5
# 026
MPN: 410721401A
Clutch Pump
from £226.55
from £226.55
This part replaces part number 410721401
# 027
MPN: N90039604
SEAL RING
from £4.80
from £4.80
# 028
MPN: N90111301
SEAL RING
from £0.54
from £0.54
# 029
MPN: N1100845
NUT M8X1,25X6,5
# 030
MPN: N152785
WASHER
# 031
MPN: 414721461B
PIPE
from £313.00
from £313.00
# 032
MPN: 400611799F
CLIP
from £0.49
from £0.49
# 033
MPN: 400971848
CLIP
from £0.53
from £0.53
# 034
MPN: 400611757
JOURNAL
from £1.41
from £1.41
# 035
MPN: 414721465
PIPE
from £13.66
from £13.66
# 036
MPN: WHT003226
NUT M12X1X7
from £37.44
from £37.44
This part replaces part number 008201216
# 037
MPN: 410721462B
HOSE
from £117.60
from £117.60
# 038
MPN: N210717
SCREW WITH HOLE
# 039
MPN: 086311819
SEAL RING
from £33.12
from £33.12
This part replaces part number 008613601
# 040
MPN: WHT003580
RETAINING RING
from £9.18
from £9.18
# 041
MPN: 410911085A
BRACKET
from £16.30
from £16.30
# 042
MPN: 410721419A
CONNECTOR
from £49.97
from £49.97
# 043
MPN: N10124306
SCREW M6X20
from £0.89
from £0.89
# 045
MPN: N160276
PLUG
# 046
MPN: N138302
WASHER
from £1.70
from £1.70
# 047
MPN: N138494
1 WASHER
