lamborghini lp640 roadster (2010) selector mechanism parts diagram

311.01.00 - SELECTOR MECHANISM

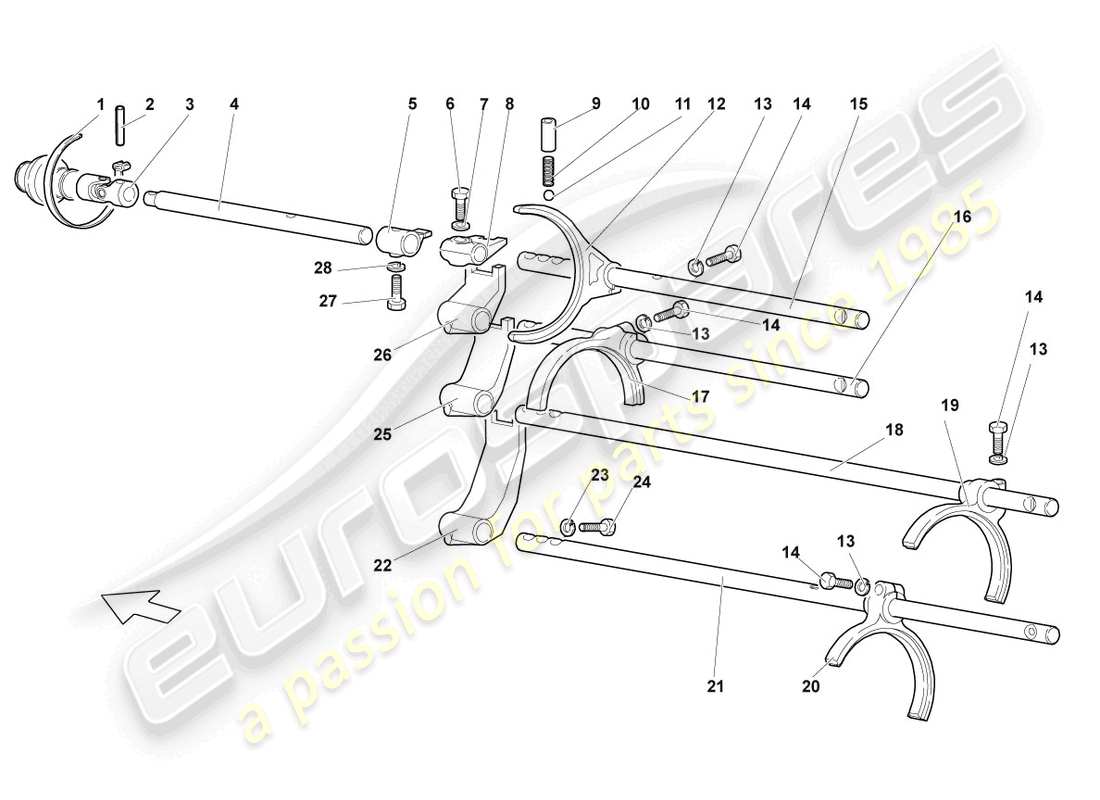

Lamborghini LP640 Roadster (2010) SELECTOR MECHANISM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 893971850C
            CABLE TIES
            4,6X200
            from £0.53
            from £0.53
            This part replaces part number 008830305
            CABLE TIE 205.00X4.60 Genuine Lamborghini - New In stock
            # 002
            MPN: N0132891
            SPRING PIN
            MANUAL GEARBOX-5X24
            from £2.09
            from £2.09
            ROLL PIN Genuine Lamborghini - New In stock
            # 003
            -
            UNIVERSAL JOINT
            # 003
            MPN: 410711615
            UNIVERSAL JOINT
            MANUAL GEARBOX
            from £655.41
            from £655.41
            RH THREADED JOINT Genuine Lamborghini - New (to order)
            # 004
            -
            SHIFT ROD
            # 004
            -
            SHIFT ROD
            # 004
            MPN: 086311543B
            SHIFT ROD
            MANUAL GEARBOX
            from £154.78
            from £154.78
            GEARBOX CONTROL ROD Genuine Lamborghini - New (to order)
            # 004
            MPN: 086311543C
            SHIFT ROD
            E-Gear
            from £226.84
            from £226.84
            ROD Genuine Lamborghini - New (to order)
            ROD Genuine Lamborghini - Used In stock
            # 005
            -
            SELECTOR FORK
            # 005
            MPN: 086311998
            SELECTOR FORK
            MANUAL GEARBOX
            from £204.93
            from £204.93
            NOSEPIECE FOR SHAFT Genuine Lamborghini - New (to order)
            # 005
            MPN: 086311998A
            SELECTOR FORK
            E-Gear
            from £189.36
            from £189.36
            TOOTH Genuine Lamborghini - New (to order)
            # 006
            MPN: WHT002952
            HEXAGON BOLT
            M8X30
            from £3.03
            from £3.03
            This part replaces part number 008100841
            HEXAGON HEAD BOLT Genuine Lamborghini - New (to order)
            # 007
            MPN: 086311519
            WASHER
            from £1.56
            from £1.56
            This part replaces part number 008410817
            DISK SPRING Genuine Lamborghini - New In stock
            # 008
            -
            GUIDE SLEEVE
            # 008
            MPN: 086311111
            GUIDE SLEEVE
            MANUAL GEARBOX - 5Ø-6Ø-5TH/6TH GEAR
            from £201.46
            from £201.46
            NASELLO PER ASTA 5°- 6° Genuine Lamborghini - New (to order)
            # 008
            MPN: 086311111A
            GUIDE SLEEVE
            E-GEAR - 5Ø- 6Ø-5TH/6TH GEAR
            from £181.15
            from £181.15
            TOOTH 5TH/6TH GEAR Genuine Lamborghini - New (to order)
            # 009
            -
            BUSH
            # 009
            MPN: 086311511A
            BUSH
            from £17.52
            from £17.52
            BUSHING Genuine Lamborghini - New (to order)
            # 010
            MPN: 086311249
            SPRING
            from £3.07
            from £3.07
            This part replaces part number 002402242 - and 1 more. Click to view details
            ROD SNAP SPRING Genuine Lamborghini - New In stock
            # 011
            MPN: N10439201
            BALL
            7,938
            from £0.71
            from £0.71
            This part replaces part number 008910701
            BALL RB 7.938/11 RIVSKF Genuine Lamborghini - New In stock
            # 012
            -
            SELECTOR FORK
            # 012
            MPN: 086311564B
            SELECTOR FORK
            5Ø-6Ø-5TH/6TH GEAR
            from £454.81
            from £454.81
            SELECTOR FORK Genuine Lamborghini - New (to order)
            # 013
            MPN: WHT002955
            WASHER
            10,9X20X2,3
            from £0.73
            from £0.73
            WASHER Genuine Lamborghini - New (to order)
            # 014
            MPN: WHT002958
            HEXAGON BOLT
            M10X30
            from £8.43
            from £8.43
            HEXAGON HEAD BOLT Genuine Lamborghini - New (to order)
            # 015
            -
            SHIFT ROD
            # 015
            MPN: 086311700B
            SHIFT ROD
            5TH/6TH gear
            from £243.83
            from £243.83
            ROD Genuine Lamborghini - New (to order)
            # 016
            MPN: 086311567
            SHIFT ROD
            3./4.gear
            from £243.83
            from £243.83
            ROD Genuine Lamborghini - New (to order)
            # 017
            -
            SELECTOR FORK
            # 017
            MPN: 086311561C
            SELECTOR FORK
            3Ø-4Ø-3./4.GEAR
            from £682.21
            from £682.21
            SELECTOR FORK Genuine Lamborghini - New (to order)
            # 018
            MPN: 086311557
            SHIFT ROD
            1./2.gear
            from £243.83
            from £243.83
            ROD Genuine Lamborghini - New (to order)
            # 019
            -
            SELECTOR FORK
            # 019
            MPN: 086311551B
            SELECTOR FORK
            1Ø-2Ø-1./2.GEAR
            from £2,667.43
            from £2,667.43
            GEAR CONTROL FORK Genuine Lamborghini - New (to order)
            # 020
            -
            SELECTOR FORK
            # 020
            MPN: 086311571B
            SELECTOR FORK
            REVERSE GEAR-REVERSE GEAR
            from £605.25
            from £605.25
            SELECTOR FORK Genuine Lamborghini - New (to order)
            # 021
            -
            SHIFT ROD
            # 021
            MPN: 086311823C
            SHIFT ROD
            from £243.83
            from £243.83
            ROD Genuine Lamborghini - New In stock
            # 022
            -
            GUIDE SLEEVE
            # 022
            -
            GUIDE SLEEVE
            # 022
            MPN: 086311107B
            GUIDE SLEEVE
            MANUAL GEARBOX - REVERSE GEAR-REVERSE GEAR
            from £188.07
            from £188.07
            NASELLO PER ASTA RM Genuine Lamborghini - New (to order)
            # 022
            MPN: 086311107C
            GUIDE SLEEVE
            E-GEAR - REVERSE GEAR-REVERSE GEAR
            from £248.16
            from £248.16
            TOOTH REVERSE GEAR Genuine Lamborghini - New (to order)
            # 023
            MPN: 086311443
            SPRING WASHER
            from £9.08
            from £9.08
            DISK SPRING Genuine Lamborghini - New (to order)
            # 024
            MPN: WHT002950
            HEXAGON BOLT
            M6X24
            from £65.54
            from £65.54
            This part replaces part number 008100628
            BOLT Genuine Lamborghini - New (to order)
            # 025
            -
            GUIDE SLEEVE
            # 025
            MPN: 086311785
            GUIDE SLEEVE
            MANUAL GEARBOX - 1Ø-2Ø-1./2.GEAR
            from £265.44
            from £265.44
            NASELLO PER ASTA 1°- 2° Genuine Lamborghini - New (to order)
            # 025
            MPN: 086311785A
            GUIDE SLEEVE
            E-GEAR - 1Ø- 2Ø-1./2.GEAR
            from £209.24
            from £209.24
            TOOTH 1ST/2ND GEAR Genuine Lamborghini - New (to order)
            # 026
            -
            GUIDE SLEEVE
            # 026
            MPN: 086311771
            GUIDE SLEEVE
            MANUAL GEARBOX - 3Ø-4Ø-3./4.GEAR
            from £243.83
            from £243.83
            NASELLO PER ASTA 3°- 4° Genuine Lamborghini - New (to order)
            # 026
            MPN: 086311771A
            GUIDE SLEEVE
            E-GEAR - 3Ø- 4Ø-3./4.GEAR
            from £193.69
            from £193.69
            TOOTH 3RD/4TH GEAR Genuine Lamborghini - New (to order)
            # 027
            MPN: WHT002950
            HEXAGON BOLT
            M6X24
            from £65.54
            from £65.54
            This part replaces part number 008100628
            BOLT Genuine Lamborghini - New (to order)
            # 028
            MPN: WHT001197A
            WASHER
            12X6,4X0,5
            from £0.54
            from £0.54
            This part replaces part number WHT001197
            WASHER Genuine Lamborghini - New (to order)
