lamborghini gallardo spyder (2008) engine oil sump parts diagram

103.03.00 - engine oil sump

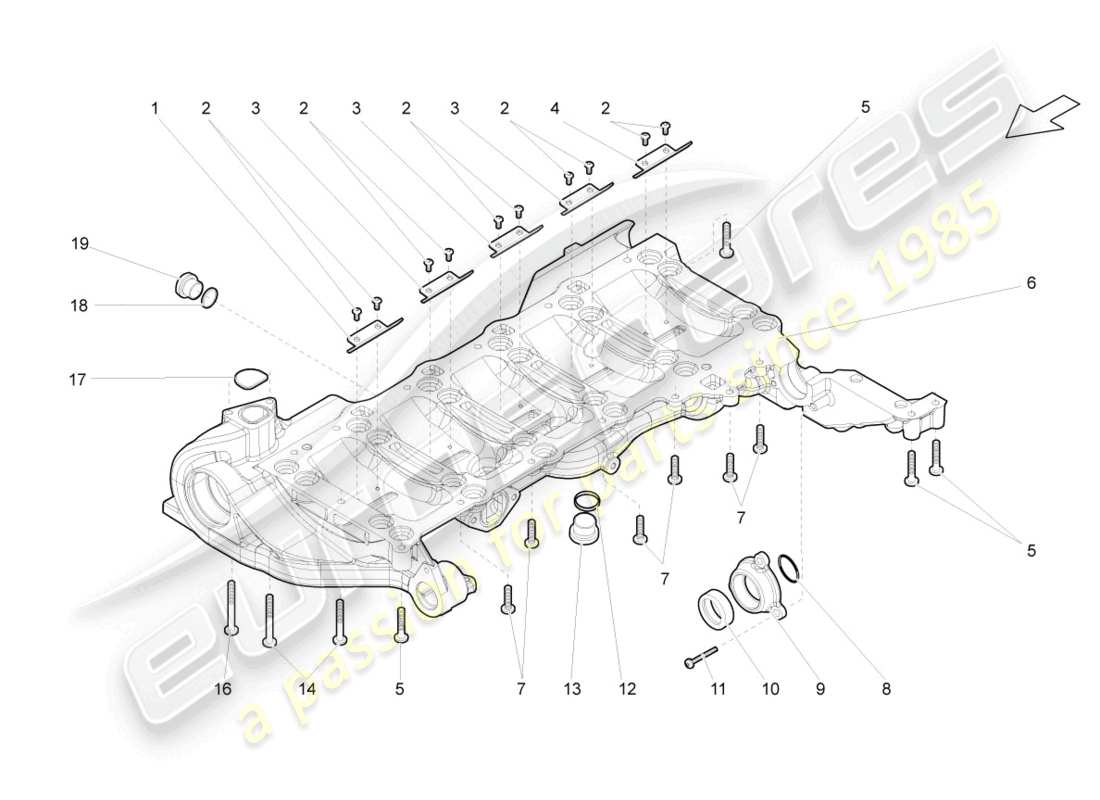

Lamborghini Gallardo Spyder (2008) ENGINE OIL SUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 07L107327A
              OIL SCRAPER RING
              from £5.97
              from £5.97
              OIL SCRAPER RING Genuine Lamborghini - New (to order)
              # 002
              MPN: N91030701
              ROUND HD. SCREW
              M4X8
              from £8.05
              from £8.05
              PAN HEAD SCREW M4X8 Genuine Lamborghini - New In stock
              # 003
              MPN: 07L107332A
              OIL SCRAPER RING
              from £48.16
              from £48.16
              OIL SCRAPER RING Genuine Lamborghini - New (to order)
              # 004
              MPN: 07L107331A
              OIL SCRAPER RING
              from £5.97
              from £5.97
              OIL SCRAPER RING Genuine Lamborghini - New (to order)
              # 005
              MPN: N10156206
              OVAL HEXAGON SOCKET HEAD BOLT
              Q.TY FOR TECHNICAL BULLETIN IS 6-M6X30
              from £0.89
              from £0.89
              HEXALOBULAR SOCKETM6X30 Genuine Lamborghini - New In stock
              Oval hexagon socket head bolt (N 10156206) Genuine Porsche Part - New (to order)
              # 006
              MPN: 07L103603H
              engine oil sump
              FROM ENGINE 07L02082
              from £2,334.53
              from £2,334.53
              oil sump Genuine Lamborghini - New (to order)
              # 007
              MPN: N10124308
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X20
              from £1.20
              from £1.20
              This part replaces part number N10124303
              HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
              # 008
              MPN: WHT002797
              O-RING
              36.2X2.62
              from £2.68
              from £2.68
              O-RING Genuine Lamborghini - New In stock
              # 009
              MPN: 07L103525A
              END CAP
              from £90.79
              from £90.79
              COVER, OIL PUMP Genuine Lamborghini - New (to order)
              # 010
              MPN: 07L103051
              SHAFT OIL SEAL
              from £21.80
              from £21.80
              SEAL Genuine Lamborghini - New In stock
              # 011
              MPN: N10451405
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X16
              from £0.78
              from £0.78
              This part replaces part number N10451402
              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
              Oval hexagon socket head bolt (N 10451405) Genuine Porsche Part - New (to order)
              # 012
              MPN: N0138322
              SEAL RING
              A18X22
              from £0.54
              from £0.54
              GASKET Genuine Lamborghini - New In stock
              seal ring - A 18 X 22 - D >> - MJ 1984 (N 0138322) Genuine Porsche Part - New (to order)
              # 013
              MPN: N0160291
              SEALING PLUG
              M18X1,5
              from £5.66
              from £5.66
              SCREW Genuine Lamborghini - New In stock
              plug (N 0160291) Genuine Porsche Part - New (to order)
              # 013
              MPN: N0160293
              SEALING PLUG
              M18X1,5
              from £5.53
              from £5.53
              SCREW PLUG Genuine Lamborghini - New In stock
              threaded plug (N 0160293) Genuine Porsche Part - New (to order)
              # 014
              MPN: N10582103
              OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD
              M6X40
              from £1.00
              from £1.00
              This part replaces part number N10331201 - and 1 more. Click to view details
              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
              screw, csk. with polygon (N 10582103) Genuine Porsche Part - New (to order)
              # 016
              MPN: N10470703
              ROUND HD. SCREW
              M6X50
              from £1.15
              from £1.15
              This part replaces part number N10470701
              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
              round hd. screw (N 10470703) Genuine Porsche Part - New (to order)
              # 017
              MPN: WHT001023
              O-RING
              from £1.41
              from £1.41
              O-RING Genuine Lamborghini - New In stock
              # 018
              MPN: N0138481
              SEAL RING
              16X22
              from £0.54
              from £0.54
              This part replaces part number 008401621
              WASHER Genuine Lamborghini - New In stock
              seal ring - A 16 X 22 (N 0138481) Genuine Porsche Part - New (to order)
              # 019
              MPN: N91155901
              SEALING PLUG
              M16X1.5
              from £4.54
              from £4.54
              This part replaces part number 008931607 - and 3 more. Click to view details
              SCREW PLUG Genuine Lamborghini - New In stock
              SCREW PLUG Genuine Lamborghini - Used In stock
