lamborghini countach 25th anniversary (1989) crankcase parts diagram

103.03.00 - crankcase

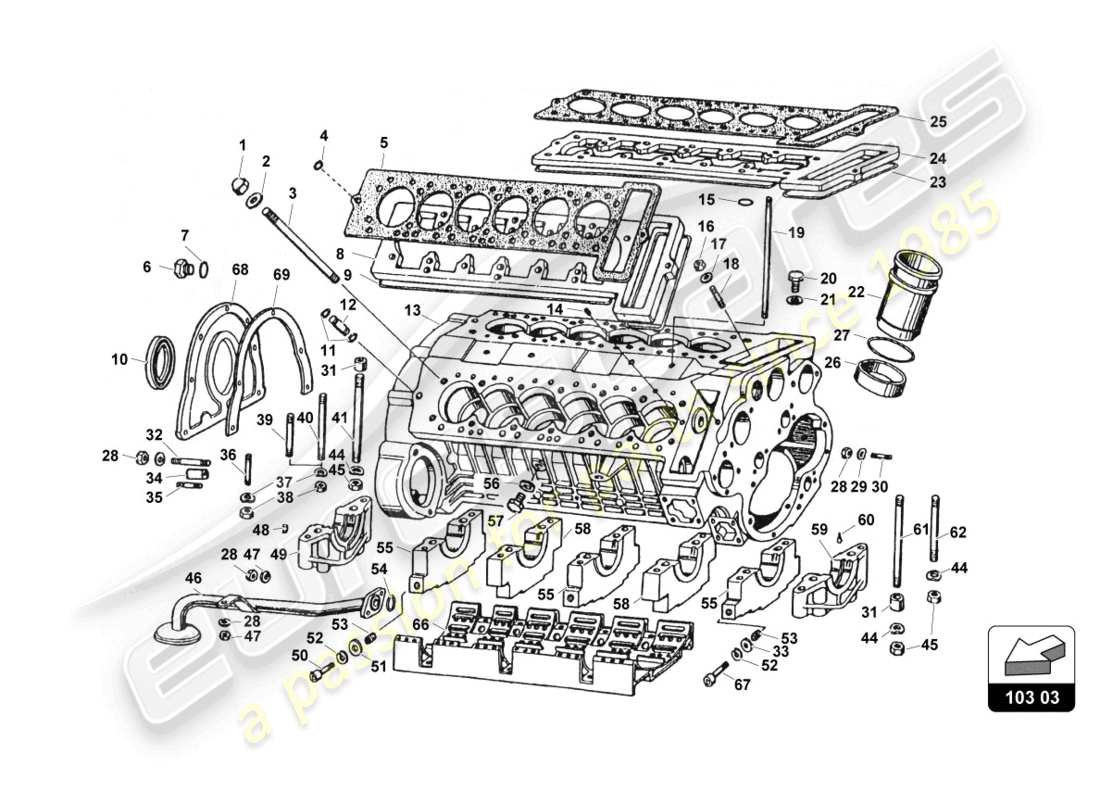

Lamborghini Countach 25th Anniversary (1989) CRANKCASE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 001120924
NUT
(EUROPE, UK spec vehicles)
from £22.93
from £22.93
STUD NUT Genuine Lamborghini - New In stock
# 002
MPN: 008401230
WASCHER
(EUROPE, UK spec vehicles)
from £32.72
from £32.72
WASHER Genuine Lamborghini - New In stock
# 003
MPN: 001821459
STUD ON B
(EUROPE, UK spec vehicles)
from £56.21
from £56.21
CYLINDER HEAD STUD ON CRANKCAS E. Genuine Lamborghini - New (to order)
# 004
MPN: 008601102
O RING
(EUROPE, UK spec vehicles)
Lamborghini PART 008601102 Genuine Lamborghini - New (to order)
# 005
MPN: 001120594
HEAD GASKET
(EUROPE, UK spec vehicles)
from £254.94
from £254.94
RH HEAD GASKET (001120594) Eurospares Approved Part - New In stock
RH HEAD GASKET Genuine Lamborghini - New (to order)
# 006
MPN: 008932207
CAP
(EUROPE, UK spec vehicles)
from £22.68
from £22.68
PLUG Genuine Lamborghini - New (to order)
# 007
MPN: 008602002
RING
(EUROPE, UK spec vehicles)
from £14.31
from £14.31
RING 21 MM OR Genuine Lamborghini - New (to order)
# 008
MPN: 001822507
RUBB.SEAL
(EUROPE, UK spec vehicles)
Lamborghini PART 001822507 Genuine Lamborghini - New (to order)
# 009
MPN: 001821070
SPACER
(EUROPE, UK spec vehicles)
from £2,386.42
from £2,386.42
CRANKCASE & RH CYLINDER HEAD S HIM Genuine Lamborghini - New (to order)
# 010
MPN: 008619903
OIL SEAL
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 011
MPN: 008600701
O RING
(EUROPE, UK spec vehicles)
from £0.53
from £0.53
RING 8 MM OR Genuine Lamborghini - New (to order)
# 012
MPN: 001820995
DOWEL
(EUROPE, UK spec vehicles)
from £112.76
from £112.76
CRANKCASE CENTRING DOWEL Genuine Lamborghini - New (to order)
# 012
MPN: 001828082
DOWEL
(EUROPE, UK spec vehicles)
from £6.51
from £6.51
CRANKCASE HEAD CENTRING DOWEL Genuine Lamborghini - New (to order)
# 013
MPN: 001020036
crankcase
(EUROPE, UK spec vehicles)
crankcase Genuine Lamborghini - New (to order)
# 013
MPN: 001820987
crankcase
(EUROPE, UK spec vehicles)
Engine base Genuine Lamborghini - New (to order)
# 014
MPN: 008850817
DOWEL
(EUROPE, UK spec vehicles)
from £6.43
from £6.43
REFERENCE PIN 8X28 C40 Genuine Lamborghini - New (to order)
# 015
MPN: 008601201
O RING
(EUROPE, UK spec vehicles)
from £0.52
from £0.52
RING 13 MM OR Genuine Lamborghini - New In stock
# 016
MPN: 008200804
NUT
(EUROPE, UK spec vehicles)
from £0.73
from £0.73
NUT Genuine Lamborghini - New In stock
# 017
MPN: 008410805
LOCK WASHER
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 018
MPN: 008300833
STUD
(EUROPE, UK spec vehicles)
from £3.82
from £3.82
STUD M8X45 UNI 5911 8G Z Genuine Lamborghini - New (to order)
# 019
MPN: 008300870
STUD
(EUROPE, UK spec vehicles)
from £11.95
from £11.95
SPECIAL STUD M8X158 Genuine Lamborghini - New (to order)
# 020
MPN: 008100839
BOLT
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 021
MPN: 008400802
WASHER
(EUROPE, UK spec vehicles)
from £0.98
from £0.98
COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
# 022
MPN: 001820907
CYLIND LINE
(EUROPE, UK spec vehicles)
from £916.53
from £916.53
CYLINDER LINER Genuine Lamborghini - New In stock
# 023
MPN: 001822508
RUBB. SEAL
(EUROPE, UK spec vehicles)
from £25.16
from £25.16
LH HEAD SEAL CORD Genuine Lamborghini - New (to order)
# 024
MPN: 001821071
SPACER
(EUROPE, UK spec vehicles)
from £2,576.64
from £2,576.64
CRANKCASE & LH CYLINDER HEAD S HIM Genuine Lamborghini - New (to order)
# 025
MPN: 001120593
GASKET
(EUROPE, UK spec vehicles)
from £254.94
from £254.94
LH HEAD GASKET (001120593) Eurospares Approved Part - New In stock
LH HEAD GASKET Genuine Lamborghini - New In stock
# 026
MPN: 001820909
SPACER
(EUROPE, UK spec vehicles)
from £179.93
from £179.93
CYLINDER LINER SHIM Genuine Lamborghini - New (to order)
# 027
MPN: 008608801
O RING
(EUROPE, UK spec vehicles)
Lamborghini PART 008608801 Genuine Lamborghini - New (to order)
# 028
MPN: 008200604
NUT
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 029
MPN: 008410603
LOCK WASHER
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 030
MPN: 008300613
STUD
(EUROPE, UK spec vehicles)
from £3.07
from £3.07
STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New In stock
# 031
MPN: 008851501
DOWEL
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 032
MPN: 008300615
STUD
(EUROPE, UK spec vehicles)
from £12.69
from £12.69
STUD 6X22 UNI 5911/8G/Z Genuine Lamborghini - New (to order)
# 033
MPN: 008401016
WASHER
(EUROPE, UK spec vehicles)
from £1.53
from £1.53
WASHER 15X10X0.5 Genuine Lamborghini - New (to order)
# 034
MPN: 008850605
DOWEL
(EUROPE, UK spec vehicles)
Lamborghini PART 008850605 Genuine Lamborghini - New (to order)
# 035
MPN: 008300614
STUD
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 036
MPN: 008300611
STUD
(EUROPE, UK spec vehicles)
from £4.40
from £4.40
STUD 6X30 UNI 5911/8G/Z Genuine Lamborghini - New (to order)
# 037
MPN: 008410602
LOCK WASHER
(EUROPE, UK spec vehicles)
from £28.66
from £28.66
WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
# 038
MPN: 008200606
NUT
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 039
MPN: 008300877
STUD
(EUROPE, UK spec vehicles)
from £21.81
from £21.81
SPECIAL STUD M8X95 Genuine Lamborghini - New (to order)
# 040
MPN: 008300817
STUD
(EUROPE, UK spec vehicles)
from £10.53
from £10.53
STUD M8X1X60 UNI 5919 10K Genuine Lamborghini - New (to order)
# 041
MPN: 008301235
STUD
(EUROPE, UK spec vehicles)
from £37.11
from £37.11
SPECIAL STUD M12X103 Genuine Lamborghini - New (to order)
# 042
MPN: 008200805
NUT
(EUROPE, UK spec vehicles)
from £0.49
from £0.49
M8X1X8 8G/B NUT Genuine Lamborghini - New In stock
# 042
MPN: 008410805
LOCK WASHER
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 044
MPN: 008411302
LOCK WASHER
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 045
MPN: 008201221
NUT
(EUROPE, UK spec vehicles)
from £2.02
from £2.02
M12 H.12 SPECIAL NUT Genuine Lamborghini - New (to order)
# 046
MPN: 001821865
PIPE
(EUROPE, UK spec vehicles)
from £112.76
from £112.76
OIL INTAKE PIPE SET Genuine Lamborghini - New (to order)
# 047
MPN: 008410603
LOCK WASHER
(EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 048
MPN: 001819519
DOWEL
(EUROPE, UK spec vehicles)
from £14.98
from £14.98
LOWER BRACKET OIL REDUCTION DO WEL Genuine Lamborghini - New (to order)
# 049
MPN: 001819472
REAR SUPP.
(EUROPE, UK spec vehicles)
SUPPORT C. Genuine Lamborghini - New (to order)
# 049
MPN: 001828041
REAR SUPP.
(EUROPE, UK spec vehicles)
REAR SUPP. Genuine Lamborghini - New (to order)
# 050
MPN: 008701012
SCREW
(EUROPE, UK spec vehicles)
from £4.73
from £4.73
SCREW M10X25 UNI 5931/8G/B Genuine Lamborghini - New (to order)
# 051
MPN: 008401014
WASHER
(EUROPE, UK spec vehicles)
from £2.33
from £2.33
WASHER D.10.5X17X1.55S Genuine Lamborghini - New In stock
# 052
MPN: 008411005
WASHER
(EUROPE, UK spec vehicles)
from £0.52
from £0.52
WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
# 053
MPN: 008841002
HELI-COIL
(EUROPE, UK spec vehicles)
from £0.98
from £0.98
HELI-COIL M10X1.25X10 Genuine Lamborghini - New (to order)
# 054
MPN: 008602901
O RING
(EUROPE, UK spec vehicles)
from £0.54
from £0.54
RING 30 MM OR Genuine Lamborghini - New In stock
# 055
MPN: 001821837
INTERM.SUPP
(EUROPE, UK spec vehicles)
SUPPORT Genuine Lamborghini - New (to order)
# 055
MPN: 001828039
INTERM. SUP
(EUROPE, UK spec vehicles)
INTERM. Genuine Lamborghini - New (to order)
# 056
MPN: 008401502
WASHER
(EUROPE, UK spec vehicles)
from £10.41
from £10.41
COPPER WASHER 15X28X2 Genuine Lamborghini - New (to order)
# 057
MPN: 008931403
PLUG
(EUROPE, UK spec vehicles)
from £31.55
from £31.55
BRONZE PLUG Genuine Lamborghini - New (to order)
# 058
MPN: 001822399
INTERM.SUPP
(EUROPE, UK spec vehicles)
SUPPORT Genuine Lamborghini - New (to order)
# 058
MPN: 001828040
INTERM. SUP
(EUROPE, UK spec vehicles)
INTERM. Genuine Lamborghini - New (to order)
# 059
MPN: 001819470
FRONT SUPP.
(EUROPE, UK spec vehicles)
SUPPORT C. Genuine Lamborghini - New (to order)
# 059
MPN: 001828038
FRONT SUPP.
(EUROPE, UK spec vehicles)
FRONT SUPP. Genuine Lamborghini - New (to order)
# 060
MPN: 008850613
DOWEL BOLT
(EUROPE, UK spec vehicles)
Lamborghini PART 008850613 Genuine Lamborghini - New (to order)
# 061
MPN: 001529245
GASKET KIT
(USA spec vehicles)
from £1,258.05
from £1,258.05
COUNTACH USA GASKET KIT Genuine Lamborghini - New (to order)
# 062
MPN: 008301213
STUD
(EUROPE, UK spec vehicles)
from £37.40
from £37.40
SPECIAL STUD M12X98 Genuine Lamborghini - New In stock
# 062
MPN: 008301214
STUD
(EUROPE, UK spec vehicles)
from £21.81
from £21.81
SPECIAL STUD M12X94 Genuine Lamborghini - New In stock
# 067
MPN: 008701013
SCREW
(EUROPE, UK spec vehicles)
from £0.65
from £0.65
SCREW M10X40 UNI 5931/8G/B Genuine Lamborghini - New (to order)
# 068
MPN: 001802054
BLOCK COVER
(EUROPE, UK spec vehicles)
from £297.78
from £297.78
REAR CRANKSHAFT COVER Genuine Lamborghini - New (to order)
REAR CRANKSHAFT COVER Genuine Lamborghini - Used In stock
# 069
MPN: 001800294
CRANKCASE REAR COVERSEAL
(EUROPE, UK spec vehicles)
from £14.93
from £14.93
CRANKCASE REAR COVERSEAL Genuine Lamborghini - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
