114 - Roof Panel Upholstery and Accessories

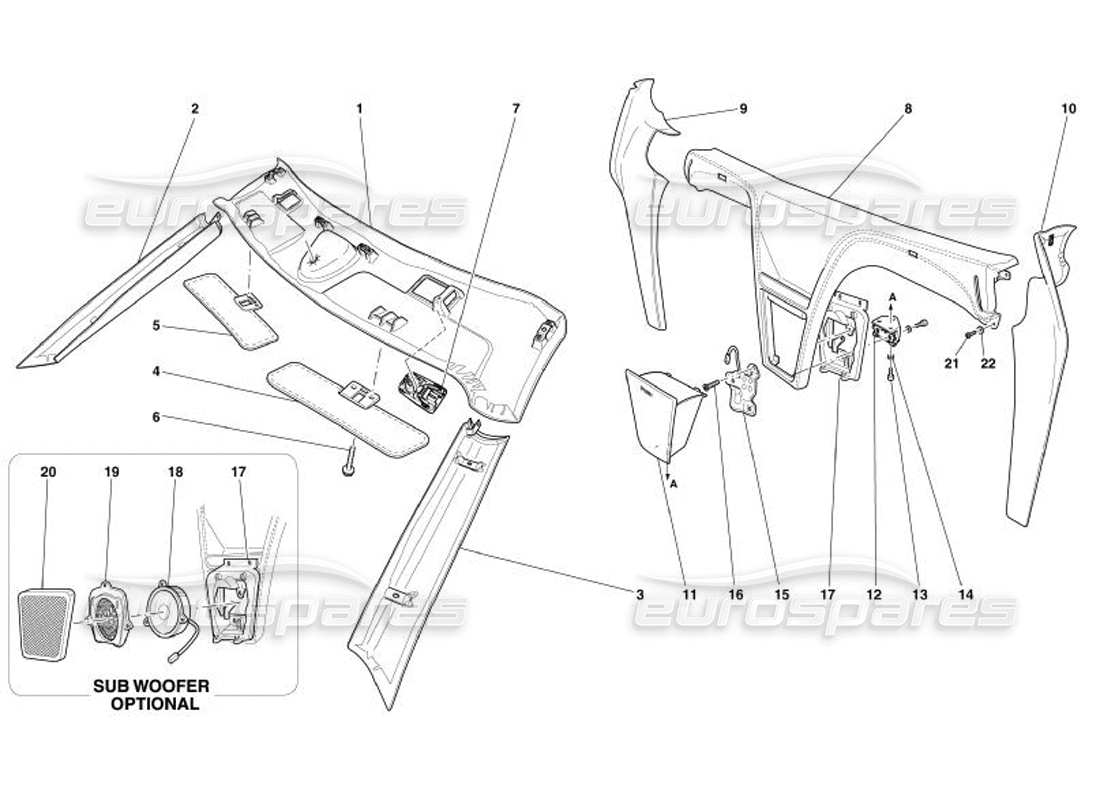

Ferrari 575 Superamerica Roof Panel Upholstery and Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 685469..
WINDSHIELD UPPER CROSSPIECE TRIM
Supersession
Supersession
# 002
MPN: 668445..
FRONT RH POST COVERING
Supersession
Supersession
# 003
MPN: 668448..
FRONT LH POST COVERING
Supersession
Supersession
# 004
MPN: 685473..
DRIVER SUN VISOR
Supersession
Supersession
# 005
MPN: 685472..
PASSENGER SUN VISOR
Supersession
Supersession
# 006
MPN: 13309277
SCREW
from £0.47
from £0.47
This part replaces part number 13309211
# 007
MPN: 184098
FRONT DOME LAMP
from £110.25
from £110.25
This part replaces part number 66617000
# 008
MPN: 685474..
UNDER REAR WINDOW COVER
Valid for 3 point belts + drawer + electric seat
Supersession
Supersession
# 008
MPN: 688514..
UNDER REAR WINDOW COVER
Valid for 3 point belts + sub woofer + electric seat
# 008
MPN: 688515..
UNDER REAR WINDOW COVER
Valid for 4 point belts + drawer + electric seat
# 008
MPN: 688516..
UNDER REAR WINDOW COVER
Valid for 4 point belts + sub woofer + electric seat
# 008
MPN: 692691..
UNDER REAR WINDOW COVER
Valid for 3 point belts + drawer + manual seat
# 008
MPN: 692692..
UNDER REAR WINDOW COVER
Valid for 3 point belts + sub woofer + manual seat
# 009
MPN: 688503..
RH ENCLOSURE PILLAR
Supersession
Supersession
# 010
MPN: 688652..
LH ENCLOSURE PILLAR
Supersession
Supersession
# 011
MPN: 69075905
DRAWER
from £309.75
from £309.75
# 012
MPN: 68995900
BOX HINGE
from £148.33
from £148.33
# 013
MPN: 13274011
SCREW
from £1.11
from £1.11
# 014
MPN: 12637878
WASHER
from £0.47
from £0.47
This part replaces part number 12637806
# 015
MPN: 69339300
lock
from £273.12
from £273.12
# 016
MPN: 14304024
SCREW
from £0.53
from £0.53
# 017
MPN: 68870800
COMPARTMENT HOLDER
from £67.40
from £67.40
# 018
MPN: 211337
LOUD SPEAKER SUBWOOFER
Valid for high power HI FI - Optional
from £137.43
from £137.43
# 019
MPN: 215186
SUBWOOFER CONVEYOR
Valid for high power HI FI - Optional
from £40.47
from £40.47
# 020
MPN: 68833100
GRILL FOR SUBWOOFER
Valid for high power HI FI - Optional
from £50.15
from £50.15
# 021
MPN: 13273911
SCREW
from £0.51
from £0.51
# 022
MPN: 12637878
WASHER
from £0.47
from £0.47
This part replaces part number 12637806
