aston martin vanquish (2015) radio antenna parts diagram

15-0201-02 - RADIO ANTENNA

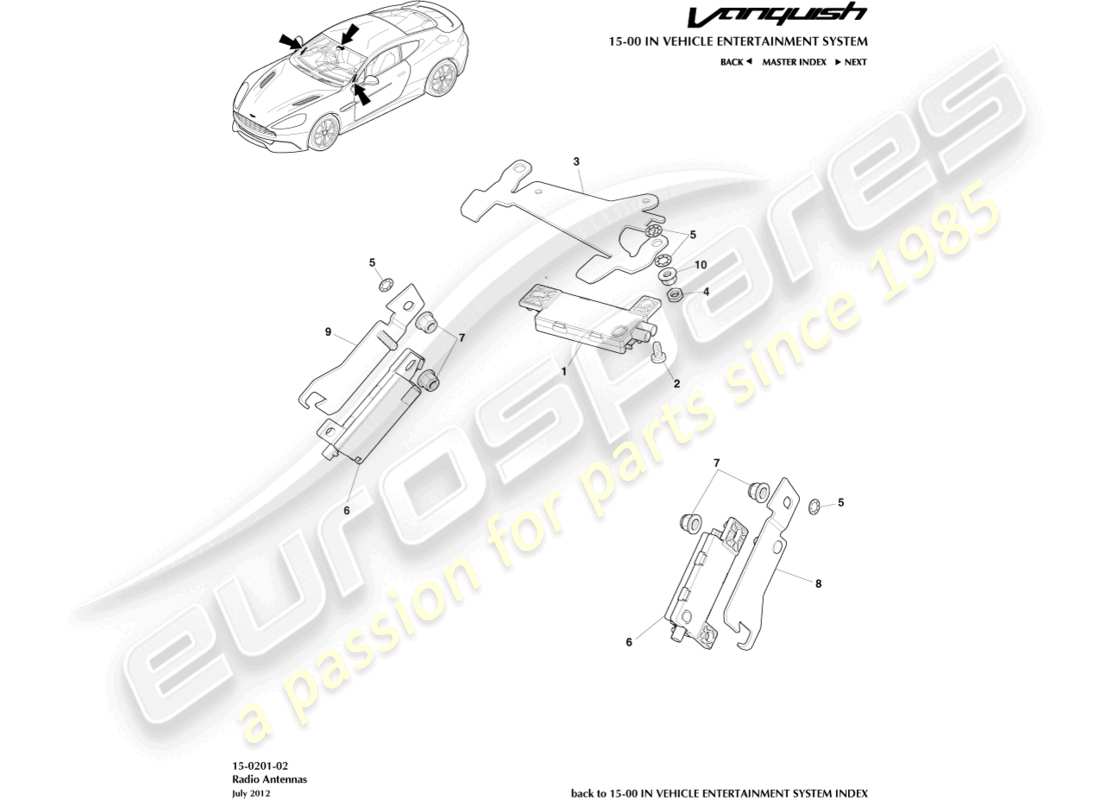

Aston Martin Vanquish (2015) Radio Antenna Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: DG43-18C847-BA
                      ANTENNA AMPLIFIER, HEADER POD
                      from £169.92
                      from £169.92
                      ANTENNA AMPLIFIER, HEADER POD Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 703735
                      SCREW, M5 X 12, PAN HD
                      from £0.47
                      from £0.47
                      SCREW-M5X12 PAN HEAD Genuine Aston Martin - New (to order)
                      # 3
                      MPN: CD33-18C987-DA
                      BRACKET, HEADER POD
                      BRACKET, HEADER POD Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 702994
                      NUT, M6, HEX HD THIN
                      from £0.47
                      from £0.47
                      NUT M6 HEX THIN Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 704620
                      WASHER, INTERNAL SHAKEPROOF, M6
                      WASHER-M6 INT S/PRF Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 9G43-18C847-AA
                      ANTENNA AMPLIFIER, AM / FM
                      from £46.81
                      from £46.81
                      ANTENNA AMPLIFIER Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 702944
                      NUT, HEX FLANGED, M6
                      from £0.58
                      from £0.58
                      NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                      LOWER MESH NUTS (702944) Genuine Ferrari Part - New (to order)
                      # 8
                      MPN: 6G33-18C987-DD
                      AMPLIFIER BRACKET, A PILLAR, LH
                      AMPLIFIER BRACKET LH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 6G33-18C987-CD
                      AMPLIFIER BRACKET, A PILLAR, RH
                      AMPLIFIER BRACKET RH Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 702944
                      NUT, HEX FLANGED, M6
                      from £0.58
                      from £0.58
                      NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                      LOWER MESH NUTS (702944) Genuine Ferrari Part - New (to order)
                      # -
                      MPN: 77-84981-PK
                      FOAM STRIP, ANTI-RATTLE
                      Pack of 10
                      from £19.96
                      from £19.96
                      FOAM STRIP-10 Genuine Aston Martin - New (to order)
