aston martin vanquish (2015) battery parts diagram

14-0100-00 - Battery

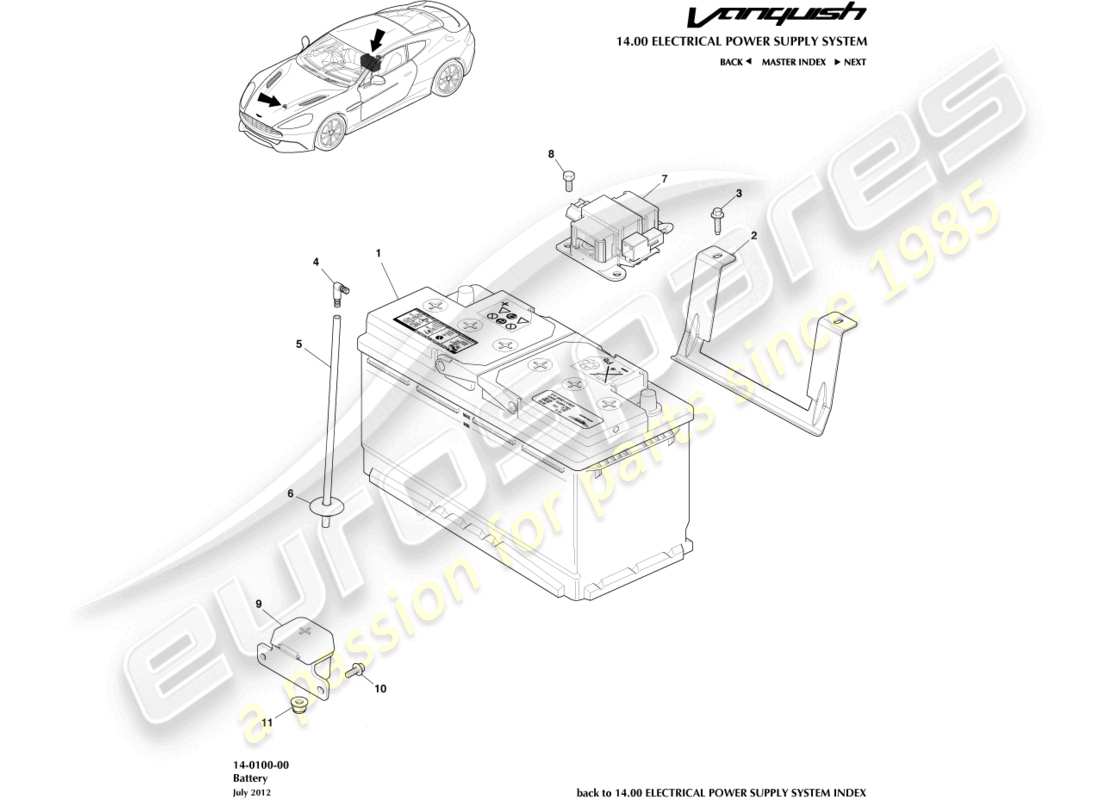

Aston Martin Vanquish (2015) Battery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: CD33-10655-AA
                    BATTERY, 88AH
                    from £211.32
                    from £211.32
                    BATTERY, 88AH Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 7G43-10A668-AA
                    CLAMP, BATTERY
                    from £31.56
                    from £31.56
                    CLAMP, BATTERY Genuine Aston Martin - New (to order)
                    CLAMP, BATTERY Genuine Aston Martin - Used In stock
                    # 3
                    MPN: 700607
                    SCREW, M6 X 20, HEX FLG
                    from £0.47
                    from £0.47
                    SCREW M6X20 HEX FLG Genuine Aston Martin - New (to order)
                    # 4
                    MPN: AY93-10B739-AA
                    ELBOW, BATTERY VENT
                    from £5.77
                    from £5.77
                    VENT ELBOW, BATTERY Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 1R12-372635-AA
                    TUBE, BATTERY VENT 240MM
                    Up to 15MY
                    from £0.54
                    from £0.54
                    BATT VENT TUBE 240MM Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 1R12-372636-AA
                    TUBE, BATTERY VENT 390MM
                    From 15MY, Trim to Fit
                    from £1.94
                    from £1.94
                    BATT VENT TUBE 390MM Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 37-81850
                    GROMMET
                    Up to 14.5MY
                    from £6.51
                    from £6.51
                    GROMMET Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 33488545
                    GROMMET
                    FROM 14.5MY
                    from £4.29
                    from £4.29
                    GROMMET Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 7G43-370397-AC
                    DISCONNECT SWITCH, BATTERY
                    from £545.36
                    from £545.36
                    SWITCH, BATTERY DISCONNECT Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 703151
                    SCREW, M6 X 16, HEX HD
                    from £0.47
                    from £0.47
                    SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                    LOWER MESH BOLTS (703151) Genuine Ferrari Part - New (to order)
                    # 9
                    MPN: 6G33-14B600-BF
                    JUMP START TERMINAL
                    from £9.40
                    from £9.40
                    JUMP START TERMINAL Genuine Aston Martin - New (to order)
                    JUMP START TERMINAL Genuine Aston Martin - Used In stock
                    # 10
                    MPN: 703265
                    SCREW, M6 X 16, HEX HD
                    from £0.47
                    from £0.47
                    SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 701342
                    NUT, M8, HEX HD
                    NUT, M8 Genuine Aston Martin - New (to order)
