aston martin vanquish (2015) fuel tank assy parts diagram

10-0101-S1 - Fuel Tank Assy

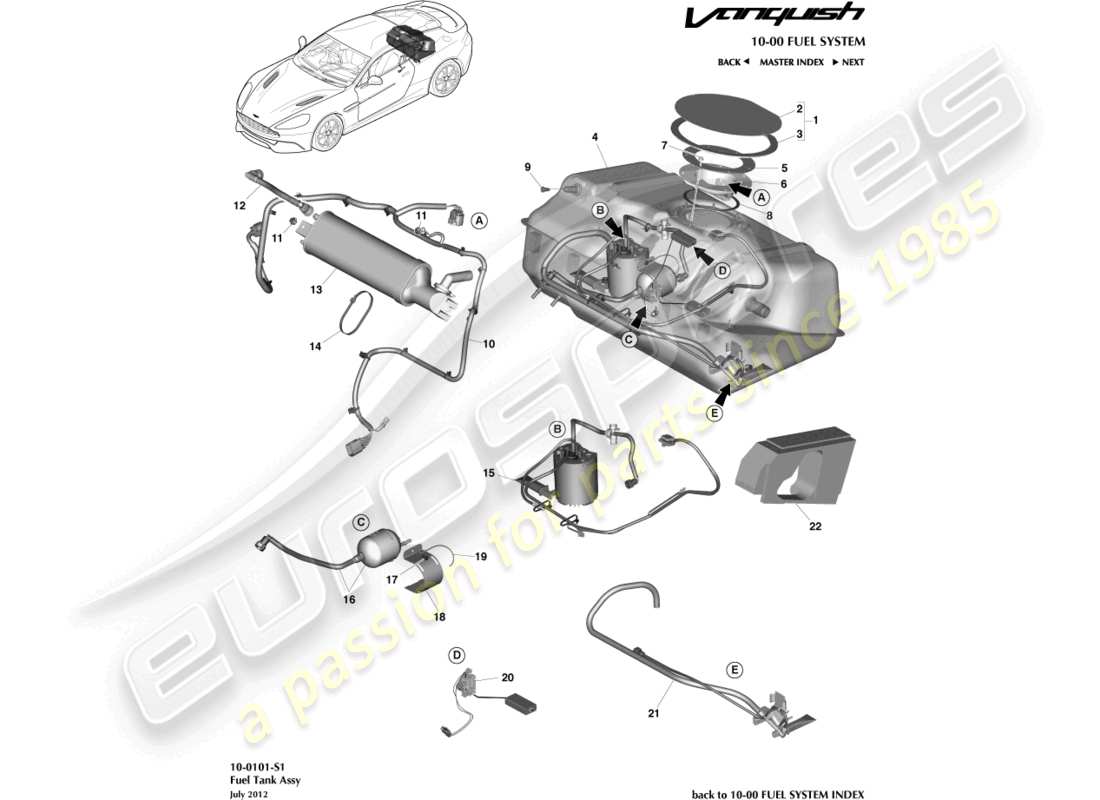

Aston Martin Vanquish (2015) Fuel Tank Assy Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: CD33-9074-AA
                                        PLATE ASSY, FUEL TANK COVER
                                        from £31.51
                                        from £31.51
                                        PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: CD33-9074-BA
                                        PLATE, FUEL TANK COVER
                                        PLATE, FUEL TANK COVER Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: CD33-9073-BA
                                        GASKET, FUEL TANK COVER PLATE
                                        GASKET, FUEL TANK COVER PLATE Genuine Aston Martin - New (to order)
                                        # 4
                                        MPN: CD33-9C133-AE
                                        TANK AND CANISTER ASSY, FUEL
                                        Up to 15MY
                                        from £2,390.63
                                        from £2,390.63
                                        TANK AND CANISTER ASSEMBLY, FUEL Genuine Aston Martin - New (to order)
                                        # 4
                                        MPN: FD33-9C133-AB
                                        TANK AND CANISTER ASSY, FUEL
                                        FROM 15MY
                                        from £3,235.88
                                        from £3,235.88
                                        TANK AND CANISTER ASSEMBLY, FUEL Genuine Aston Martin - New (to order)
                                        # 5
                                        MPN: 4G43-32133-BA
                                        CLAMP PLATE
                                        from £5.68
                                        from £5.68
                                        CLAMP PLATE Genuine Aston Martin - New (to order)
                                        CLAMP PLATE Genuine Aston Martin - Used In stock
                                        # 6
                                        MPN: CD33-9A309-AA
                                        COVER, FUEL TANK, SERVICE
                                        from £77.76
                                        from £77.76
                                        COVER, FUEL TANK, SERVICE Genuine Aston Martin - New (to order)
                                        # 7
                                        MPN: 703169
                                        NUT, M6, HEX FLANGE HD
                                        from £0.47
                                        from £0.47
                                        NUT M6 HEX FLG Genuine Aston Martin - New (to order)
                                        # 8
                                        MPN: 4G43-9073-AA
                                        GASKET, FUEL TANK COVER
                                        from £20.80
                                        from £20.80
                                        GSKT-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                                        # 9
                                        MPN: DG43-9155-AA
                                        VAPOUR FILTER, FUEL TANK
                                        VAPOUR FILTER, FUEL TANK Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: DG43-14407-AD
                                        HARNESS, FUEL TANK, SINGLE FUEL PUMP
                                        from £417.55
                                        from £417.55
                                        HARNESS, FUEL TANK, SINGLE FUEL PUMP Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: 697177
                                        NUT, M6, FLANGED
                                        from £0.47
                                        from £0.47
                                        NUT M6 FLANGED Genuine Aston Martin - New (to order)
                                        # 12
                                        MPN: BG43-4090-AA
                                        HOSE ASSY
                                        from £56.29
                                        from £56.29
                                        HOSE ASSY Genuine Aston Martin - New (to order)
                                        # 13
                                        MPN: BG43-9D653-AA
                                        CANISTER, VAPOUR STORAGE
                                        from £414.50
                                        from £414.50
                                        BRACKET FU/VPR STEERING CN Genuine Aston Martin - New (to order)
                                        # 15
                                        MPN: CD33-9H307-AB
                                        PUMP AND RESERVOIR ASSY
                                        from £545.94
                                        from £545.94
                                        PUMP AND RESERVOIR ASSEMBLY Genuine Aston Martin - New (to order)
                                        # 16
                                        MPN: 6G33-9155-AB
                                        FILTER ASSY
                                        from £264.26
                                        from £264.26
                                        FILTER ASSEMBLY - RHS Genuine Aston Martin - New (to order)
                                        # 17
                                        MPN: 702082
                                        BOLT, SELF LOCKING, M5 X 16
                                        from £0.72
                                        from £0.72
                                        BOLT M5X12 S/LOCK Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: 8G43-9180-AA
                                        BRACKET, FUEL FILTER
                                        BRACKET, FUEL FILTER Genuine Aston Martin - New (to order)
                                        # 19
                                        MPN: 6G33-66991-AB
                                        EARTH WIRE
                                        WIRE, EARTH Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-9E275-AA
                                        SENDER, FUEL TANK
                                        from £37.37
                                        from £37.37
                                        SE-FU/TNK SDR Genuine Aston Martin - New (to order)
                                        SE-FU/TNK SDR Genuine Aston Martin - Used In stock
                                        # 21
                                        MPN: CD33-9275-AA
                                        JET PUMP MODULE
                                        from £119.04
                                        from £119.04
                                        JET PUMP MODULE Genuine Aston Martin - New (to order)
                                        # 22
                                        MPN: DG43-48781-AA
                                        FUEL TANK PACKER
                                        14.5MY
                                        from £24.23
                                        from £24.23
                                        FUEL TANK PACKER Genuine Aston Martin - New (to order)
