04-0202-01 - Rear Suspension Assembly

Aston Martin Vanquish (2015) Rear Suspension Assembly Parts Diagram

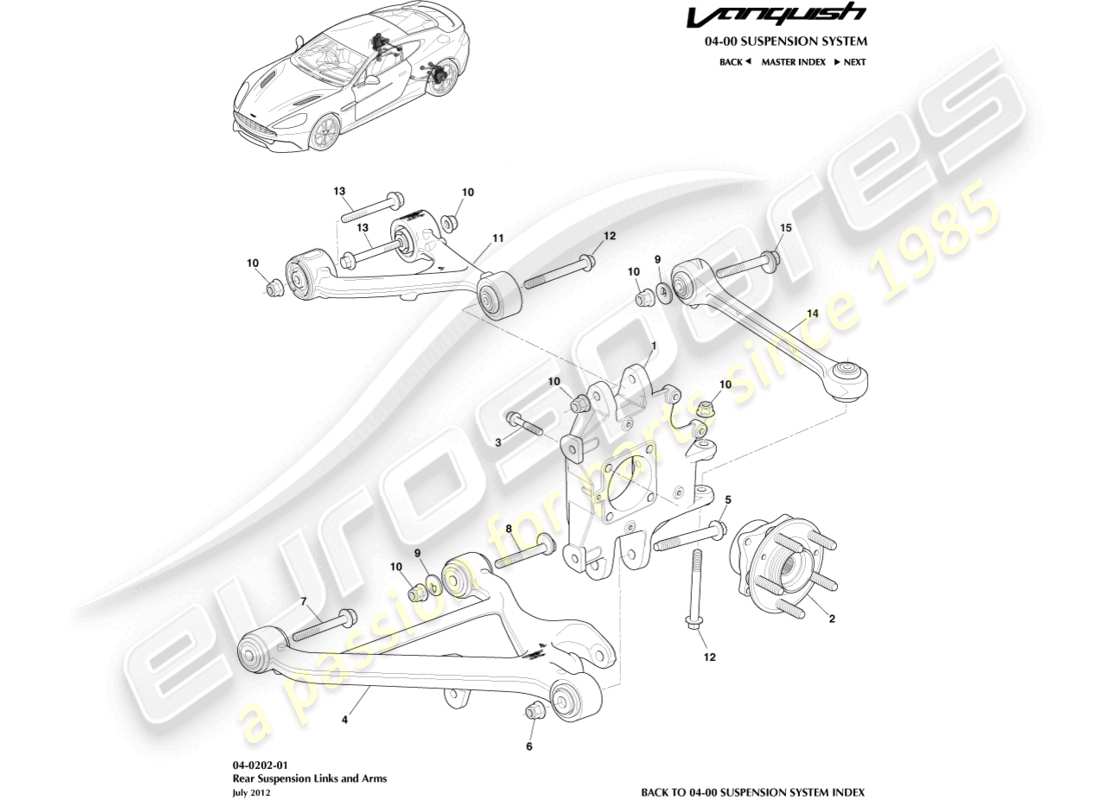

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: AD23-5A971-AA
                          KNUCKLE, REAR WHEEL, LH
                          from £235.03
                          from £235.03
                          KNL-RR WHEEL LH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: AD23-5A970-AA
                          KNUCKLE, REAR WHEEL, RH
                          from £235.03
                          from £235.03
                          KNL-RR WHEEL RH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: AD43-2B663-AA
                          HUB AND BEARING ASSY
                          from £515.54
                          from £515.54
                          HB & BRG ASY FRONT BRK Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 4G43-0783-AA-PK
                          BOLT, M10 X 55 X 1.25
                          Pack of 5
                          from £15.41
                          from £15.41
                          BOLT M10X55 (5) Genuine Aston Martin - New (to order)
                          # 4
                          MPN: DG43-5B531-AA
                          ARM & BUSHING ASSY, REAR SUSPENSION LOWER, LH
                          ARM ASSEMBLY, REAR SUSPENSION LOWER, LH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: DG43-5B530-AB
                          ARM & BUSHING ASSY, REAR SUSPENSION LOWER, RH
                          from £400.21
                          from £400.21
                          ARM ASSEMBLY, REAR SUSPENSION LOWER, RH Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 703133
                          BOLT, M14 X 110, HEX FLANGE HEAD
                          from £11.97
                          from £11.97
                          BOLT M14X110 HEX FLN Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 704596
                          NUT, M14, HEX FLANGE HEAD
                          from £0.77
                          from £0.77
                          This part replaces part number 701337
                          NUT M14 HEX FLNG P/T Genuine Aston Martin - New In stock
                          # 7
                          MPN: 703180
                          BOLT, M12 X 90, HEX FLANGE HEAD
                          BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 703274
                          BOLT, M12, ECCENTRIC
                          from £26.43
                          from £26.43
                          ECCENTRIC BOLT M12 Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 4G43-26-10840-PK
                          WASHER, M12, ECCENTRIC
                          Pack of 10
                          from £10.69
                          from £10.69
                          WASHER, M12, ECCENTRIC Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 703565
                          NUT, M12, HEX FLANGE HEAD
                          from £0.77
                          from £0.77
                          This part replaces part number 699876
                          NUT-M12 HEX FLG PLAS Genuine Aston Martin - New (to order)
                          # 11
                          MPN: DD33-5K743-AA
                          ARM & BUSH ASSY, REAR SUSPENSION, UPPER
                          Up to 15MY
                          from £353.62
                          from £353.62
                          ARM & BUSH ASSEMBLY, REAR SUSPENSION, UPPER Genuine Aston Martin - New (to order)
                          # 11
                          MPN: CD33-5K743-AB
                          ARM & BUSH ASSY, REAR SUSPENSION, UPPER
                          FROM 15MY
                          from £362.46
                          from £362.46
                          ARM & BUSH ASSEMBLY REAR S Genuine Aston Martin - New (to order)
                          # 12
                          MPN: AD33-487029-AA
                          BOLT, M12 X 110, HEX FLANGE HEAD
                          from £5.03
                          from £5.03
                          BOLT, M12 X 110, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 703181
                          BOLT, M12 X 85, HEX FLANGE HEAD
                          from £6.89
                          from £6.89
                          BOLT M12X85 HEX FLNG Genuine Aston Martin - New (to order)
                          # 14
                          MPN: BG43-5B551-AA
                          Toe Control Arm, Rear
                          from £175.08
                          from £175.08
                          LINK-RR SUSP Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 4G43-5K978-AB
                          BOLT, M12, ECCENTRIC
                          from £25.62
                          from £25.62
                          ECCENTRIC BOLT M12 Genuine Aston Martin - New (to order)
