04-0102-01 - Front Suspension Assembly

Aston Martin Vanquish (2015) Front Suspension Assembly Parts Diagram

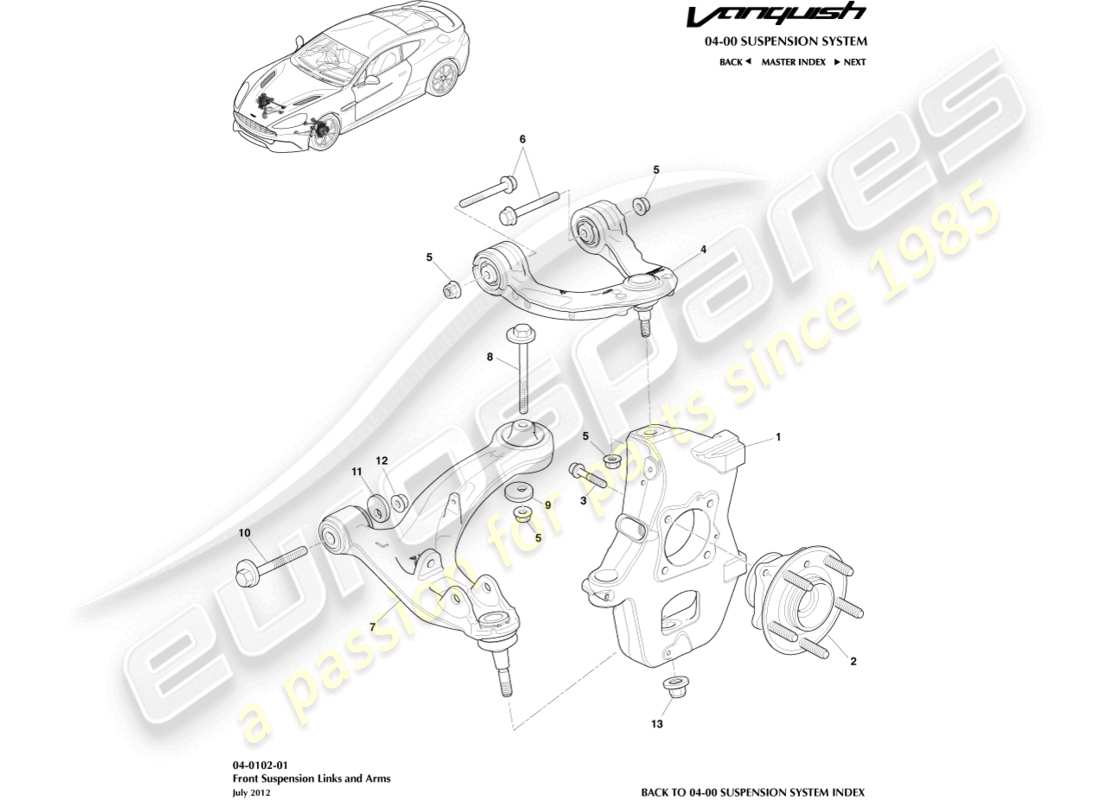

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: AY93-3K185-AB
                          KNUCKLE ASSY, FRONT, LH
                          from £316.44
                          from £316.44
                          KNUCKLE FRONT, LH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: AY93-3K186-AB
                          KNUCKLE ASSY, FRONT, RH
                          from £316.44
                          from £316.44
                          KNUCKLE FRONT, RH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: AD43-2B663-AA
                          HUB AND BEARING ASSY
                          from £515.54
                          from £515.54
                          HB & BRG ASY FRONT BRK Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 4G43-0783-AA-PK
                          BOLT, M10 X 55 X 1.25
                          Pack of 5
                          from £15.41
                          from £15.41
                          BOLT M10X55 (5) Genuine Aston Martin - New (to order)
                          # 4
                          MPN: DD43-3091-AB
                          ARM ASSY, UPPER, FRONT SUSPENSION, LH
                          from £353.62
                          from £353.62
                          ARM ASSEMBLY, UPPER, FRONT SUSPENSION, LH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: DD43-3084-AB
                          ARM ASSY, UPPER, FRONT SUSPENSION, RH
                          from £362.46
                          from £362.46
                          ARM ASSEMBLY, UPPER, FRONT SUSPENSION, RH Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 703565
                          NUT, M12, HEX FLANGE HD
                          from £0.77
                          from £0.77
                          This part replaces part number 699876
                          NUT-M12 HEX FLG PLAS Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 703180
                          BOLT, M12 X 90, HEX FLANGE HD
                          BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                          # 7
                          MPN: AD43-3A053-AA
                          ARM & BUSH ASSY, FRONT SUSPENSION LOWER, LH
                          from £837.80
                          from £837.80
                          ARM ASSEMBLY, LOWER FRONT SUSPENSION, LH Genuine Aston Martin - New (to order)
                          # 7
                          MPN: AD43-3A052-AA
                          ARM & BUSH ASSY, FRONT SUSPENSION LOWER, RH
                          from £837.80
                          from £837.80
                          ARM ASSEMBLY, LOWER FRONT SUSPENSION, RH Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 4G43-3B236-BB
                          BOLT, M12, ECCENTRIC
                          from £39.31
                          from £39.31
                          CAM & BOLT ASSEMBLY FRONT Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 4G43-3B237-BB
                          WASHER, M12, ECCENTRIC
                          from £6.75
                          from £6.75
                          WASHER M12 ECCENTRIC Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 4G43-3B236-CB
                          CAM BOLT, M14
                          from £16.51
                          from £16.51
                          CAM BOLT M14 Genuine Aston Martin - New In stock
                          # 11
                          MPN: 4G43-3B237-CA
                          CAM WASHER, M14
                          from £6.53
                          from £6.53
                          CAM WASHER - FRONT LCA Genuine Aston Martin - New In stock
                          # 12
                          MPN: 704596
                          NUT M14, HEX FLANGE HD
                          from £0.77
                          from £0.77
                          This part replaces part number 701337
                          NUT M14 HEX FLNG P/T Genuine Aston Martin - New In stock
                          # 13
                          MPN: AD43-0907-AA
                          NUT AND WASHER, M14, HEX FLANGE HD
                          from £13.63
                          from £13.63
                          NUT AND WASHER, M14, HEX FLANGE HD Genuine Aston Martin - New (to order)
