aston martin vanquish (2015) rke transmitter parts diagram

01-1402-01 - RKE Transmitter

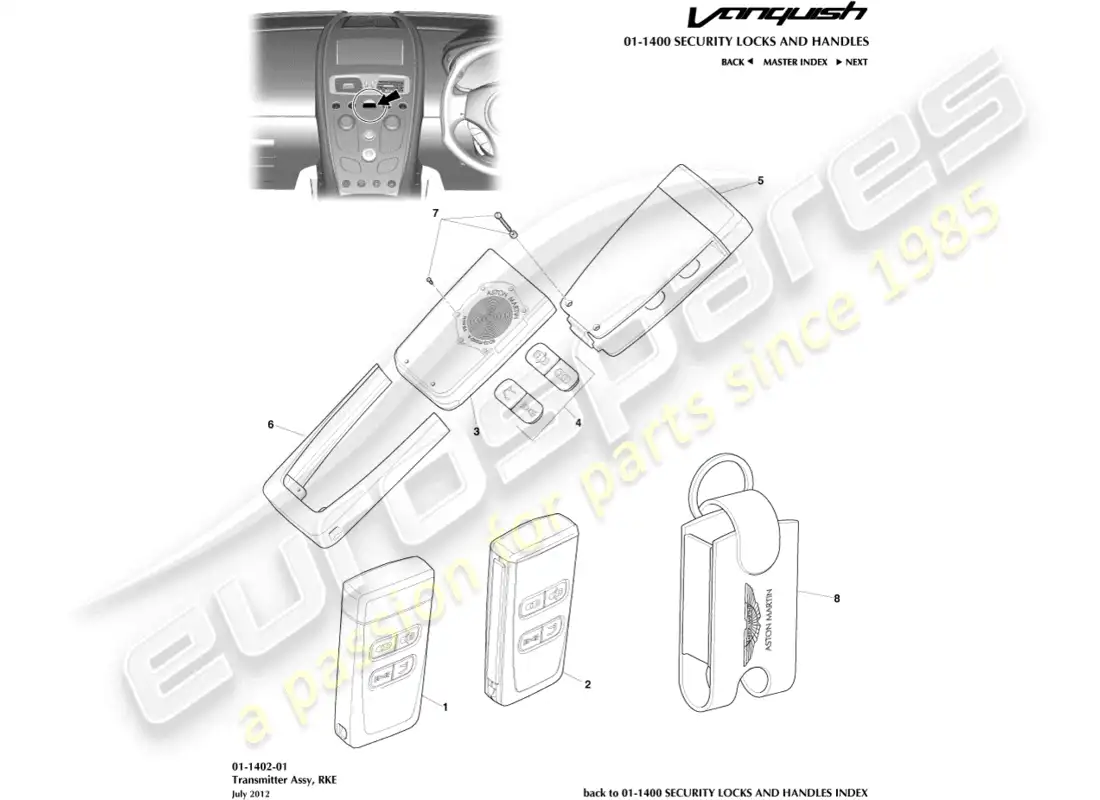

Aston Martin Vanquish (2015) RKE Transmitter Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 9G43-19H481-BB
            PRIMARY KEY FOB, 433 MHZ, GLASS
            RoW
            Supersession
            Supersession
            Genuine Aston Martin (no longer available to order)
            # 1
            MPN: 9G43-19H481-AC
            PRIMARY KEY FOB, 315 MHZ, GLASS
            Federal, Japan, Hong Kong and Singapore
            PRIMARY KEYFOB, GLASS Genuine Aston Martin - New (to order)
            # 2
            MPN: 8D33-19H483-BA
            SECONDARY KEY FOB, 433 MHZ, PLASTIC
            RoW
            Supersession
            Supersession
            Genuine Aston Martin (no longer available to order)
            # 2
            MPN: 8D33-19H483-AB
            SECONDARY KEY FOB, 315 MHZ, PLASTIC
            Federal, Japan, Hong Kong and Singapore
            Supersession
            Supersession
            Genuine Aston Martin (no longer available to order)
            # 2
            MPN: 9G43-19H477-DA
            REPAIR KIT, CAGE ASSY, SECONDARY KEY FOB, 433 MHZ
            RoW
            from £105.48
            from £105.48
            433 KEY REPAIR KIT Genuine Aston Martin - New (to order)
            # 2
            MPN: 9G43-19H477-CA
            REPAIR KIT, CAGE ASSY, SECONDARY KEY FOB, 315 MHZ
            Federal, Japan, Hong Kong and Singapore
            from £95.43
            from £95.43
            315 KEY REPAIR KIT Genuine Aston Martin - New (to order)
            # 3
            MPN: 9G43-19H479-BA
            RKE SUB ASSY, 433 MHZ
            RoW
            from £585.37
            from £585.37
            RKE SUB AST-ROW 433M Genuine Aston Martin - New (to order)
            # 3
            MPN: 9G43-19H479-AA
            RKE SUB ASSY, 315 MHZ
            Federal, Japan, Hong Kong and Singapore
            from £585.37
            from £585.37
            RKE SUB ASY NAS Genuine Aston Martin - New (to order)
            # 4
            MPN: 8D33-19H478-AA
            BUTTON KIT
            from £194.43
            from £194.43
            RKE LEXAN BTN KIT Genuine Aston Martin - New (to order)
            # 5
            MPN: 9G43-19H477-AC
            FOB REPAIR KIT, GLASS/LEXAN
            315Mhz, Federal/Japan
            from £737.17
            from £737.17
            FOB REPAIR KIT, GLASS/LEXAN Genuine Aston Martin - New (to order)
            # 5
            MPN: 9G43-19H477-BB
            FOB REPAIR KIT, GLASS/LEXAN
            433Mhz, ROW
            from £611.09
            from £611.09
            FOB REPAIR KIT, GLASS/LEXAN Genuine Aston Martin - New (to order)
            # 5
            MPN: 9G43-19H477-CA
            FOB REPAIR KIT, PLASTIC
            315Mhz, Federal/Japan
            from £95.43
            from £95.43
            315 KEY REPAIR KIT Genuine Aston Martin - New (to order)
            # 5
            MPN: 9G43-19H477-DA
            FOB REPAIR KIT, PLASTIC
            433Mhz, ROW
            from £105.48
            from £105.48
            433 KEY REPAIR KIT Genuine Aston Martin - New (to order)
            # 6
            MPN: 8D33-19H484-AA
            OUTER COVER, STAINLESS STEEL
            FOB BODY, STAINLESS STEEL Genuine Aston Martin - New (to order)
            # 7
            MPN: 8D33-19H480-AA
            SCREW KIT, BATTERY COVER AND LENS
            from £50.17
            from £50.17
            SCREW KIT, BATTERY COVER AND LENS Genuine Aston Martin - New (to order)
            # 8
            MPN: CG43-19H419-AA
            COVER, RKE, LEATHER
            COVER TRANS RKE Genuine Aston Martin - New (to order)
            # -
            MPN: 692396AA
            BATTERY, KEY FOB
            BATTERY, PANASONIC Genuine Aston Martin - New (to order)
