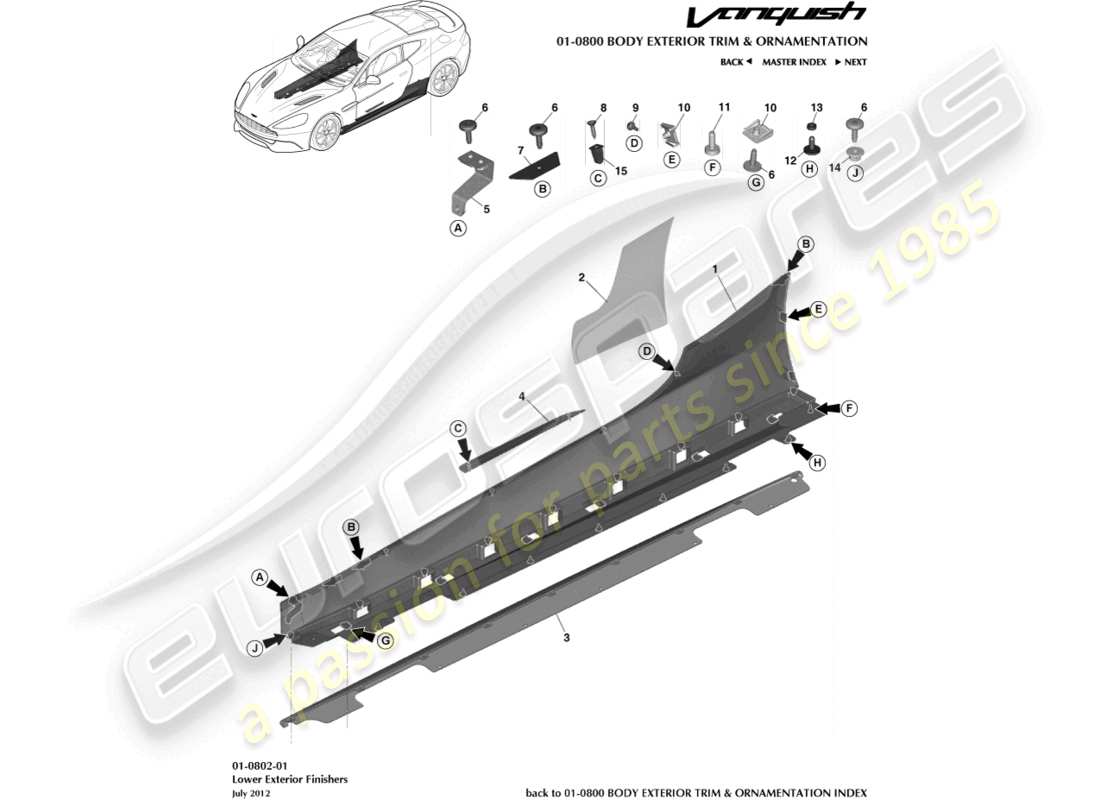

01-0802-01 - Lower Exterior Finishers

Aston Martin Vanquish (2015) Lower Exterior Finishers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: CD33-10608-AD
                        SILL APPLIQUE, RH
                        Up to 15MY
                        from £601.44
                        from £601.44
                        SILL APPLIQUE, RH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: FD33-10608-AA
                        SILL APPLIQUE, RH
                        From 15MY, VIN J02768
                        from £371.98
                        from £371.98
                        SILL APPLIQUE, RH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: CD33-10609-AD
                        SILL APPLIQUE, LH
                        Up to 15MY
                        from £601.44
                        from £601.44
                        SILL APPLIQUE, LH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: FD33-10609-AA
                        SILL APPLIQUE, LH
                        From 15MY, VIN J02768
                        from £359.39
                        from £359.39
                        SILL APPLIQUE, LH Genuine Aston Martin - New (to order)
                        # 2
                        MPN: CD33-10624-AB
                        TAPE, SILL REAR, RH
                        from £62.93
                        from £62.93
                        TAPE, SILL REAR, RH Genuine Aston Martin - New (to order)
                        # 2
                        MPN: CD33-10625-AB
                        TAPE, SILL REAR, LH
                        from £62.93
                        from £62.93
                        TAPE, SILL REAR, LH Genuine Aston Martin - New (to order)
                        # 3
                        MPN: CD33-10610-CA
                        SILL BLADE, CARBON, RH
                        from £3,239.38
                        from £3,239.38
                        SILL BLADE, CARBON, RH Genuine Aston Martin - New (to order)
                        # 3
                        MPN: CD33-10611-CA
                        SILL BLADE, CARBON, LH
                        from £3,239.38
                        from £3,239.38
                        SILL BLADE, CARBON, LH Genuine Aston Martin - New (to order)
                        # 4
                        MPN: CD33-132A48-AB
                        TREAD PLATE EXTERIOR, RH
                        Up to 16MY
                        from £129.60
                        from £129.60
                        TREAD PLATE EXTERIOR, RH Genuine Aston Martin - New (to order)
                        # 4
                        MPN: CD33-132A49-AB
                        TREAD PLATE EXTERIOR, LH
                        Up to 16MY
                        from £129.60
                        from £129.60
                        TREAD PLATE EXTERIOR, LH Genuine Aston Martin - New (to order)
                        # 5
                        MPN: CD33-16586-AB
                        SUPPORT BRACKET, WHEEL ARCH LINER
                        from £23.31
                        from £23.31
                        SUPPORT BRACKET, WHEEL ARCH LINER Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 6G33-FA0115-AB-PK
                        SCREW, M6 X 20, SKT HD
                        Pack of 20
                        from £7.26
                        from £7.26
                        SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                        FRONT UNDERTRAY SCREW (6G33-FA0115-AB-PK) Genuine Ferrari Part - New (to order)
                        # 7
                        MPN: 9G33-102B24-BA
                        PLATE, REAR FLOOR SIDE SILL MOUNTING
                        PLATE, REAR FLOOR SIDE SILL MOUNTING Genuine Aston Martin - New (to order)
                        # 8
                        MPN: CD33-132A46-BA
                        SCREW, 4.2 X 16, SELF TAPPING
                        from £0.47
                        from £0.47
                        SCREW, 4.2 X 16, SELF TAPPING Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 701573
                        SCREW AND WASHER, M4 X 16, PAN HEAD
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
                        # 10
                        MPN: 7G43-10609E-AA-PK
                        CLIP, SPRING, M6, U TYPE
                        Pack of 10
                        from £5.08
                        from £5.08
                        CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
                        FRONT UNDERTRAY CLIP (7G43-10609E-AA-PK) Genuine Ferrari Part - New (to order)
                        # 11
                        MPN: 701567
                        SCREW, M6 X 16
                        from £1.21
                        from £1.21
                        SCREW M6X16 Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 6G43-0516B-BA
                        SCREW, M6 X 16, SELF TAPPING
                        from £1.22
                        from £1.22
                        SCRW TP M6 X 16 PNTI Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 8G43-5144-AA
                        SPACER, SILL APPLIQUE
                        from £1.53
                        from £1.53
                        SPACER, SILL APPLIQUE Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 703749
                        NUT, M6, HEX FLANGE HEAD
                        from £0.47
                        from £0.47
                        This part replaces part number 699877
                        NUT-M6 HEX FLG GRD 8 Genuine Aston Martin - New (to order)
                        # 15
                        MPN: DD33-V82027-AA
                        NUT, 4.2 EXP PLASTIC
                        from £0.47
                        from £0.47
                        NUT, 4.2 EXP PLASTIC Genuine Aston Martin - New (to order)
