5.2 - Front Brakes

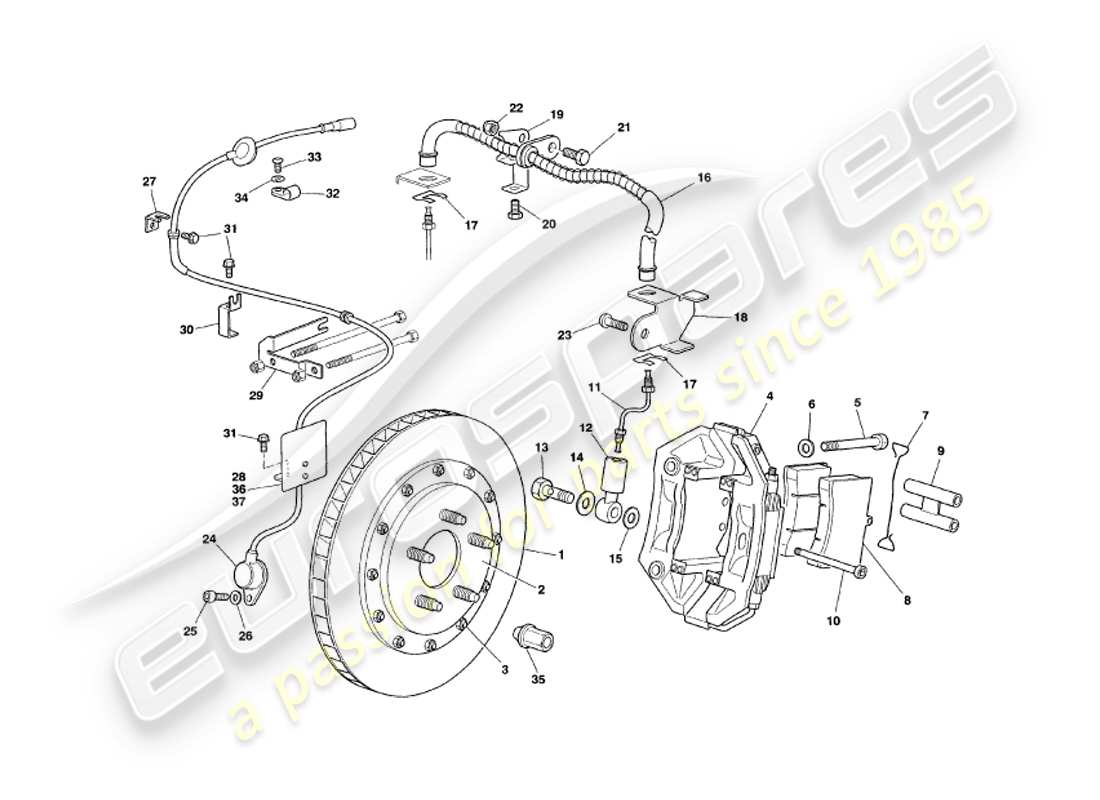

Aston Martin V8 Volante (1998) Front Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: 28-72437
                                            FRONT DISC, LH
                                            FRONT DISC, LH Genuine Aston Martin - New (to order)
                                            # 1
                                            MPN: 28-72438
                                            Front disc, RH
                                            Front disc, RH Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: 28-72411
                                            MOUNTING BELL, FRONT DISC
                                            from £313.67
                                            from £313.67
                                            MTG BELL FRONT DISC Genuine Aston Martin - New (to order)
                                            # 3
                                            MPN: 28-74542
                                            BOLT KIT, FRONT DISC TO MOUNTING BELL
                                            BOLT KIT, FRONT DISC TO MOUNTING BELL Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: 28-72969
                                            Caliper, front, LH
                                            Caliper, front, LH Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: 28-72968
                                            Caliper, front, RH
                                            Caliper, front, RH Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: 28-70423
                                            CAPSCREW
                                            Caliper attach
                                            from £19.13
                                            from £19.13
                                            CAPSCREW Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: 692059
                                            WASHER, PLAIN, M12
                                            Caliper attach
                                            from £0.47
                                            from £0.47
                                            WASHER M12 PLAIN MED Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: 695393
                                            LOCKING WIRE, 1MM, STAINLESS
                                            Capscrew locking
                                            from £274.16
                                            from £274.16
                                            LOCKING WIRE S/S 1MM Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: 28-74852
                                            FRONT PAD KIT
                                            from £958.59
                                            from £958.59
                                            FRONT BR PAD KIT Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: 28-74245
                                            H SPACER
                                            from £115.34
                                            from £115.34
                                            H SPACER-F/CALIPER Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: 28-74246
                                            CAP SCREW
                                            from £21.02
                                            from £21.02
                                            CAPSCREW-FT PADS RET Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: 33-72879
                                            BRAKE PIPE ASSY, CALIPER BANJO TO HOSE
                                            from £18.62
                                            from £18.62
                                            ASSEMBLY BRAKE PIPE Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: 069-033-0143
                                            BANJO, STRAIGHT
                                            FRONT CALIPER
                                            from £38.89
                                            from £38.89
                                            BANJO - STRAIGHT Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: 048-033-0295
                                            BANJO, BOLT
                                            Banjo to front Caliper
                                            from £11.63
                                            from £11.63
                                            BANJO BOLT Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: 021-033-0203
                                            GASKET
                                            Banjo to front Caliper
                                            from £0.90
                                            from £0.90
                                            WASHER COPPER 7/16 Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: 095-033-0161
                                            Washer, copper
                                            Banjo to front Caliper
                                            Washer, copper Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: 33-72887
                                            BRAKE HOSE, FRONT
                                            from £62.10
                                            from £62.10
                                            BRAKE HOSE FRONT Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: 33-72888
                                            CLIP, BRAKE HOSE
                                            from £6.59
                                            from £6.59
                                            CLIP BRAKE HOSE Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 33-72890
                                            BRACKET, BRAKE HOSE TO VERTICAL LINK, RH
                                            from £22.20
                                            from £22.20
                                            BKT RH V/LINK Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 33-72891
                                            BRACKET, BRAKE HOSE TO VERTICAL LINK, LH
                                            from £22.20
                                            from £22.20
                                            BKT LH V/LINK Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 33-72892
                                            BRACKET, BRAKE HOSE TO TOP SUSPENSION ARM, RH
                                            from £20.83
                                            from £20.83
                                            BKT TOP ARM RH Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 33-72893
                                            BRACKET, BRAKE HOSE TO TOP SUSPENSION ARM, LH
                                            from £34.10
                                            from £34.10
                                            BKT TOP ARM LH Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 695562
                                            SCREW, M6X10
                                            Bracket to top arm
                                            from £0.87
                                            from £0.87
                                            SCREW M6 X10 HEX FLG Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 692087
                                            SCREW, M8X20
                                            Hose to bracket
                                            Screw, M8 x 20, plate to front cover Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 692135
                                            NUT, SLK, M8
                                            Hose to bracket
                                            from £0.93
                                            from £0.93
                                            NUT M8 HEX SLK Genuine Aston Martin - New (to order)
                                            # 23
                                            MPN: 696607
                                            BOLT, M10X16, BTN SKT
                                            Bracket to vertical link
                                            from £2.20
                                            from £2.20
                                            BOLT M10 X 16 BTN Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: 90-70460
                                            SPEED SENSOR, FRONT
                                            from £143.02
                                            from £143.02
                                            SPEED SENSOR-FRONT Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: 694211
                                            CAPSCREW, M6X16
                                            Speed sensor to vertical link
                                            from £0.88
                                            from £0.88
                                            SCREW M6 X16 SKT CAP Genuine Aston Martin - New (to order)
                                            # 26
                                            MPN: 692046
                                            WASHER, SPRING, M6
                                            Speed sensor to vertical link
                                            from £0.47
                                            from £0.47
                                            WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: 90-73408
                                            CLIP, ABS CABLE
                                            from £3.20
                                            from £3.20
                                            CLIP ABS CABLE Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 90-73138
                                            HOLDER ASSEMBLY, ABS GROMMET
                                            ASY HOLDR GRMMT ABS Genuine Aston Martin - New (to order)
                                            # 29
                                            MPN: 90-73143
                                            HOLDER, ABS GROMMET, TOP BALL JOINT, LH
                                            from £31.05
                                            from £31.05
                                            HOLDER GROMMT ABS LH Genuine Aston Martin - New (to order)
                                            # 29
                                            MPN: 90-73142
                                            HOLDER, ABS GROMMET, TOP BALL JOINT, RH
                                            HOLDER GROMMT ABS RH Genuine Aston Martin - New (to order)
                                            # 30
                                            MPN: 90-73145
                                            HOLDER, ABS GROMMET, UPPER WISHBONE, LH
                                            from £19.04
                                            from £19.04
                                            HOLDER GROMMT ABS LH Genuine Aston Martin - New (to order)
                                            # 30
                                            MPN: 90-73144
                                            HOLDER, ABS GROMMET, UPPER WISHBONE, RH
                                            from £19.04
                                            from £19.04
                                            HOLDER GROMMT ABS RH Genuine Aston Martin - New (to order)
                                            # 31
                                            MPN: 695562
                                            SCREW, FLG, M6X10
                                            Holder grommet
                                            from £0.87
                                            from £0.87
                                            SCREW M6 X10 HEX FLG Genuine Aston Martin - New (to order)
                                            # 32
                                            MPN: 695047
                                            P CLIP
                                            Front sensor cable to upper longit
                                            from £2.61
                                            from £2.61
                                            P-CLIP Genuine Aston Martin - New (to order)
                                            # 33
                                            MPN: 692242
                                            SCREW, M5X12
                                            P clip to upper longitudinal
                                            from £0.47
                                            from £0.47
                                            SCREW M5 X 12 PAN Genuine Aston Martin - New (to order)
                                            # 34
                                            MPN: 692045
                                            WASHER, SPRING, M5
                                            P clip to upper longitudinal
                                            from £0.47
                                            from £0.47
                                            WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
                                            # -
                                            MPN: 693212
                                            SPIRAP, 1/2 OD
                                            from £8.31
                                            from £8.31
                                            SPIRAP 1/2 OD-BLACK Genuine Aston Martin - New (to order)
                                            # 35
                                            MPN: 36-56386
                                            WHEEL NUT
                                            WHEEL NUT Genuine Aston Martin - New (to order)
                                            # 36
                                            MPN: 90-73139
                                            BRACKET
                                            from £19.56
                                            from £19.56
                                            BRACKET Genuine Aston Martin - New (to order)
                                            # 37
                                            MPN: 90-73140
                                            SHIELD
                                            from £4.94
                                            from £4.94
                                            HEATSHIELD Genuine Aston Martin - New (to order)
