5.3 - Rear Brakes

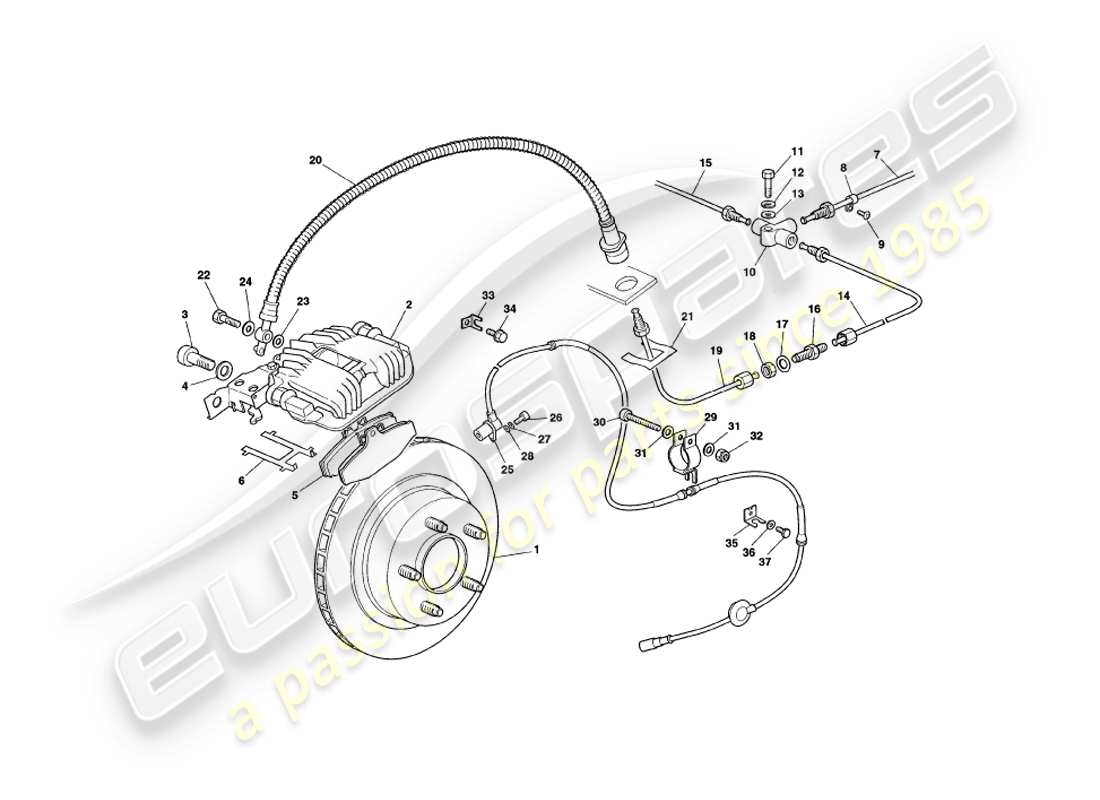

Aston Martin V8 Coupe (2000) Rear Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 28-72972
                                  REAR BRAKE DISC
                                  from £634.41
                                  from £634.41
                                  DISC REAR Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: 28-72970
                                  Caliper, rear, RH
                                  Caliper, rear, RH Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: 28-72971
                                  Caliper, rear, LH
                                  Caliper, rear, LH Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: 696605
                                  CAPSCREW, M12X25
                                  Caliper attach
                                  from £3.21
                                  from £3.21
                                  SCREW M12X25 12.9 Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: 692059
                                  WASHER, PLAIN, M12
                                  Caliper attach
                                  from £0.47
                                  from £0.47
                                  WASHER M12 PLAIN MED Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: 28-74853
                                  REAR PAD KIT
                                  from £960.06
                                  from £960.06
                                  REAR BR PAD KIT Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 28-74248
                                  PAD SPRING, (H SHIM)
                                  from £25.82
                                  from £25.82
                                  PAD SPRING-RR B/CAL Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 33-72870
                                  BRAKE PIPE ASSEMBLY, FRONT TO REAR HOSE
                                  BRAKE PIPE ASSEMBLY, FRONT TO REAR HOSE Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: 691910
                                  P CLIP
                                  Front to rear pipe
                                  from £0.47
                                  from £0.47
                                  P-CLIP PLASTIC 5MM Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 627-000-0604
                                  SCREW, NO.6X 1/2
                                  Clip to chassis
                                  from £0.47
                                  from £0.47
                                  SCREW NO6 X 1/2 Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: 33-11493
                                  TEE PIECE
                                  from £12.32
                                  from £12.32
                                  TEE PIECE Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: 692146
                                  SCREW, M6X20
                                  Tee piece to body
                                  from £1.16
                                  from £1.16
                                  SCREW M6 X 20 HEX HD Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: 692046
                                  WASHER, SPRING, M6
                                  Tee piece to body
                                  from £0.47
                                  from £0.47
                                  WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: 692056
                                  WASHER, PLAIN, M6
                                  Tee piece to body
                                  from £0.47
                                  from £0.47
                                  WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: 33-72872
                                  BRAKE PIPE ASSEMBLY, REAR, RH
                                  BRAKE PIPE ASSEMBLY, REAR, RH Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: 33-72874
                                  BRAKE PIPE ASSEMBLY, REAR, LH
                                  BRAKE PIPE ASSEMBLY, REAR, LH Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: 33-11492
                                  DOUBEL ENDED UNION
                                  Rear quarter panels
                                  from £6.15
                                  from £6.15
                                  D.E. UNION Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: 692068
                                  WASHER, SHAKEPROOF, M10
                                  D/E union attach
                                  from £0.47
                                  from £0.47
                                  WASHER M10 S/PROOF Genuine Aston Martin - New (to order)
                                  # 18
                                  MPN: 33-11490
                                  NUT, M10
                                  D/E union attach
                                  Nut, M10, union to bulkhead Genuine Aston Martin - New (to order)
                                  # 19
                                  MPN: 33-72876
                                  BRAKE PIPE ASSEMBLY, CONNECTOR TO REAR HOSE
                                  BRAKE PIPE ASSEMBLY, CONNECTOR TO REAR HOSE Genuine Aston Martin - New (to order)
                                  # 20
                                  MPN: 33-74236
                                  HOSE, REAR BRAKES
                                  from £75.31
                                  from £75.31
                                  ASSEMBLY HOSE & PIN Genuine Aston Martin - New (to order)
                                  # 21
                                  MPN: 33-72888
                                  CLIP, BRAKE HOSE
                                  from £6.59
                                  from £6.59
                                  CLIP BRAKE HOSE Genuine Aston Martin - New (to order)
                                  # 22
                                  MPN: 33-51829
                                  BOLT, BANJO
                                  Rear hose to caliper
                                  from £6.17
                                  from £6.17
                                  BOLT-BANJO BRAKE Genuine Aston Martin - New (to order)
                                  # 23
                                  MPN: 095-033-0161
                                  Washer, copper
                                  Rear hose to caliper
                                  Washer, copper Genuine Aston Martin - New (to order)
                                  # 24
                                  MPN: 698082
                                  SEALING WASHER, COPPER
                                  Rear hose to caliper
                                  from £1.53
                                  from £1.53
                                  WASHER SEALING Genuine Aston Martin - New (to order)
                                  # 25
                                  MPN: 90-70456
                                  SPEED SENSOR, REAR
                                  SPEED SENSOR, REAR Genuine Aston Martin - New (to order)
                                  # 26
                                  MPN: 694211
                                  CAPSCREW, M6X16
                                  Speed sensor to mounting bracket
                                  from £0.88
                                  from £0.88
                                  SCREW M6 X16 SKT CAP Genuine Aston Martin - New (to order)
                                  # 27
                                  MPN: 692046
                                  WASHER, SPRING, M6
                                  Speed sensor to mounting bracket
                                  from £0.47
                                  from £0.47
                                  WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                  # 28
                                  MPN: 692056
                                  WASHER, PLAIN, M6
                                  Speed sensor to mounting bracket
                                  from £0.47
                                  from £0.47
                                  WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                  # 29
                                  MPN: 90-73141
                                  HOLDER, ABS GROMMET, REAR LONGITUDINAL
                                  from £22.18
                                  from £22.18
                                  HOLDER GROMMT ABS Genuine Aston Martin - New (to order)
                                  # 30
                                  MPN: 696369
                                  CAPSCREW, M5X40
                                  Grommet holder
                                  from £1.17
                                  from £1.17
                                  SCREW M5 X 40 SKT Genuine Aston Martin - New (to order)
                                  # 31
                                  MPN: 692055
                                  WASHER, PLAIN, M5
                                  Grommet holder
                                  from £0.47
                                  from £0.47
                                  WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                  # 32
                                  MPN: 692800
                                  NUT, NYLOC, M5
                                  Grommet holder
                                  from £0.47
                                  from £0.47
                                  NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                  # 33
                                  MPN: 90-73408
                                  CLIP, ABS CABLE
                                  from £3.20
                                  from £3.20
                                  CLIP ABS CABLE Genuine Aston Martin - New (to order)
                                  # 34
                                  MPN: 695562
                                  SCREW, FLG, M6X10
                                  Clip attach
                                  from £0.87
                                  from £0.87
                                  SCREW M6 X10 HEX FLG Genuine Aston Martin - New (to order)
                                  # 35
                                  MPN: 90-53905
                                  BRACKET, CABLE SUPPORT
                                  from £4.18
                                  from £4.18
                                  BRKT-CABLE SUPPORT Genuine Aston Martin - New (to order)
                                  # 36
                                  MPN: 692046
                                  WASHER, SPRING, M6
                                  Bracket attach
                                  from £0.47
                                  from £0.47
                                  WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                  # 37
                                  MPN: 693220
                                  BOLT, M6X12
                                  Bracket attach
                                  from £0.47
                                  from £0.47
                                  BOLT M6 X 12 HEX Genuine Aston Martin - New (to order)
                                  # -
                                  MPN: 28-74239
                                  Rear caliper pin overhaul kit
                                  from £57.02
                                  from £57.02
                                  REAR B/CALIPER O/H KIT Genuine Aston Martin - New (to order)
