aston martin rapide (2013) courtesy lighting parts diagram

170202 - Courtesy Lighting

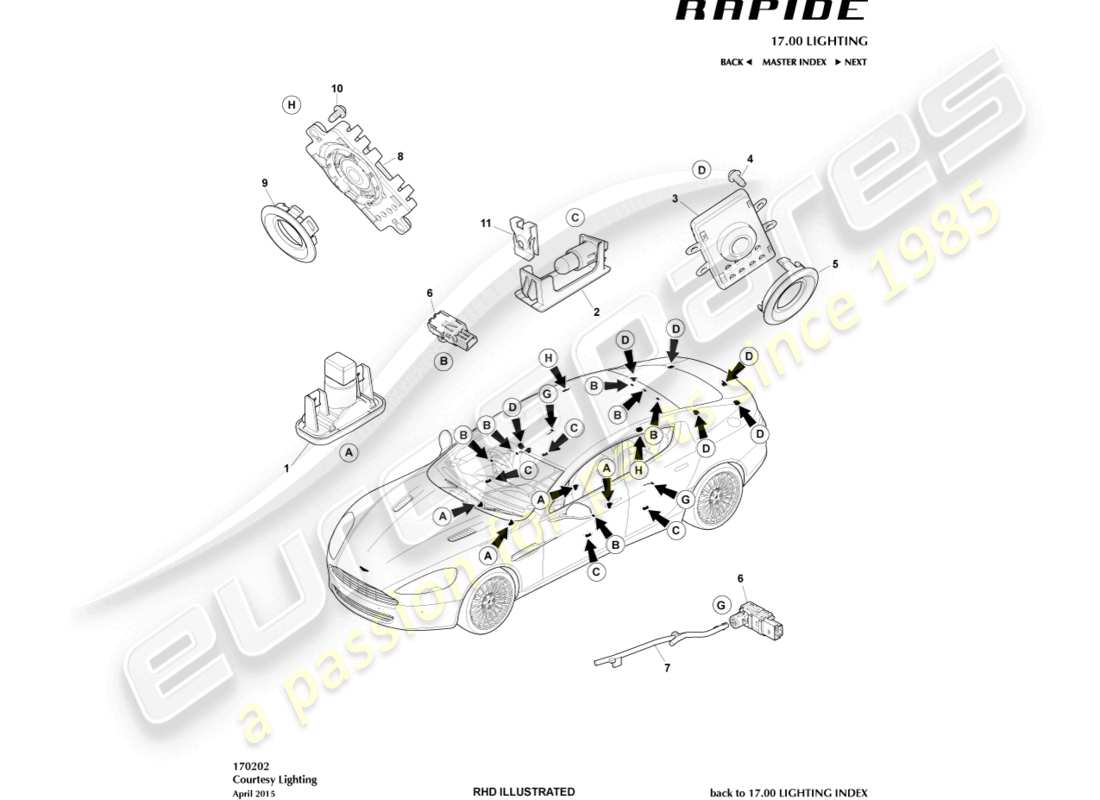

Aston Martin Rapide (2013) Courtesy Lighting Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 8D33-13K705-AA
                  LAMP, INTERIOR FOOTWELL
                  from £31.57
                  from £31.57
                  LAMP, INTERIOR FOOTWELL Genuine Aston Martin - New (to order)
                  LAMP, INTERIOR FOOTWELL Genuine Aston Martin - Used In stock
                  # 2
                  MPN: AD43-13776-BA
                  LAMP, INTERIOR
                  from £3.87
                  from £3.87
                  LAMP, INTERIOR Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 8D33-13D764-AB
                  PCB HOUSING ASSEMBLY, INTERIOR LAMP
                  from £36.11
                  from £36.11
                  PCB HOUSING ASSY Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 4G43-80899-AA
                  SCREW, M4X8
                  4 per Housing
                  from £0.47
                  from £0.47
                  SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 8D33-13B716-AB
                  LENS AND BEZEL, LED MAP LAMP
                  from £19.15
                  from £19.15
                  LENS & BEZEL ASSY Genuine Aston Martin - New (to order)
                  # 5
                  MPN: DD33-13B716-AC
                  LENS AND BEZEL, LED MAP LAMP
                  DARK CHROME
                  from £27.78
                  from £27.78
                  LENS AND BEZEL, LED MAP LAMP Genuine Aston Martin - New (to order)
                  # 5
                  MPN: KD43-13B716-AA
                  LENS AND BEZEL, LED MAP LAMP
                  19MY, AMR, Dark Chrome
                  from £66.70
                  from £66.70
                  LENS AND BEZEL, LED MAP LAMP Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 8D33-13B626-AB
                  LAMP, LED AMBIENT
                  from £11.70
                  from £11.70
                  LAMP, LED AMBIENT Genuine Aston Martin - New (to order)
                  # 7
                  MPN: AD43-13D777-AB
                  LIGHT GUIDE, DOOR HANDLE
                  from £9.17
                  from £9.17
                  LIGHT GUIDE, DOOR HANDLE Genuine Aston Martin - New (to order)
                  # 8
                  MPN: AD43-13D764-AC
                  PCB HOUSING ASSEMBLY, INTERIOR LAMP
                  from £32.42
                  from £32.42
                  PCB HOUSING ASSEMBLY, INTERIOR LAMP Genuine Aston Martin - New (to order)
                  # 9
                  MPN: AD43-13B716-AA
                  LENS AND BEZEL, LED MAP LAMP
                  from £29.91
                  from £29.91
                  LENS AND BEZEL, LED MAP LAMP Genuine Aston Martin - New (to order)
                  # 9
                  MPN: DD33-13B716-AC
                  LENS AND BEZEL, LED MAP LAMP
                  DARK CHROME
                  from £27.78
                  from £27.78
                  LENS AND BEZEL, LED MAP LAMP Genuine Aston Martin - New (to order)
                  # 9
                  MPN: KD43-13B716-AA
                  LENS AND BEZEL, LED MAP LAMP
                  19MY, AMR
                  from £66.70
                  from £66.70
                  LENS AND BEZEL, LED MAP LAMP Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 4G43-80899-AA
                  SCREW, M4X8
                  2 per Housing
                  from £0.47
                  from £0.47
                  SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 701448
                  NUT, U TYPE
                  from £0.47
                  from £0.47
                  NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                  SPLITTER NUTS (701448) Genuine Ferrari Part - New (to order)
                  # -
                  MPN: 4G43-13465-AA
                  BULB W5W , FOOTWELL LAMP
                  BULB, BLUE- W5W Genuine Aston Martin - New (to order)
