aston martin rapide (2013) vacuum distribution, exhaust parts diagram

160000-C1 - Vacuum Distribution, Exhaust

Aston Martin Rapide (2013) Vacuum Distribution, Exhaust Parts Diagram

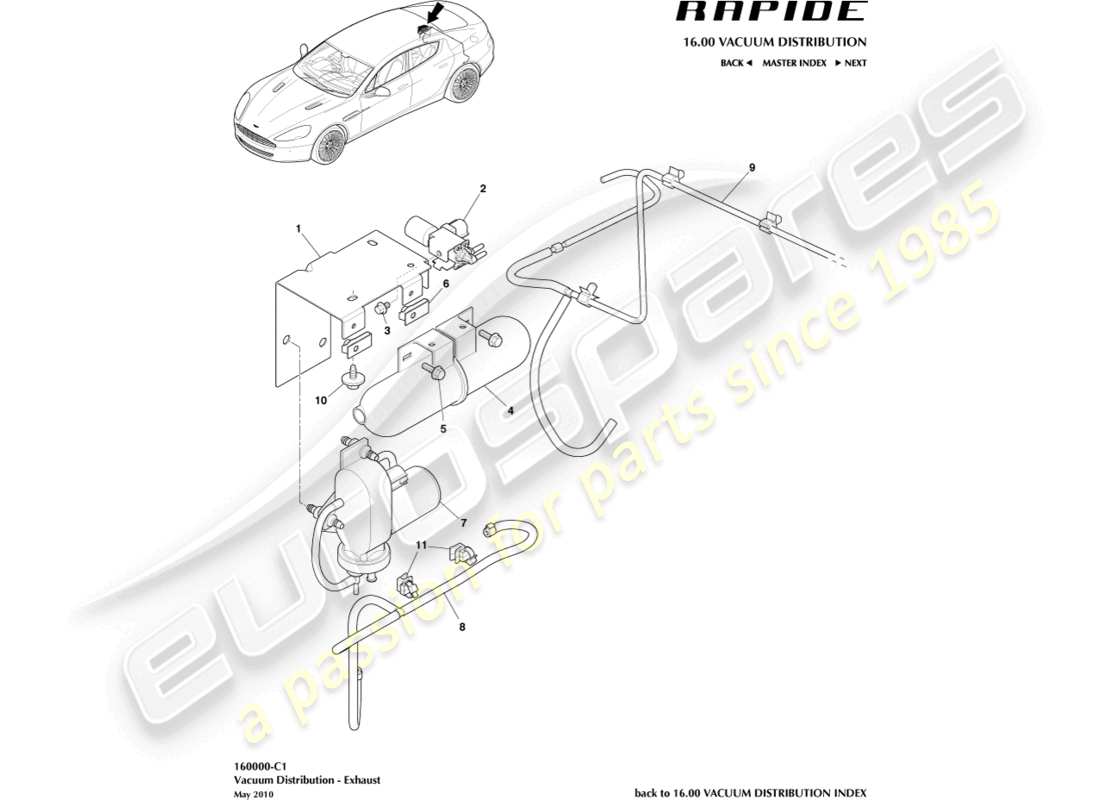

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 4G43-2C529-AJ
                    BRACKET, VAC PUMP MOUNTING
                    from £28.46
                    from £28.46
                    BRK VAC PMP MTNG Genuine Aston Martin - New (to order)
                    BRK VAC PMP MTNG Genuine Aston Martin - Used In stock
                    # 1
                    MPN: KD43-2C529-AA
                    BRACKET, VAC PUMP MOUNTING
                    19MY, AMR
                    from £371.28
                    from £371.28
                    BRACKET, VAC PUMP MOUNTING Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 6G43-16-10010
                    SHIFT TRANS RETRO CONTROL PDL ROD
                    from £48.62
                    from £48.62
                    SHIFT TRANS RETRO CONTROL PDL ROD Genuine Aston Martin - New (to order)
                    SHIFT TRANS RETRO CONTROL PDL ROD Genuine Aston Martin - Used In stock
                    # 3
                    MPN: 703206
                    SCREW, M5X8
                    from £0.94
                    from £0.94
                    SCREW-M5 X 8 HEX FLG Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 89-84150
                    TANK, AC, VAC RESERVOIR
                    from £52.54
                    from £52.54
                    VACUUM TANK Genuine Aston Martin - New (to order)
                    VACUUM TANK Genuine Aston Martin - Used In stock
                    # 5
                    MPN: 703265
                    SCREW, M6X16
                    from £0.47
                    from £0.47
                    SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 701245
                    NUT, M6
                    from £0.47
                    from £0.47
                    NUT M6 0.8-4.0 U TYP Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 6G43-16-10034
                    PUMP ASSEMBLY, VACUUM
                    from £65.08
                    from £65.08
                    This part replaces part number 4C34-2A451-BA - and 2 more. Click to view details
                    PUMP ASSEMBLY, VACUUM Genuine Aston Martin - New (to order)
                    PUMP ASSEMBLY, VACUUM Genuine Aston Martin - Used In stock
                    # 8
                    MPN: 4G43-9E488-CA
                    TUBE ASSEMBLY, EXHAUST CONTROL VALVE
                    from £11.89
                    from £11.89
                    TUB ASSEMBLY EXH CONT Genuine Aston Martin - New (to order)
                    TUB ASSEMBLY EXH CONT Genuine Aston Martin - Used In stock
                    # 9
                    MPN: AD43-9E488-AA
                    TUBE ASSEMBLY, EXHAUST BY-PASS
                    from £69.76
                    from £69.76
                    TUBE ASSEMBLY, EXHAUST BY-PASS Genuine Aston Martin - New (to order)
                    # 9
                    MPN: KD43-9E488-AA
                    TUBE ASSEMBLY, EXHAUST BY-PASS
                    19MY, AMR
                    TUBE ASSEMBLY, EXHAUST BY-PASS Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 707004
                    BOLT AND WASHER, M6X16
                    from £0.54
                    from £0.54
                    BOLT AND WASHER, M6X16 Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 4G43-37-10113
                    CLIP, TIE WRAP
                    from £0.74
                    from £0.74
                    CLIP, TIE WRAP 13 Genuine Aston Martin - New (to order)
