aston martin rapide (2013) air con lines, r234a, lhd parts diagram

120305-S1 - Air Con Lines, R234a, LHD

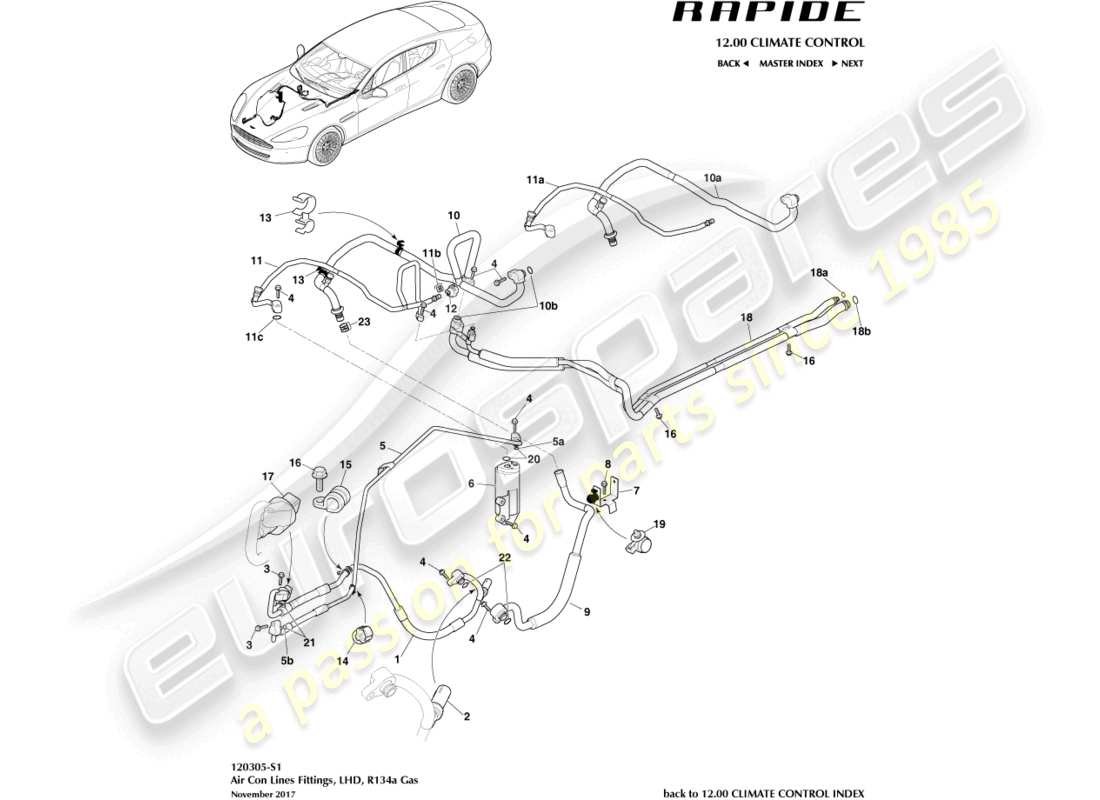

Aston Martin Rapide (2013) Air Con Lines, R234a, LHD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: AD43-19972-AA
                            TUBE ASSY, COMPRESSOR TO CONDENSER
                            Up to 13MY
                            from £254.13
                            from £254.13
                            TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                            # 1
                            MPN: CD33-19972-AC
                            TUBE ASSY, COMPRESSOR TO CONDENSER
                            From 13MY To 17MY
                            from £380.90
                            from £380.90
                            TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                            # 1
                            MPN: HD33-19972-AA
                            TUBE ASSY, COMPRESSOR TO CONDENSER
                            From 17MY, With R134 Gas
                            from £367.33
                            from £367.33
                            TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                            # 3
                            MPN: 703201
                            SCREW, M8X30
                            from £0.47
                            from £0.47
                            SCREW M8X30 HEX FLNG Genuine Aston Martin - New (to order)
                            # 4
                            MPN: 703199
                            BOLT, M6X30
                            from £0.47
                            from £0.47
                            BOLT M6X30 HEX FLG Genuine Aston Martin - New (to order)
                            # 5
                            MPN: AD43-19D719-AA
                            TUBE ASSY, CONDENSER TO RECEIVER/DRIER
                            Up to 13MY
                            from £100.20
                            from £100.20
                            TUBE ASSEMBLY, CONDENSER TO RECEIVER/DRIER Genuine Aston Martin - New (to order)
                            # 5
                            MPN: CD33-19D719-AC
                            TUBE ASSY, CONDENSER TO RECEIVER/DRIER
                            From 13MY To 17MY
                            from £81.48
                            from £81.48
                            TUBE ASSEMBLY, CONDENSER TO RECEIVER/DRIER Genuine Aston Martin - New (to order)
                            # 5
                            MPN: HD33-19D719-AA
                            TUBE ASSY, CONDENSER TO RECEIVER/DRIER
                            From 17MY, With R134 Gas
                            from £153.05
                            from £153.05
                            TUBE ASSEMBLY, CONDENSER TO RECEIVER/DRIER Genuine Aston Martin - New (to order)
                            # 5a
                            MPN: HD23-87024-AA
                            EPDM O RING, 6370X1.80
                            FROM 17MY
                            from £4.04
                            from £4.04
                            EPDM O-RING Genuine Aston Martin - New (to order)
                            # 5b
                            MPN: HD23-87056-AA
                            EPDM O RING, 6.5X2.62
                            FROM 17MY
                            from £4.04
                            from £4.04
                            O RINGS, RECEIVER / DRIER Genuine Aston Martin - New (to order)
                            # 7
                            MPN: 4G43-6147X-AD
                            BRACKET ASSY
                            from £23.64
                            from £23.64
                            BRKT-A/C /ELEC Genuine Aston Martin - New (to order)
                            # 8
                            MPN: 703151
                            SCREW, M6X16
                            from £0.47
                            from £0.47
                            SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                            LOWER MESH BOLTS (703151) Genuine Ferrari Part - New (to order)
                            # 9
                            MPN: AD43-19A705-AA
                            TUBE ASSY, EVAPORATOR OUTLET, LOWER
                            Up to 13MY
                            from £190.55
                            from £190.55
                            TUBE ASSEMBLY, EVAPORATOR OUTLET, LOWER Genuine Aston Martin - New (to order)
                            # 9
                            MPN: CD33-19A705-AA
                            TUBE ASSY, EVAPORATOR OUTLET, LOWER
                            From 13MY To 17MY
                            from £103.71
                            from £103.71
                            TUBE ASSEMBLY, EVAPORATOR OUTLET, LOWER Genuine Aston Martin - New (to order)
                            # 9
                            MPN: HD33-19A705-AA
                            TUBE ASSY, EVAPORATOR OUTLET, LOWER
                            From 17MY, With R134 Gas
                            from £239.25
                            from £239.25
                            TUBE ASSEMBLY, EVAPORATOR OUTLET, LOWER Genuine Aston Martin - New (to order)
                            # 10
                            MPN: AD43-19A705-BA
                            TUBE ASSY, EVAPORATOR OUTLET, UPPER
                            Up to 17MY
                            from £187.01
                            from £187.01
                            TUBE ASSEMBLY, EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                            # 10
                            MPN: HD43-19A705-BA
                            TUBE ASSY, EVAPORATOR OUTLET, UPPER
                            From 17MY, With Rear A/C, With R134 Gas
                            from £192.43
                            from £192.43
                            TUBE ASSEMBLY, EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                            # 10a
                            MPN: HD43-19B881-AA
                            TUBE ASSY, EVAPORATOR OUTLET, UPPER
                            From 17MY, Less Rear A/C, With R134 Gas
                            from £182.30
                            from £182.30
                            TUBE ASSEMBLY, EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                            # 10b
                            MPN: HD23-32117-AA
                            EPDM O RING 13.40X2.40
                            FROM 17MY
                            from £3.40
                            from £3.40
                            EPDM O RING, 13.40X2.40 Genuine Aston Martin - New (to order)
                            # 11
                            MPN: AD43-19835-AA
                            TUBE ASSY, DRIER TO EVAPORATOR
                            Up to 17MY
                            from £181.35
                            from £181.35
                            TUBE ASSEMBLY, DRIER TO EVAPORATOR Genuine Aston Martin - New (to order)
                            # 11
                            MPN: HD43-19835-AA
                            TUBE ASSY, DRIER TO EVAPORATOR
                            From 17MY, With Rear A/C, With R134 Gas
                            from £145.24
                            from £145.24
                            TUBE ASSEMBLY, DRIER TO EVAPORATOR Genuine Aston Martin - New (to order)
                            # 11a
                            MPN: HD43-19919-AA
                            TUBE ASSY, DRIER TO EVAPORATOR
                            From 17MY, Less Rear A/C, With R134 Gas
                            from £197.14
                            from £197.14
                            TUBE ASSEMBLY, DRIER TO EVAPORATOR Genuine Aston Martin - New (to order)
                            # 11b
                            MPN: HD23-87024-AA
                            EPDM O RING, 6.70X1.80
                            FROM 17MY
                            from £4.04
                            from £4.04
                            EPDM O-RING Genuine Aston Martin - New (to order)
                            # 11c
                            MPN: HD23-87071-AA
                            EPDM O RING, 10.8X2.40
                            FROM 17MY
                            from £4.04
                            from £4.04
                            EPDM O-RING Genuine Aston Martin - New (to order)
                            # 12
                            MPN: 4G43-4073A-AA
                            CLAMP
                            from £3.00
                            from £3.00
                            CLAMP Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 701182
                            CLIP, PIPE, SWIVEL
                            from £1.16
                            from £1.16
                            CLIP-SWIVEL Genuine Aston Martin - New (to order)
                            # 14
                            MPN: 701180
                            CLIP, 14MM, PUSH IN
                            from £0.81
                            from £0.81
                            CLIP 14.0X4.0 PUSHIN Genuine Aston Martin - New (to order)
                            # 15
                            MPN: 699634
                            CLIP, 13MM
                            from £1.27
                            from £1.27
                            P-CLIP 13X15XM6 Genuine Aston Martin - New (to order)
                            # 16
                            MPN: 703203
                            SCREW, M6X20
                            from £0.47
                            from £0.47
                            SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                            LOWER RAD SUPPORT BOLT (703203) Genuine Ferrari Part - New (to order)
                            # 17
                            MPN: 1R12-89-10192
                            SWITCH ASSY, HIGH PRESSURE
                            from £177.31
                            from £177.31
                            A/C SWITCH-HIGH PRES Genuine Aston Martin - New (to order)
                            A/C SWITCH-HIGH PRES Genuine Aston Martin - Used In stock
                            # 18
                            MPN: AD43-19A705-CC
                            TUBE ASSY, TO REAR EVAPORATOR
                            Up to 17MY
                            from £349.98
                            from £349.98
                            TUBE ASSEMBLY, TO REAR EVAPORATOR Genuine Aston Martin - New (to order)
                            # 18
                            MPN: HD43-19A705-CA
                            TUBE ASSY, TO REAR EVAPORATOR
                            From 17MY, With Rear A/C, With R134 Gas
                            from £285.63
                            from £285.63
                            TUBE ASSEMBLY, TO REAR EVAPORATOR Genuine Aston Martin - New (to order)
                            # 18a
                            MPN: HD23-100603-AA
                            EPDM O RING, 7.5X2.0
                            FROM 17MY
                            from £2.50
                            from £2.50
                            EPDM O RING, 7.5X2.0 Genuine Aston Martin - New (to order)
                            # 18b
                            MPN: HD23-101001-AA
                            EPDM O RING, 14X2.0
                            FROM 17MY
                            from £4.17
                            from £4.17
                            EPDM O RING, 14X2.0 Genuine Aston Martin - New (to order)
                            # 20
                            MPN: 4G43-89-10908-PK
                            KIT, O RINGS
                            Up to 17MY
                            from £3.36
                            from £3.36
                            O RINGS-RECEIVER(2) Genuine Aston Martin - New In stock
                            # 21
                            MPN: 4G43-89-10910-PK
                            KIT, O RINGS
                            Up to 17MY
                            from £3.43
                            from £3.43
                            O RINGS-CONDENSER (pack of 2) Genuine Aston Martin - New In stock
                            # 22
                            MPN: 4G43-89-10909-PK
                            KIT, O RINGS
                            Up to 17MY
                            from £3.43
                            from £3.43
                            O RINGS-COMPRESSOR-2 Genuine Aston Martin - New In stock
                            # 23
                            MPN: 4G43-89-10911-PK
                            KIT, O RINGS
                            Up to 17MY
                            from £8.43
                            from £8.43
                            O RINGS-EVAPORATOR-3 Genuine Aston Martin - New (to order)
                            # 23
                            MPN: HD23-49745-AA
                            EPDM O RING, 12.93X1.86
                            FROM 17MY
                            from £4.89
                            from £4.89
                            O RING, 12.93X1.86 Genuine Aston Martin - New (to order)
