031100-E1 - Power Conversion

Aston Martin Rapide (2013) Power Conversion Parts Diagram

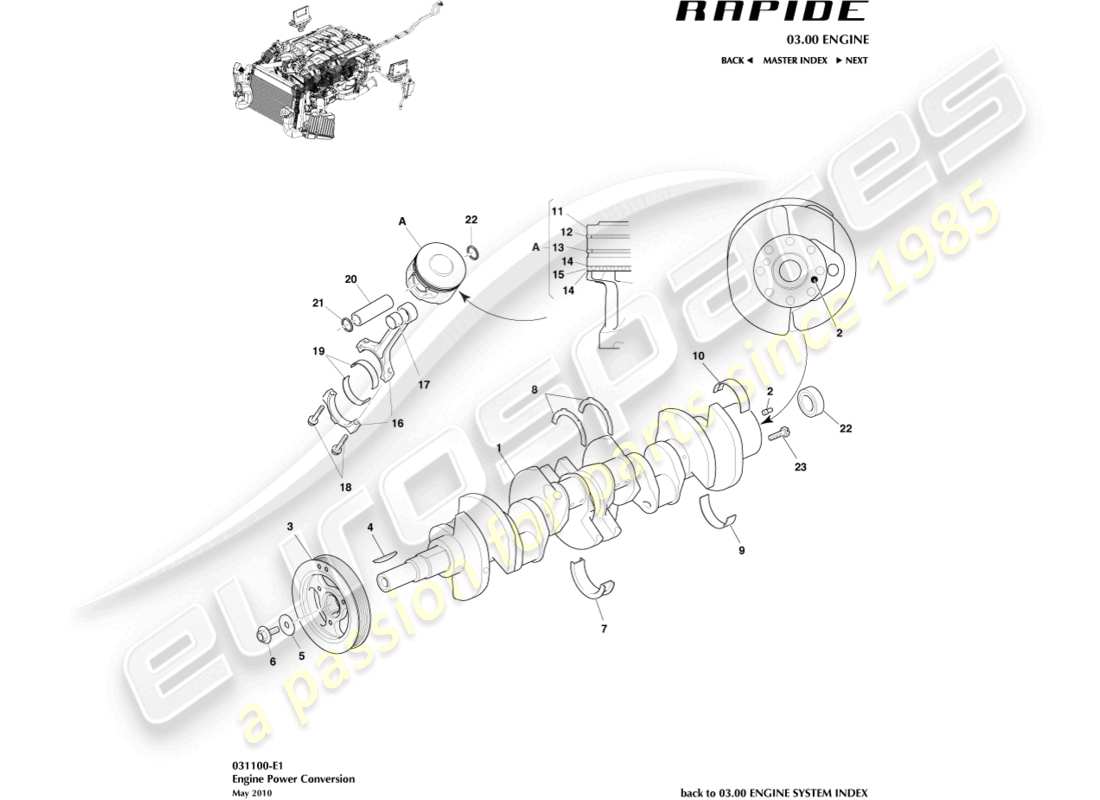

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: 4G43-02-10229
                                              CRANKSHAFT ASSY, (INCLUDES DOWEL, ITEM 2)
                                              from £4,140.25
                                              from £4,140.25
                                              CRANKSHAFT ASSEMBLY, (INCLUDES DOWEL, ITEM 2) Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: 1R12-41-10177
                                              DOWEL
                                              from £6.51
                                              from £6.51
                                              DOWEL PIN Genuine Aston Martin - New (to order)
                                              # 3
                                              MPN: 4G43-02-10939
                                              PULLEY ASSY, CRANKSHAFT DAMPER
                                              from £985.63
                                              from £985.63
                                              PULLEY ASSEMBLY, CRANKSHAFT DAMPER Genuine Aston Martin - New (to order)
                                              # 4
                                              MPN: 02-85008
                                              KEY, CRANKSHAFT, 4.76X53.5
                                              from £18.20
                                              from £18.20
                                              KEY, CRANKSHAFT, 4.76X53.5 Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: 4G43-02-10821
                                              WASHER, CRANKSHAFT DAMPER
                                              from £9.63
                                              from £9.63
                                              WSHR-13.5X39.5X7.35 Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: 4G43-02-10822
                                              BOLT, M12X48
                                              from £9.30
                                              from £9.30
                                              BOLT, M12X48 Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: 4R3E-6A339-BA
                                              WASHER, THRUST, CRANKSHAFT, LOWER
                                              from £34.76
                                              from £34.76
                                              WASHER, THRUST, CRANKSHAFT, LOWER Genuine Aston Martin - New (to order)
                                              # 8
                                              MPN: 4W7E-6A341-AB
                                              WASHER, THRUST, CRANKSHAFT, UPPER
                                              WASHER, THRUST, CRANKSHAFT, UPPER Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: 4R3E-6A338-AA
                                              BEARING, CRANKSHAFT, MAIN, LOWER
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 9
                                              MPN: 4R3E-6A338-BA
                                              BEARING, CRANKSHAFT, MAIN, LOWER (.012)
                                              from £11.81
                                              from £11.81
                                              BRG-CRK MN LWR(.012) Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: 4R3E-6A338-CA
                                              BEARING, CRANKSHAFT, MAIN, LOWER (.014)
                                              from £16.97
                                              from £16.97
                                              BRG-CRK MN LWR(.014) Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: 4R3E-6333-AA
                                              BEARING, CRANKSHAFT, MAIN, UPPER GRADE 1
                                              from £7.04
                                              from £7.04
                                              BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: 4R3E-6333-BA
                                              BEARING, CRANKSHAFT, MAIN, UPPER GRADE 2
                                              from £9.97
                                              from £9.97
                                              BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: 4R3E-6333-CA
                                              BEARING, CRANKSHAFT, MAIN, UPPER GRADE 3
                                              from £16.97
                                              from £16.97
                                              BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                              # 11
                                              MPN: 8D33-02-10018
                                              PISTON, GRADE 1
                                              from £223.53
                                              from £223.53
                                              PISTON, GRADE 1 Genuine Aston Martin - New (to order)
                                              # 11
                                              MPN: 8D33-02-10019
                                              PISTON, GRADE 2
                                              from £627.68
                                              from £627.68
                                              PISTON, GRADE 2 Genuine Aston Martin - New (to order)
                                              # 11
                                              MPN: 8D33-02-10021
                                              PISTON, GRADE 3
                                              from £223.53
                                              from £223.53
                                              PISTON, GRADE 3 Genuine Aston Martin - New (to order)
                                              # 12
                                              MPN: 1R12-02-10060
                                              RING, PISTON COMPRESSION, UPPER
                                              from £25.56
                                              from £25.56
                                              P/RING-COMPR UPPER Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: 02-85013
                                              RING, PISTON COMPRESSION, LOWER
                                              from £12.72
                                              from £12.72
                                              P/RING-COMPR.LOWER Genuine Aston Martin - New (to order)
                                              # 14
                                              MPN: 02-85014
                                              SEGMENT, PISTON RING, OIL CONTROL
                                              from £7.11
                                              from £7.11
                                              SEGMENT, PISTON RING, OIL CONTROL Genuine Aston Martin - New (to order)
                                              # 15
                                              MPN: 02-85015
                                              SPACER, PISTON RING OIL CONTROL
                                              from £6.51
                                              from £6.51
                                              SPACER-OIL CONTROL Genuine Aston Martin - New (to order)
                                              # 16
                                              MPN: 9G43-02-11092
                                              CONNECTING ROD ASSY
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 17
                                              MPN: 4G43-02-10968
                                              BUSHING, PISTON PIN
                                              from £3.31
                                              from £3.31
                                              BUSHING, PISTON PIN Genuine Aston Martin - New (to order)
                                              # 18
                                              MPN: 02-85018
                                              BOLT, CONNECTING ROD
                                              from £11.18
                                              from £11.18
                                              BOLT, CONNECTING ROD Genuine Aston Martin - New (to order)
                                              # 19
                                              MPN: 6E5E-6211-AB
                                              BEARING, CONNECTING ROD
                                              from £15.16
                                              from £15.16
                                              BEARING, CONNECTING ROD Genuine Aston Martin - New (to order)
                                              # 19
                                              MPN: 6E5E-6211-BB
                                              BEARING, CONNECTING ROD, 0.25
                                              0.25mm undersized
                                              from £12.61
                                              from £12.61
                                              BEARING, CONNECTING ROD, 0.25 Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: 4G43-02-10955-PK
                                              PIN, PISTON
                                              PIN, PISTON Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: 1R12-02-10448
                                              RETAINER, PISTON PIN
                                              from £1.68
                                              from £1.68
                                              RETAINER, PISTON PIN Genuine Aston Martin - New (to order)
                                              # 22
                                              MPN: 1R12-02-10061
                                              BEARING, PILOT
                                              from £20.13
                                              from £20.13
                                              BEARING, PILOT Genuine Aston Martin - New In stock
                                              # 23
                                              MPN: 697786-PK
                                              BOLT, M10X30
                                              from £7.93
                                              from £7.93
                                              BOLT-M10X1X30 (5) Genuine Aston Martin - New (to order)
