aston martin rapide (2013) engine cooling parts diagram

03-0300-E1 - engine cooling

Aston Martin Rapide (2013) Engine Cooling Parts Diagram

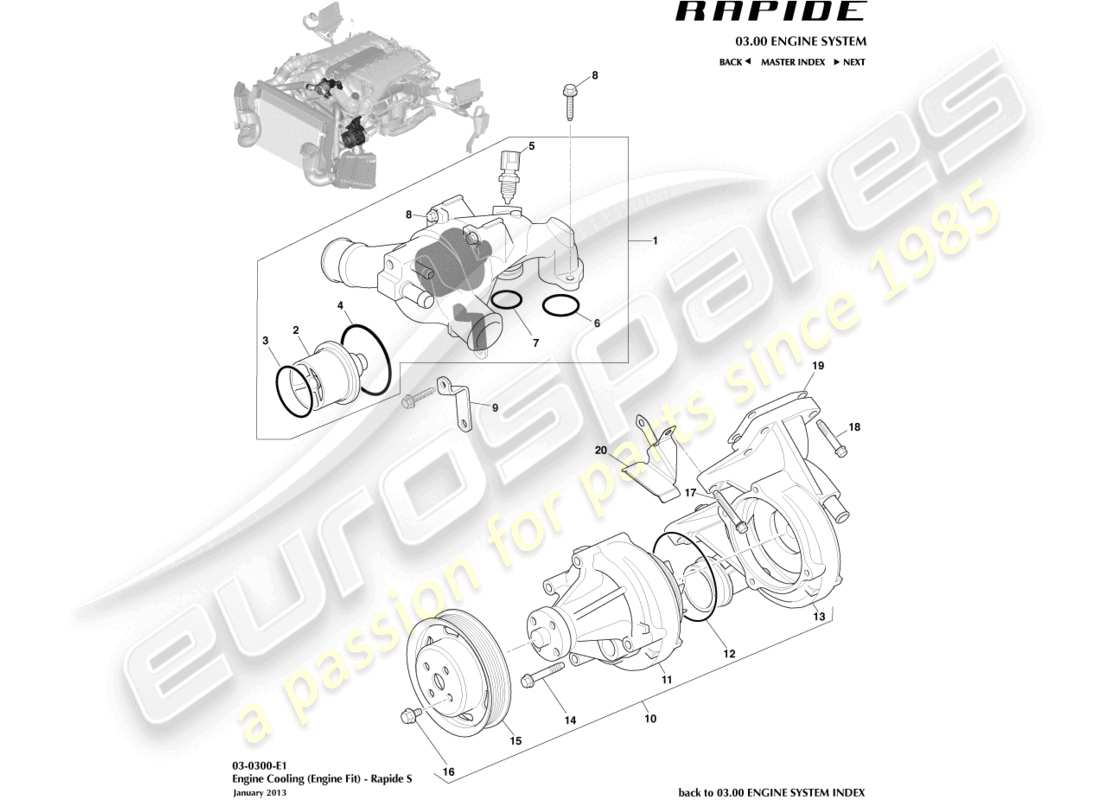

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: CD33-8A586-AA
                                        HOUSING AND CONNECTION ASSEMBLY, ENGINE THERMOSTAT
                                        from £944.73
                                        from £944.73
                                        HOUSING AND CONNECTION ASSEMBLY, ENGINE THERMOSTAT Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: CD33-8575-AA
                                        THERMOSTAT ASSEMBLY
                                        from £478.46
                                        from £478.46
                                        THERMOSTAT ASSEMBLY Genuine Aston Martin - New In stock
                                        # 3
                                        MPN: 32-85116
                                        SEAL, THERMOSTAT
                                        from £104.07
                                        from £104.07
                                        SEAL, THERMOSTAT Genuine Aston Martin - New (to order)
                                        # 4
                                        MPN: 32-85114
                                        O-RING
                                        from £1.50
                                        from £1.50
                                        O-RING Genuine Aston Martin - New In stock
                                        # 5
                                        MPN: 6G43-39-10080
                                        SENSOR, ENGINE COOLANT TEMPERATURE
                                        from £260.74
                                        from £260.74
                                        SNSR ASY-ENG ELEC CN Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: 32-85112
                                        O-RING
                                        from £3.33
                                        from £3.33
                                        O RING-WATER OUTLET Genuine Aston Martin - New In stock
                                        # 7
                                        MPN: 32-85113
                                        O-RING
                                        from £0.52
                                        from £0.52
                                        O RING SEAL Genuine Aston Martin - New In stock
                                        # 8
                                        MPN: 702855
                                        BOLT & WASHER, M6 X 30
                                        from £1.62
                                        from £1.62
                                        BOLT &WASHER-M6X30 Genuine Aston Martin - New (to order)
                                        # 9
                                        MPN: 7G43-8A588-AA
                                        BRACKET, ENGINE THERMOSTAT CONNECTOR
                                        from £55.25
                                        from £55.25
                                        BRKT-ENG.THERMO CONN Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: CD33-8K168-AA
                                        WATERPUMP AND COVER ASSEMBLY
                                        from £1,307.64
                                        from £1,307.64
                                        WATER PUMP ASSEMBLY Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: 4G43-05-10957
                                        WATER PUMP
                                        from £453.38
                                        from £453.38
                                        W/PUMP ASSY(NOSECONE Genuine Aston Martin - New (to order)
                                        # 12
                                        MPN: 1R12-32-10531
                                        O RING SEAL, WATER PUMP
                                        from £3.16
                                        from £3.16
                                        SEAL RING-4.0 ID Genuine Aston Martin - New In stock
                                        # 14
                                        MPN: 703108
                                        BOLT, M8 X 45, HEX FLANGE HEAD
                                        from £0.47
                                        from £0.47
                                        BOLT M8X45 HEX FLG 8 Genuine Aston Martin - New (to order)
                                        # 15
                                        MPN: 05-85104
                                        PULLEY, WATER PUMP
                                        from £375.53
                                        from £375.53
                                        PULLEY, WATER PUMP Genuine Aston Martin - New (to order)
                                        # 16
                                        MPN: 702843
                                        SCREW AND WASHER, M8 X 1.25 X 19, HEX HEAD
                                        from £0.71
                                        from £0.71
                                        SCREW &WASHER M8X19 Genuine Aston Martin - New (to order)
                                        # 17
                                        MPN: 703694
                                        BOLT AND WASHER, M8 X 45
                                        from £3.40
                                        from £3.40
                                        BOLT&WASHER M8X45 HF Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: 702842
                                        BOLT, M8 X 1.25 X 41, HEX FLANGE HEAD
                                        from £0.47
                                        from £0.47
                                        BOLT-M8X1.25X41 HEX Genuine Aston Martin - New (to order)
                                        # 19
                                        MPN: 05-85382
                                        GASKET, WATER PUMP
                                        from £32.48
                                        from £32.48
                                        WATER PUMP GASKET Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-18482-AA
                                        HOSE GUARD, WATER PUMP
                                        from £24.36
                                        from £24.36
                                        HOSE GUARD Genuine Aston Martin - New (to order)
