aston martin rapide (2013) washer bottle parts diagram

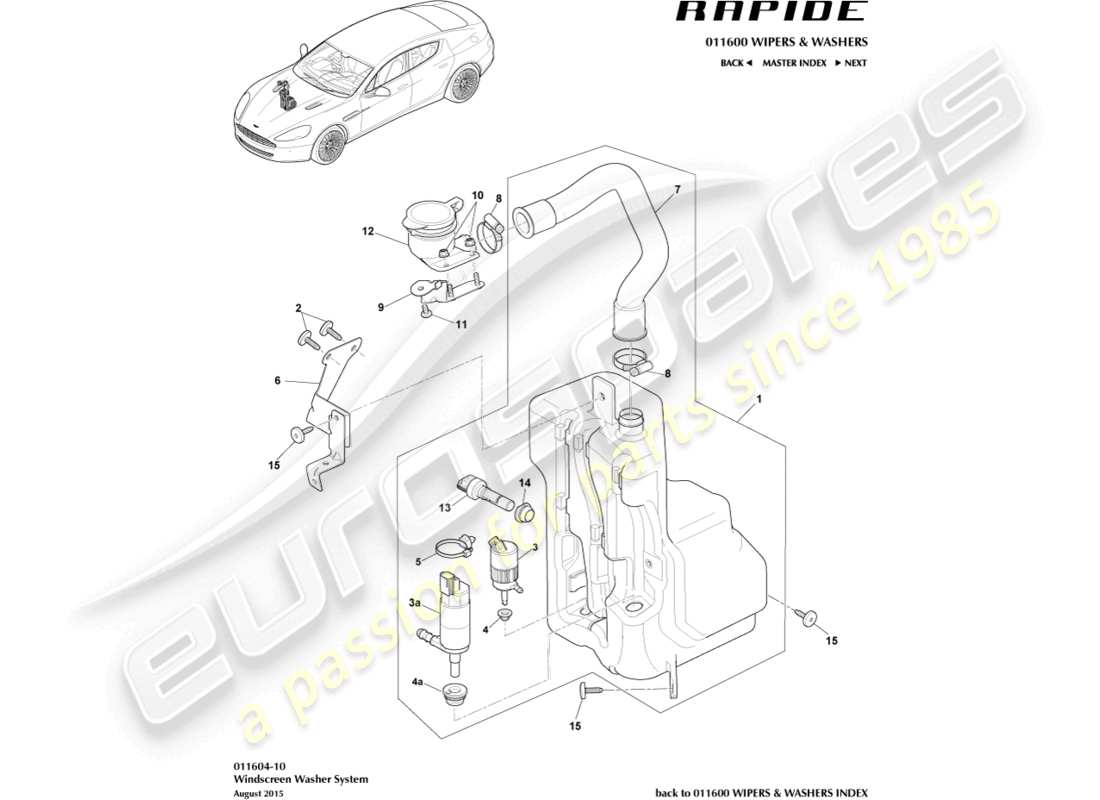

011604-10 - WASHER BOTTLE

Aston Martin Rapide (2013) Washer Bottle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 6G33-17B613-BA
                          RESERVOIR AND MOTOR ASSEMBLY
                          from £313.54
                          from £313.54
                          RESERVOIR AND MOTOR ASSEMBLY Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 6G33-FA0115-AB-PK
                          SCREW, M6X20
                          Pack of 20
                          from £7.26
                          from £7.26
                          SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                          FRONT UNDERTRAY SCREW (6G33-FA0115-AB-PK) Genuine Ferrari Part - New (to order)
                          # 3
                          MPN: 4G43-01-10304
                          MOTOR AND PUMP ASSEMBLY, WINDSCREEN WASH
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 3a
                          MPN: 4G43-01-10305
                          MOTOR AND PUMP ASSEMBLY, HEADLAMP WASH
                          from £67.15
                          from £67.15
                          MOTOR AND PUMP ASSEMBLY, HEADLAMP WASH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 1X43-17673-AA
                          GROMMET, WINDSCREEN PUMP
                          from £4.17
                          from £4.17
                          SEAL, WINDSCREEN WASHER PUMP Genuine Aston Martin - New (to order)
                          # 4a
                          MPN: 1X43-13K188-AA
                          GROMMET, HEADLAMP PUMP
                          from £4.29
                          from £4.29
                          SEAL, HEADLAMP WASHER PUMP Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 6G33-37-10501
                          CLIP AND STRAP
                          Headlamp Pump
                          from £6.27
                          from £6.27
                          CLIP AND STRAP Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 4G43-17614-AB
                          BRACKET ASSEMBLY, RESERVOIR MTG
                          from £9.12
                          from £9.12
                          BRACKET ASSEMBLY, RESERVOIR MOUNTING Genuine Aston Martin - New (to order)
                          BRACKET ASSEMBLY, RESERVOIR MOUNTING Genuine Aston Martin - Used In stock
                          # 7
                          MPN: 4G43-13K175-BA
                          HOSE, FILLER
                          Includes Item 12
                          from £31.04
                          from £31.04
                          ASSEMBLY FILLER NECK Genuine Aston Martin - New (to order)
                          ASSEMBLY FILLER NECK Genuine Aston Martin - Used In stock
                          # 8
                          MPN: 701562
                          CLAMP, 30-45MM
                          from £0.77
                          from £0.77
                          CLAMP, 30-45MM Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 4G43-17C625-AC
                          BRACKET, FILLER NECK
                          Up To VIN F03108
                          from £9.33
                          from £9.33
                          BRACKET, FILLER NECK Genuine Aston Martin - New (to order)
                          BRACKET, FILLER NECK Genuine Aston Martin - Used In stock
                          # 9
                          MPN: DG43-17C625-AD
                          BRACKET, FILLER NECK
                          From VIN F03109, Rapide S
                          from £16.64
                          from £16.64
                          BRACKET, FILLER NECK Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 702295
                          NUT, M5
                          from £0.47
                          from £0.47
                          NUT M5 HEX FLG Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 703266
                          M6X10 SCREW PAN HEAD
                          from £0.47
                          from £0.47
                          SCREWM6X10 PAN HEAD Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 4G43-37-10236
                          SENSOR, LOW WATER LEVEL
                          from £36.95
                          from £36.95
                          WATER LOW LVL SENSOR Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 4G43-37-10237
                          GROMMET, LEVEL SENSOR
                          from £2.03
                          from £2.03
                          SEAL, LOW LEVEL SENSOR Genuine Aston Martin - New (to order)
                          # 15
                          MPN: ED33-FA0115-AA
                          SCREW, M6X20, TORX HD
                          from £4.67
                          from £4.67
                          SCREW M6X20 TORX HD Genuine Aston Martin - New (to order)
