aston martin rapide (2012) exhaust system parts diagram

090000-S1 - Exhaust System

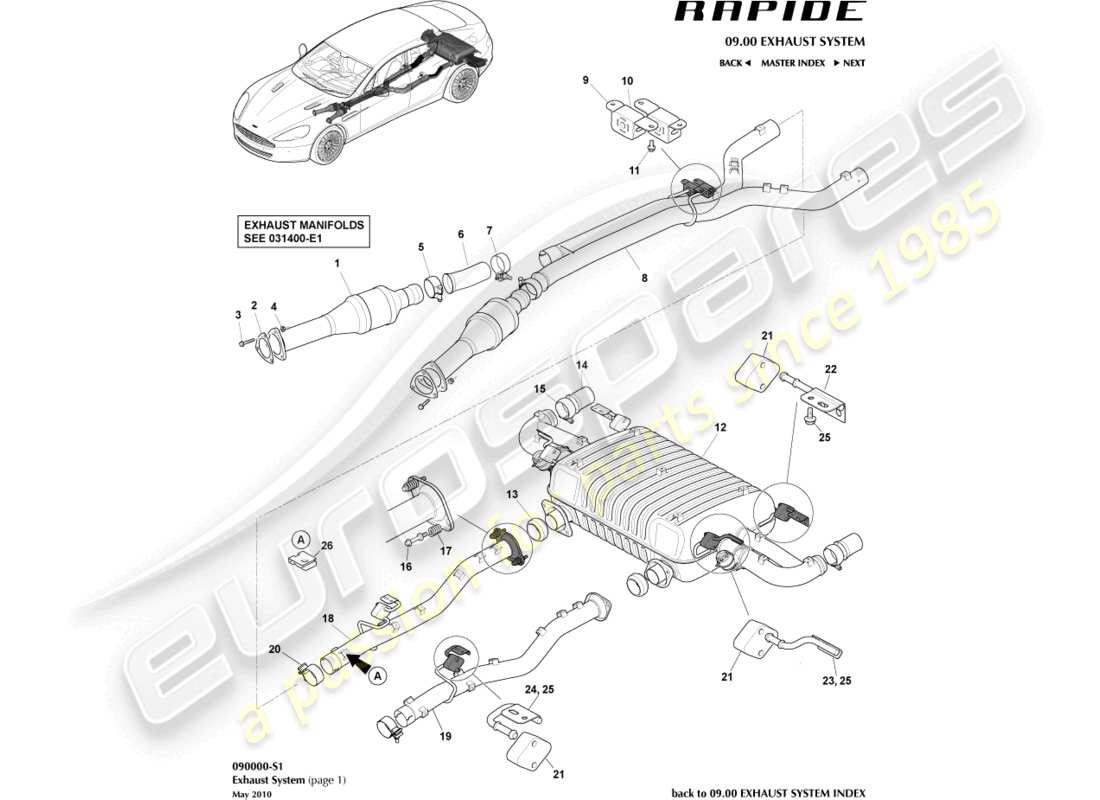

Aston Martin Rapide (2012) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 1
                          MPN: 8G43-5E211-AD
                          CATALYST AND PIPE ASSEMBLY
                          from £619.64
                          from £619.64
                          # 1
                          MPN: KD43-5E211-AA
                          CATALYST AND PIPE ASSEMBLY
                          19MY AMR
                          from £3,667.84
                          from £3,667.84
                          # 2
                          MPN: 4G43-5E281-AA-PK
                          GASKET
                          Pack of 2
                          Supersession
                          Supersession
                          # 3
                          MPN: 702698
                          BOLT, FLG, M8X45
                          from £9.05
                          from £9.05
                          # 4
                          MPN: 4G43-02738-AA-PK
                          NUT, M8
                          Pack of 10
                          from £22.97
                          from £22.97
                          # 5
                          MPN: 9G43-5221-AA
                          CLAMP, EXHAUST PIPE
                          from £24.95
                          from £24.95
                          # 6
                          MPN: AD43-5220-CA
                          PIPE, EXHAUST
                          from £23.21
                          from £23.21
                          # 6
                          MPN: KD43-5220-EA
                          PIPE, EXHAUST
                          19MY AMR
                          from £32.69
                          from £32.69
                          # 8
                          MPN: AD43-5220-DE
                          PIPE, EXHAUST CENTRE
                          Up to 15MY
                          from £653.65
                          from £653.65
                          # 8
                          MPN: FD43-5220-DA
                          PIPE, EXHAUST CENTRE
                          FROM 15MY
                          from £531.50
                          from £531.50
                          # 9
                          MPN: 4G43-3962-FA
                          BRACKET, SUPPORT EXHAUST ISOLATOR
                          from £9.15
                          from £9.15
                          # 10
                          MPN: 4G43-35-10025
                          ISOLATOR, EXHAUST
                          from £4.43
                          from £4.43
                          # 12
                          MPN: AD43-5230-AG
                          REAR MUFFLER WITH BYPASS VALVE ASSEMBLY
                          # 12
                          MPN: HD43-5230-AA
                          REAR MUFFLER LESS BYPASS VALVE ASSEMBLY
                          from £3,074.62
                          from £3,074.62
                          # 12
                          MPN: KD43-5230-CB
                          REAR MUFFLER LESS BYPASS VALVE ASSEMBLY
                          19MY AMR
                          from £4,619.70
                          from £4,619.70
                          # 13
                          MPN: 4G43-17213-BA
                          SEALING RING
                          from £32.51
                          from £32.51
                          # 14
                          MPN: AD43-5220-EB
                          PIPE, EXHAUST TAIL
                          from £25.92
                          from £25.92
                          # 15
                          MPN: 9G43-5221-AA
                          PIPE ASSEMBLY, EXHAUST REAR LH
                          from £24.95
                          from £24.95
                          # 16
                          MPN: 4G43-70816-AA
                          BOLT, M8 FLG HD
                          from £2.51
                          from £2.51
                          # 17
                          MPN: 4G43-5F264-AA
                          SPRING, EXHAUST PIPE FLANGE
                          from £8.77
                          from £8.77
                          # 18
                          MPN: AD43-5220-BE
                          PIPE ASSEMBLY, EXHAUST REAR RH WITH SHIELDS
                          Up To VIN F03987
                          from £476.48
                          from £476.48
                          # 18
                          MPN: FD43-5220-BC
                          PIPE ASSEMBLY, EXHAUST REAR RH WITH SHIELDS
                          FROM VIN F03988
                          from £361.00
                          from £361.00
                          # 19
                          MPN: AD43-5220-AE
                          PIPE ASSEMBLY, EXHAUST REAR LH WITH SHIELDS
                          Up To VIN F03987
                          from £422.41
                          from £422.41
                          # 19
                          MPN: FD43-5220-AC
                          PIPE ASSEMBLY, EXHAUST REAR LH WITH SHIELDS
                          FROM VIN F03988
                          from £361.00
                          from £361.00
                          # 21
                          MPN: AH22-5A262-AA
                          INSULATOR, MUFFLER HANGER MOUNTING
                          from £10.09
                          from £10.09
                          # 22
                          MPN: AD43-5N201-AA
                          BRACKET, EXHAUST PIPE MOUNTING REAR LH
                          from £9.01
                          from £9.01
                          # 22
                          MPN: KD43-5N201-AA
                          BRACKET, EXHAUST PIPE MOUNTING REAR LH
                          19MY AMR
                          # 22
                          MPN: AD43-5N201-BA
                          BRACKET, EXHAUST PIPE MOUNTING REAR RH
                          from £9.01
                          from £9.01
                          # 22
                          MPN: KD43-5N201-BA
                          BRACKET, EXHAUST PIPE MOUNTING REAR RH
                          19MY AMR
                          # 23
                          MPN: AD43-5N201-CA
                          BRACKET, MUFFLER MOUNTING BAR LH
                          from £9.01
                          from £9.01
                          # 23
                          MPN: AD43-5N201-DA
                          BRACKET, MUFFLER MOUNTING BAR RH
                          from £9.01
                          from £9.01
                          # 24
                          MPN: AD43-5N201-GA
                          BRACKET, MUFFLER MOUNTING BAR LH
                          Up to 15MY
                          # 24
                          MPN: FD43-5N201-GA
                          BRACKET, MUFFLER MOUNTING BAR LH
                          FROM 15MY
                          from £18.91
                          from £18.91
                          # 24
                          MPN: AD43-5N201-HA
                          BRACKET, MUFFLER MOUNTING BAR RH
                          Up to 15MY
                          # 24
                          MPN: FD43-5N201-HA
                          BRACKET, MUFFLER MOUNTING BAR RH
                          FROM 15MY
                          from £18.91
                          from £18.91
                          # 25
                          MPN: 703121
                          SCREW, M8X20
                          2 per bracket
                          from £0.47
                          from £0.47
                          # 26
                          MPN: 699736
                          CLIP
                          from £1.66
                          from £1.66
                          # 26
                          MPN: 4G43-32185-BA
                          CLIP
                          19MY AMR
