031300-10 - Evaporative Emissions, 15MY

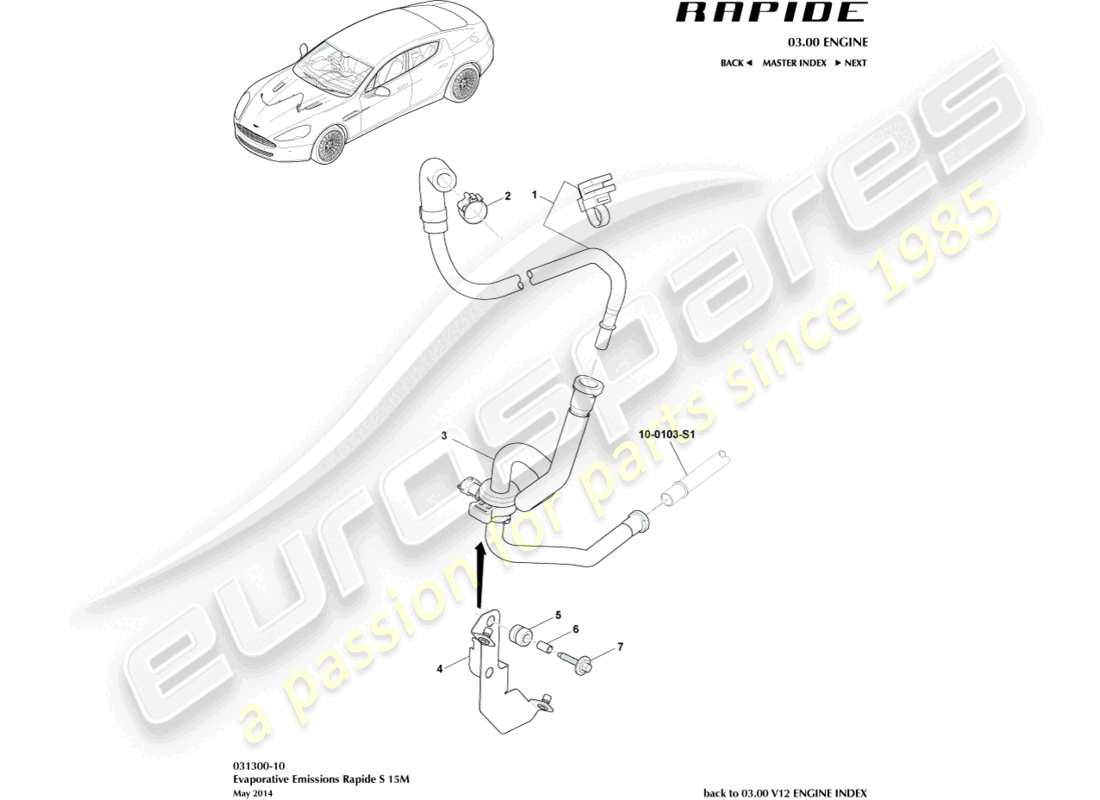

Aston Martin Rapide (2012) Evaporative Emissions, 15MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: ED23-9D289-AA
                TUBE ASSEMBLY, EVMV TO MANIFOLD
                from £53.97
                from £53.97
                VAPOUR LINE FROM MANIFOLD Genuine Aston Martin - New (to order)
                # 2
                MPN: CD33-9A064-AA
                COBRA CLIP, 15MM
                from £0.81
                from £0.81
                COBRA CLIP, 15MM Genuine Aston Martin - New (to order)
                # 3
                MPN: ED23-9B051-AD
                PURGE VALVE INLET ASSY
                Supersession
                Supersession
                Genuine Aston Martin (no longer available to order)
                # 4
                MPN: FD43-9G743-AB
                BRACKET, ELECTRIC FUEL VAPOUR MANAGEMENT
                from £23.17
                from £23.17
                BRACKET, PURGE VALVE Genuine Aston Martin - New (to order)
                # 5
                MPN: 32-80356
                GROMMET
                from £3.31
                from £3.31
                RUBBER MOUNT, ASM PUMP Genuine Aston Martin - New (to order)
                # 6
                MPN: 700119
                SPACER
                from £0.68
                from £0.68
                SPACER Genuine Aston Martin - New (to order)
                # 7
                MPN: 703145
                M6X30 BOLT
                from £0.47
                from £0.47
                M6 X 30 BOLT Genuine Aston Martin - New (to order)
