03-1400-01 - Electronic Engine Control

Aston Martin Rapide (2012) Electronic Engine Control Parts Diagram

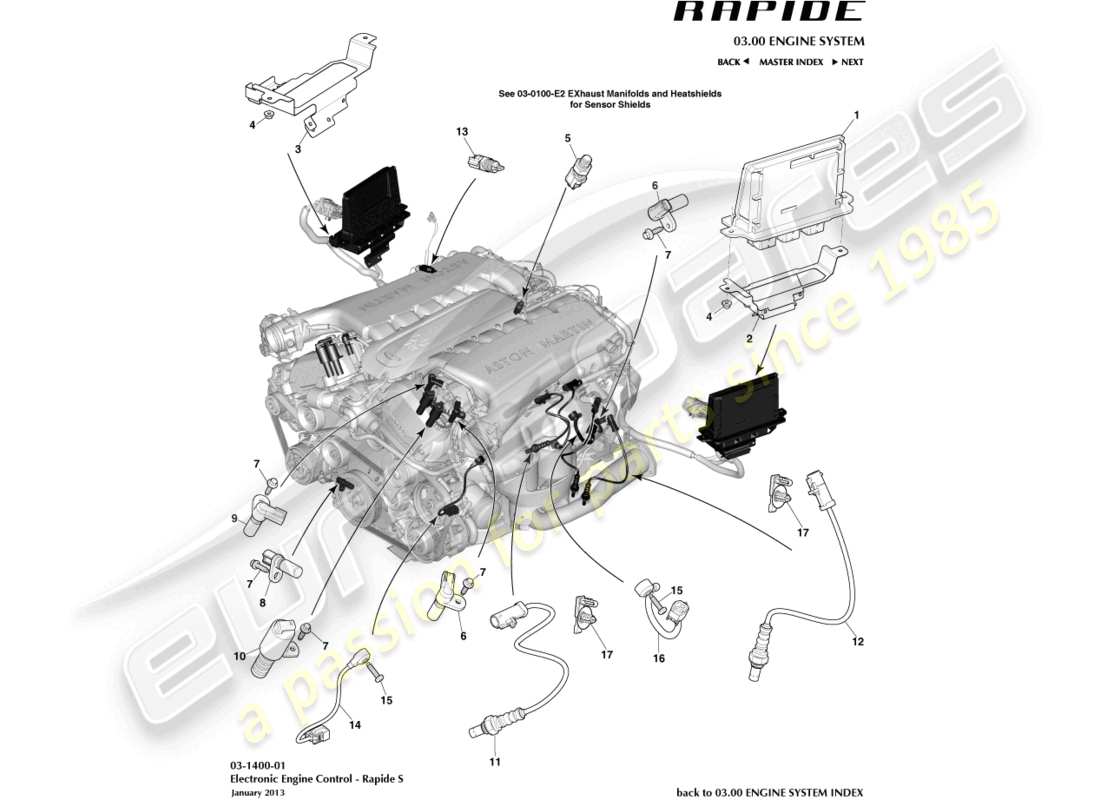

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: CD33-39-10018
                                  ENGINE MANAGEMENT, SPANISH OAK, AM11
                                  from £2,939.54
                                  from £2,939.54
                                  ENGINE MANAGEMENT, SPANISH OAK, AM11 Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: 4G43-12B696-AH
                                  SHIELD, PCM, LH
                                  from £91.50
                                  from £91.50
                                  SHIELD, PCM, LH Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: 4G43-12B695-AH
                                  SHIELD, PCM, RH
                                  from £91.50
                                  from £91.50
                                  SHIELD, PCM, RH Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: 703749
                                  NUT, M6 HEX FLANGE HEAD
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 699877
                                  NUT-M6 HEX FLG GRD 8 Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: 1R12-39-10532
                                  SWITCH, OIL PRESSURE
                                  from £5.05
                                  from £5.05
                                  SWITCH-OIL PRESSURE Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 4G43-39-10014
                                  SENSOR, CRANK TIMING
                                  from £364.24
                                  from £364.24
                                  This part replaces part number 07-85754
                                  SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 702542
                                  BOLT, M6 X 20
                                  from £0.74
                                  from £0.74
                                  BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: 1R12-39-10475
                                  SENSOR, CRANK TIMING
                                  from £24.11
                                  from £24.11
                                  SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 07-85755
                                  SENSOR ASSY, CRANKSHAFT TIMING
                                  from £159.71
                                  from £159.71
                                  SENSOR CID LH Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: CM5E-6B297-CB
                                  SOLENOID, VCT
                                  AM11, Up To 15MY
                                  SOLENOID, VCT Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: 1R12-39-10174
                                  SENSOR, HEGO, REAR
                                  from £88.99
                                  from £88.99
                                  This part replaces part number 39-85391 - and 1 more. Click to view details
                                  SENSOR, HEGO, REAR Genuine Aston Martin - New (to order)
                                  SENSOR, HEGO, REAR Genuine Aston Martin - Used In stock
                                  # 12
                                  MPN: 1R12-39-10175
                                  SENSOR ASSY, CATALYST MONITOR
                                  from £87.90
                                  from £87.90
                                  This part replaces part number 39-85392 - and 2 more. Click to view details
                                  CAT.MONITOR SENSOR Genuine Aston Martin - New (to order)
                                  CAT.MONITOR SENSOR Genuine Aston Martin - Used In stock
                                  # 13
                                  MPN: 6G43-08-10064
                                  SENSOR, AIR TEMPERATURE
                                  SENSOR, AIR CHARGING TEMPERATURE Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: CD33-12A699-AA
                                  SENSOR ASSY, ENGINE KNOCK
                                  from £20.14
                                  from £20.14
                                  SENSOR ASSEMBLY, ENGINE KNOCK Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: W505595-S437
                                  SCREW, M8 X 30, PAN HEAD
                                  SCREW, M8 X 30, PAN HEAD Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: CD33-12A699-BA
                                  SENSOR ASSY, ENGINE KNOCK
                                  from £44.29
                                  from £44.29
                                  SENSOR ASSEMBLY, ENGINE KNOCK Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: ED23-110005-AA
                                  HARNESS RETENTION CLIP
                                  from £1.23
                                  from £1.23
                                  HARNESS RETENTION CLIP Genuine Aston Martin - New (to order)
