aston martin rapide (2012) ignition parts diagram

03-0700-E1 - ignition

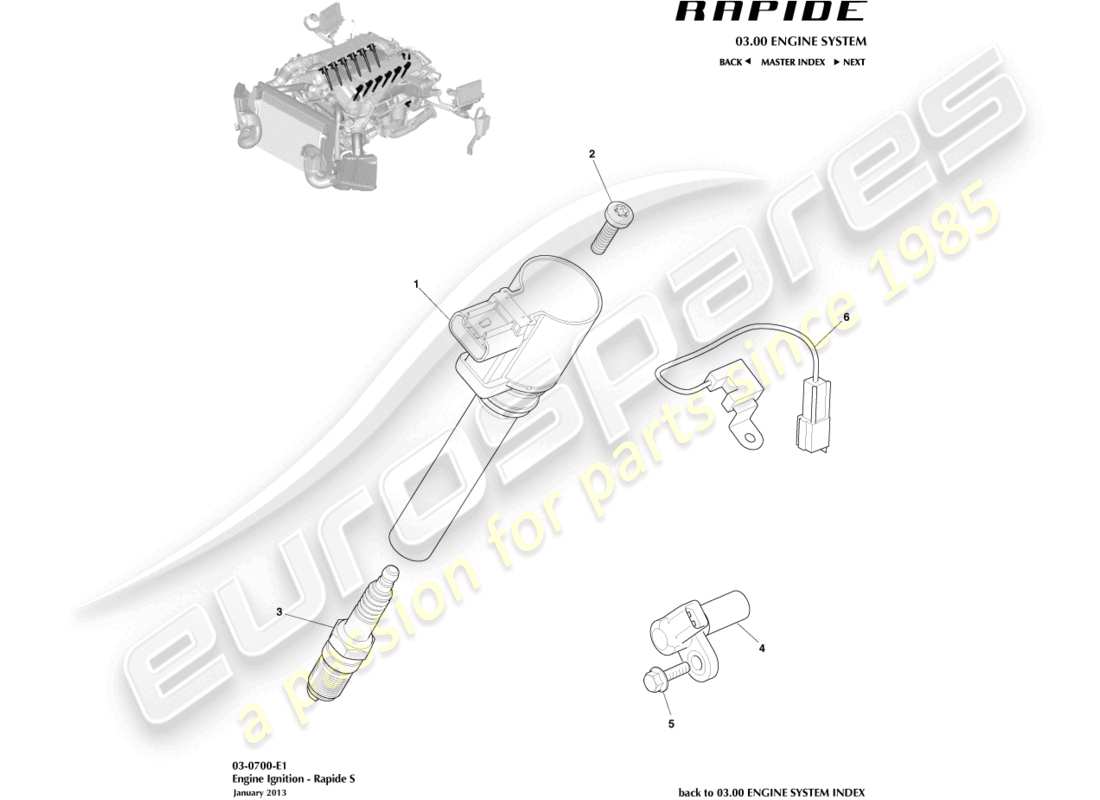

Aston Martin Rapide (2012) Ignition Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: 8G43-12A366-AA
      COIL ASSY, IGNITION
      Up To 15MY, AM11, Spanish Oak/Visteon EMS
      from £103.55
      from £103.55
      This part replaces part number 4G43-12A366-AA
      COIL ASSEMBLY, IGNITION 3 PIN Genuine Aston Martin - New In stock
      # 1
      MPN: ED23-12A366-AC
      COIL ASSY, IGNITION
      From 15MY, AM29, Bosch EMS
      COIL ASSEMBLY, IGNITION Genuine Aston Martin - New (to order)
      # 2
      MPN: CM5G-96309-AA
      SCREW, 5X25, TORX PAN HEAD
      AM11
      from £3.38
      from £3.38
      SCREW-M5 X 25 Genuine Aston Martin - New (to order)
      # 2
      MPN: 706273
      SCREW, 6X35, HEX HEAD
      AM29
      from £0.47
      from £0.47
      SCREW, M6X35, HEX HEAD Genuine Aston Martin - New (to order)
      # 3
      MPN: CD33-12405-AA-PK
      SPARK PLUG, PACK OF 4
      Pack of 4
      from £120.84
      from £120.84
      SPARK PLUG, PACK OF 4 Genuine Aston Martin - New (to order)
      # 4
      MPN: 4G43-39-10014
      SENSOR ASSY, CAMSHAFT TIMING
      AM11, RH Inlet, LH Exhaust
      from £364.24
      from £364.24
      This part replaces part number 07-85754
      SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
      # 4
      MPN: 07-85755
      SENSOR ASSY, CAMSHAFT TIMING
      AM11, LH Inlet, RH Exhaust
      from £159.71
      from £159.71
      SENSOR CID LH Genuine Aston Martin - New (to order)
      # 4
      MPN: ED23-12K073-BA
      SENSOR ASSY, CAMSHAFT TIMING
      AM29
      from £71.74
      from £71.74
      SENSOR ASSEMBLY, CAMSHAFT TIMING Genuine Aston Martin - New (to order)
      # 5
      MPN: 702542
      BOLT, M6X20
      from £0.74
      from £0.74
      BOLT M6 X 20 Genuine Aston Martin - New (to order)
      # 6
      MPN: 07-85128
      CAPACITOR, RADIO SUPPRESSION
      CAPACITOR, RADIO Genuine Aston Martin - New (to order)
