aston martin rapide (2012) centre stack trim panel, s 16my parts diagram

011201-60 - Centre Stack Trim Panel, S 16MY

Aston Martin Rapide (2012) Centre Stack Trim Panel, S 16MY Parts Diagram

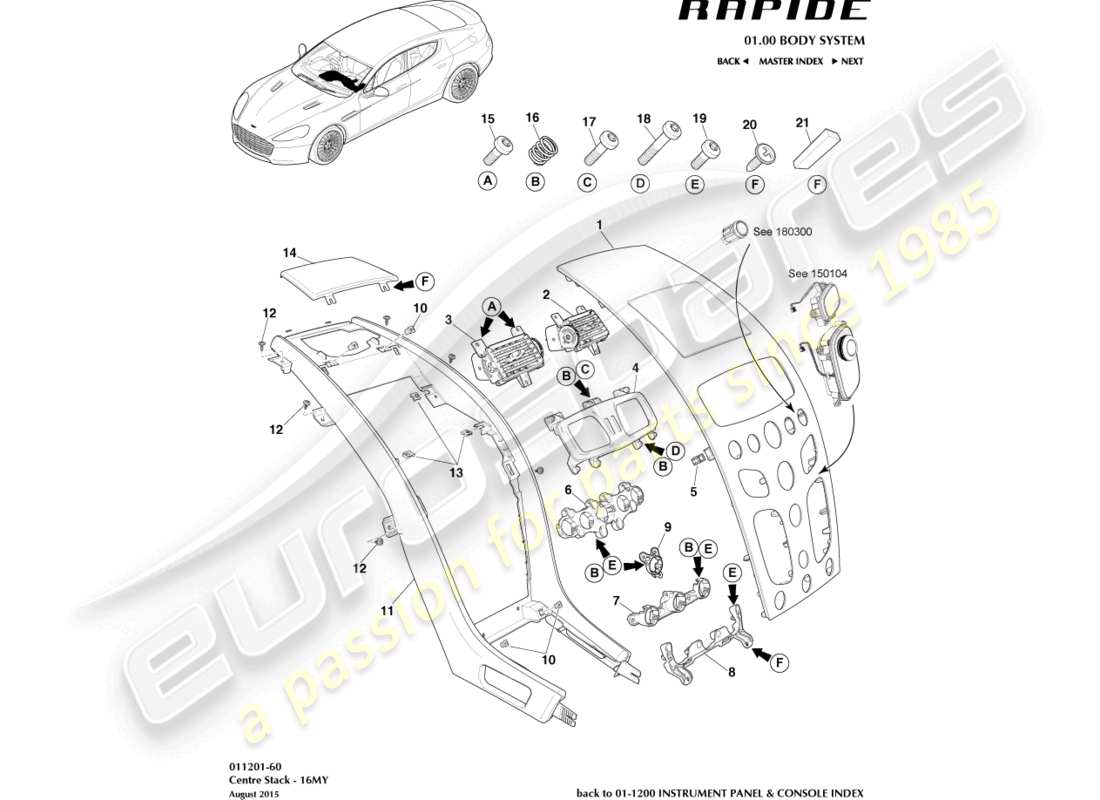

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: GD43-045J10-AB
                              BEZEL, CENTRE STACK
                              Walnut, With Damping Switch
                              BEZEL, CENTRE STACK Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GD43-045J10-BB
                              BEZEL, CENTRE STACK
                              Mahogany, With Damping Switch
                              BEZEL, CENTRE STACK Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GD43-045J10-CB
                              BEZEL, CENTRE STACK
                              Piano Black, With Damping Switch
                              CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GD43-045J10-DB
                              BEZEL, CENTRE STACK
                              Ice Mocha, With Damping Switch
                              from £1,743.31
                              from £1,743.31
                              CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GD43-045J10-EB
                              BEZEL, CENTRE STACK
                              Carbon 2x2 Twill, With Damping Switch
                              from £2,377.73
                              from £2,377.73
                              CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GD43-045J10-FB
                              BEZEL, CENTRE STACK
                              Carbon Cuprum, With Damping Switch
                              from £4,117.78
                              from £4,117.78
                              CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GD43-045J10-GB
                              BEZEL, CENTRE STACK
                              Iridium, With Damping Switch
                              from £2,219.22
                              from £2,219.22
                              CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GD43-045J10-JB
                              BEZEL, CENTRE STACK
                              Walnut, Less Damping Switch
                              from £2,784.20
                              from £2,784.20
                              BEZEL, CENTRE STACK Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GD43-045J10-KB
                              BEZEL, CENTRE STACK
                              Mahogany, Less Damping Switch
                              from £2,677.81
                              from £2,677.81
                              BEZEL, CENTRE STACK Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GG33-045J10-AB
                              BEZEL, CENTRE STACK
                              Piano Black, Less Damping Switch
                              BEZEL, CENTRE STACK Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GG33-045J10-BB
                              BEZEL, CENTRE STACK
                              Carbon 2x2 Twill, Less Damping Switch
                              from £2,208.07
                              from £2,208.07
                              BEZEL, CENTRE STACK Genuine Aston Martin - New (to order)
                              # 1
                              MPN: GG33-045J10-CB
                              BEZEL, CENTRE STACK
                              Carbon Cuprum, Less Damping Switch
                              from £3,934.89
                              from £3,934.89
                              BEZEL, CENTRE STACK Genuine Aston Martin - New (to order)
                              # 2
                              MPN: CD33-046B30-AB
                              REGISTER, AIR VENT
                              RH
                              from £46.25
                              from £46.25
                              RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                              # 3
                              MPN: CD33-046B31-AB
                              REGISTER, AIR VENT
                              LH
                              from £64.37
                              from £64.37
                              RGSTR ASY IPNL A/C Genuine Aston Martin - New (to order)
                              # 4
                              MPN: GG33-19F648-BB
                              BEZEL, AIR REGISTER
                              Iridium
                              from £322.67
                              from £322.67
                              BEZEL, AIR REGISTER Genuine Aston Martin - New (to order)
                              # 4
                              MPN: GG33-19F648-CB
                              BEZEL, AIR REGISTER
                              Piano black
                              from £214.55
                              from £214.55
                              BEZEL, AIR REGISTER Genuine Aston Martin - New (to order)
                              # 4
                              MPN: GG33-19F648-DB
                              BEZEL, AIR REGISTER
                              Ice Mocha
                              from £322.67
                              from £322.67
                              BEZEL, AIR REGISTER Genuine Aston Martin - New (to order)
                              # 5
                              MPN: 702520-PK
                              CLIP, 8.5X16X1.7, TRIM PUSH-IN
                              Pack of 20
                              from £2.42
                              from £2.42
                              CLIP 8.5X16X1.7 (20) Genuine Aston Martin - New (to order)
                              FRONT BUMPER CLIP (SMALL) (702520-PK) Genuine Ferrari Part - New (to order)
                              # 6
                              MPN: GG33-14A462-AB
                              CARRIER, SWITCHES, UPPER
                              from £20.63
                              from £20.63
                              CARRIER, SWITCHES, UPPER Genuine Aston Martin - New (to order)
                              # 7
                              MPN: GG33-14A462-BA
                              CARRIER, SWITCHES, LOWER
                              from £20.84
                              from £20.84
                              CARRIER, SWITCHES, LOWER Genuine Aston Martin - New (to order)
                              # 8
                              MPN: GG33-044N19-BA
                              BRACE, CENTRE STACK
                              BRACE, CENTRE STACK Genuine Aston Martin - New (to order)
                              # 9
                              MPN: GD43-15C581-AA
                              CARRIER, HAZARD SWITCH
                              from £12.20
                              from £12.20
                              CARRIER, HAZARD SWITCH Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 704764
                              NUT, PUSH FIT, 4.2
                              from £0.47
                              from £0.47
                              NUT M4.2X1.41 PNL PS Genuine Aston Martin - New (to order)
                              # 11
                              MPN: GG33-55210-AAW
                              PANEL ASSEMBLY, CENTRE
                              from £641.61
                              from £641.61
                              PANEL ASSEMBLY, CENTRE Genuine Aston Martin - New (to order)
                              # 12
                              MPN: 701157-PK
                              SCREW AND WASHER, 4.2X16
                              Pack of 10
                              from £1.65
                              from £1.65
                              SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 701448
                              J NUT, 4.2
                              from £0.47
                              from £0.47
                              NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                              SPLITTER NUTS (701448) Genuine Ferrari Part - New (to order)
                              # 14
                              MPN: GD43-C046A26-AA
                              GRILLE, SPEAKER
                              ASK, Grey
                              GRILLE, SPEAKER Genuine Aston Martin - New (to order)
                              # 14
                              MPN: 9D33-C046A26-AC
                              GRILLE, SPEAKER
                              Bang and Olufsen, Black
                              from £296.25
                              from £296.25
                              I/PNL CTR SPKR GRILL Genuine Aston Martin - New (to order)
                              # 15
                              MPN: 702959
                              SCREW, M4X12, PAN HEAD
                              from £0.47
                              from £0.47
                              SCREW M4X12 PAN HEAD Genuine Aston Martin - New (to order)
                              # 16
                              MPN: DD33-11A090-AB
                              COMPRESSION SPRING, CENTRE STACK SWITCHES
                              from £0.48
                              from £0.48
                              CTR STACK COMP SPRIN Genuine Aston Martin - New (to order)
                              # 17
                              MPN: DD33-0838-AA
                              SCREW, M4X16, PAN HEAD, PATCH LOCK
                              from £0.47
                              from £0.47
                              SCREW-M4X16 PATCH LK Genuine Aston Martin - New (to order)
                              # 18
                              MPN: DD33-0816-AA
                              SCREW, M4X20, PAN HEAD, PATCH LOCK
                              from £0.74
                              from £0.74
                              SCREW, M4X20, PAN HEAD, PATCH LOCK Genuine Aston Martin - New (to order)
                              # 19
                              MPN: DD33-0863-AA
                              SCREW, M4X12, PAN HEAD, PATCH LOCK
                              from £0.47
                              from £0.47
                              SCREW-M4X12 PATCH LK Genuine Aston Martin - New (to order)
                              # 20
                              MPN: 706346
                              SCREW, SELF-TAPPING, 4.8X19
                              from £0.47
                              from £0.47
                              SCREW-4.8 X1.59 X19 Genuine Aston Martin - New (to order)
                              # 21
                              MPN: CD33-03836-AA
                              SPACER, RUBBER, 3MM
                              from £1.60
                              from £1.60
                              SPACER, RUBBER, 3MM Genuine Aston Martin - New (to order)
