aston martin rapide (2010) electronic antenna, up to 13my parts diagram

150204-D3 - Electronic Antenna, Up to 13MY

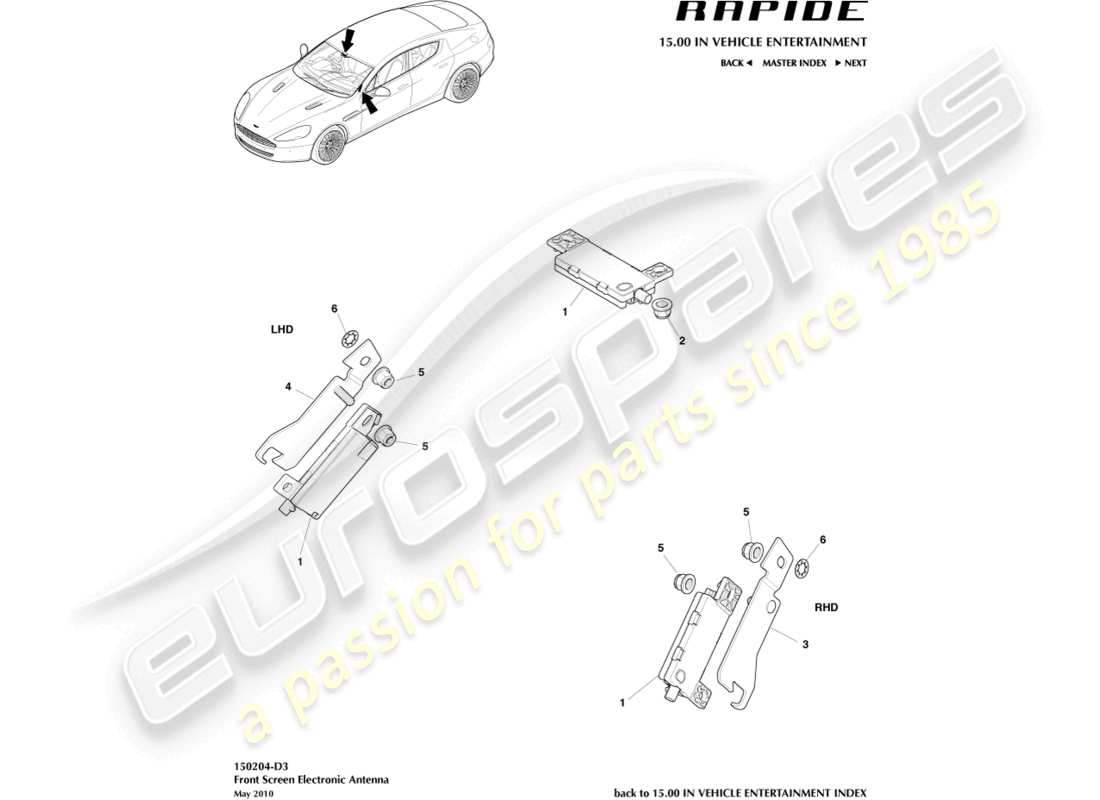

Aston Martin Rapide (2010) Electronic Antenna, Up to 13MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 9G43-18C847-AA
          AMPLIFIER ASSY, AM FM
          from £46.81
          from £46.81
          ANTENNA AMPLIFIER Genuine Aston Martin - New (to order)
          # 2
          MPN: 702295
          NUT, M6
          from £0.47
          from £0.47
          NUT M5 HEX FLG Genuine Aston Martin - New (to order)
          # 3
          MPN: 6G33-18C987-CA
          PILLAR BRACKET, AMPLIFIER RHD
          RHD
          from £15.24
          from £15.24
          AMPLIFIER BRACKET RH Genuine Aston Martin - New (to order)
          # 4
          MPN: 6G33-18C987-DA
          PILLAR BRACKET, AMPLIFIER LHD
          LHD
          from £15.24
          from £15.24
          AMPLIFIER BRACKET LH Genuine Aston Martin - New (to order)
          # 5
          MPN: 702944
          NUT, M6
          from £0.58
          from £0.58
          NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
          LOWER MESH NUTS (702944) Genuine Ferrari Part - New (to order)
          # 6
          MPN: 704620
          WASHER, M6 STAR INTERNAL
          WASHER-M6 INT S/PRF Genuine Aston Martin - New (to order)
