aston martin rapide (2010) dual amplifiers, up to 13my parts diagram

150103-10 - Dual Amplifiers, Up to 13MY

Aston Martin Rapide (2010) Dual Amplifiers, Up to 13MY Parts Diagram

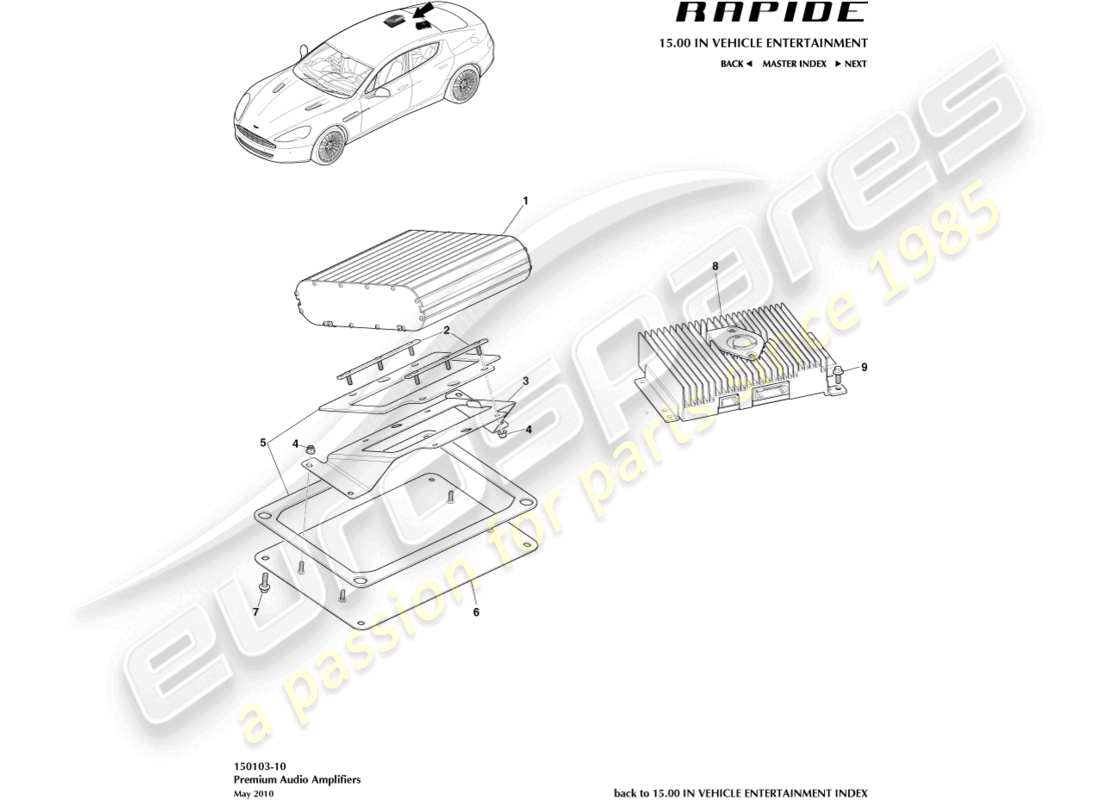

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 9D33-18T805-AC
                    AMPLIFIER, ICE
                    from £3,596.82
                    from £3,596.82
                    ICE AMP Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 9D33-70G091-AC
                    T BAR
                    from £12.44
                    from £12.44
                    T BAR Genuine Aston Martin - New (to order)
                    # 3
                    MPN: AD43-19C126-BC
                    BRACKET, AMPLIFIER
                    from £60.65
                    from £60.65
                    BRACKET, AMPLIFIER Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 703165
                    NUT
                    from £0.47
                    from £0.47
                    NUT M5 HEX FLG PLAS Genuine Aston Martin - New (to order)
                    # 5
                    MPN: AD43-19A070-AB
                    GASKET KIT
                    from £246.67
                    from £246.67
                    GASKET KIT Genuine Aston Martin - New (to order)
                    # 6
                    MPN: AD43-18C808-CB
                    BASEPLATE, AMPLIFIER
                    BASEPLATE, AMPLIFIER Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 700607
                    SCREW, M6 X 20
                    from £0.47
                    from £0.47
                    SCREW M6X20 HEX FLG Genuine Aston Martin - New (to order)
                    # 8
                    MPN: AD43-70G443-AB
                    AMPLIFIER, DSP
                    from £3,182.02
                    from £3,182.02
                    AMPLIFIER, DSP Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 7037529
                    SCREW, M6 X 16
                    SCREW, M6 X 16 Genuine Aston Martin - New (to order)
