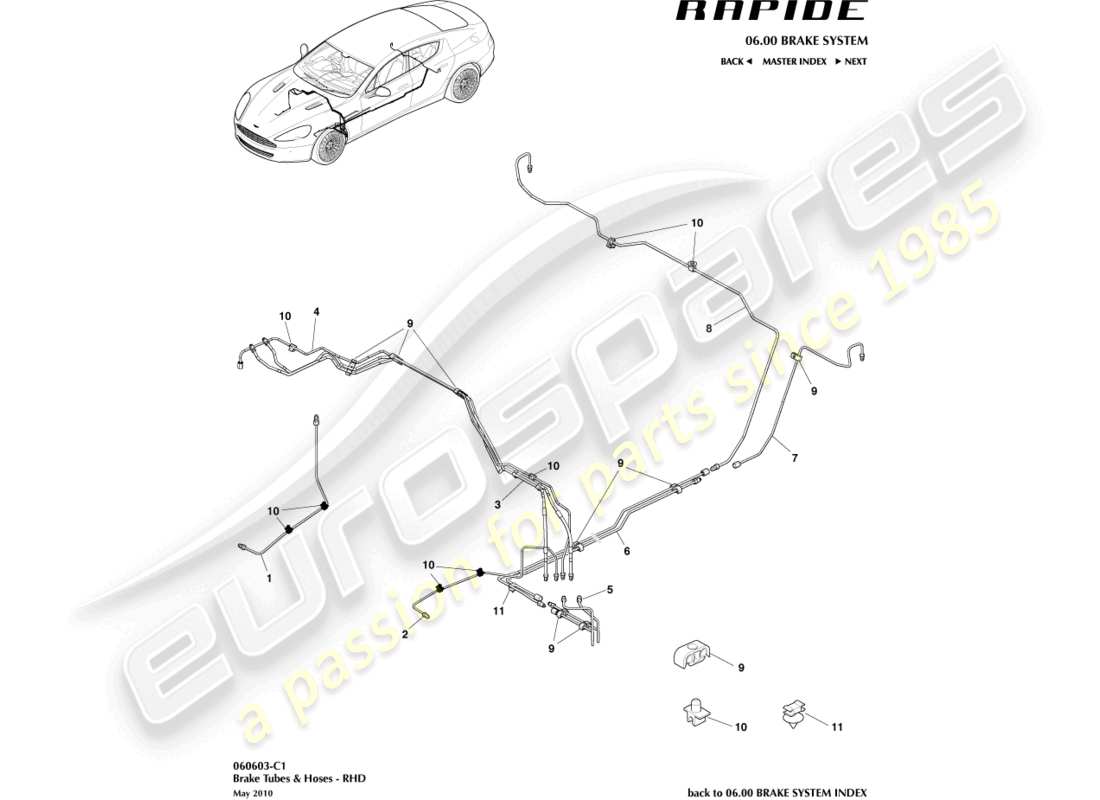

060603-C1-2 - Brake Lines & Hoses, RHD

Aston Martin Rapide (2010) Brake Lines & Hoses, RHD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 4G43-2263-AD
            TUBE ASSY, FRONT RH CALIPER
            from £8.95
            from £8.95
            TUB ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
            # 2
            MPN: AD43-2264-AB
            HOSE ASSY, FRONT LH CALIPER
            from £16.41
            from £16.41
            HOSE ASSEMBLY, FRONT LH CALIPER Genuine Aston Martin - New (to order)
            # 3
            MPN: AD43-2M022-BB
            HOSE ASSY, BRAKE MSTR CYLINDER RHD
            Includes Clips
            from £133.44
            from £133.44
            HOSE ASSEMBLY, BRAKE MSTR CYLINDER RHD Genuine Aston Martin - New (to order)
            # 4
            MPN: AD43-2263-CB
            TUBE ASSY, FRONT WHEEL BRAKE RHD
            Includes Clips
            from £31.62
            from £31.62
            TUBE ASSEMBLY, FRONT WHEEL BRAKE RHD Genuine Aston Martin - New (to order)
            # 5
            MPN: AD43-2A478-AA
            HOSE ASSY, REAR WHEEL BRAKE
            Includes Clips
            from £27.24
            from £27.24
            HOSE ASSEMBLY, REAR WHEEL BRAKE Genuine Aston Martin - New (to order)
            # 6
            MPN: AD43-2A478-BA
            HOSE ASSY, REAR WHEEL BRAKE
            Includes Clips
            from £53.80
            from £53.80
            HOSE ASSEMBLY, REAR WHEEL BRAKE Genuine Aston Martin - New (to order)
            # 7
            MPN: AD43-2268-CC
            TUBE ASSY, REAR LH CALIPER
            Includes Clips
            TUBE ASSEMBLY, REAR RH CALIPER Genuine Aston Martin - New (to order)
            # 8
            MPN: AD43-2267-CC
            TUBE ASSY, REAR RH CALIPER
            Includes Clips
            from £20.75
            from £20.75
            TUBE ASSEMBLY, REAR RH CALIPER Genuine Aston Martin - New (to order)
            # 9
            MPN: 4G43-79125-AA
            PIPE CLIP, DOUBLE
            from £1.59
            from £1.59
            CLIP BRAKE PIPE DBL Genuine Aston Martin - New (to order)
            # 10
            MPN: 8D33-ANR1864-AA
            PIPE CLIP, SINGLE
            from £0.84
            from £0.84
            CLIP BRAKE PIPE Genuine Aston Martin - New (to order)
            # 11
            MPN: 4G43-ANR5999-AA
            PIPE CLIP, DOUBLE
            from £3.04
            from £3.04
            CLIP BRAKE PIPE DBL Genuine Aston Martin - New (to order)
