aston martin rapide (2010) engine cranking, auto parts diagram

03-0600-02 - Engine Cranking, Auto

Aston Martin Rapide (2010) Engine Cranking, Auto Parts Diagram

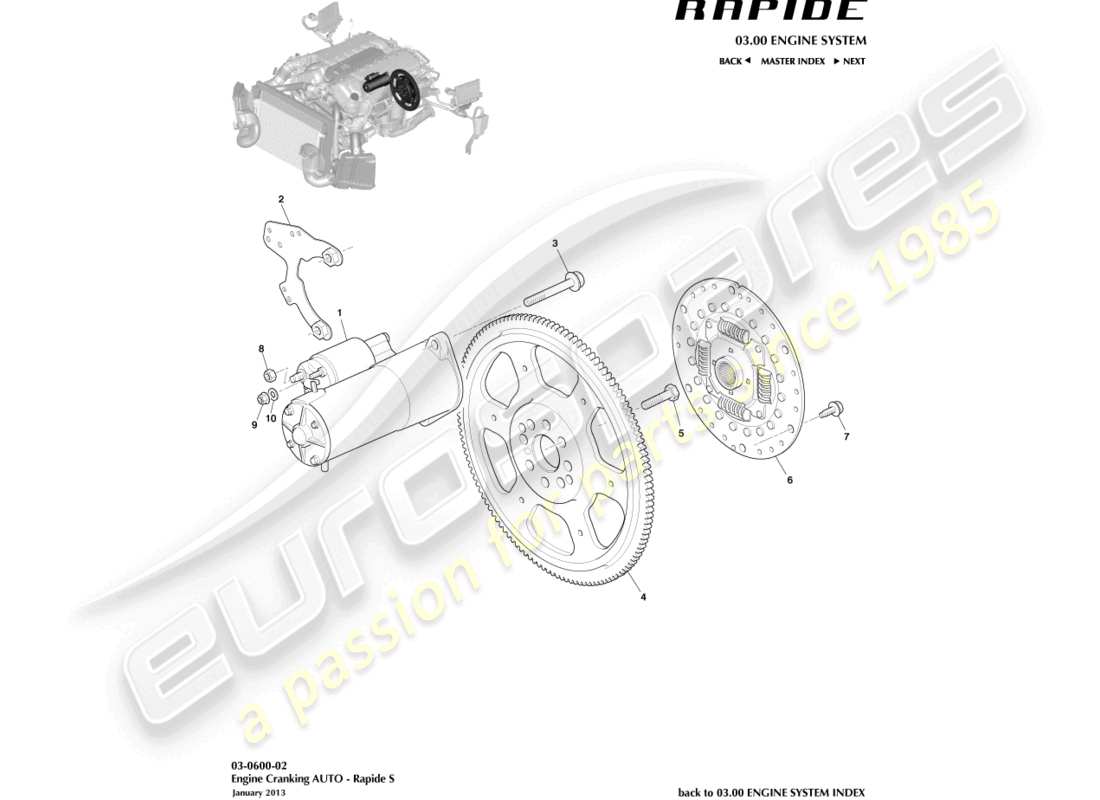

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 8G43-11000-AA
                STARTER MOTOR DRIVE & RELAY ASSY
                Supersession
                Supersession
                Genuine Aston Martin (no longer available to order)
                # 2
                MPN: 4G43-14A004-GF
                BRACKET, CMS SENSOR BANK A RH
                BRACKET, CMS SENSOR BANK A RH Genuine Aston Martin - New (to order)
                # 3
                MPN: 703707
                BOLT, M10 X 80, HEX FLG HD
                from £2.07
                from £2.07
                BOLT-M10 X 80 HEXFLG Genuine Aston Martin - New (to order)
                # 4
                MPN: 4G43-405073-AG
                FLYWHEEL ASSY, AUTO TRANS
                Up to 15MY, 6 speed
                from £265.72
                from £265.72
                FLYWHEEL ASSEMBLY, AUTO TRANS Genuine Aston Martin - New (to order)
                FLYWHEEL ASSEMBLY, AUTO TRANS Genuine Aston Martin - Used In stock
                # 4
                MPN: FD33-405073-AA
                FLYWHEEL ASSY, AUTO TRANS
                From 15MY, 8 speed
                from £1,140.85
                from £1,140.85
                FLYWHEEL ASSEMBLY, AUTO TRANS Genuine Aston Martin - New (to order)
                # 5
                MPN: 697786-PK
                BOLT, M10 X 1 X 30, HEX HD LOCKING
                Pack of 5
                from £7.93
                from £7.93
                BOLT-M10X1X30 (5) Genuine Aston Martin - New (to order)
                # 6
                MPN: 4G43-6W366-AE
                DRIVE, DAMPER ASSY, AUTO TRANS
                Up to 15MY, 6 speed
                from £964.75
                from £964.75
                DRIVE, DAMPER ASSEMBLY, AUTO TRANS Genuine Aston Martin - New (to order)
                # 6
                MPN: FD33-6W366-AC
                DRIVE, DAMPER ASSY, AUTO TRANS
                From 15MY, 8 speed
                from £965.31
                from £965.31
                DRIVE, DAMPER ASSEMBLY, AUTO TRANS Genuine Aston Martin - New (to order)
                # 7
                MPN: 700036-S447
                BOLT, M8 X 1.25 X 25, HEX FLG HD
                from £1.42
                from £1.42
                BLT-M8X1.25X25 HEX F Genuine Aston Martin - New (to order)
                # 8
                MPN: W520403-S437
                NUT, M8, HEXAGON HEAD
                NUT, M8, HEXAGON HEAD Genuine Aston Martin - New (to order)
                # 9
                MPN: 699697
                NUT, M6, FLG DURALOCK
                from £1.81
                from £1.81
                M6 DURALOCK FLG NUT Genuine Aston Martin - New (to order)
                # 10
                MPN: 699733
                WASHER, M6
                from £0.47
                from £0.47
                WASHER M6 ST STL Genuine Aston Martin - New (to order)
