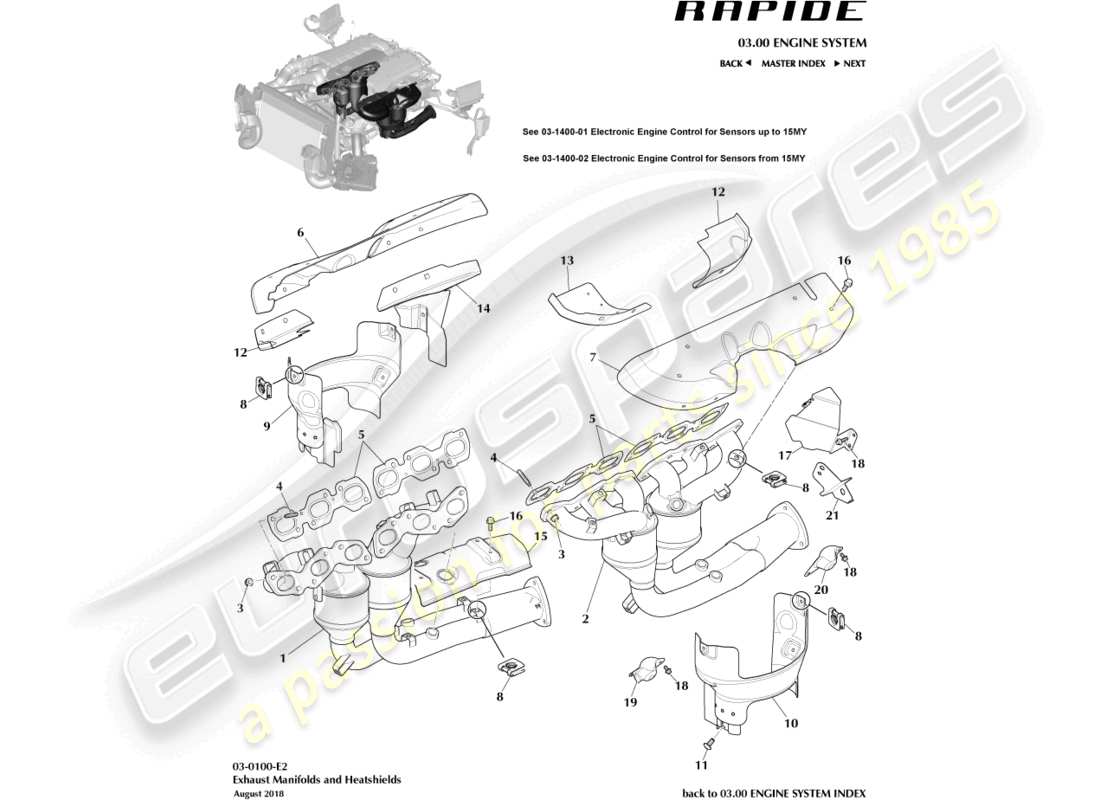

03-0100-E2 - EXHAUST MANIFOLDS

Aston Martin Rapide (2010) Exhaust Manifolds Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: CD33-5G236-AA
                                          MANIFOLD ASSEMBLY, EXHAUST, RH
                                          from £1,339.29
                                          from £1,339.29
                                          MANIFOLD ASSEMBLY, EXHAUST, RH Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: CD33-5G232-AA
                                          MANIFOLD ASSEMBLY, EXHAUST, LH
                                          from £1,339.29
                                          from £1,339.29
                                          MANIFOLD ASSEMBLY, EXHAUST, LH Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: 706712
                                          NUT, M8X1.25, HEX FLG HD
                                          from £0.48
                                          from £0.48
                                          NUT, M8X1.25, HEX FLG HD Genuine Aston Martin - New (to order)
                                          # 4
                                          MPN: 703704
                                          STUD, M8X13.6+16, HEX
                                          from £6.11
                                          from £6.11
                                          STUD M8X13.6+16 Genuine Aston Martin - New (to order)
                                          # 5
                                          MPN: 4G43-35-10003
                                          GASKET, EXHAUST MANIFOLD
                                          from £29.44
                                          from £29.44
                                          GASKET, EXHAUST MANIFOLD Genuine Aston Martin - New (to order)
                                          # 6
                                          MPN: 4G43-9A462-BC
                                          HEATSHIELD, EXHAUST MANIFOLD RH
                                          from £40.71
                                          from £40.71
                                          HEATSHIELD, EXHAUST MANIFOLD RH Genuine Aston Martin - New (to order)
                                          HEATSHIELD, EXHAUST MANIFOLD RH Genuine Aston Martin - Used In stock
                                          # 7
                                          MPN: 4G43-9A462-AC
                                          HEATSHIELD, EXHAUST MANIFOLD LH
                                          from £40.71
                                          from £40.71
                                          HEATSHIELD, EXHAUST MANIFOLD LH Genuine Aston Martin - New (to order)
                                          HEATSHIELD, EXHAUST MANIFOLD LH Genuine Aston Martin - Used In stock
                                          # 8
                                          MPN: 699736
                                          CLIP, EXHAUST HEATSHIELDS
                                          from £1.68
                                          from £1.68
                                          CLIP - PANEL EDGE Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: BG43-9N454-BB
                                          HEATSHIELD, CATALYST, RH
                                          HEATSHIELD, CATALYST, RH Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: BG43-9N454-AB
                                          HEATSHIELD, CATALYST, LH
                                          HEATSHIELD, CATALYST, LH Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: 703691
                                          SCREW, M6X12, PAN HEAD INTERNAL TORX
                                          from £4.49
                                          from £4.49
                                          SCREW M6X12 PAN HEAD Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 4G43-9A462-CC
                                          HEATSHIELD, EXHAUST MANIFOLD
                                          RH Front and LH Rear
                                          from £35.61
                                          from £35.61
                                          EXH MANIFOLD H/SHLD Genuine Aston Martin - New (to order)
                                          EXH MANIFOLD H/SHLD Genuine Aston Martin - Used In stock
                                          # 13
                                          MPN: 8D33-9A462-BB
                                          HEATSHIELD, EXHAUST MANIFOLD, LH FRONT
                                          from £35.61
                                          from £35.61
                                          EXH H/SHIELD LH Genuine Aston Martin - New (to order)
                                          EXH H/SHIELD LH Genuine Aston Martin - Used In stock
                                          # 14
                                          MPN: 8G43-9A462-AD
                                          HEATSHIELD, EXHAUST MANIFOLD, RH REAR
                                          from £74.01
                                          from £74.01
                                          HEATSHIELD, EXHAUST MANIFOLD, RH REAR Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: CD33-C5K286-AA
                                          HEATSHIELD, EXHAUST PIPE RH
                                          from £64.82
                                          from £64.82
                                          HEATSHIELD, EXHAUST PIPE RH Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 703264
                                          SCREW, M6X14, HEX FLANGE HEAD
                                          SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: CD33-6K342-BA
                                          HEATSHIELD, CRANK SENSOR
                                          HEATSHIELD, CRANK SENSOR Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: 702542
                                          BOLT, M6X20
                                          from £0.74
                                          from £0.74
                                          BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: CD33-45367-AB
                                          HEATSHIELD, KNOCK SENSOR, LH FRONT
                                          from £7.84
                                          from £7.84
                                          HEATSHIELD, KNOCK SENSOR, LH FRONT Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: CD33-45368-AA
                                          HEATSHIELD, KNOCK SENSOR, RH FRONT
                                          from £7.84
                                          from £7.84
                                          HEATSHIELD, KNOCK SENSOR, RH FRONT Genuine Aston Martin - New (to order)
                                          # 20
                                          MPN: CD33-45367-BA
                                          HEATSHIELD, KNOCK SENSOR, LH REAR
                                          from £7.84
                                          from £7.84
                                          HEATSHIELD, KNOCK SENSOR, LH REAR Genuine Aston Martin - New (to order)
                                          # 21
                                          MPN: CD33-6K342-AB
                                          HEATSHIELD, CRANK SENSOR
                                          from £11.58
                                          from £11.58
                                          HEATSHIELD, CRANK SENSOR Genuine Aston Martin - New (to order)
