aston martin rapide (2010) rear quarter trim panel parts diagram

010507-B1 - Rear Quarter Trim Panel

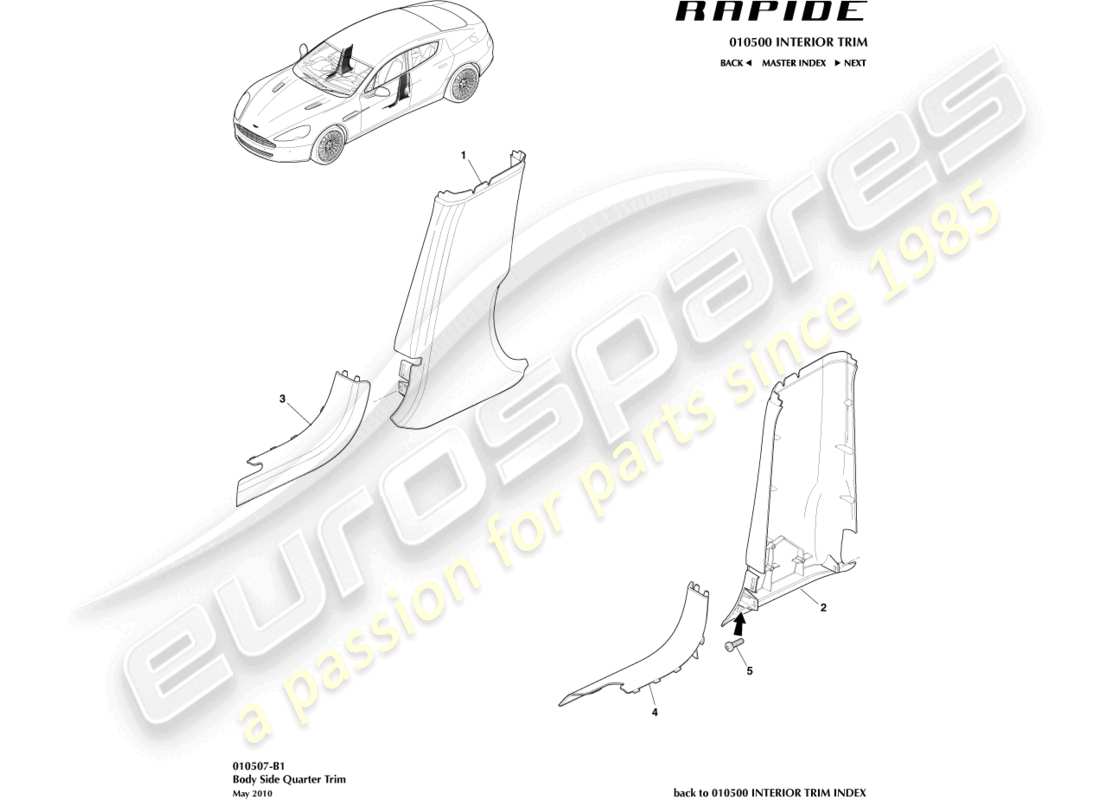

Aston Martin Rapide (2010) Rear Quarter Trim Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: AD43-403F72-AAW
          PANEL ASSY, BODY SIDE CENTRAL LOWER TRIM, RH
          from £1,907.97
          from £1,907.97
          PANEL ASSEMBLY, BODY SIDE CENTRAL LOWER TRIM, RH Genuine Aston Martin - New (to order)
          # 2
          MPN: AD43-403F73-AAW
          PANEL ASSY, BODY SIDE CENTRAL LOWER TRIM, LH
          from £1,712.79
          from £1,712.79
          PANEL ASSEMBLY, BODY SIDE CENTRAL LOWER TRIM, LH Genuine Aston Martin - New (to order)
          # 3
          MPN: AD43-13200-AAW
          SCUFF PLATE INSERT ASSY, FRONT SILL RH
          from £2,099.22
          from £2,099.22
          SCUFF PLATE INSERT ASSEMBLY, FRONT SILL RH Genuine Aston Martin - New (to order)
          # 4
          MPN: AD43-13201-AAW
          SCUFF PLATE INSERT ASSY, FRONT SILL LH
          from £1,904.03
          from £1,904.03
          SCUFF PLATE INSERT ASSEMBLY, FRONT SILL LH Genuine Aston Martin - New (to order)
          # 5
          MPN: 700242
          SCREW, M5 X 16
          2 per panel
          from £0.52
          from £0.52
          SCREW M5 X 16 PAN Genuine Aston Martin - New (to order)
