aston martin rapide (2010) body rear end parts diagram

010106-B1 - Body Rear End

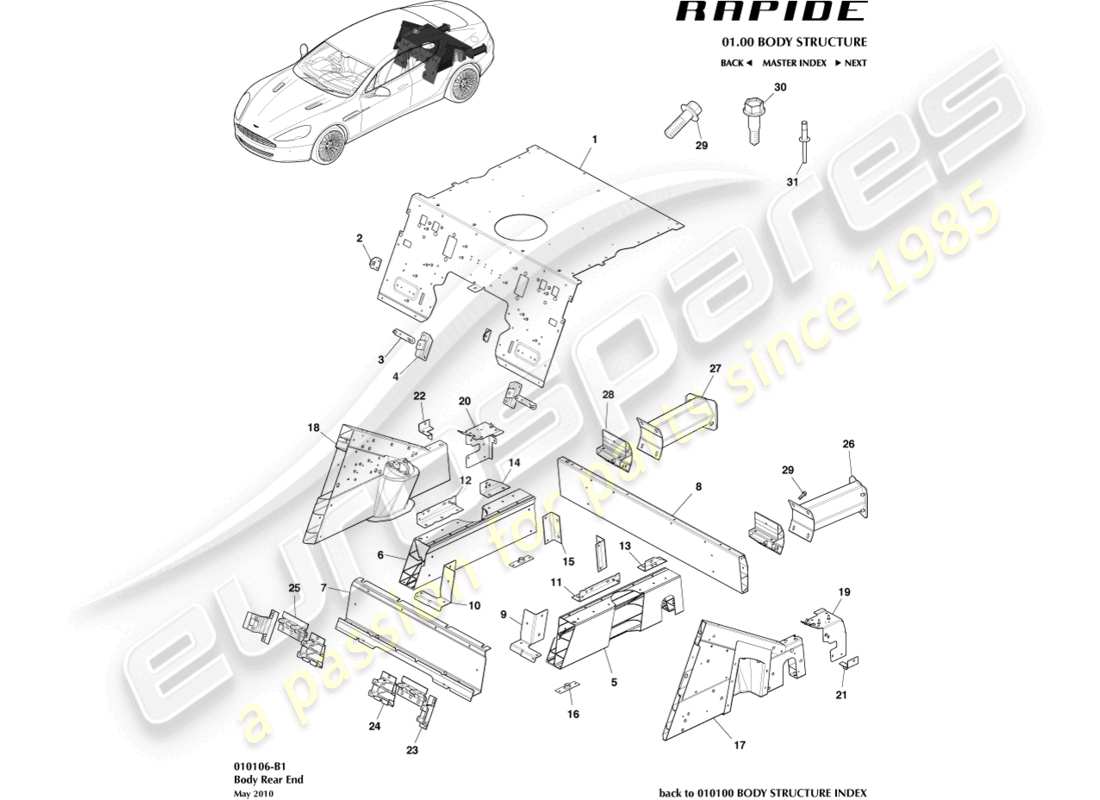

Aston Martin Rapide (2010) Body Rear End Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: AD43-F27871-AA
        PANEL, FUEL TANK COMPARTMENT UPPER
        Structural Cat. A only
        from £185.99
        from £185.99
        PANEL, FUEL TANK COMPARTMENT UPPER Genuine Aston Martin - New (to order)
        # 2
        MPN: AD43-66748-AA
        BRACKET, REAR SEAT SPRING DAMPER MOUNTING
        Structural Cat. A only
        BRACKET, REAR SEAT SPRING DAMPER MOUNTING Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-MRC5765-AA
        STUD PLATE M8, REAR SEAT MOUNTING
        Structural Cat. A only
        from £7.20
        from £7.20
        STUD PLATE M8, REAR SEAT MOUNTING Genuine Aston Martin - New (to order)
        # -
        MPN: AD43-F613D75-AA
        REINFORCMENT, ISOFIX INNER LH
        Structural Cat. A only
        REINFORCMENT, ISOFIX INNER LH Genuine Aston Martin - New (to order)
        # 4
        MPN: AD43-F613D74-AA
        REINFORCMENT, ISOFIX INNER RH
        Structural Cat. A only
        REINFORCMENT, ISOFIX INNER RH Genuine Aston Martin - New (to order)
        # 5
        MPN: AD43-F10457-AC
        MEMBER, REAR FLOOR SIDE LH
        Structural Cat. A only
        MEMBER, REAR FLOOR SIDE LH Genuine Aston Martin - New (to order)
        # 6
        MPN: AD43-F10456-AC
        MEMBER, REAR FLOOR SIDE RH
        Structural Cat. A only
        MEMBER, REAR FLOOR SIDE RH Genuine Aston Martin - New (to order)
        # 7
        MPN: AD43-F103B44-AB
        MEMBER, REAR CS UPPER
        Structural Cat. A only
        MEMBER, REAR CS UPPER Genuine Aston Martin - New (to order)
        # 8
        MPN: AD43-F106K00-AB
        CROSSMEMBER, REAR
        Structural Cat. A only
        from £148.17
        from £148.17
        CROSSMEMBER, REAR Genuine Aston Martin - New (to order)
        # 9
        MPN: GOAD43-A01015-AA
        GUSSET, CROSSMEMBER LH
        Structural Cat. A only
        GUSSET, CROSSMEMBER LH Genuine Aston Martin - New (to order)
        # 10
        MPN: GOAD43-A01014-AA
        GUSSET, CROSSMEMBER RH
        Structural Cat. A only
        GUSSET, CROSSMEMBER RH Genuine Aston Martin - New (to order)
        # 11
        MPN: AD43-F246K45-AA
        REINFORCMENT, BODY SIDE REAR- LONG LH
        Structural Cat. A only
        from £27.39
        from £27.39
        REINFORCMENT, BODY SIDE REAR- LONG LH Genuine Aston Martin - New (to order)
        # 12
        MPN: AD43-F246K44-AA
        REINFORCMENT, BODY SIDE REAR- LONG RH
        Structural Cat. A only
        from £28.69
        from £28.69
        REINFORCMENT, BODY SIDE REAR- LONG RH Genuine Aston Martin - New (to order)
        # 13
        MPN: AD43-F246K43-AA
        REINFORCMENT, BODY SIDE REAR- LH
        Structural Cat. A only
        from £16.65
        from £16.65
        REINFORCMENT, BODY SIDE REAR- LH Genuine Aston Martin - New (to order)
        # 14
        MPN: AD43-F246K42-AA
        REINFORCMENT, BODY SIDE REAR- RH
        Structural Cat. A only
        from £16.67
        from £16.67
        REINFORCMENT, BODY SIDE REAR- RH Genuine Aston Martin - New (to order)
        # 15
        MPN: GOAD43-F28286-AA
        BRACKET, REINFORCMENT
        Structural Cat. A only
        BRACKET, REINFORCMENT Genuine Aston Martin - New (to order)
        # 16
        MPN: AD43-F110A56-AB
        NUTPLATE, SUBFRAME MOUNT
        Structural Cat. A only Up To 15MY
        NUTPLATE, SUBFRAME MOUNT Genuine Aston Martin - New (to order)
        # 16
        MPN: FD43-F110A56-AA
        NUTPLATE, SUBFRAME MOUNT
        Structural Cat. A only From 15MY
        from £25.03
        from £25.03
        NUTPLATE, SUBFRAME MOUNT Genuine Aston Martin - New (to order)
        # 17
        MPN: AD43-16C277-AA
        LONGITUDINAL, REAR ASSY LH
        Service Assy, Structural Cat. A only
        from £965.86
        from £965.86
        LONGITUDINAL, REAR ASSEMBLY LH Genuine Aston Martin - New (to order)
        # 18
        MPN: AD43-16C276-AA
        LONGITUDINAL, REAR ASSY RH
        Service Assy, Structural Cat. A only
        from £913.56
        from £913.56
        LONGITUDINAL, REAR ASSEMBLY RH Genuine Aston Martin - New (to order)
        # 19
        MPN: AD43-F41099-AA
        PANEL, REAR OUTER CLOSING LH
        Structural Cat. A only
        PANEL, REAR OUTER CLOSING LH Genuine Aston Martin - New (to order)
        # 20
        MPN: AD43-F41098-AA
        PANEL, REAR OUTER CLOSING RH
        Structural Cat. A only
        from £12.96
        from £12.96
        PANEL, REAR OUTER CLOSING RH Genuine Aston Martin - New (to order)
        # 21
        MPN: GOAD43-F112K23-AA
        PANEL, REAR LOWER CLOSING LH
        Structural Cat. A only
        from £14.77
        from £14.77
        PANEL, REAR LOWER CLOSING LH Genuine Aston Martin - New (to order)
        # 22
        MPN: GOAD43-F112K22-AA
        PANEL, REAR LOWER CLOSING RH
        Structural Cat. A only
        from £14.77
        from £14.77
        PANEL, REAR LOWER CLOSING RH Genuine Aston Martin - New (to order)
        # 23
        MPN: AD43-F63916-AA
        BRACKET, REAR SEAT SQUAB MOUNTING OUTER
        Structural Cat. A only
        BRACKET, REAR SEAT SQUAB MOUNTING OUTER Genuine Aston Martin - New (to order)
        # 24
        MPN: AD43-F63917-AA
        BRACKET, REAR SEAT SQUAB MOUNTING INNER
        Structural Cat. A only
        BRACKET, REAR SEAT SQUAB MOUNTING INNER Genuine Aston Martin - New (to order)
        # 25
        MPN: AD43-F63914-AA
        BRACKET, REAR SEAT SQUAB STOP
        Structural Cat. A only
        BRACKET, REAR SEAT SQUAB STOP Genuine Aston Martin - New (to order)
        # 26
        MPN: AD43-17F035-AA
        CRUSHCAN ASSY, REAR LH
        Structural Cat. A only
        from £166.54
        from £166.54
        CRUSHCAN ASSEMBLY, REAR LH Genuine Aston Martin - New (to order)
        # 27
        MPN: AD43-17F034-AA
        CRUSHCAN ASSY, REAR RH
        Structural Cat. A only
        from £166.54
        from £166.54
        CRUSHCAN ASSEMBLY, REAR RH Genuine Aston Martin - New (to order)
        # 28
        MPN: AD43-F2714-AB
        BRACKET, CRASHCAN MOUNTING
        Structural Cat. A only
        BRACKET, CRASHCAN MOUNTING Genuine Aston Martin - New (to order)
        # 29
        MPN: 703120
        SCREW M8X25 HEX FLG HD
        from £0.47
        from £0.47
        SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
        INTERMEDIATE HEAT SHIELD BOLTS (703120) Genuine Ferrari Part - New (to order)
        # 30
        MPN: 6G33-375732-AB
        SCREW SS HEX FLG HD 5.5X19 SELF
        from £0.47
        from £0.47
        SCR SS HEX FL HD Genuine Aston Martin - New (to order)
        # 31
        MPN: 6G33-68676-AC
        RIVET, STRUCTURAL 6.5X14 BLND
        from £0.70
        from £0.70
        STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
