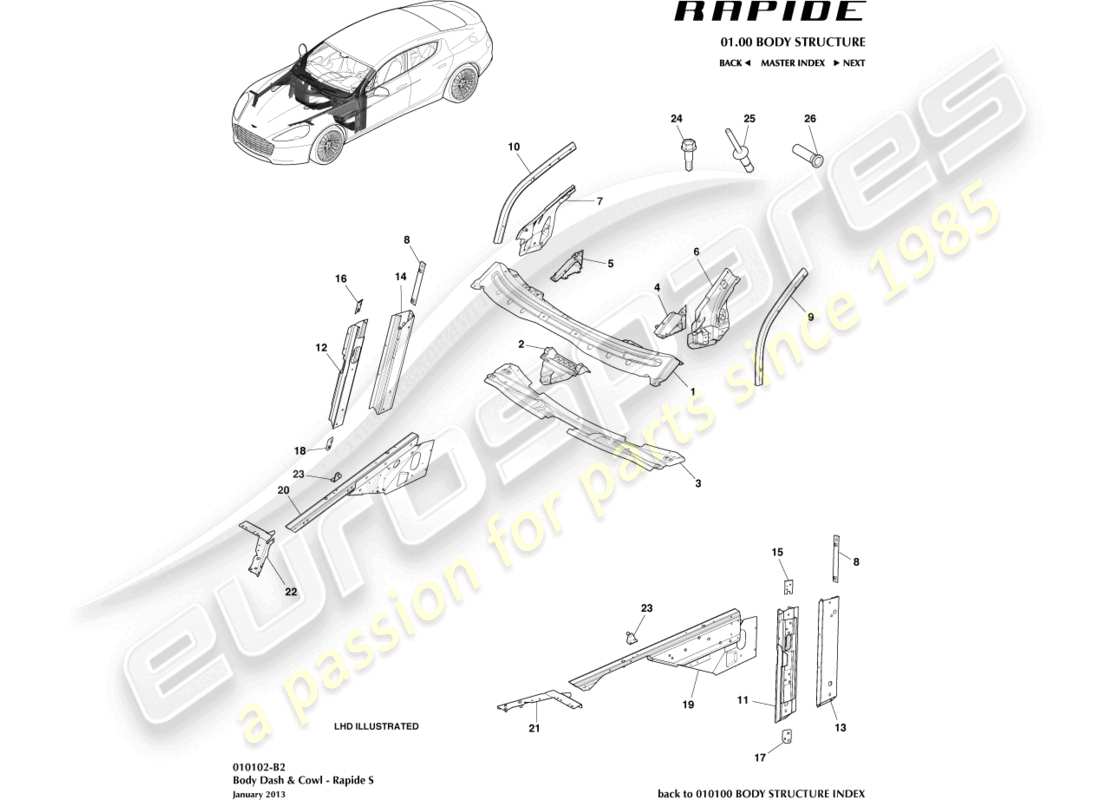

aston martin rapide (2010) body dash & cowl, s parts diagram

010102-B2 - Body Dash & Cowl, S

Aston Martin Rapide (2010) Body Dash & Cowl, S Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: DD43-F292821-AD
        PLENUM UPPER CASTING
        Structural Cat. A only
        PLENUM UPPER CASTING Genuine Aston Martin - New (to order)
        # 2
        MPN: GODD43-71023-AE
        COWL REINFORCEMENT CASTING
        Structural Cat. A only
        COWL REINF CASTING Genuine Aston Martin - New (to order)
        # 3
        MPN: GODD43-F292650-AC
        PLENUM LOWER
        Structural Cat. A only
        PLENUM LOWER Genuine Aston Martin - New (to order)
        # 4
        MPN: GOAD43-F8875-AA
        PLENUM INTERFACE CASTING, LH
        Structural Cat. A only
        from £83.28
        from £83.28
        PLENUM INTERFACE CASTING, LH Genuine Aston Martin - New (to order)
        # 5
        MPN: GOAD43-F8874-AA
        PLENUM INTERFACE CASTING, RH
        Structural Cat. A only
        from £79.71
        from £79.71
        PLENUM INTERFACE CASTING, RH Genuine Aston Martin - New (to order)
        # 6
        MPN: AD43-A02571-AB
        CASTING, A PILLAR LOWER, LH
        Structural Cat. A only
        from £982.11
        from £982.11
        CASTING, A PILLAR LOWER, LH Genuine Aston Martin - New (to order)
        # 7
        MPN: AD43-A02570-AB
        CASTING, A PILLAR LOWER, RH
        Structural Cat. A only
        from £982.11
        from £982.11
        CASTING, A PILLAR LOWER, RH Genuine Aston Martin - New (to order)
        # 8
        MPN: 6G33-486226-AA
        NUTPLATE, M8, IP BEAM
        Structural Cat. A only
        from £5.39
        from £5.39
        NUTPLATE IP BEAM M8 Genuine Aston Martin - New (to order)
        # 9
        MPN: GOAD43-F02527-AC
        REINFORCEMENT, FRONT BODY PILLAR, LH
        Structural Cat. A only
        from £115.52
        from £115.52
        REINFORCEMENT, FRONT BODY PILLAR, LH Genuine Aston Martin - New (to order)
        # 10
        MPN: GOAD43-F02526-AC
        REINFORCEMENT, FRONT BODY PILLAR, RH
        Structural Cat. A only
        from £109.64
        from £109.64
        REINFORCEMENT, FRONT BODY PILLAR, RH Genuine Aston Martin - New (to order)
        # 11
        MPN: GOAD43-F02661-AA
        PILLAR, FRONT BODY LOWER, LH
        Structural Cat. A only
        from £113.64
        from £113.64
        PILLAR, FRONT BODY LOWER, LH Genuine Aston Martin - New (to order)
        # 12
        MPN: GOAD43-F02660-AA
        PILLAR, FRONT BODY LOWER, RH
        Structural Cat. A only
        from £108.63
        from £108.63
        PILLAR, FRONT BODY LOWER, RH Genuine Aston Martin - New (to order)
        # 13
        MPN: GOAD43-F02663-AA
        PILLAR, EXTERNAL FRONT BODY LOWER, LH
        Structural Cat. A only
        from £64.78
        from £64.78
        PILLAR, EXTERNAL FRONT BODY LOWER, LH Genuine Aston Martin - New (to order)
        # 14
        MPN: GOAD43-F02662-AA
        PILLAR, EXTERNAL FRONT BODY LOWER, RH
        Structural Cat. A only
        from £59.68
        from £59.68
        PILLAR, EXTERNAL FRONT BODY LOWER, RH Genuine Aston Martin - New (to order)
        # 15
        MPN: AD43-F71491-AA
        NUTPLATE, A POST HINGE UPPER, LH
        Structural Cat. A only
        NUTPLATE, A POST HINGE UPPER, LH Genuine Aston Martin - New (to order)
        # 16
        MPN: AD43-F71490-AA
        NUTPLATE, A POST HINGE UPPER, RH
        Structural Cat. A only
        from £9.21
        from £9.21
        NUTPLATE, A POST HINGE UPPER, RH Genuine Aston Martin - New (to order)
        # 17
        MPN: 6G33-15111-AB
        NUTPLATE, A POST LOWER HINGE, LH
        Structural Cat. A only
        from £4.86
        from £4.86
        NUTPLATE A POST LWR Genuine Aston Martin - New (to order)
        # 18
        MPN: 6G33-15110-AB
        NUTPLATE, A POST LOWER HINGE, RH
        Structural Cat. A only
        from £7.43
        from £7.43
        NUTPLATE A POST LWR Genuine Aston Martin - New (to order)
        # 19
        MPN: DD43-16B247-AA
        FENDER FRONT UPPER ASSY, LH
        Service Assembly, Structural Cat. A Only
        from £341.42
        from £341.42
        FENDER FRONT UPPER ASSEMBLY, LH Genuine Aston Martin - New (to order)
        # 20
        MPN: DD43-16B246-AA
        FENDER FRONT UPPER ASSY, RH
        Service Assembly, Structural Cat. A Only
        from £152.79
        from £152.79
        FENDER FRONT UPPER ASSEMBLY, RH Genuine Aston Martin - New (to order)
        # 21
        MPN: DG43-16431-AA
        REINFORCEMENT, HOOD STRIKER PLATE, LH
        Structural Cat. A only
        from £30.13
        from £30.13
        REINF HOD STRKR PLT Genuine Aston Martin - New (to order)
        # 22
        MPN: DG43-16430-AA
        REINFORCEMENT, HOOD STRIKER PLATE, RH
        Structural Cat. A only
        from £37.06
        from £37.06
        REINF HOOD STRKR PLT Genuine Aston Martin - New (to order)
        # 23
        MPN: DG43-18178-BA
        BRACKET, GAS DAMPER MOUNTING
        Structural Cat. A only
        from £19.45
        from £19.45
        BRACKET, GAS DAMPER MOUNTING Genuine Aston Martin - New (to order)
        # 24
        MPN: 6G33-375732-AB
        SCREW, 5.5 X 19, HEX FLANGE HEAD
        from £0.47
        from £0.47
        SCR SS HEX FL HD Genuine Aston Martin - New (to order)
        # 25
        MPN: 6G33-68676-ACA
        RIVET, STRUCTURAL, 6.5 X 14, BLIND
        RIVET, STRUCTURAL, 6.5 X 14, BLIND Genuine Aston Martin - New (to order)
        # 26
        MPN: GOAD43-F025B06-AB
        SLEEVE, FRONT BODY PILLAR TUBE, UPPER
        from £5.75
        from £5.75
        SLEEVE, FRONT BODY PILLAR TUBE, UPPER Genuine Aston Martin - New (to order)
