aston martin dbs (2007) engine structure parts diagram

030100-E1 - Engine Structure

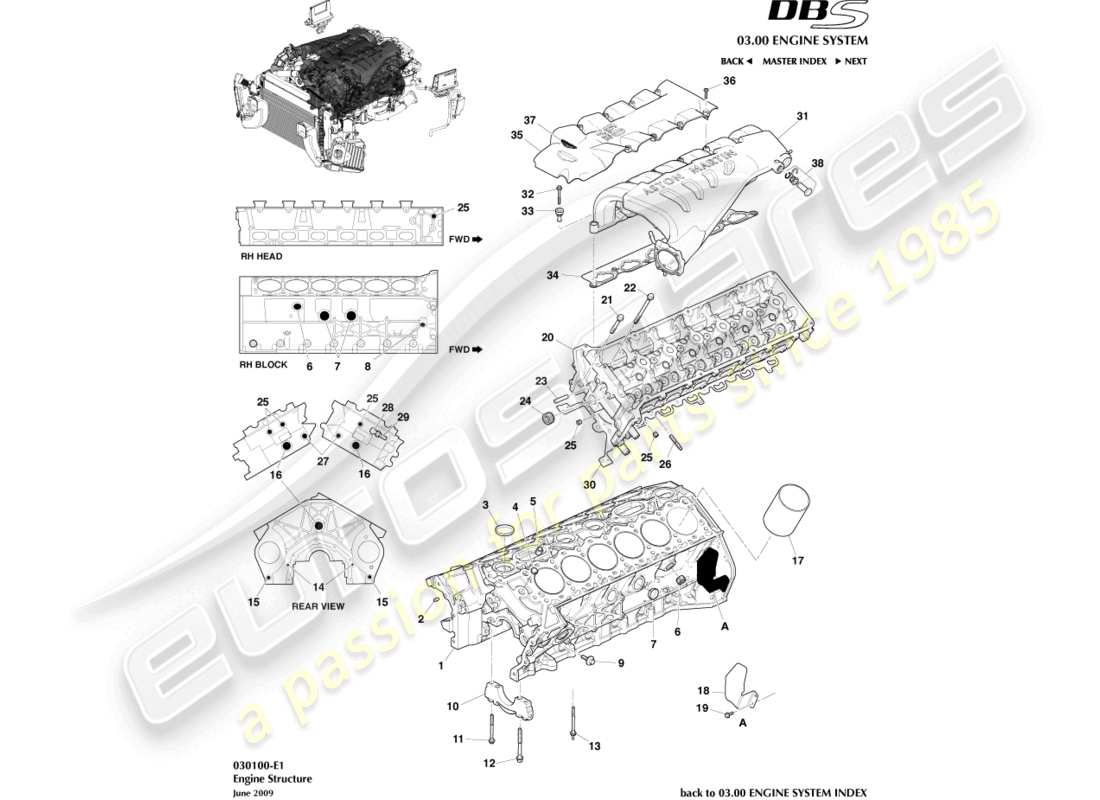

Aston Martin DBS (2007) Engine Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # -
                                                                            MPN: 8D33-6007-AA
                                                                            ENGINE ASSEMBLY, 6.0L V12, NEW
                                                                            Up to 11MY
                                                                            ENGINE ASSEMBLY, 6.0L V12, NEW Genuine Aston Martin - New (to order)
                                                                            # -
                                                                            MPN: 091769
                                                                            ENGINE ASSEMBLY, 6.0L V12, REMANUFACTURED
                                                                            Up to 11MY
                                                                            ENGINE ASSEMBLY, 6.0L V12, REMANUFACTURED Genuine Aston Martin - New (to order)
                                                                            # -
                                                                            MPN: BD33-6007-AA
                                                                            ENGINE ASSEMBLY, 6.0L V12, NEW
                                                                            FROM 11MY
                                                                            ENGINE ASSEMBLY, 6.0L V12, NEW Genuine Aston Martin - New (to order)
                                                                            # 1
                                                                            MPN: AD43-6010-AA
                                                                            CYLINDER BLOCK ASSY
                                                                            from £9,738.65
                                                                            from £9,738.65
                                                                            CYLINDER BLOCK ASSEMBLY Genuine Aston Martin - New (to order)
                                                                            # 2
                                                                            MPN: 01-84995
                                                                            PIN, 8.0 X 18.0 DOWEL
                                                                            from £0.65
                                                                            from £0.65
                                                                            DOWEL-8X18 Genuine Aston Martin - New (to order)
                                                                            # 3
                                                                            MPN: 01-85000
                                                                            PLUG, 52.6 DIA CUP
                                                                            from £9.52
                                                                            from £9.52
                                                                            PLUG-CUP Genuine Aston Martin - New (to order)
                                                                            # 4
                                                                            MPN: 01-85001
                                                                            PLUG, 19.35 DIA EXP CUP
                                                                            from £4.48
                                                                            from £4.48
                                                                            PLUG-CUP-EXPANSION Genuine Aston Martin - New (to order)
                                                                            # 5
                                                                            MPN: 01-84994
                                                                            PIN, 16 X 19 HOLLOW DOWEL
                                                                            from £0.51
                                                                            from £0.51
                                                                            DOWEL-16X19 Genuine Aston Martin - New (to order)
                                                                            # 6
                                                                            MPN: 703705
                                                                            PLUG 3/4-14 PTF INT HEX
                                                                            from £4.49
                                                                            from £4.49
                                                                            PLUG 3/4X14 PIPE Genuine Aston Martin - New (to order)
                                                                            # 7
                                                                            MPN: 01-84997
                                                                            PLUG 1.26 CUP (32MM)
                                                                            from £2.94
                                                                            from £2.94
                                                                            PLUG-CUP 1.25 Genuine Aston Martin - New (to order)
                                                                            # 8
                                                                            MPN: 703705
                                                                            PLUG, 1/4Â? - 18 X 10.8
                                                                            from £4.49
                                                                            from £4.49
                                                                            PLUG 3/4X14 PIPE Genuine Aston Martin - New (to order)
                                                                            # 9
                                                                            MPN: 4G43-01-10819
                                                                            BOLT, CRANKSHAFT MAIN BEARING CAP, (SIDE)
                                                                            from £22.24
                                                                            from £22.24
                                                                            BOLT-MAIN BRG CAP Genuine Aston Martin - New (to order)
                                                                            # 10
                                                                            MPN: 1R12-01-10678
                                                                            CAP, CRANKSHAFT MAIN BEARING
                                                                            from £50.63
                                                                            from £50.63
                                                                            CAP, CRANKSHAFT MAIN BEARING Genuine Aston Martin - New (to order)
                                                                            # 11
                                                                            MPN: 4G43-01-10203
                                                                            BOLT, CRANKSHAFT MAIN BEARING CAP
                                                                            from £3.67
                                                                            from £3.67
                                                                            BOLT-M10X1.5X91 Genuine Aston Martin - New (to order)
                                                                            # 12
                                                                            MPN: 4G43-01-10202
                                                                            BOLT, CRANKSHAFT MAIN BEARING CAP
                                                                            from £3.62
                                                                            from £3.62
                                                                            BOLT, CRANKSHAFT MAIN BEARING CAP Genuine Aston Martin - New (to order)
                                                                            # 13
                                                                            MPN: 01-85133
                                                                            BOLT, MAIN BEARING CAP OUTER
                                                                            from £16.32
                                                                            from £16.32
                                                                            STUD BOLT-BRG CAPS Genuine Aston Martin - New (to order)
                                                                            # 14
                                                                            MPN: W701500-S300
                                                                            PIN, M6 X 16 DOWEL CHAMFER HEAD
                                                                            PIN 6X16 DWL CHMFR H Genuine Aston Martin - New (to order)
                                                                            # 15
                                                                            MPN: 699134
                                                                            DOWEL
                                                                            from £10.53
                                                                            from £10.53
                                                                            DOWEL, HOLLOW Genuine Aston Martin - New (to order)
                                                                            # 16
                                                                            MPN: 703705
                                                                            PLUG 3/4-14 PTF INT HEX
                                                                            from £4.49
                                                                            from £4.49
                                                                            PLUG 3/4X14 PIPE Genuine Aston Martin - New (to order)
                                                                            # 17
                                                                            MPN: 7G43-6055-AA
                                                                            SLEEVE, CYLINDER BORE
                                                                            from £35.32
                                                                            from £35.32
                                                                            SLEEVE, CYLINDER BORE Genuine Aston Martin - New (to order)
                                                                            # 18
                                                                            MPN: 8G43-6K342-BB
                                                                            HEATSHIELD, CRANKSHAFT TIMING SENSOR
                                                                            from £28.45
                                                                            from £28.45
                                                                            SHLD-CSHAFT TM SNS H Genuine Aston Martin - New (to order)
                                                                            # 19
                                                                            MPN: 700606
                                                                            SCREW M6X12 FLG HD
                                                                            from £0.47
                                                                            from £0.47
                                                                            SCREW M6X12 FLG Genuine Aston Martin - New (to order)
                                                                            # 20
                                                                            MPN: 8D33-6M099-AA
                                                                            CYLINDER HEAD ASSY LH ( INC VALVES/ADJUSTERS/SPRINGS ETC, MINUS CAMS ETC)
                                                                            CYLINDER HEAD ASSEMBLY LH (INC VALVES/ADJUSTERS/SPRINGS ETC, MINUS CAMS ETC) Genuine Aston Martin - New (to order)
                                                                            # 20
                                                                            MPN: 8D33-6F093-AA
                                                                            CYLINDER HEAD ASSY RH ( INC VALVES/ADJUSTERS/SPRINGS ETC, MINUS CAMS ETC)
                                                                            CYLINDER HEAD ASSEMBLY RH (INC VALVES/ADJUSTERS/SPRINGS ETC, MINUS CAMS ETC) Genuine Aston Martin - New (to order)
                                                                            # 21
                                                                            MPN: 06-85052
                                                                            BOLT, FLG, M8 X 32
                                                                            BOLT, M8X32, FLG Genuine Aston Martin - New (to order)
                                                                            # 22
                                                                            MPN: 06-86044
                                                                            BOLT, FLG, M10 X 151.5 CYLINDER HEAD TO BLOCK
                                                                            from £11.87
                                                                            from £11.87
                                                                            BOLT-M10X1.5X151.5 Genuine Aston Martin - New (to order)
                                                                            # 23
                                                                            MPN: 01-84996
                                                                            PIN, 10 X 49.25
                                                                            from £1.56
                                                                            from £1.56
                                                                            DOWEL-10X49.25 Genuine Aston Martin - New (to order)
                                                                            # 24
                                                                            MPN: 06-85032
                                                                            PLUG
                                                                            from £14.10
                                                                            from £14.10
                                                                            PLUG-1 X 11TPI Genuine Aston Martin - New (to order)
                                                                            # 25
                                                                            MPN: 01-84999
                                                                            PLUG 1/4-18X10.8 HI
                                                                            PLUG, 1/4 18X10.8 Genuine Aston Martin - New (to order)
                                                                            # 26
                                                                            MPN: 703704
                                                                            STUD, M8
                                                                            from £6.11
                                                                            from £6.11
                                                                            STUD M8X13.6+16 Genuine Aston Martin - New (to order)
                                                                            # 27
                                                                            MPN: 06-85031
                                                                            PLUG, 3/8Â? - 18 SOCKET HEAD
                                                                            PLUG, 3/8 18 SOCKET HEAD Genuine Aston Martin - New (to order)
                                                                            # 28
                                                                            MPN: 1R1E-9B339-AB
                                                                            ADAPTOR, OIL PRESSURE SENDER
                                                                            ADAPTOR, OIL PRESSURE SENDER Genuine Aston Martin - New (to order)
                                                                            # 29
                                                                            MPN: 1R12-39-10532
                                                                            SWITCH ASSY, OIL PRESSURE
                                                                            from £5.05
                                                                            from £5.05
                                                                            SWITCH-OIL PRESSURE Genuine Aston Martin - New (to order)
                                                                            # 30
                                                                            MPN: 1R12-06-10469
                                                                            GASKET, CYLINDER HEAD, LH
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Aston Martin (no longer available to order)
                                                                            # 30
                                                                            MPN: 1R12-06-10468
                                                                            GASKET, CYLINDER HEAD, RH
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Aston Martin (no longer available to order)
                                                                            # 31
                                                                            MPN: 8D33-9424-DB
                                                                            INTAKE, MANIFOLD ASSY LHS
                                                                            INTAKE, MANIFOLD ASSEMBLY LHS Genuine Aston Martin - New (to order)
                                                                            # 31
                                                                            MPN: AD23-9424-BA
                                                                            INTAKE, MANIFOLD ASSY LHS
                                                                            10MY
                                                                            from £1,052.05
                                                                            from £1,052.05
                                                                            INTAKE, MANIFOLD ASSEMBLY LHS Genuine Aston Martin - New (to order)
                                                                            # 31
                                                                            MPN: 8D33-9424-CB
                                                                            INTAKE, MANIFOLD ASSY RHS
                                                                            INTAKE, MANIFOLD ASSEMBLY RHS Genuine Aston Martin - New (to order)
                                                                            # 31
                                                                            MPN: AD23-9424-AA
                                                                            INTAKE, MANIFOLD ASSY RHS
                                                                            10MY
                                                                            from £1,052.05
                                                                            from £1,052.05
                                                                            INTAKE, MANIFOLD ASSEMBLY RHS Genuine Aston Martin - New (to order)
                                                                            # 32
                                                                            MPN: 702852
                                                                            BOLT, FLG, M6 X 53
                                                                            from £8.08
                                                                            from £8.08
                                                                            BOLT-M6X1.0X47 HEX Genuine Aston Martin - New (to order)
                                                                            # 33
                                                                            MPN: 4G43-08-10002
                                                                            ISOLATOR, INTAKE, MANIFOLD
                                                                            from £11.11
                                                                            from £11.11
                                                                            ISOLATOR Genuine Aston Martin - New (to order)
                                                                            # 34
                                                                            MPN: 1R12-08-10077-PK
                                                                            GASKET, INTAKE MANIFOLD TO CYLINDER HEAD
                                                                            from £234.28
                                                                            from £234.28
                                                                            This part replaces part number 1R13-08-10077-PK
                                                                            GSKT-I.MANIFOLD/HD-2 Genuine Aston Martin - New In stock
                                                                            # 35
                                                                            MPN: 8D33-9J444-AD
                                                                            SUPPORT, INTAKE, MANIFOLD
                                                                            from £5,552.90
                                                                            from £5,552.90
                                                                            SUPPORT, INTAKE, MANIFOLD Genuine Aston Martin - New (to order)
                                                                            # 36
                                                                            MPN: 702847
                                                                            SCREW, M6 X 25 PAN HEAD
                                                                            from £0.82
                                                                            from £0.82
                                                                            SCREW-M6X25 PAN INT Genuine Aston Martin - New (to order)
                                                                            # 37
                                                                            MPN: 8D33-001B46-BB
                                                                            BADGE ASSEMBLY, SUPPORT
                                                                            from £70.86
                                                                            from £70.86
                                                                            ENGINE MANIFOLD BDGE Genuine Aston Martin - New (to order)
