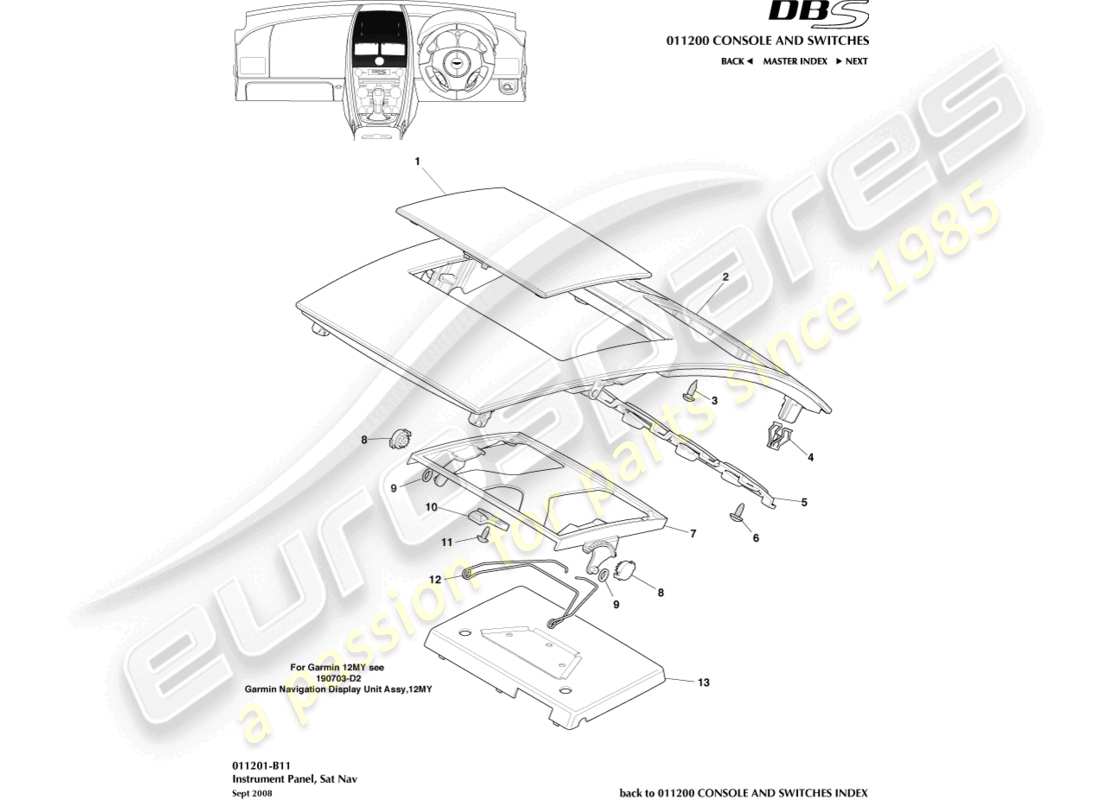

011201-B11 - Instrument Panel, Sat Nav, 09MY

Aston Martin DBS (2007) Instrument Panel, Sat Nav, 09MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 8D33-045G37-AA
                        DOOR CONSOLE, NAVIGATION
                        from £351.82
                        from £351.82
                        DOOR CONSOLE, NAVIGATION Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 8D33-047A04-DA
                        NAVIGATION SURROUND ASSY, MANUAL, SILVER
                        from £786.12
                        from £786.12
                        NAVIGATION SURROUND ASSEMBLY, MANUAL, SILVER Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 8D33-047A04-CA
                        NAVIGATION SURROUND ASSY, AUTO, SILVER
                        NAVIGATION SURROUND ASSEMBLY, AUTO, SILVER Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 9G43-045J10-PA
                        NAVIGATION SURROUND ASSY, MANUAL, PIANO BLACK
                        09MY
                        NAVIGATION SURROUND ASSEMBLY, MANUAL, PIANO BLACK Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 9G43-045J10-NA
                        NAVIGATION SURROUND ASSY, AUTO, PIANO BLACK
                        09MY
                        NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) Genuine Aston Martin - New (to order)
                        # 2
                        MPN: BD33-045J10-CA
                        NAVIGATION SURROUND ASSY, MANUAL, BLACK CARBON FIBRE
                        Carbon Edition, DBS Ultimate
                        NAVIGATION SURROUND ASSEMBLY, MANUAL, BLACK CARBON FIBRE Genuine Aston Martin - New (to order)
                        # 2
                        MPN: BD33-045J10-DA
                        NAVIGATION SURROUND ASSY, AUTO, BLACK CARBON FIBRE
                        Carbon Edition, DBS Ultimate
                        NAVIGATION SURROUND ASSEMBLY, AUTO, BLACK CARBON FIBRE Genuine Aston Martin - New (to order)
                        # 2
                        MPN: CG33-045J10-AA
                        NAVIGATION SURROUND ASSY, AUTO, PIANO BLACK
                        Dragon 88
                        from £757.03
                        from £757.03
                        NAVIGATION SURROUND ASSEMBLY, AUTO, PIANO BLACK Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 4G43-80899-AA
                        SCREW, M4 X 8
                        09MY
                        from £0.47
                        from £0.47
                        SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 702520
                        CLIP, TRIM PUSH IN
                        CLIP, 8.5X16X1.7 Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 6G33-14A462-AB
                        RETAINER, CONTROL SWITCH
                        RETAINER, CONTROL SWITCH Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 6G33-104101-AB
                        SCREW, M4 X 10
                        SCREW, M4X10 Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 6G33-18C917-AB
                        BRACKET, NAVIGATION MOUNTING
                        from £190.48
                        from £190.48
                        BRACKET - NAV MTG Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 6G33-38392-AA
                        SPINDLE DAMPER
                        from £7.39
                        from £7.39
                        SPINDLE DAMPER Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 6G33-8979-AA
                        WASHER
                        from £2.95
                        from £2.95
                        WASHER Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 6G33-14163-AB
                        STOP, BEZEL
                        from £33.70
                        from £33.70
                        LOCATOR Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 6G33-104101-AB
                        SCREW, M4 X 10
                        SCREW, M4X10 Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 6G33-19363-AE
                        SPRING
                        from £22.00
                        from £22.00
                        SPRING, TORSION Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 6G33-10E901-AC
                        HOUSING, NAVIGATION DISPLAY
                        HOUSING, NAVIGATION DISPLAY Genuine Aston Martin - New (to order)
                        # -
                        MPN: 8D33-047A05-AA
                        BEZEL ASSY, INSTRUMENT PANEL, PIANO BLACK, AUTO
                        09MY
                        BEZEL ASSEMBLY, INSTRUMENT PANEL, PIANO BLACK, AUTO Genuine Aston Martin - New (to order)
