aston martin dbs (2007) door trim parts diagram

010505-B1 - DOOR TRIM

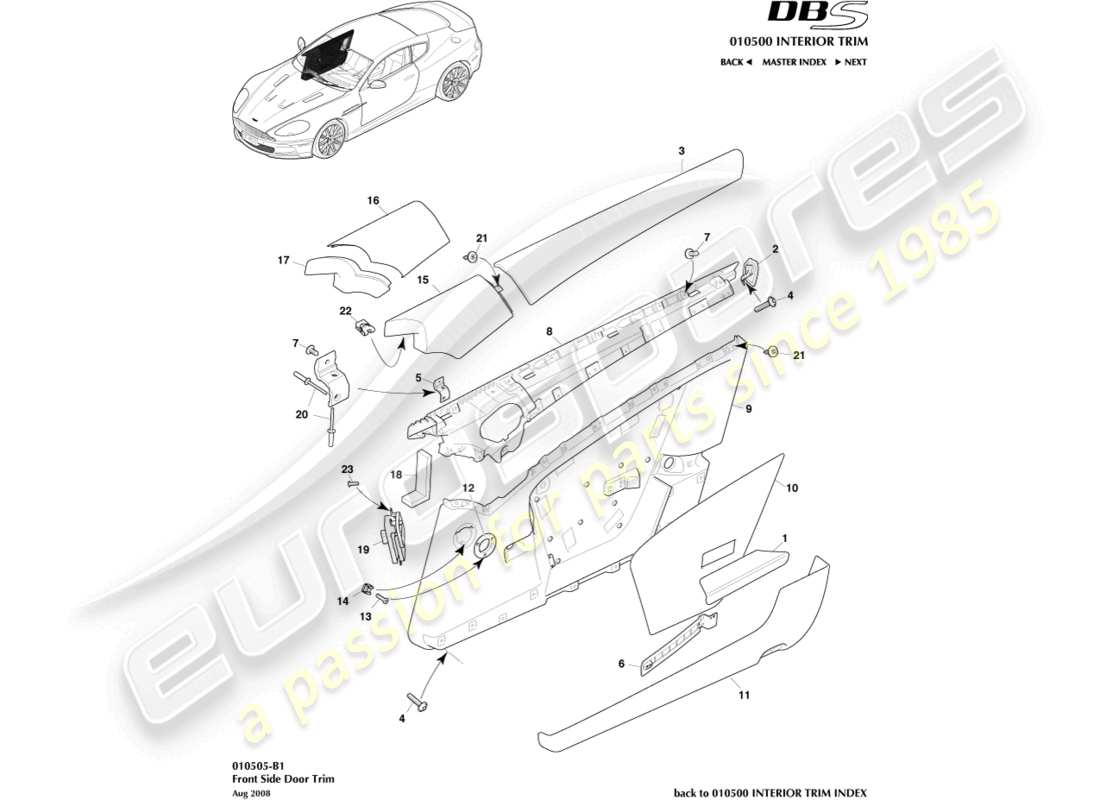

Aston Martin DBS (2007) Door Trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # -
                                MPN: 8D33-23942-AAW
                                PANEL ASSY, FRONT DOOR TRIM COMPLETE, RH
                                LHD
                                PANEL ASSEMBLY, FRONT DOOR TRIM COMPLETE, RH Genuine Aston Martin - New (to order)
                                # -
                                MPN: 8D33-23942-BAW
                                PANEL ASSY, FRONT DOOR TRIM COMPLETE, RH
                                RHD
                                from £4,823.18
                                from £4,823.18
                                PANEL ASSEMBLY, FRONT DOOR TRIM COMPLETE, RH Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23942-EAW
                                PANEL ASSY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, RH B&O
                                LHD 9.5MY
                                from £5,746.30
                                from £5,746.30
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, RH B&O Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23942-FAW
                                PANEL ASSY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, RH B&O
                                rhd 9.5MY
                                from £2,380.12
                                from £2,380.12
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, RH B&O Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23942-GAW
                                PANEL ASSY, FRONT DOOR TRIM WITH NO TOP ROLL, RH B&O
                                LHD 9.5MY
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH NO TOP ROLL, RH B&O Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23942-HAW
                                PANEL ASSY, FRONT DOOR TRIM WITH NO TOP ROLL, RH B&O
                                rhd 9.5MY
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH NO TOP ROLL, RH B&O Genuine Aston Martin - New (to order)
                                # -
                                MPN: 8D33-23943-AAW
                                PANEL ASSY, FRONT DOOR TRIM COMPLETE, LH
                                LHD
                                PANEL ASSEMBLY, FRONT DOOR TRIM COMPLETE, LH Genuine Aston Martin - New (to order)
                                # -
                                MPN: 8D33-23943-BAW
                                PANEL ASSY, FRONT DOOR TRIM COMPLETE, LH
                                RHD
                                from £4,823.18
                                from £4,823.18
                                PANEL ASSEMBLY, FRONT DOOR TRIM COMPLETE, LH Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23943-EAW
                                PANEL ASSY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, LH B&O
                                LHD 9.5MY
                                from £5,746.30
                                from £5,746.30
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, LH B&O Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23943-FAW
                                PANEL ASSY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, LH B&O
                                rhd 9.5MY
                                from £2,174.03
                                from £2,174.03
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, LH B&O Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23943-GAW
                                PANEL ASSY, FRONT DOOR TRIM WITH NO TOP ROLL, LH B&O
                                LHD 9.5MY
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH NO TOP ROLL, LH B&O Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23943-HAW
                                PANEL ASSY, FRONT DOOR TRIM WITH NO TOP ROLL, LH B&O
                                rhd 9.5MY
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH NO TOP ROLL, LH B&O Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23942-KAW
                                PANEL ASSY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, B&O BLACK, RH
                                RHD Carbon Edition / DBS Ultimate
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, B&O BLACK, RH Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23943-KAW
                                PANEL ASSY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, B&O BLACK, LH
                                RHD Carbon Edition / DBS Ultimate
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, B&O BLACK, LH Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23942-JAW
                                PANEL ASSY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, B&O BLACK, RH
                                LHD Carbon Edition / DBS Ultimate
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, B&O BLACK, RH Genuine Aston Martin - New (to order)
                                # -
                                MPN: 9D33-23943-JAW
                                PANEL ASSY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, B&O BLACK, LH
                                LHD Carbon Edition / DBS Ultimate
                                PANEL ASSEMBLY, FRONT DOOR TRIM WITH LEATHER TOP ROLL, B&O BLACK, LH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 8D33-24070-AD
                                PAD ASSY, DOOR ARMREST UPPER, RH
                                from £201.01
                                from £201.01
                                PAD ASY AREST UPR RH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 8D33-24071-AD
                                PAD ASSY, DOOR ARMREST UPPER, LH
                                from £201.01
                                from £201.01
                                PAD ASY AREST UPR LH Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 8D33-237A76-AAW
                                CAP, FRONT DOOR TRIM REAR, RH
                                from £65.72
                                from £65.72
                                CAP, FRONT DOOR TRIM REAR, RH Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 8D33-237A77-AAW
                                CAP, FRONT DOOR TRIM REAR, LH
                                from £65.72
                                from £65.72
                                CAP, FRONT DOOR TRIM REAR, LH Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 8D33-23928-ABW
                                PANEL ASSY, DOOR TRIM, UPPER, RH
                                from £611.51
                                from £611.51
                                PANEL ASSEMBLY, DOOR TRIM, UPPER, RH Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 9D33-23928-AAW
                                PANEL ASSY, DOOR TRIM, UPPER, LEATHER, RH B&O
                                9.5MY
                                from £676.55
                                from £676.55
                                PANEL ASSEMBLY, DOOR TRIM, UPPER, LEATHER, RH B&O Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 8D33-23929-ABW
                                PANEL ASSY, DOOR TRIM, UPPER, LH
                                from £611.51
                                from £611.51
                                PANEL ASSEMBLY, DOOR TRIM, UPPER, LH Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 9D33-23929-AAW
                                PANEL ASSY, DOOR TRIM, UPPER, LEATHER, LH B&O
                                9.5MY
                                from £676.55
                                from £676.55
                                PANEL ASSEMBLY, DOOR TRIM, UPPER, LEATHER, LH B&O Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 701573
                                SCREW AND WASHER, M4 X 16 PAN HEAD
                                Supersession
                                Supersession
                                Genuine Aston Martin (no longer available to order)
                                # 5
                                MPN: 4G43-20838-AC
                                RETAINER, DOOR TRIM UPPER
                                RETAINER, DOOR TRIM, UPPER Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 4G43-24243-AFW
                                ARMREST ASSY, FRONT DOOR TRIM, LH
                                from £55.09
                                from £55.09
                                INSERT ASY FRONT DR A Genuine Aston Martin - New (to order)
                                INSERT ASY FRONT DR A Genuine Aston Martin - Used In stock
                                # 6
                                MPN: 4G43-24242-AFW
                                ARMREST ASSY, FRONT DOOR TRIM, RH
                                from £87.14
                                from £87.14
                                INSERT ASY FRONT DR Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 701441
                                SCREW, SMALL WASHER HEAD
                                SCREW, 4.2X13 PAN HEAD Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 4G43-23900-AB
                                PANEL, DOOR TRIM UPPER, RH
                                from £98.43
                                from £98.43
                                PANEL, DOOR TRIM, UPPER, RH Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 9D33-23900-AA
                                PANEL, DOOR TRIM UPPER, RH B&O
                                9.5MY
                                from £833.77
                                from £833.77
                                PANEL, FRONT DOOR TRIM UPPER, RH Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 4G43-23901-AB
                                PANEL, DOOR TRIM UPPER, LH
                                from £98.43
                                from £98.43
                                PANEL, DOOR TRIM, UPPER, LH Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 9D33-23901-AA
                                PANEL, DOOR TRIM UPPER, LH B&O
                                9.5MY
                                from £833.77
                                from £833.77
                                PANEL, FRONT DOOR TRIM UPPER, LH Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 8D33-23936-AAW
                                PANEL ASSY, FRONT DOOR TRIM LOWER, RH
                                PANEL ASSEMBLY, FRONT DOOR TRIM LOWER, RH Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 9D33-23936-AAW
                                PANEL ASSY, FRONT DOOR TRIM LOWER, RH B&O
                                9.5MY
                                from £818.13
                                from £818.13
                                PANEL ASSEMBLY, FRONT DOOR TRIM LOWER, RH B&O Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 8D33-23937-AAW
                                PANEL ASSY, FRONT DOOR TRIM LOWER, LH
                                from £1,142.87
                                from £1,142.87
                                PANEL ASSEMBLY, FRONT DOOR TRIM LOWER, LH Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 9D33-23937-AAW
                                PANEL ASSY, FRONT DOOR TRIM LOWER, LH B&O
                                9.5MY
                                from £818.13
                                from £818.13
                                PANEL ASSEMBLY, FRONT DOOR TRIM LOWER, LH B&O Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 8D33-23864-AAW
                                INSERT ASSY, DOOR TRIM PANEL, RH
                                from £240.72
                                from £240.72
                                INSERT ASSEMBLY, DOOR TRIM PANEL, RH Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 9D33-23864-AAW
                                INSERT ASSY, DOOR TRIM PANEL, RH B&O
                                9.5MY
                                from £278.89
                                from £278.89
                                INSERT ASSEMBLY, DOOR TRIM PANEL, RH B&O Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 8D33-23865-AAW
                                INSERT ASSY, DOOR TRIM PANEL, LH
                                from £240.72
                                from £240.72
                                INSERT ASSEMBLY, DOOR TRIM PANEL, LH Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 9D33-23865-AAW
                                INSERT ASSY, DOOR TRIM PANEL, RH B&O
                                9.5MY
                                from £271.71
                                from £271.71
                                INSERT ASSEMBLY, DOOR TRIM PANEL, RH B&O Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 8D33-23718-AAW
                                POCKET ASSY, DOOR, RH
                                from £417.83
                                from £417.83
                                POCKET ASSEMBLY, DOOR, RH Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 8D33-23719-AAW
                                POCKET ASSY, DOOR, LH
                                from £417.83
                                from £417.83
                                POCKET ASSEMBLY, DOOR, LH Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 8D33-C237898-AA
                                BEZEL, DOOR TRIM
                                from £5.95
                                from £5.95
                                BEZEL, DOOR TRIM Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 4G43-103081-BA
                                SCREW, M4 X 16 COUNTERSUNK SOCKET HEAD
                                from £0.47
                                from £0.47
                                SCREW CSK M4 X 16 Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 4G43-48963-AA
                                NUT, M4 CAGE
                                NUT, M4 CAGE Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 8D33-C18978-AB
                                GRILLE, RADIO SPEAKER, RH
                                Up to 9.5MY
                                from £65.04
                                from £65.04
                                GRILLE, RADIO SPEAKER, RH Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 8D33-C18979-AB
                                GRILLE, RADIO SPEAKER, LH
                                Up to 9.5MY
                                from £65.04
                                from £65.04
                                GRILLE, RADIO SPEAKER, LH Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 9D33-C18978-AB
                                GRILLE, SPEAKER, FRONT, RH
                                From 9.5MY, Silver
                                from £453.68
                                from £453.68
                                SPEAKER GRILLE, RH Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 9D33-C18978-BA
                                GRILLE, SPEAKER, FRONT, RH
                                From 9.5MY, Black
                                from £490.66
                                from £490.66
                                SPEAKER GRILLE, RH Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 9D33-C18979-AB
                                GRILLE, SPEAKER, FRONT, LH
                                From 9.5MY, Silver
                                from £453.68
                                from £453.68
                                SPEAKER GRILLE, LH Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 9D33-C18979-BA
                                GRILLE, SPEAKER, FRONT, LH
                                From 9.5MY, Black
                                from £490.66
                                from £490.66
                                SPEAKER GRILLE, LH Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 9D33-23940-AAW
                                FINISHER, RH
                                FROM 9.5MY
                                from £125.98
                                from £125.98
                                FINISHER, RH Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 9D33-23941-AAW
                                FINISHER, LH
                                FROM 9.5MY
                                from £125.98
                                from £125.98
                                FINISHER, LH Genuine Aston Martin - New (to order)
                                # 18
                                MPN: 4G43-02275-AB
                                DUCT, AIR OUTLET, LOWER, RH
                                from £2.96
                                from £2.96
                                SE VENAIR OUTLET Genuine Aston Martin - New (to order)
                                # 18
                                MPN: 4G43-02276-AB
                                DUCT, AIR OUTLET, LOWER, LH
                                from £2.96
                                from £2.96
                                SE VENAIR OUTLET Genuine Aston Martin - New (to order)
                                # 19
                                MPN: 9G33-14540-AA
                                SWITCH, DRIVER WINDOW
                                from £409.94
                                from £409.94
                                DRIVERS WINDOW SW Genuine Aston Martin - New (to order)
                                # 19
                                MPN: 9D33-14540-AA
                                SWITCH, DRIVER WINDOW B&O
                                9.5MY
                                from £114.95
                                from £114.95
                                SWITCH, DRIVER WINDOW B&O Genuine Aston Martin - New (to order)
                                # 19
                                MPN: 8G33-14717-AA
                                SWITCH, PASSENGER WINDOW
                                SWITCH, PASSENGER WINDOW Genuine Aston Martin - New (to order)
                                # 19
                                MPN: 9D33-14717-AA
                                SWITCH, PASSENGER WINDOW B&O
                                9.5MY
                                from £410.02
                                from £410.02
                                SWITCH, PASSENGER WINDOW B&O Genuine Aston Martin - New (to order)
                                # 20
                                MPN: 701655
                                RIVET
                                from £0.47
                                from £0.47
                                RIVET-4.8X6.3-12.7 Genuine Aston Martin - New (to order)
                                # 21
                                MPN: 701157
                                SCREW, LARGE WASHER HEAD
                                from £0.47
                                from £0.47
                                SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
                                # 22
                                MPN: 701448
                                NUT, U TYPE
                                from £0.47
                                from £0.47
                                NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                                SPLITTER NUTS (701448) Genuine Ferrari Part - New (to order)
                                # 23
                                MPN: 703027
                                SCREW, M4 X 10 TORX PAN HD
                                from £0.47
                                from £0.47
                                SCREW M4X10 PAN HD Genuine Aston Martin - New (to order)
                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
