aston martin db9 (2013) cobra cat 5 tracker, 14.5my parts diagram

190103-02A - Cobra CAT 5 Tracker, 14.5MY

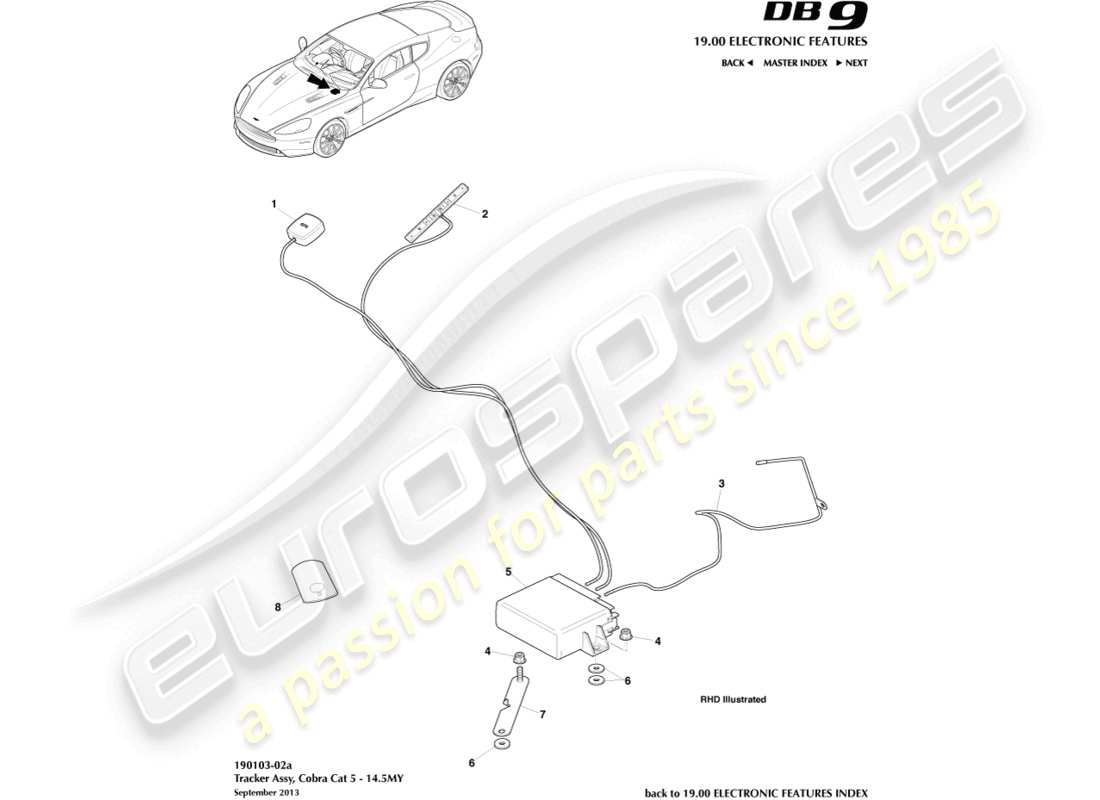

Aston Martin DB9 (2013) Cobra CAT 5 Tracker, 14.5MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: EG33-10E921-AA
              ANTENNA, CAT 5 GPS
              from £55.55
              from £55.55
              ANTENNA, CAT 5 GPS Genuine Aston Martin - New (to order)
              # 2
              MPN: EG33-19A390-AA
              ANTENNA, CAT 5 GSM
              from £46.30
              from £46.30
              ANTENNA, CAT 5 GSM Genuine Aston Martin - New (to order)
              # 3
              MPN: EG33-19H309-AA
              ANTENNA, RF TAG
              from £24.11
              from £24.11
              ANTENNA, RF TAG Genuine Aston Martin - New (to order)
              # 4
              MPN: 703163
              NUT, M6, HEX FLANGE HEAD
              from £0.47
              from £0.47
              NUT M6 FLG LOCKING Genuine Aston Martin - New (to order)
              # 5
              MPN: EG33-19G311-AA
              TRACKER, COBRA CAT 5
              Up to 17MY
              from £981.67
              from £981.67
              TRACKER, COBRA CAT 5 Genuine Aston Martin - New (to order)
              # 5
              MPN: HY53-19G311-AA
              TRACKER, COBRA CAT 5
              FROM 17MY
              from £1,425.79
              from £1,425.79
              TRACKER, COBRA CAT 5 Genuine Aston Martin - New (to order)
              # 6
              MPN: 4G43-16C694-AB-PK
              WASHER, NYLON
              Pack of 10
              from £6.16
              from £6.16
              WASHER-NYLON(PACK 10 Genuine Aston Martin - New (to order)
              # 7
              MPN: DD33-19G312-BA
              BRACKET, COBRA CAT 5 TRACKER
              from £12.92
              from £12.92
              BRACKET, COBRA CAT 5 TRACKER Genuine Aston Martin - New (to order)
              # 8
              MPN: EG33-19H387-AA
              DRIVERS IDENTIFICATION CARD, COBRA CAT 5 TRACKER
              from £0.47
              from £0.47
              DRIVERS IDENTIFICATION CARD, COBRA CAT 5 TRACKER Genuine Aston Martin - New (to order)
              # -
              MPN: 77-84981-PK
              FOAM STRIP, ANTI RATTLE
              Pack of 10
              from £19.96
              from £19.96
              FOAM STRIP-10 Genuine Aston Martin - New (to order)
