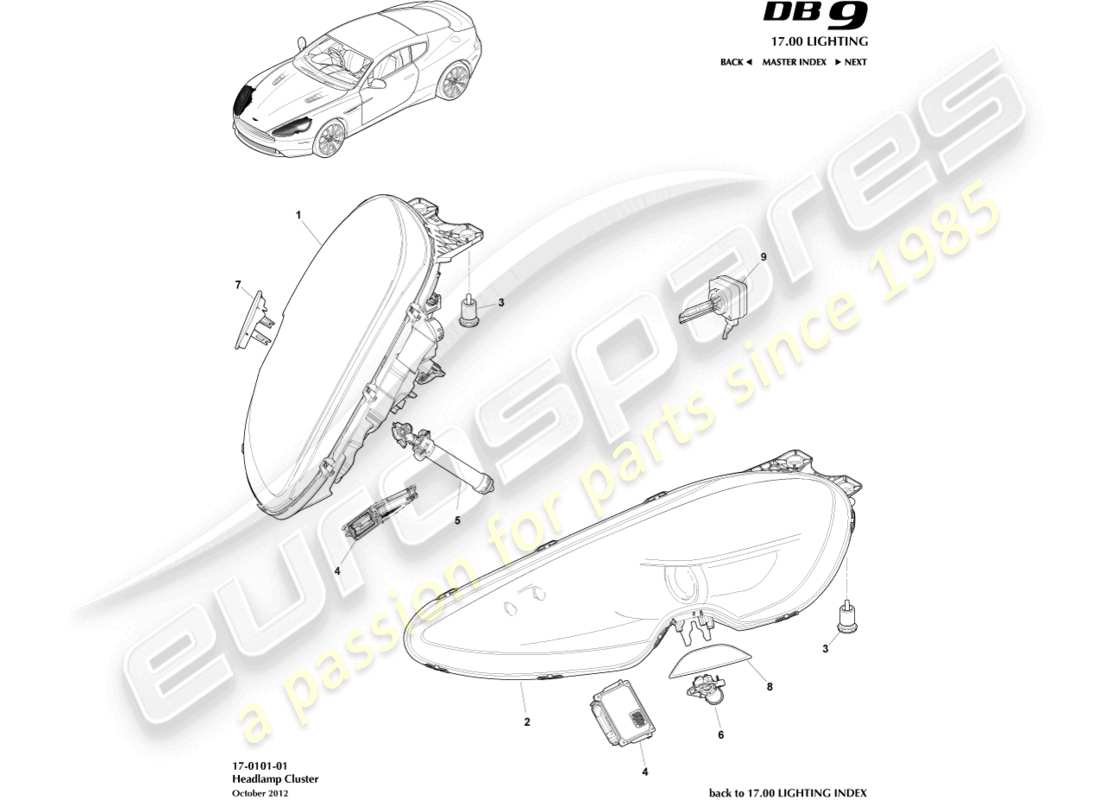

17-0101-01 - Headlights

Aston Martin DB9 (2013) Headlights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: AD43-13W029-AE
          HEADLAMP ASSEMBLY, RH
          RHD
          from £2,113.16
          from £2,113.16
          HEADLAMP ASSEMBLY, RH Genuine Aston Martin - New (to order)
          # 1
          MPN: AD43-13W029-BF
          HEADLAMP ASSEMBLY, RH
          LHD, ROW
          from £2,113.16
          from £2,113.16
          HEADLAMP ASSEMBLY, RH Genuine Aston Martin - New (to order)
          # 1
          MPN: AD43-13W029-CD
          HEADLAMP ASSEMBLY, RH
          Up To VIN A16646, LHD, FEDERAL
          HEADLAMP ASSEMBLY, RH Genuine Aston Martin - New (to order)
          # 1
          MPN: AD43-13W029-CE
          HEADLAMP ASSEMBLY, RH
          From VIN B16647, LHD, FEDERAL
          from £2,113.16
          from £2,113.16
          HEADLAMP ASSEMBLY, RH Genuine Aston Martin - New (to order)
          # 2
          MPN: AD43-13W030-AE
          HEADLAMP ASSEMBLY, LH
          RHD
          from £2,113.16
          from £2,113.16
          HEADLAMP ASSEMBLY, LH Genuine Aston Martin - New (to order)
          # 2
          MPN: AD43-13W030-BF
          HEADLAMP ASSEMBLY, LH
          LHD, ROW
          from £2,113.16
          from £2,113.16
          HEADLAMP ASSEMBLY, LH Genuine Aston Martin - New In stock
          # 2
          MPN: AD43-13W030-CD
          HEADLAMP ASSEMBLY, LH
          Up To VIN A16646, LHD, FEDERAL
          HEADLAMP ASSEMBLY, LH Genuine Aston Martin - New (to order)
          # 2
          MPN: AD43-13W030-CE
          HEADLAMP ASSEMBLY, LH
          From VIN B16647, LHD, FEDERAL
          from £2,113.16
          from £2,113.16
          HEADLAMP ASSEMBLY, LH Genuine Aston Martin - New (to order)
          # 3
          MPN: 8G43-13037-AA
          HEADLAMP ADJUSTER
          3 per Headlamp
          from £6.09
          from £6.09
          H/LAMP ADJUSTER M20 Genuine Aston Martin - New (to order)
          # -
          MPN: 703144
          BOLT, M6X45, FLANGE PAN TORX
          3 per Headlamp
          from £1.42
          from £1.42
          BOLT M6X45 PAN Genuine Aston Martin - New (to order)
          # -
          MPN: 697810-PK
          WASHER, M6X25, BLACK
          3 per Headlamp, Pack of 10
          WASHER M6X25MM, STAINLESS Genuine Aston Martin - New (to order)
          # 4
          MPN: AD43-13C169-AA
          BALLAST ASSEMBLY, HID SERVICE KIT
          1 per unit
          from £211.10
          from £211.10
          MODULE ASSEMBLY, BALLAST Genuine Aston Martin - New (to order)
          # 5
          MPN: AD43-13C024-AA
          JET WASH ASSEMBLY, RH
          from £253.72
          from £253.72
          JET WASH UNIT ASSEMBLY, RH Genuine Aston Martin - New (to order)
          # 6
          MPN: AD43-13C025-AA
          JET WASH ASSEMBLY, LH
          from £253.72
          from £253.72
          JET WASH UNIT ASSEMBLY, LH Genuine Aston Martin - New (to order)
          # 7
          MPN: AD43-13C026-AA
          COVER, HEADLAMP WASH RH
          from £66.64
          from £66.64
          HL WASH COVER RH Genuine Aston Martin - New (to order)
          # 8
          MPN: AD43-13C027-AA
          COVER, HEADLAMP WASH LH
          from £66.64
          from £66.64
          HL WASH COVER LH Genuine Aston Martin - New (to order)
          # 9
          MPN: 4G43-37-10226
          BULB, HEADLAMP HID
          1 per Headlamp
          from £108.87
          from £108.87
          BULB-H/LAMP HID Genuine Aston Martin - New (to order)
          # -
          MPN: AD43-13C028-AA
          BULB ACCESS COVER
          1 per Headlamp
          from £6.66
          from £6.66
          BULB ACCESS COVER Genuine Aston Martin - New (to order)
